PEARL WASH

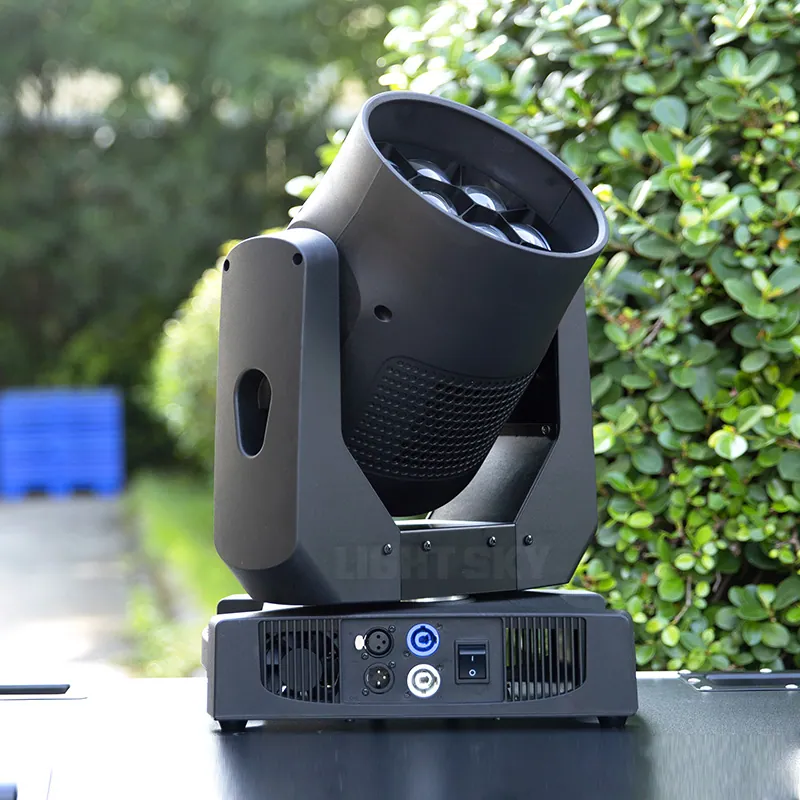

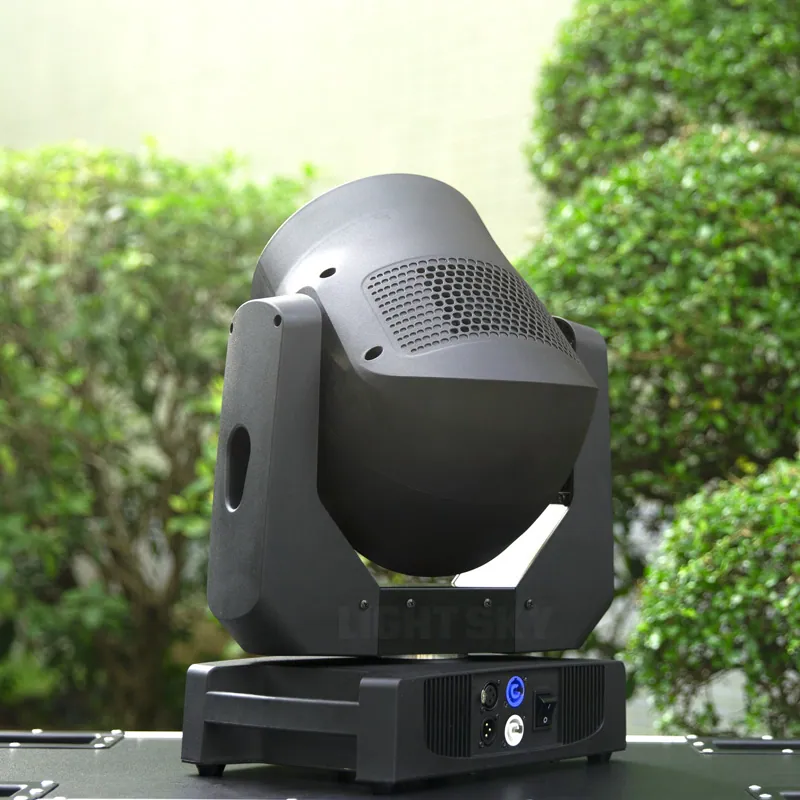

The LiGHT SKY pearl wash is a professional stage led wash light designed for a variety of stage applications.

Light source: 12Pcs×40W RGBL LED multichips,(optional: 12×40W RGBW LED multichips)
Power supply: AC100-240V , 50/60Hz
Beam angle / zoom: 7-55°
Protocols: DMX-512, RDM
Net weight: 15.3Kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video2 manufacturer's videos · 5:03

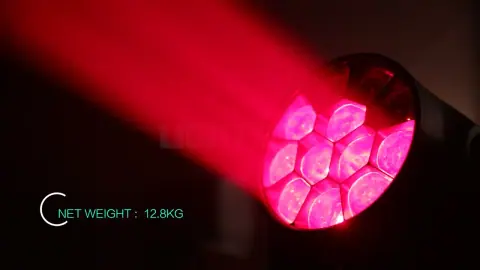

LIGHT SKY PEARL WASHVideo 1 of 2 · 2:09

02SpecificationManufacturer's data · 4 groups · 43 values

What this product is, in numbers.

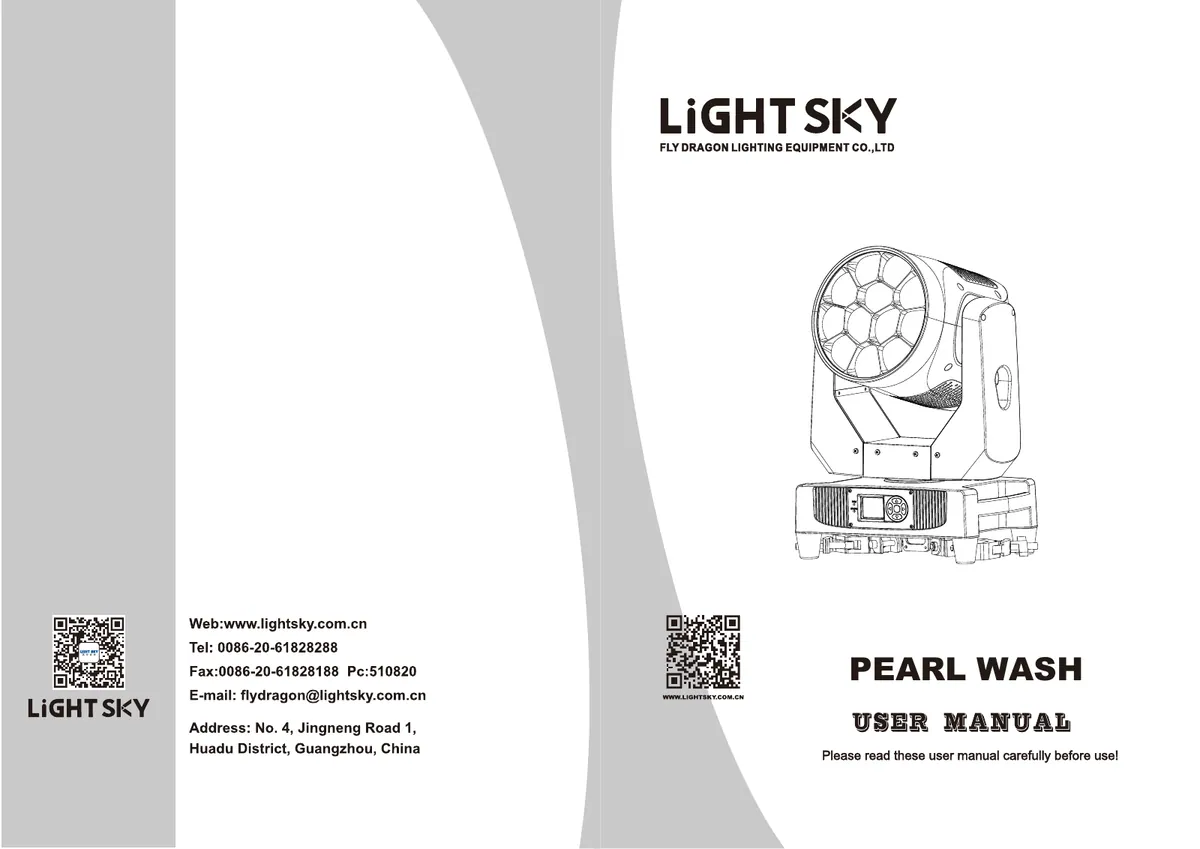

PDFUser manualEN · 21 pages · 4.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System7

Voltage: AC100-240V , 50/60Hz
Power: 500W, PF 0.985;
Power in connector: Neutrik power

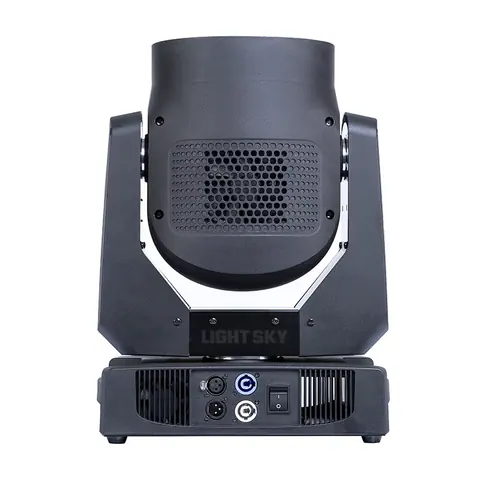

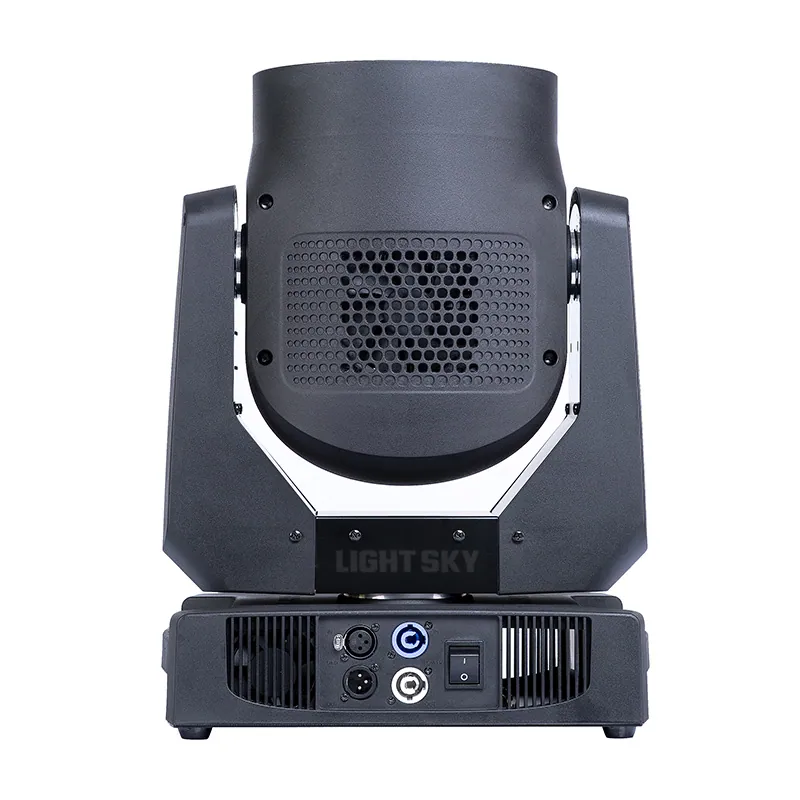

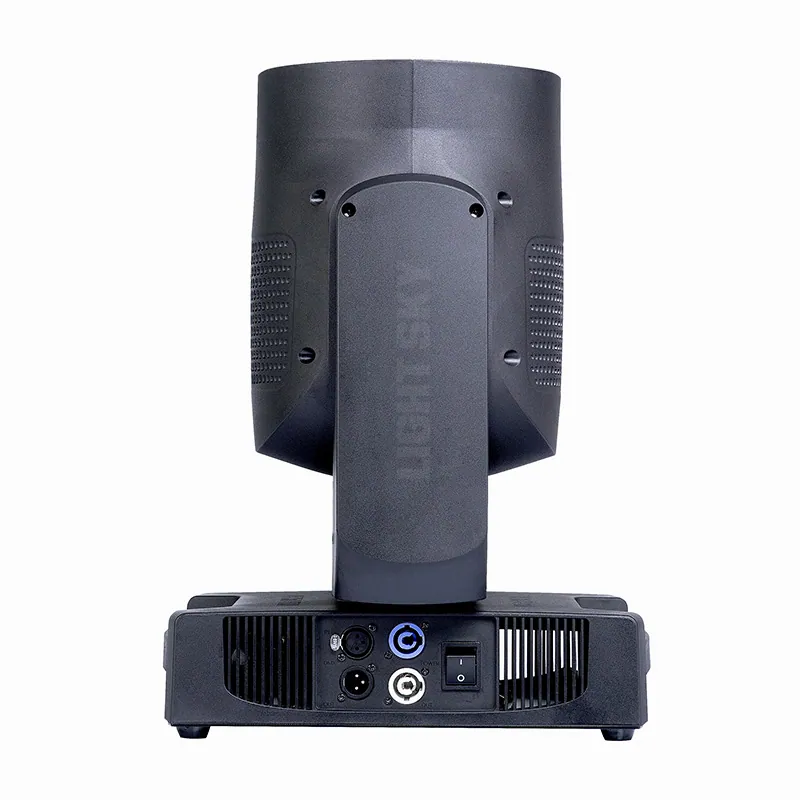

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Light source: 12Pcs×40W RGBL LED multichips,(optional: 12×40W RGBW LED multichips)
LED life expectancy: 30000 h
Optical system: High precision combination structure, high permeable glass light rod +PMMA lens

02Color / GOBO / Effects16

Colour: RGBL (optional: RGBW); Colour rainbow effect with variable speed
Light color temperature range: 2200 K – 8000k;
Zoom range: 7-55°
CRI: 80
Lumen Output: 3500 lm
Illuminance: 45514lx @3M
Three operating modes: wash, beam, FX (Kaleido effects)
Zoom system: Linear electric zoom
Lens rotation: Front lens can rotated infinity
LED Control: Multi-point control (at least 3 LED chips) effect
Ring control: Ring control effect
Fade in and out: Fade in and out gradient effect(at least 3 LED chips)
Effect macro: Static effect macro functions and Dynamic effects macro function;; Adjustable speed of effect macro function
Strobe: Pre-programmed random strobe & pulse effects(0.5-25Hz/second)
Dimmer: 0-100% linear adjustment,High resolution electronic dimming

03Control System11

Pan / Tilt: 540°/270°
Pan / Tilt Resolution: 2.11°/1.05
Movement control: Standard and Speed
Pan / Tilt: Automatic Pan / Tilt position correction
IP Set: RDM two-way data transmission,Remote reset DMX address。

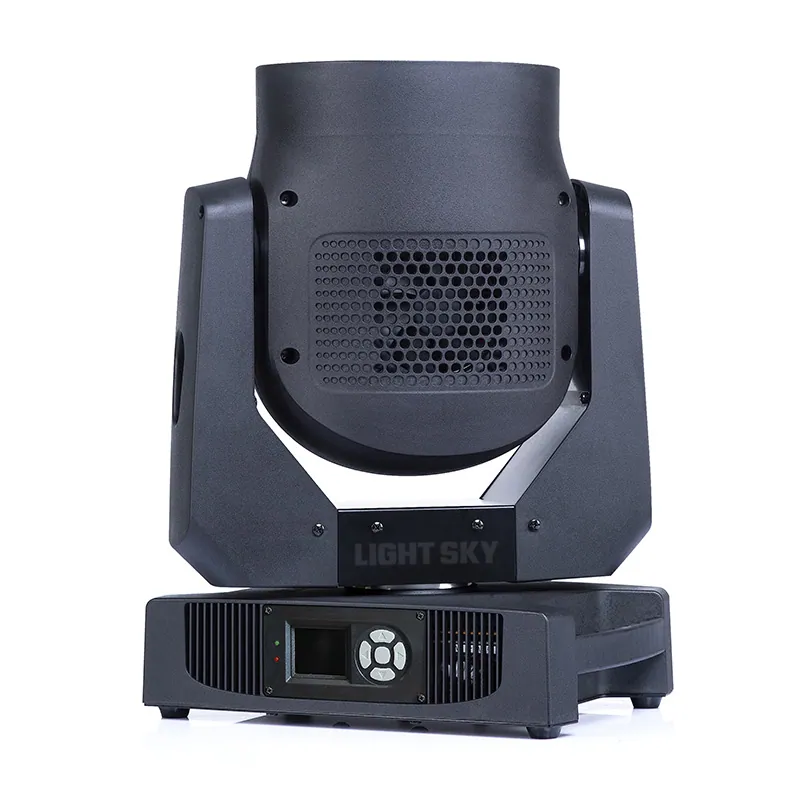

Display: The display panel adopts a 1.77-inch TFT screen
Intelligent control: Display board can record device’s using time , show device’s temperature, channel data and software version .
Error alarm: Automatic alarm for fixture failure
Software upgrade: Upgrade with DMX
Control protocol: DMX-512, RDM
Channel mode: 26CH(Standard), 38CH(extended)

04Appearance Parameters9

Housing: The fixture adopted heat-proof engineering plastics and module pressing alloy materials.

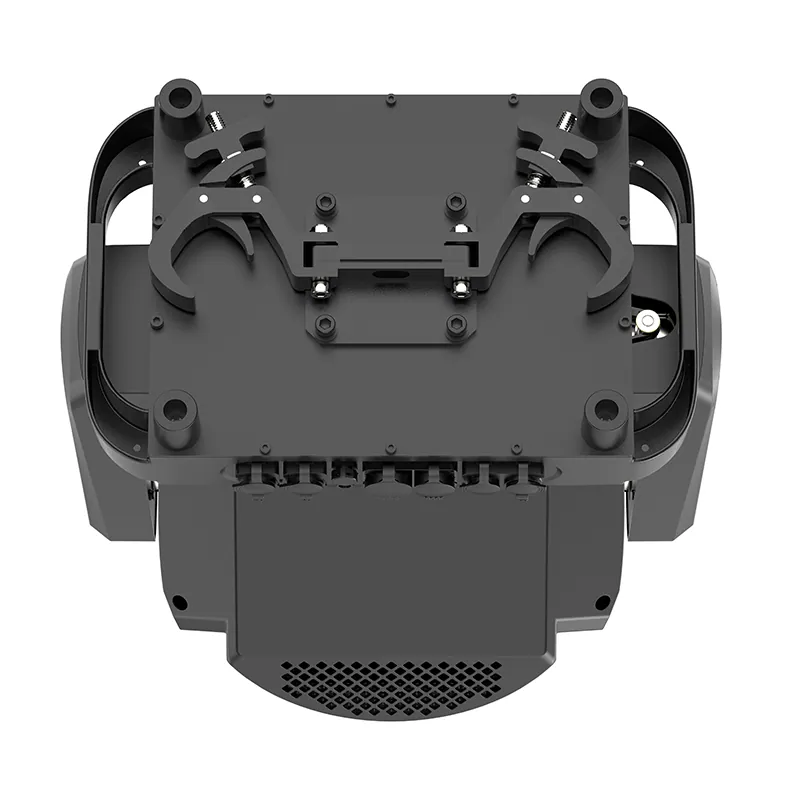

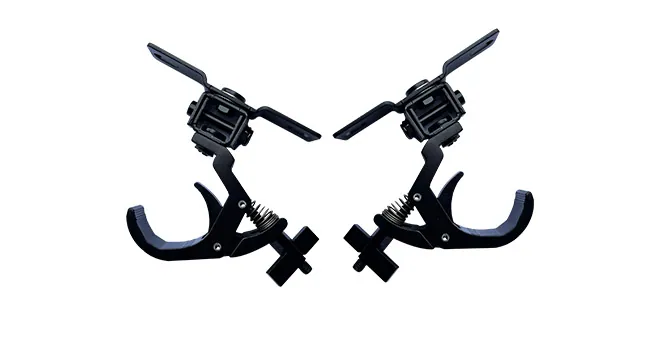

Hanging system: foldable light hook
IP rate: IP20

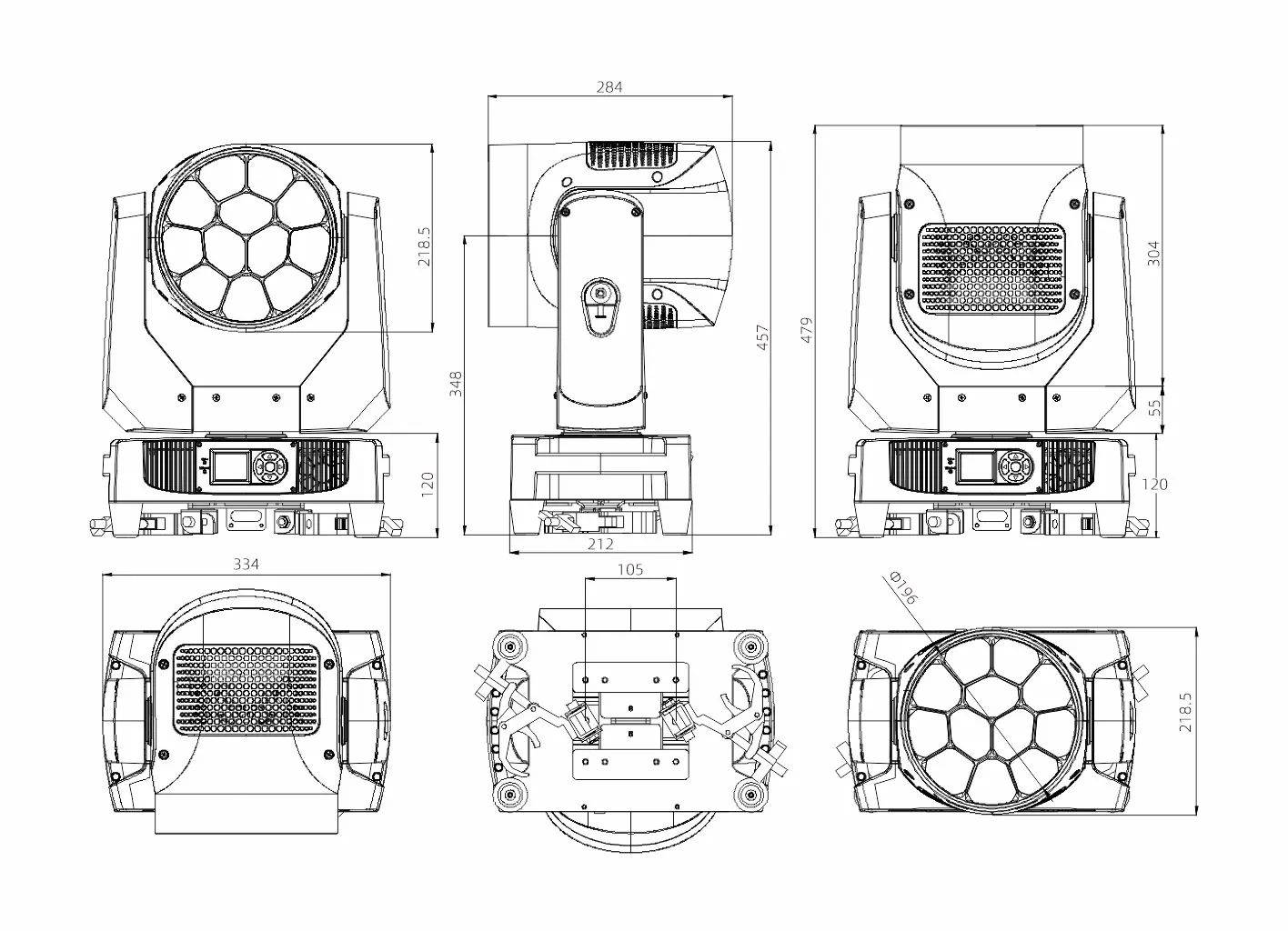

Light dimension: 334×218.5×479(mm)
N.W: 15.3Kg/pcs
Carton dimension: 410×290×635(mm)
G.W with carton: 17.6Kg

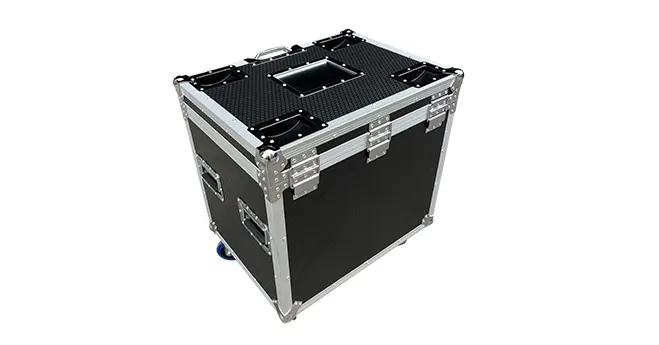

Flycase dimension: 660X500X720(mm)
G.W with fly case: 62.1Kg(2 in 1)

03DescriptionManufacturer's description

What it is.

The LiGHT SKY pearl wash is a professional stage led wash light designed for a variety of stage applications. Combining vibrant color rendering with smooth, even coverage, the LED moving wash lights delivers stunning wash effects for theaters, concerts, and live events.

This stage wash lighting fixture’s versatile design ensures seamless integration into any production, offering dynamic lighting control and exceptional brightness for captivating visual impact.

FEATURES

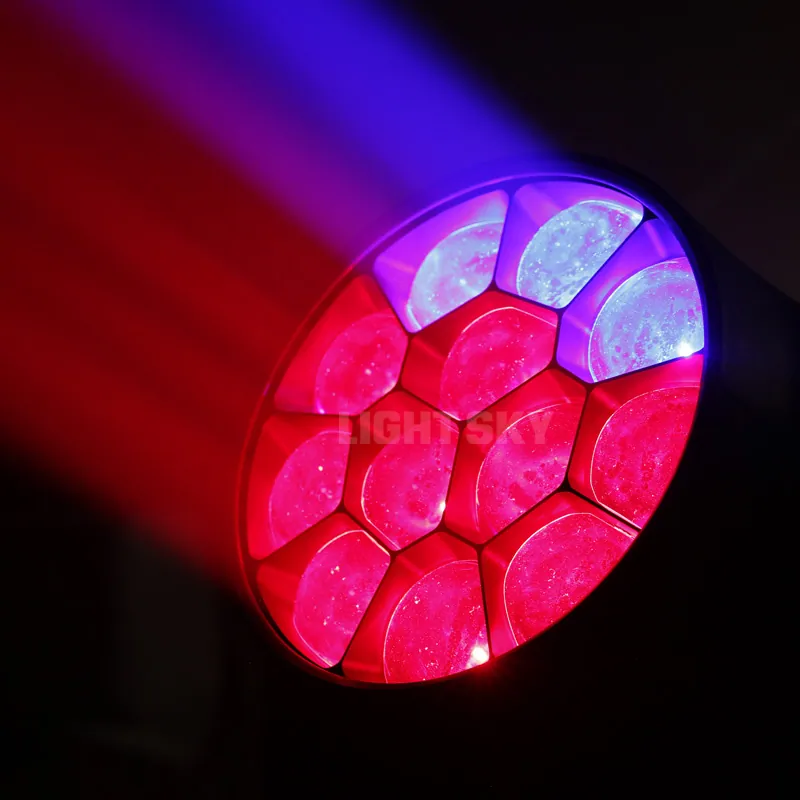

High-Power Light Source:The moving head light wash utilizes 12 high-efficiency 40W RGBL 4-in-1 LEDs to deliver exceptional brightness and color performance.

Extended Operational Lifespan: With an impressive 30,000-hour lifespan, the moving wash light significantly reduces maintenance requirements and operational costs.

Advanced Color Mixing System:The RGBL color engine provides superior mixing capabilities for creating vibrant macro color effects across the entire spectrum.

Full–Color Temperature Control:Featuring CTO adjustment from 2200K to 8000K, the LiGHT SKY pearl wash offers complete warm-to-cool white light customization.

Dual-Function Design: This innovative stage wash lighting seamlessly combines both beam and wash functionalities in a single compact fixture.

High-Intensity Output: The powerful optical system of the moving head beam light ensures excellent throw distance and brightness for large-scale applications.

Intelligent Group Control : Each cluster of 3 LEDs can be independently controlled for precise zoned lighting effects.

Motorized Zoom System: The 7° to 55° linear zoom range allows a smooth transition between tight spots and wide flood effects.

Precision Movement System: High-speed XY movement with accurate positioning enables dynamic stage wash lighting effects and quick repositioning.

Professional Dimming Performance: The flicker-free dimming system maintains perfect stability even under high-definition camera conditions.

Versatile Applications:Ideal for professional applications including theatre productions, concert touring, and special events.
