Sheet 05.709

LIGHT SKY · Wash

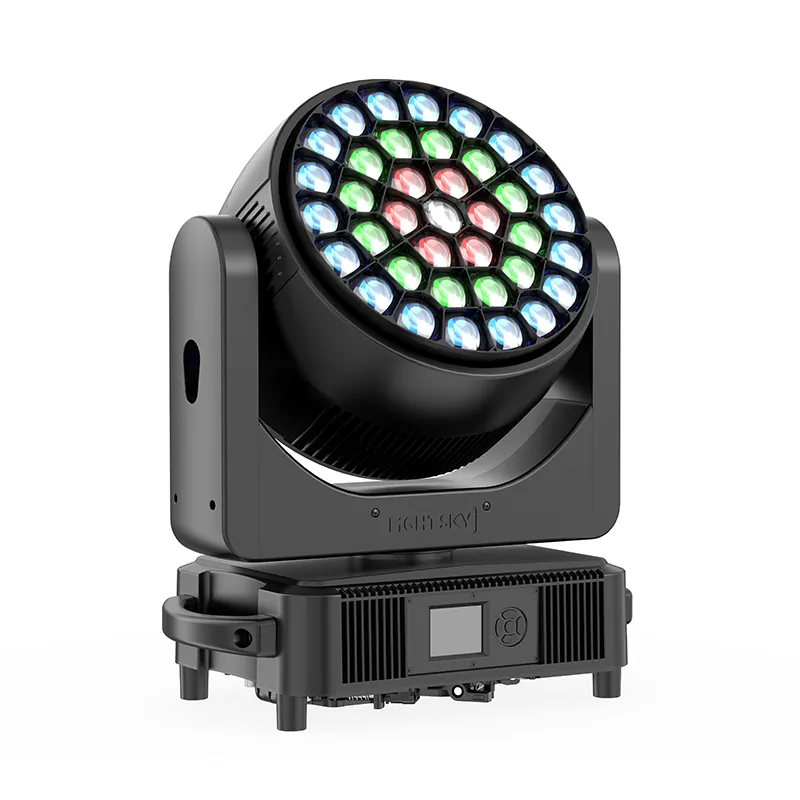

PEARL WASH MAX

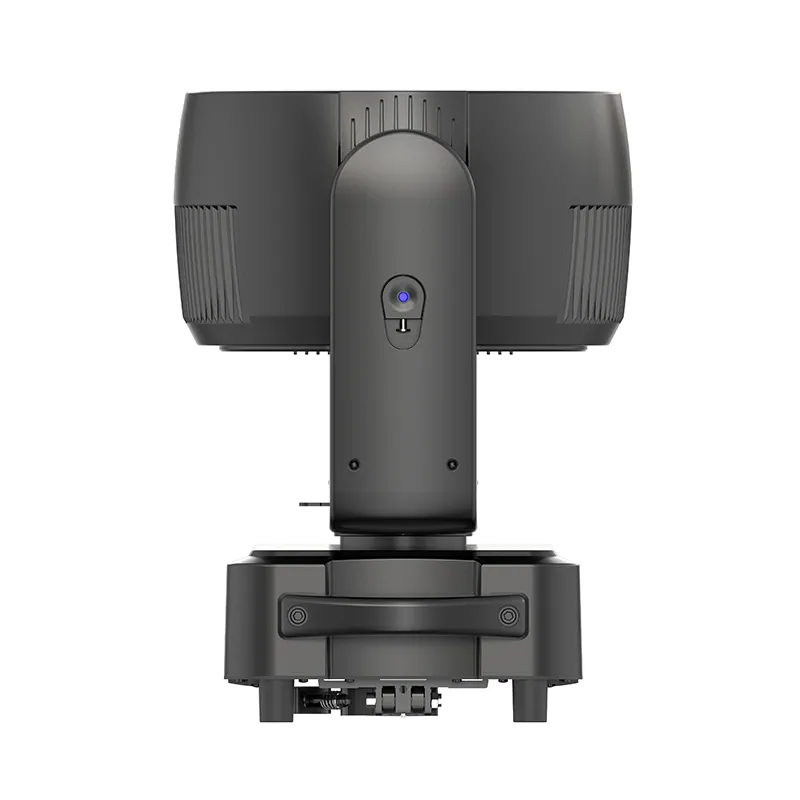

PEARL WASH MAX is a high-output LED wash moving head in the Pearl Series, created for demanding indoor productions requiring exceptional brightness, color accuracy and creative flexibility.

Light source: 37×60W RGBWLA LED
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 5°~42°
DMX channels: 26CH, 44CH, 56CH, 39CH(see channel chart for details)
Protocols: DMX512, RDM, Art-Net, sACN
Net weight: 28.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:06

LIGHT SKY PEARL WASH MAX2:06

02SpecificationManufacturer's data · 10 groups · 43 values

What this product is, in numbers.

PDFUser manualEN · 23 pages · 3.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Optics9

Light Source: 37×60W RGBWLA LED

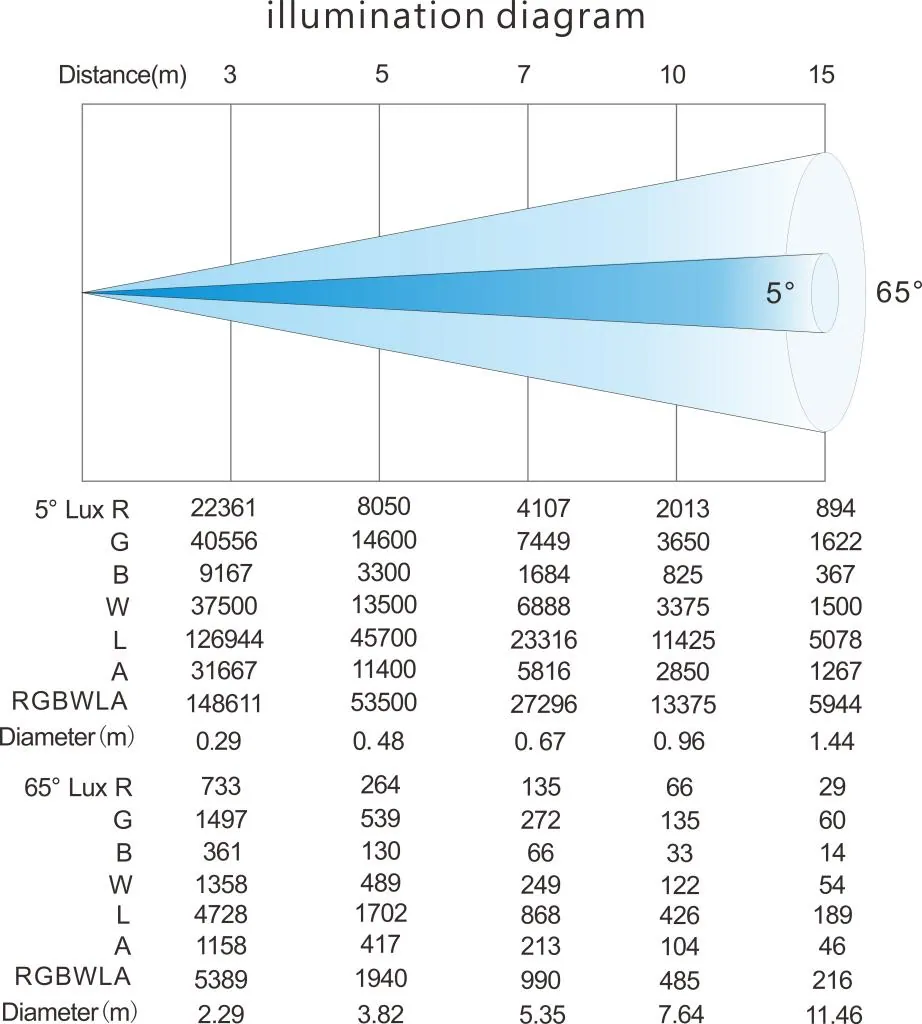

Beam Angle: 5°~42°
Field Angle: 7.8°~65°
Colour Temperature Output: 2500K – 10000K
Color Rendering Index (CRI): Ra ≥ 95
Illuminance: 53, 500 lx@ 5m
Lumem Output: 20, 000 lm
Light Source Theory Life Span: 30, 000 h; LiGHTSKY Colorfy Calibration

02Effects6

Color Mixing System: Uniform RGBWLA color mixing system and rainbow effect
Zoom System: Linear electronic zoom
Ring Control: Light source supports ring control with dynamic ring effects
Effect Macros: Includes static and dynamic effect macro functions
Dimming: Electronic dimming with four dimming curves, four dimming frequencies, and four dimming speeds
Strobe: 1-25Hz electronic strobe and random strobe effects

03Control and Programming4

Control channels: 26CH, 44CH, 56CH, 39CH(see channel chart for details)
Protocols: DMX512, RDM, Art-Net, sACN
Control Protocols: 3 pin or 5 pin XLR IN/OUT, RJ45 IN/OUT
Display: LCD screen

04Software2

Software Upgrade: Via DMX/USB interface
Temperature Intelligent Control: Ensures LED longevity

05Pan/Tilt Movement4

Pan: 540°, 8-bit / 16-bit precision
Tilt: 215° , 8-bit / 16-bit precision; Automatic reset with error correction; Pan/Tilt Lock

06Power and Electrical4

Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 1500W
Power Factor: 0.977
Maximum Current of Fixture: 6.63/220V,15A/100V

Show the full specificationHide the rest of the specification4 more groups · 14 values

07Size and Weight4

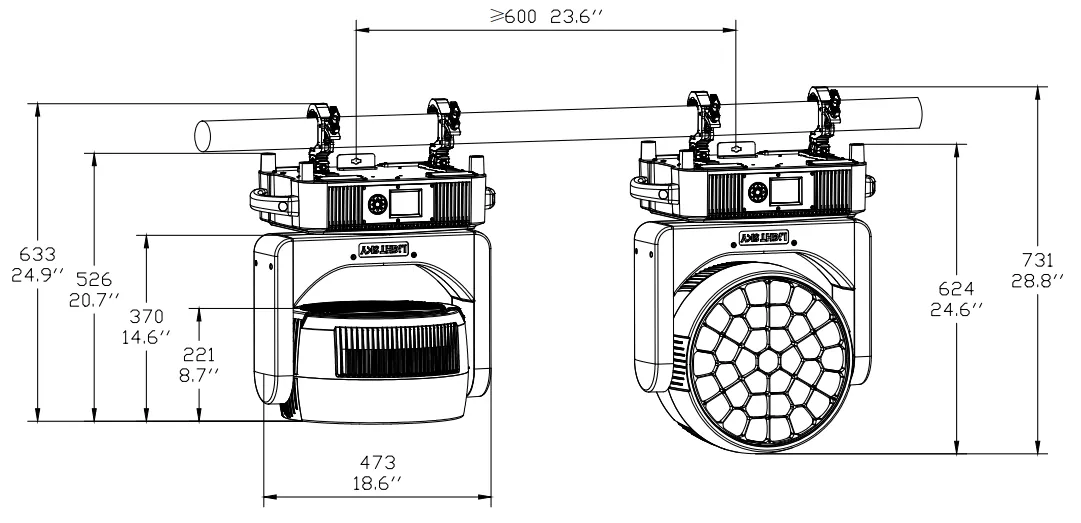

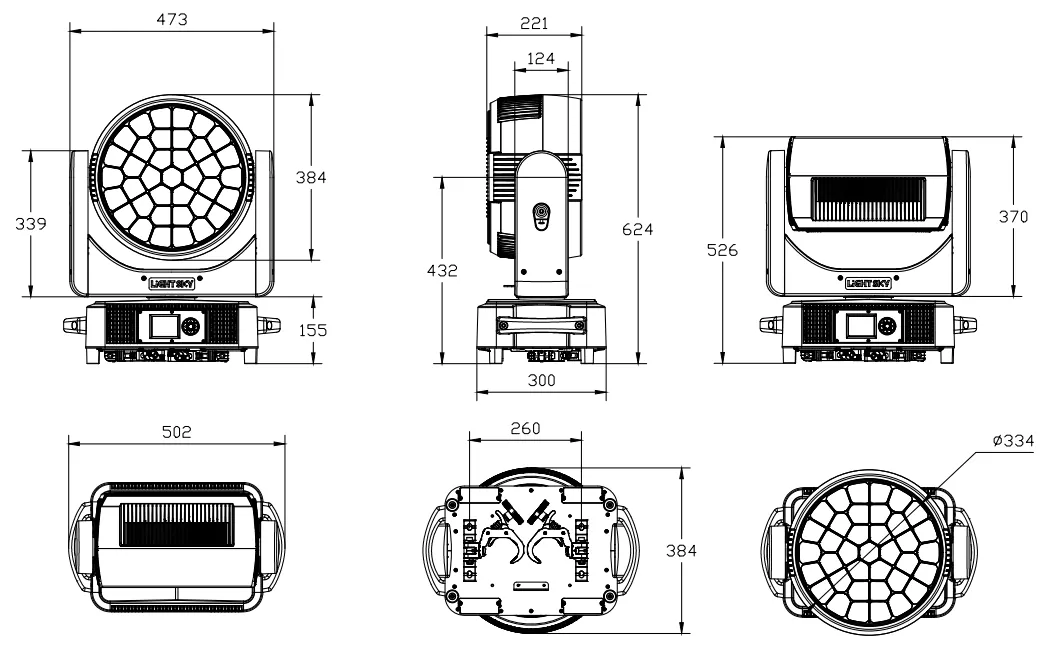

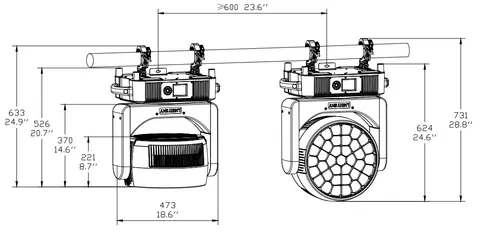

Product Dimensions: 502mm × 384mm × 624mm
Net Weight: 28.6kg
Carton Dimensions: 620mm × 470mm × 655mm
Gross Weight: 35.7kg

08Other3

IP Rate: IP20
Operating Environment: -10°C ~ 45°C
Maximum Surface Temperature of Fixture: 55°C

09Factory Configuration4

Power Cable: 1 pc (Part No.: C1400050050)
Signal Cable: 1 pc (Part No.: C1400060031)
Safety Rope: 2 pcs (Part No.: F0200010010)

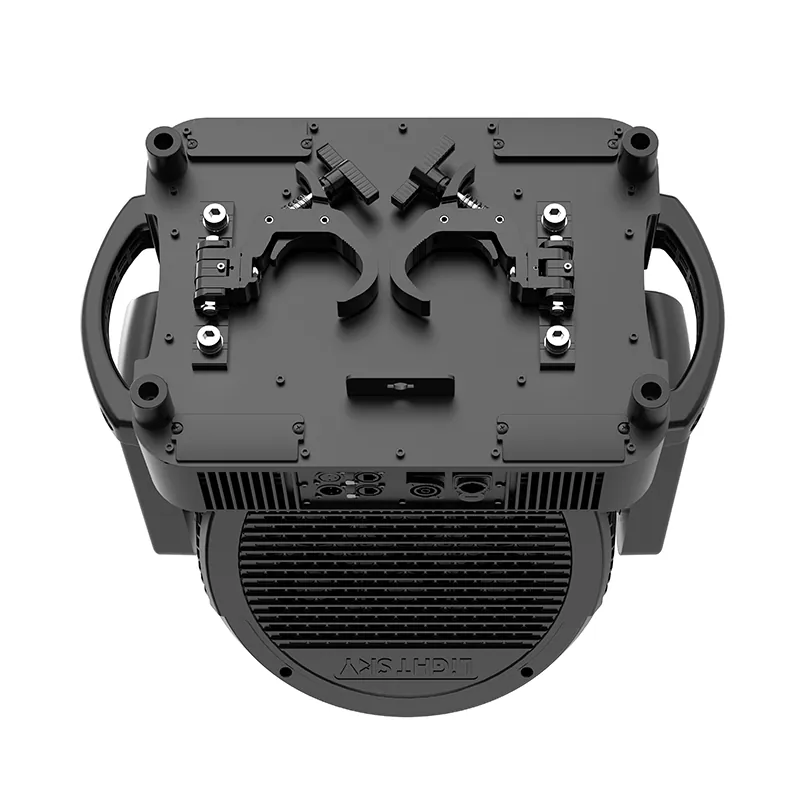

Clamp: 2 pcs Compatible with tubes of Ø50-60 mm(Part No.: C0499990061)

10Optional Accessories/Packaging3

Flycase Part No.: B0101160001
Flycase Dimensions(2 in 1): 970mm × 660mm × 815mm
Flycase Gross Weight(2 in 1): 99.8kg

03DescriptionManufacturer's description

What it is.

LED MOVING BEAM WASH

PEARL WASH MAX is a high-output LED wash moving head in the Pearl Series, created for demanding indoor productions requiring exceptional brightness, color accuracy and creative flexibility. Combining high-power performance with the iCC™ (LiGHTSKY Colorfy Calibration) system, wide zoom coverage and high color rendering, it is ideal for concerts, television studios, touring productions and other premium entertainment applications.

FEATURES

▪ PEARL WASH MAX is a multi-functional moving head fixture combining wash and beam effects.

▪ It features 37 × 60W RGBWLA LEDs and a uniquely designed optical lens with scratch-resistant, anti-static, and high-transmittance

properties, ensuring stable and consistent light output.
▪ With an ultra-wide zoom range of 5°–65°, the fixture offers excellent flexibility.
▪ It also includes multiple color macros and dynamic effect macros.

▪ PEARL WASH MAX is suitable for stage performances, TV productions, music festivals, and rental events, delivering versatile perfor

mance for wash lighting, color mixing, and beam effects.
