LIGHT SKY · Hybrid fixtures

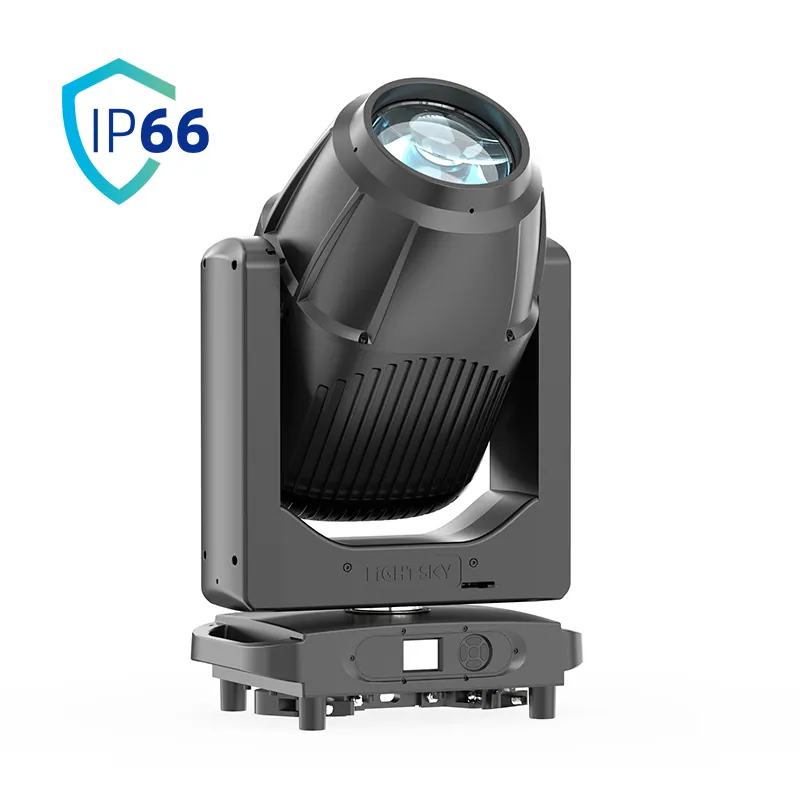

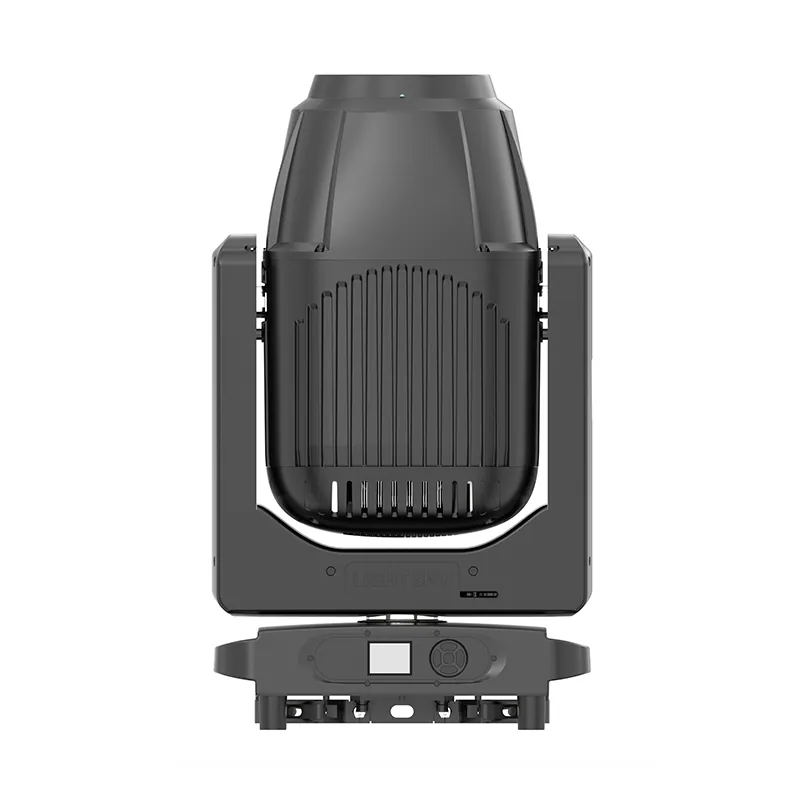

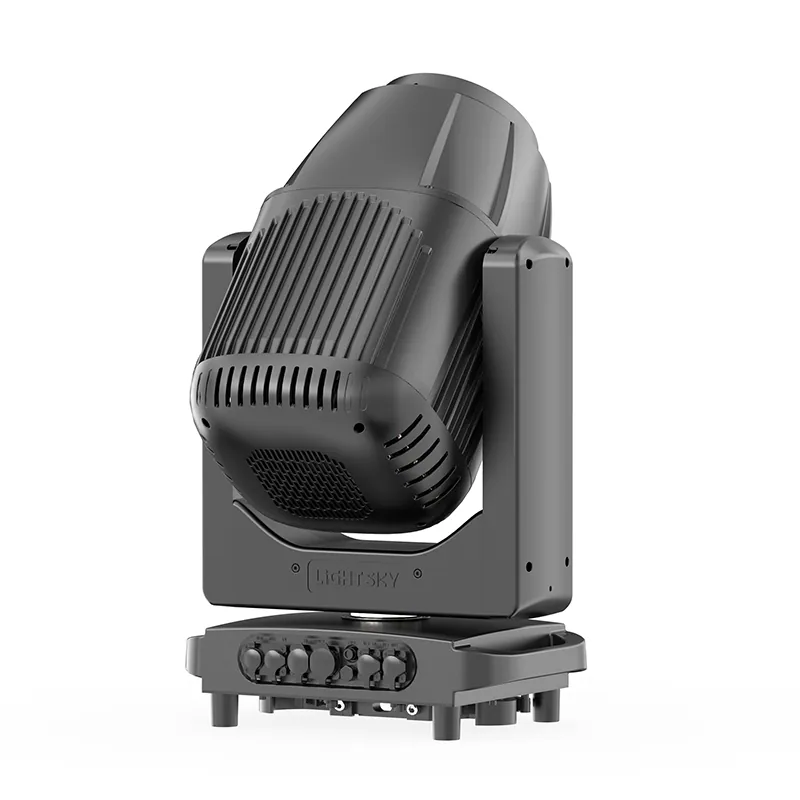

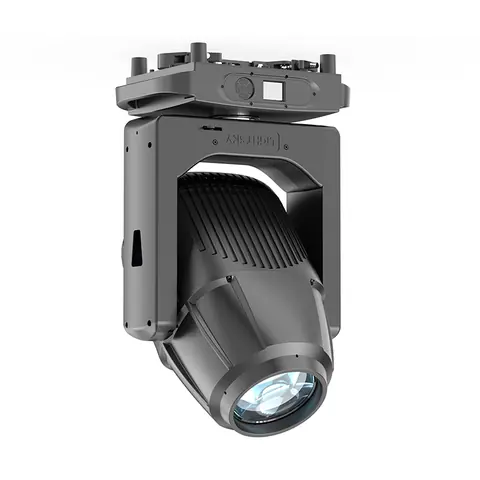

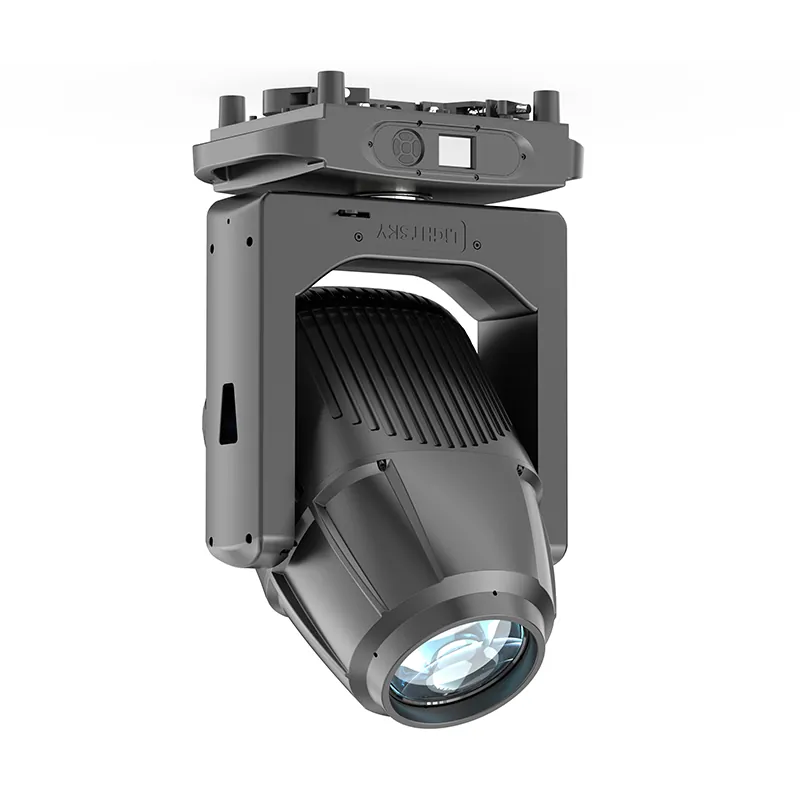

AURORA AQUA

The AURORA AQUA is a 3-in-1 BSW moving head beam light with high brightness, a 160 mm optical lens, and an advanced Dynamic Temperature Control System™. It delivers reliable performance for theaters, concerts, TV studios, stadiums, and outdoor events.

Light source: USHIO NSL U8 lamp
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: Beam mode 1.8°-24°, Spot mode 4°-45°, Wash mode 2.6°-43°
DMX channels: 33CH,35CH, 36CH, 39CH
Colour temperature: 7000K
Net weight: 31.1 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 47 values

What this product is, in numbers.

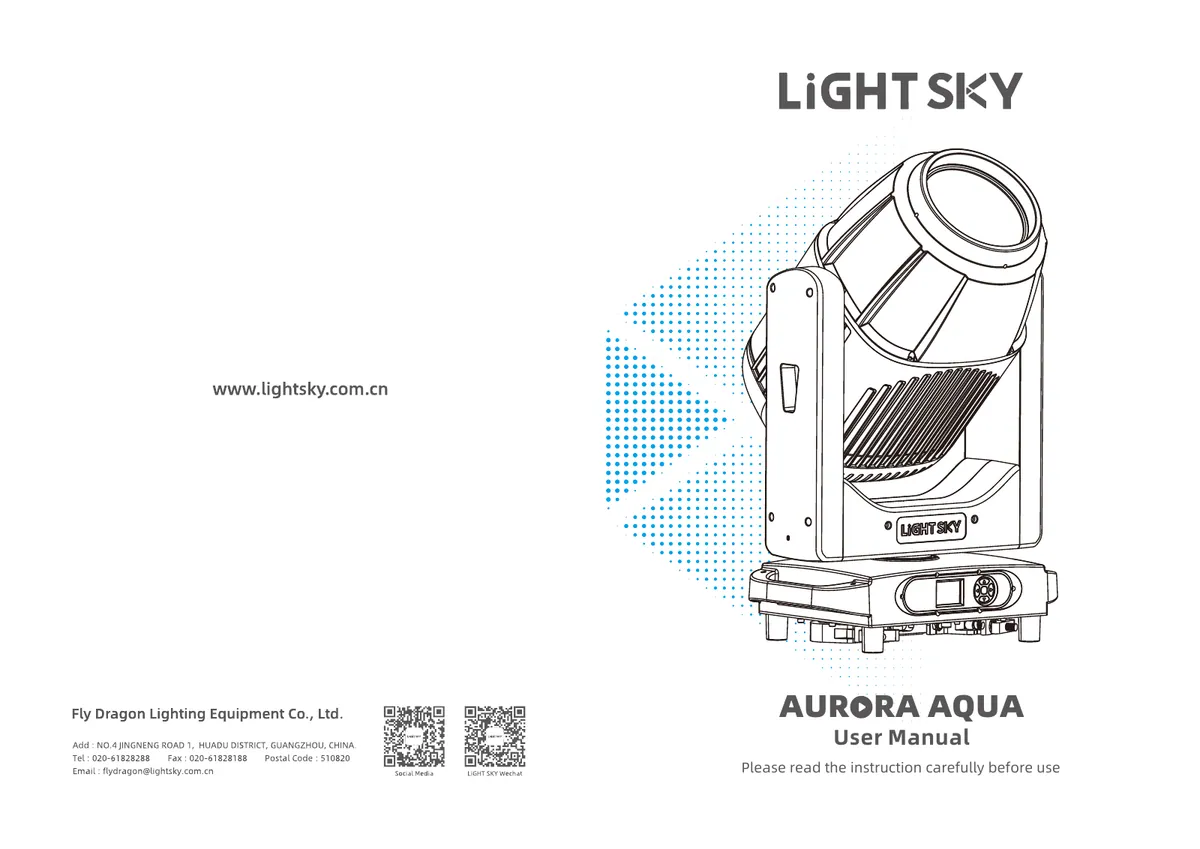

PDFUser manualEN · 40 pages · 8.4 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL9

Light Source: USHIO NSL U8 lamp
Zoom Range: Beam mode 1.8°-24°, Spot mode 4°-45°, Wash mode 2.6°-43°
Front Lens: High-transmittance coating, φ 160 mm
Color Temperature: 7000K
Colour Temperature Output: 7000K
Total Lumen Output: 16,000 lm
Color Rendering Index (CRI): Ra≥80 (with filter Ra≥88)

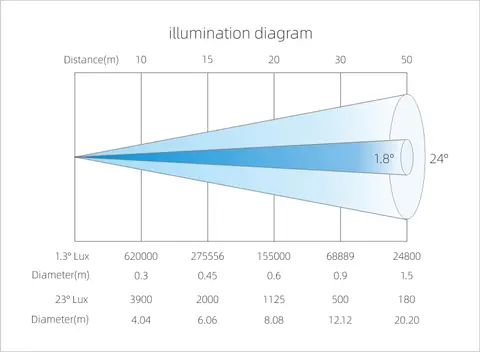

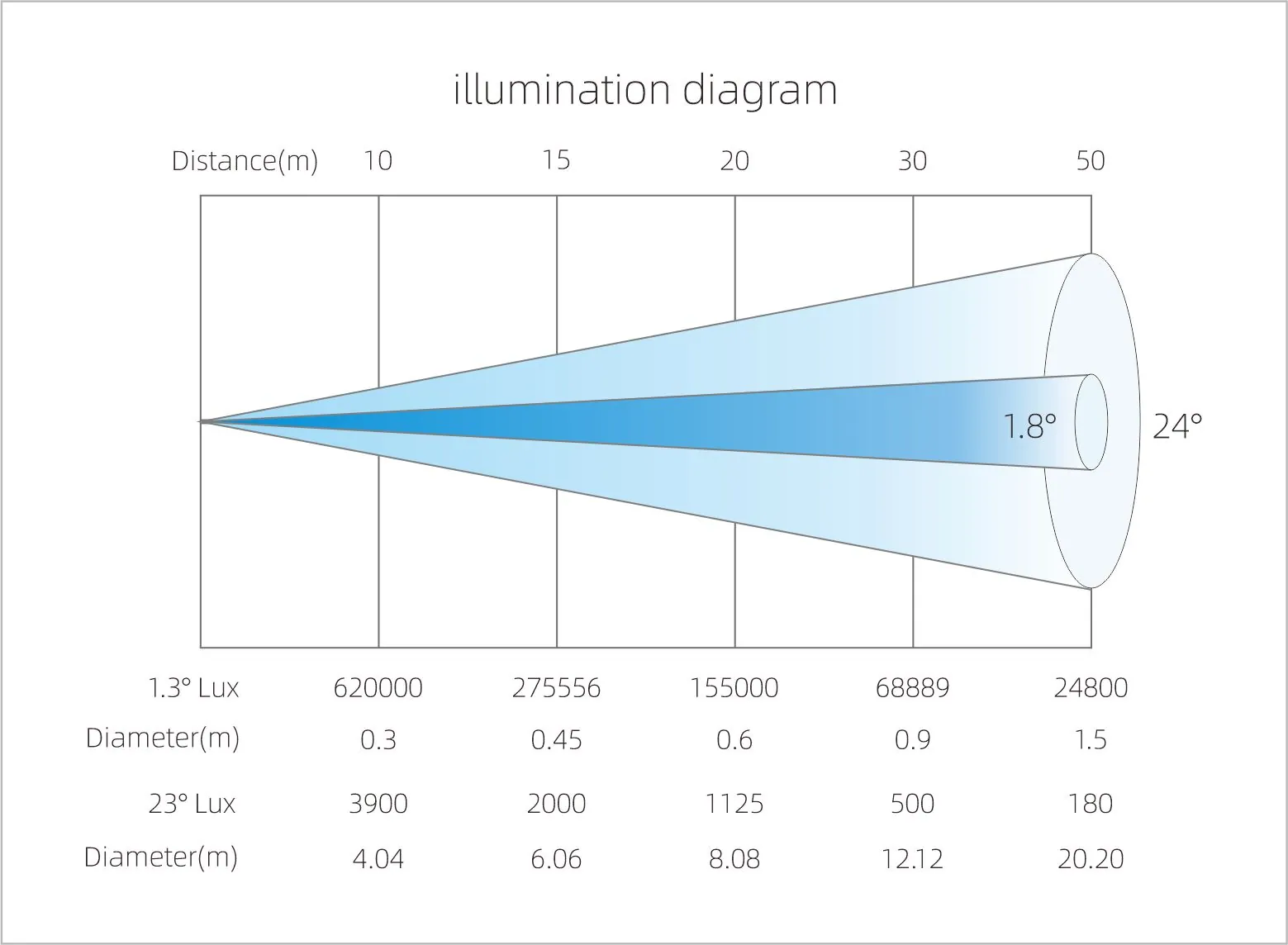

Illuminance: 620,000 lx @10 m
Light Source Theory Life Span: 8,000 h

02COLOR3

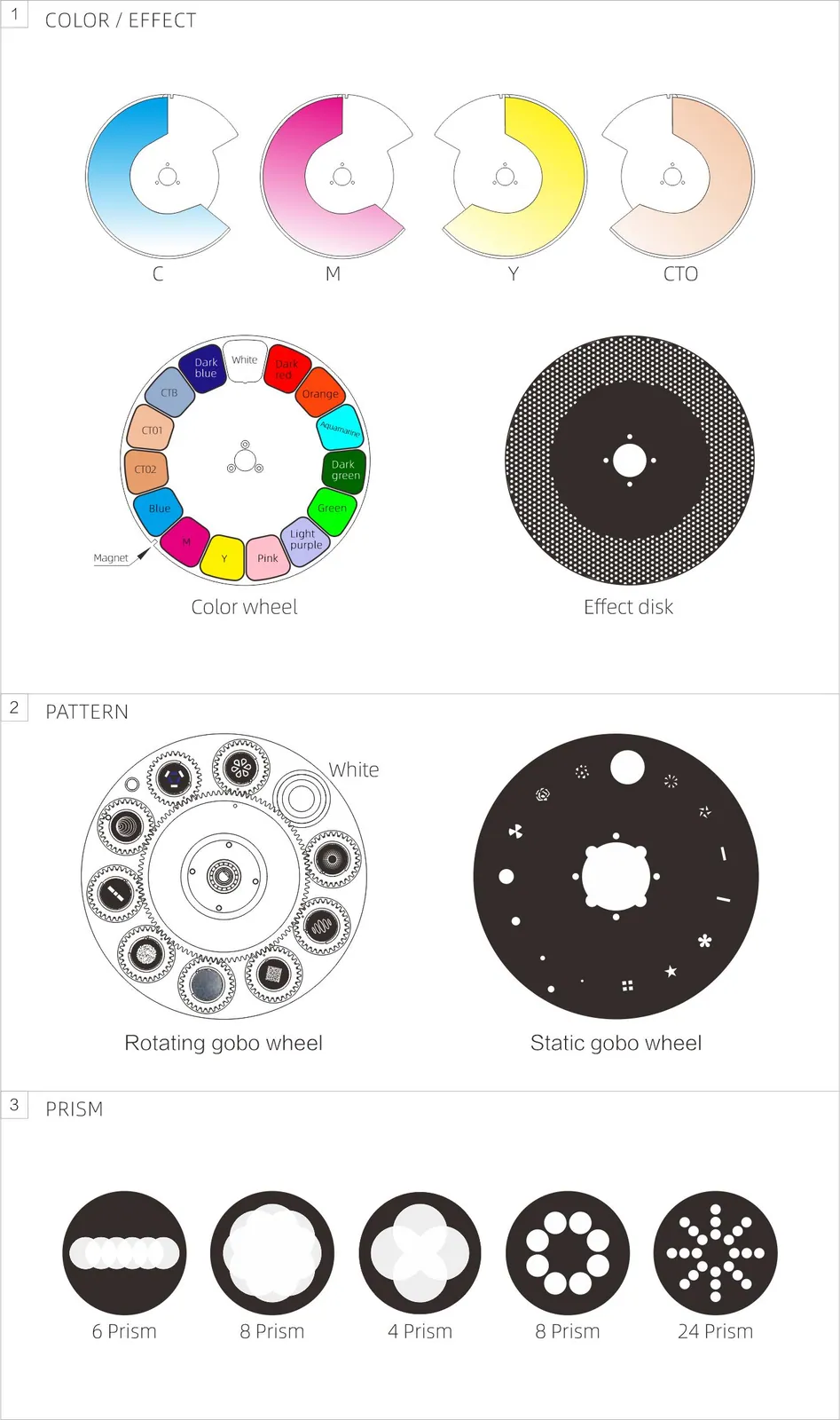

CMY: Linear CMY color mixing system
CTO: Linear CTO: 2800K-7000K
Color: 13 color filters + CRI + blank, capable of bi-directional rainbow effect,bi-color step gradient (linear movement), color wheel bi-directional rotation, and random color mode

03GOBO3

Fixed Gobo Wheel: 13 gobos + blank, capable of flowing and shaking effects
Rotation Gobo Wheel: 9 glass gobos + blank, replaceable, capable of rotation, flowing, and shaking effects, gobo outer diameter 14.0mm, gobo inner diameter 9.5mm; Dynamic effect wheel

04EFFECTS5

5 prisms: 2 beam prisms, 3 spot prisms, bi-directional rotation, independently switchable, stackable
2 frost filters: Adjustable independent soft light effect
Focus: High precision electronic focus
Strobe: 0.5-12 times/sec adjustable pulse and random strobe
Dimming: 0-100% linear adjustment

05CONTROL5

Control Channels: 33CH,35CH, 36CH, 39CH
Protocol: DMX512, RDM, ArtNet, sACN
Data Connection: 3-pin or 5-pin signal IN/OUT, Art-Net IN/OUT
Display: LCD screen; Software upgrade via DMX interface

06PAN/TILT MOVEMENT4

Pan: 540°, 8-bit / 16-bit precision
Tilt: 270° , 8-bit / 16-bit precision; Automatic reset with error correction; Pan/Tilt Lock

Show the full specificationHide the rest of the specification4 more groups · 18 values

07POWER4

Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 700W
Power Factor: 0.98
Maximum Current of Fixture: 3.18A/220V, 7A/100V

08SIZE & WEIGHT6

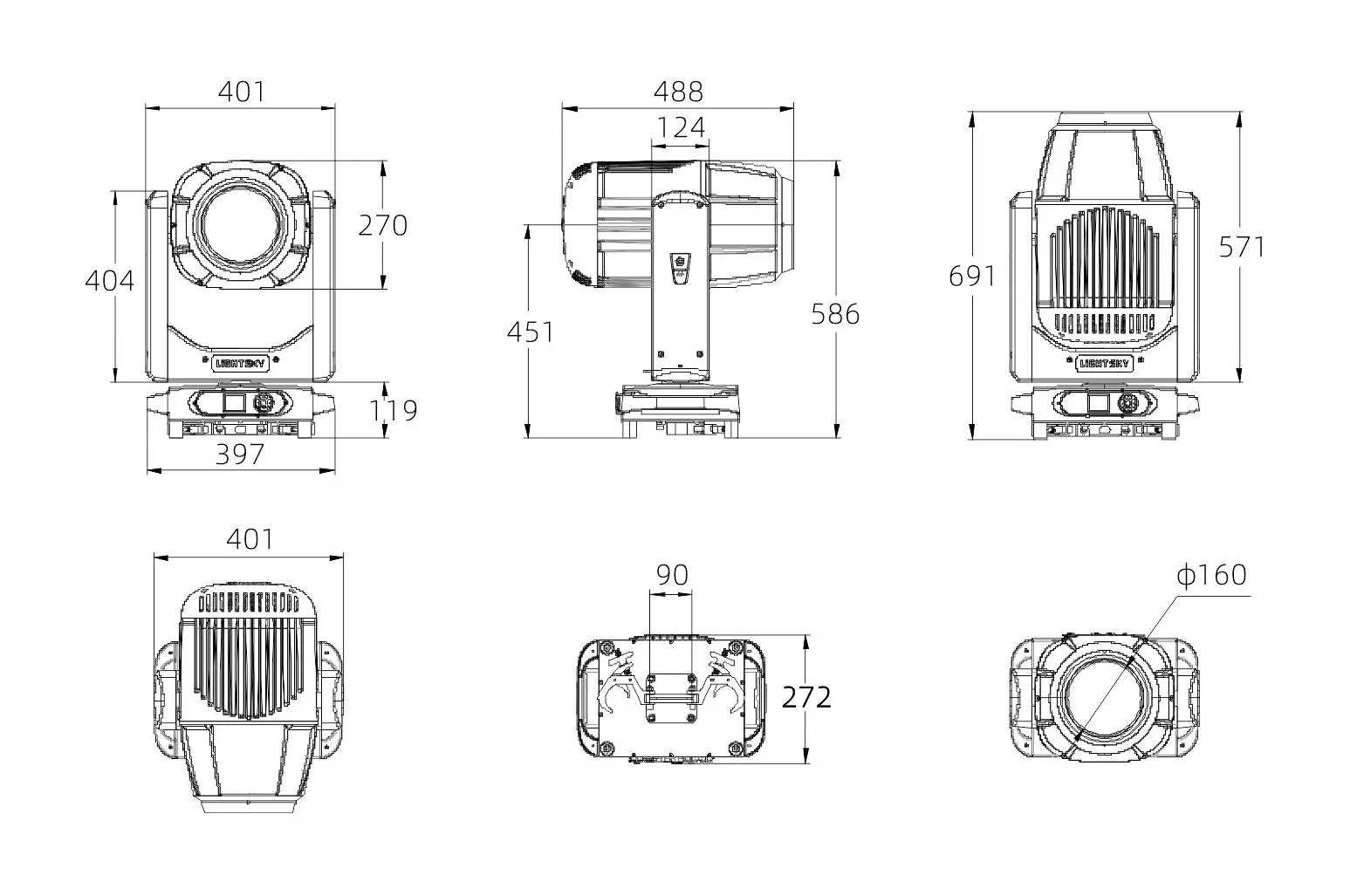

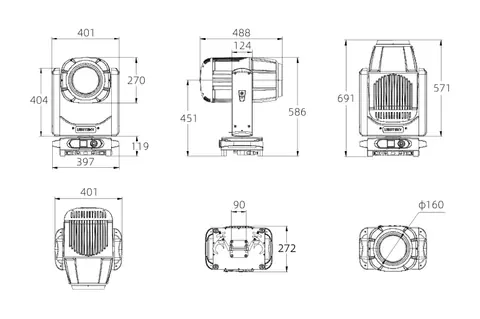

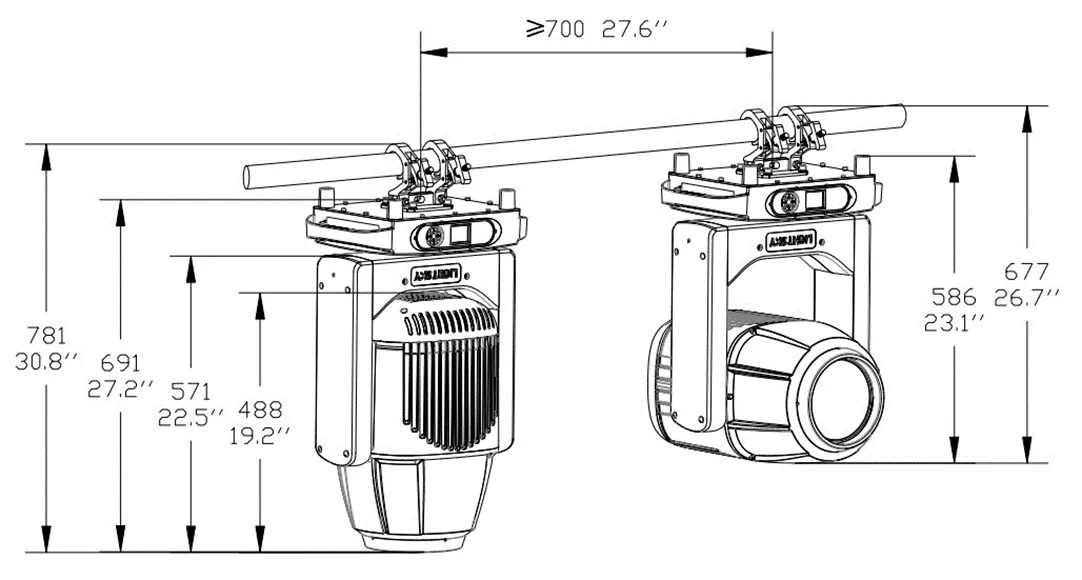

Product Dimensions: 401×272×691(mm)
Net Weight: 31.1 kg
Carton Packaging (Default): 515×360×825(mm)
Gross Weight: 36.6 kg
Flycase Dimensions(2 in 1): 870mm x 550mm x 950mm
Flycase Gross Weight(2 in 1): 104.7 kg

09OTHERS3

IP Rate: IP66
Operating Environment: -20°C ~ 45°C
Maximum Surface Temperature of Fixture: 80°C

10Factory Configuration5

Power Cable: 1 pc (Part No.: C1400050050)

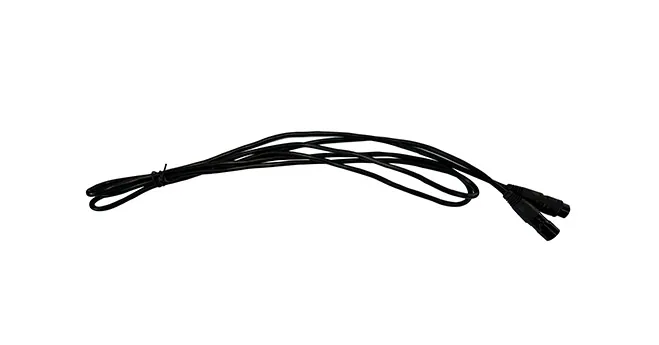

Signal Cable: 1 pc (Part No.: F0200020087)
Safety Rope: 2 pcs (Part No.: F0200010010)

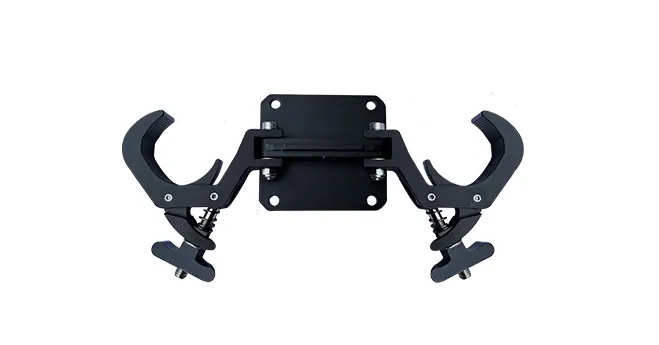

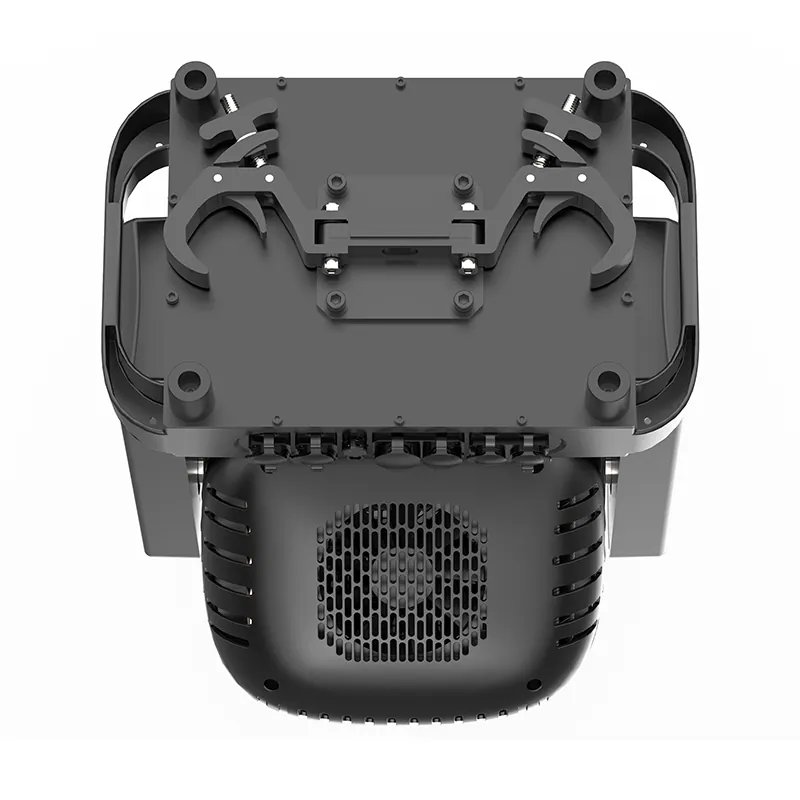

Clamp: 1 pc Compatible with tubes of Ø40–60 mm (Part No.: C0499990062); As a leading stage lighting supplier, LiGHT SKY delivers reliable stage beam light and moving head beam light solutions for theatres, concerts, TV studios, stadiums, outdoor events, and large-scale entertainment projects. AURORA AQUA reflects this expertise as a waterproof 3-in-1 moving head beam light to deliver powerful brightness, crisp projection, rich visual effects, and stable performance for demanding indoor and outdoor stage applications. Contact us and we are ready to give professional advice to your projects.

02DescriptionManufacturer's description

What it is.

As a leading stage lighting supplier, LiGHT SKY focuses on professional fixtures that balance optical performance, creative flexibility, and long-term stability. With advanced optics and efficient cooling, AURORA AQUA delivers powerful visual performance.

FEATURES

3in1 Moving Head Beam Light: Combines beam, wash, and spotfunctions for versatile stage lighting.

High-Precision Optics: 160 mm optical lens delivers crisp, long-throw projection.

High-Output Light Source:The USHIO NSL U8 lamp delivers 16,000 lumens and up to 620,000 lux at 10 meters for powerful stage brightness.

Advanced Visual Effects: Includes rotating and fixed gobos, 5 prism effects, CMY color mixing, CTO, and dynamic effect wheel.

Flexible Fixture Angles: Adjustable Beam 1.8°–24°, Spot 4°–45°, and Wash 2.6°–43° modes support precise lighting control for different stage scenes.

True-to-Life Colors: CRI ≥80 and Ra ≥88 with filter deliver vibrant, natural color reproduction for stage, studio, and live event lighting.

Reliable Performance: Waterproof design, DTCS™(Dynamic Temperature Control System) cooling system, and 8,000-hour lamp life support demanding applications.
