Sheet 05.741

PR Lighting · Hybrid fixtures

XRLED 1600-W BWSF

ModelPR-8194

XRLED 1600-W BWSF(Four in One) is a moving head fixture using 700W LED white engine as its light source.

Power consumption: 850W @ 220V
Power supply: 100V~240V AC,50/60Hz
Colour temperature: 8000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:44

PR Lighting XRLED 1600-W BWSF1:44

02SpecificationManufacturer's data · 24 groups · 66 values

What this product is, in numbers.

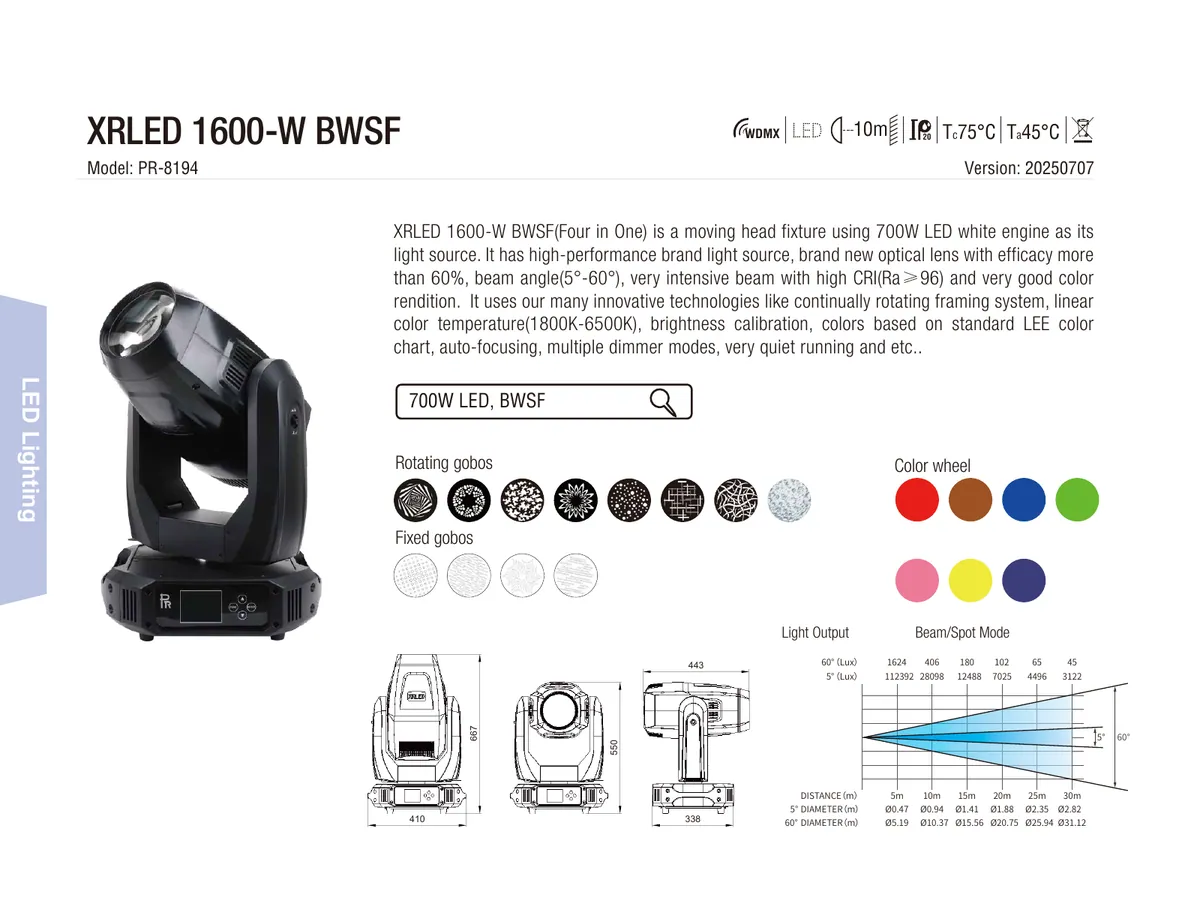

PDFDatasheetEN · 2 pages · 364 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS4

Input voltages: 100V~240V AC,50/60Hz
Input Power: 850W @ 220V
Power factor: PF〉0.95
Max. Current: 3.9A @ 220V

02(Yellow)4

Power consumption: 700W, White LED module
Color Temperature: 8000K
Manufacturers Rated Lamp Life: 20000hour
CRI: Ra≥70(Optional Ra≥96,R9≥95)

03CTO1

Linear CTO system(0-100%, 1800K-6500K)

04ANIMATION EFFECT1

Bi-directional animation effects at variable speeds

05IRIS1

5-100% linear with macros

06PRISM1

1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

Show the full specificationHide the rest of the specification18 more groups · 54 values

07FROST1

1 frost filter ,0-100% linear

08BEAM ANGLE1

5°~60°,linear with 16 bit control

09FOCUS1

DMX linear with auto focus function

10DIMMER4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

5 dimmer curves

Dimmer frequency(1.2K-25K) good for 4K high speed video camera

11STROBE1

Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds

12HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

13Advanced macros3

Color temperature macros: optional; 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart.

14FAN MODE1

Standard mode and theater modes. Theater mode is quiet mode

15IXTURE TYPES6

Including moving head light, fixed-focus profile light, zoom profile light; Moving head light with beam angle range(5-60°); Fixed focus profile light with beam angle options including; 5°,10°,19°,26°,36°,60°; Zoom profile light with beam angle ranges including 5-15°,15-35°,35-60°
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

16RIGHTNESS CALIBRATION FUNCTION1

With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness values into the fixtures

17MODE1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

18CONTROL6

International standard DMX512 signal and RDM function

40channels in short mode, 46channels in standard mode,59channel in extended mode

Art Net protocol(optional) , sACNprotocol(optional), DMX512 wireless control

Master/Slave mode

Standalone mode

Master Mode

19CONTROL INTERFACE2

DMX512 ports(5-pin)

Ethernet port RJ45

20OTHER FUNCTIONS10

Adjustable Pan & Tilt speeds

Pan and Tilt invertible and swappable

Lamp’s and fixture’s hours displayed

Color touch Chinese/English screen, display invertible and touch keys

Intelligently controllable fans

Sensor diagnostic system

Input signal isolated, modular construction for easy maintenance, DMX channel voltages monitoring

Non-touchable magnetic sensor for positioning, signal feedback, absolute position memory, auto-positioning after power-off or DMX signal disrtuption

Firmware upgrade via DMX cable

Optional ethernet port

21HOUSING1

High temperature ABS, IP20

22NET WEIGHT1

24.2Kg

23AMBIENT TEMPERATURE2

Temperature at maximum 45°C
【Version: 20250707】

24General11

CMY color mixing system with macros
1 Color wheel: 7colors+ Open,; Half color , bi-directional rainbow effect at variable speeds,; Stepping/linear color changing
1 Framing Module: 4 Framing Blades; Framing Module continual rotation with many graphics of different sizes and shapes; 4 Framing blades to make full curtain effect
1 Rotating gobo wheel: 8Rotating Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds
1 fixed gobo wheel(optional): 4 fixed Gobos +Open+effect; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

XRLED 1600-W BWSF(Four in One) is a moving head fixture using 700W LED white engine as its light source. It has high-performance brand light source, brand new optical lens with efficacy more than 60%, beam angle(5°-60°), very intensive beam with high CRI(Ra≥96) and very good color rendition. It uses our many innovative technologies like continually rotating framing system, linear color temperature(1800K-6500K), brightness calibration, colors based on standard LEE color chart, auto-focusing, multiple dimmer modes, very quiet running and etc.., realizing more professional and fantastic stage effects. It is for TV studios, theatres, performing stages and other places.
