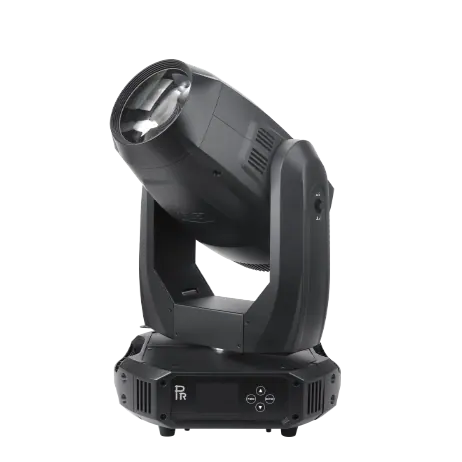

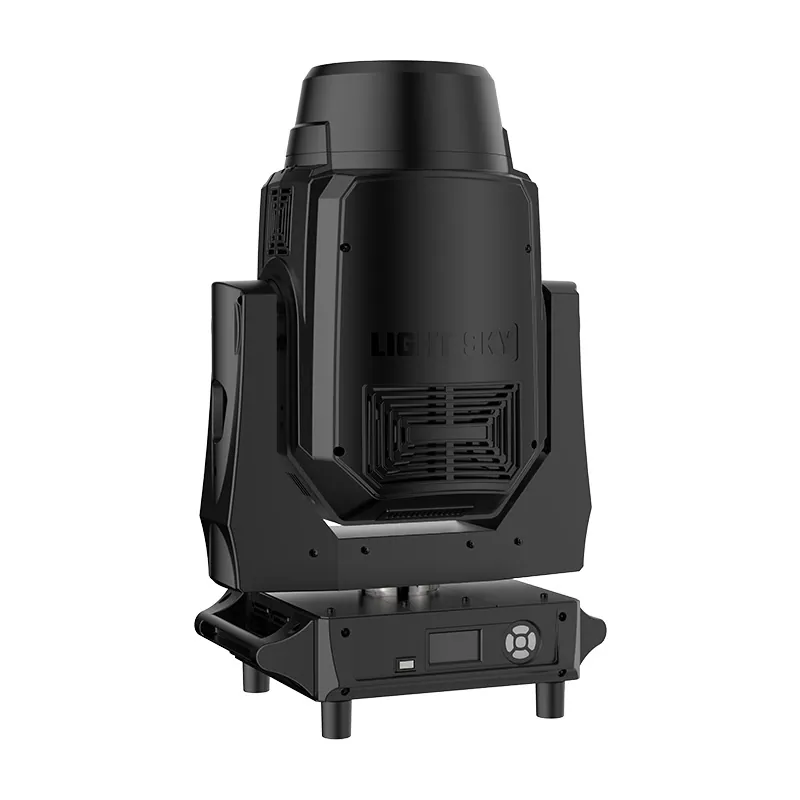

AURORA

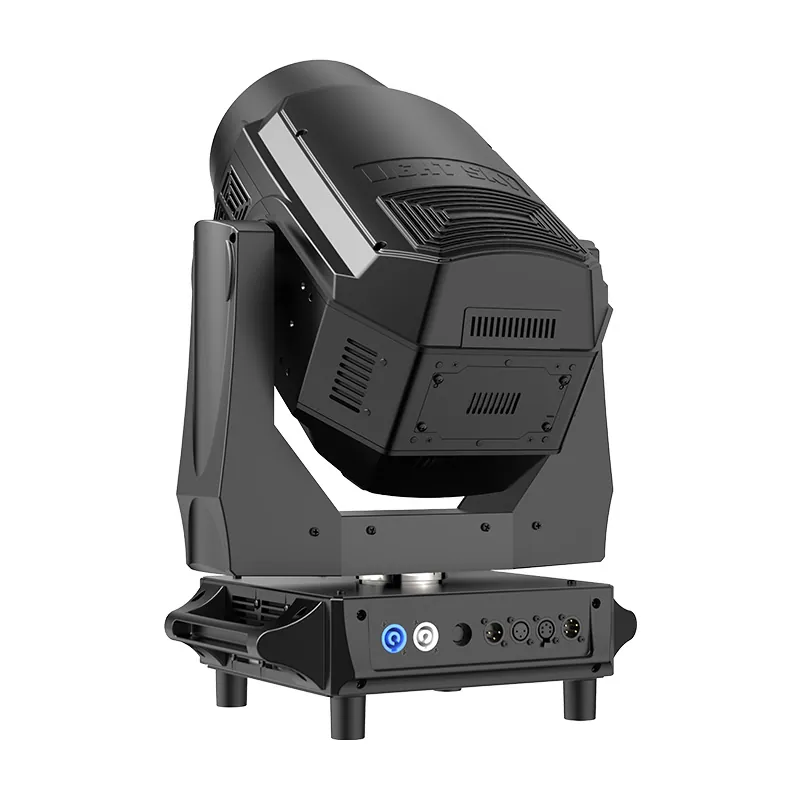

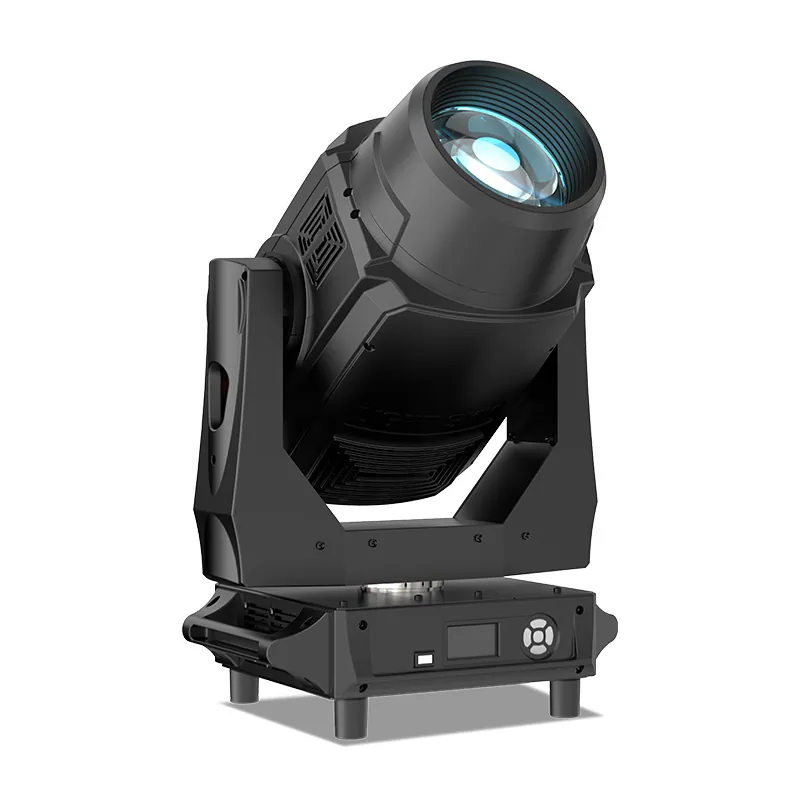

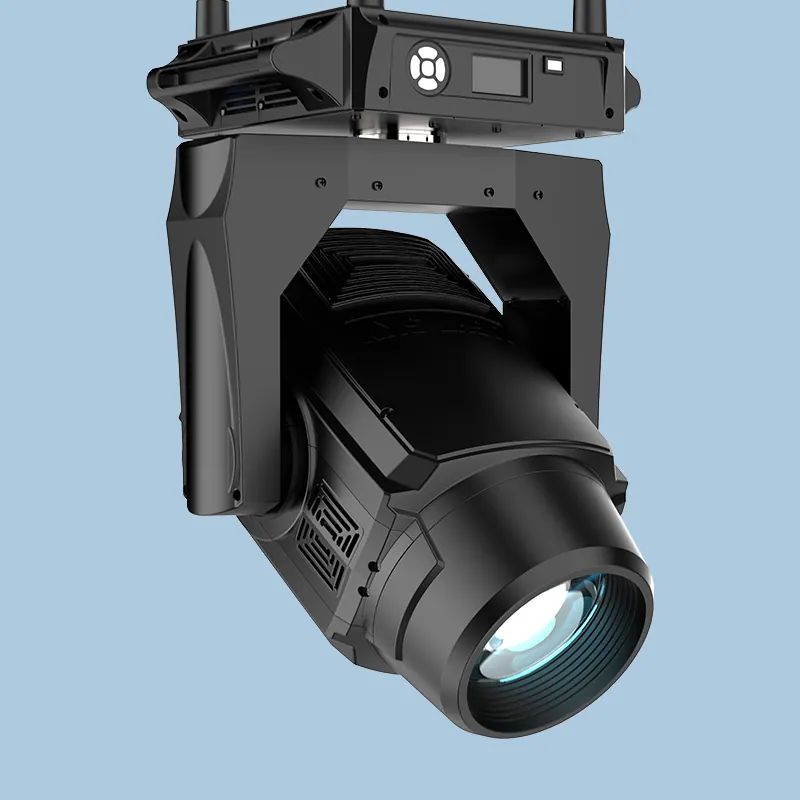

This LiGHT SKY beam spot wash moving head is made of heat-resistant plastic + molded alloy material housing and has a beautiful appearance. The spot moving head light is designed and manufactured strictly with CE standards and meets international standards.

Light source: OSRAM SIRIUS HRI 471 W SN
Power supply: AC100~240V 50/60Hz
Beam angle / zoom: 2°to 21° (Beam mode)
Protocols: DMX 512 RDM ,WIRELESS (OPTION )
Net weight: 29kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:23

LIGHT SKY AURORA1:23

02SpecificationManufacturer's data · 5 groups · 46 values

What this product is, in numbers.

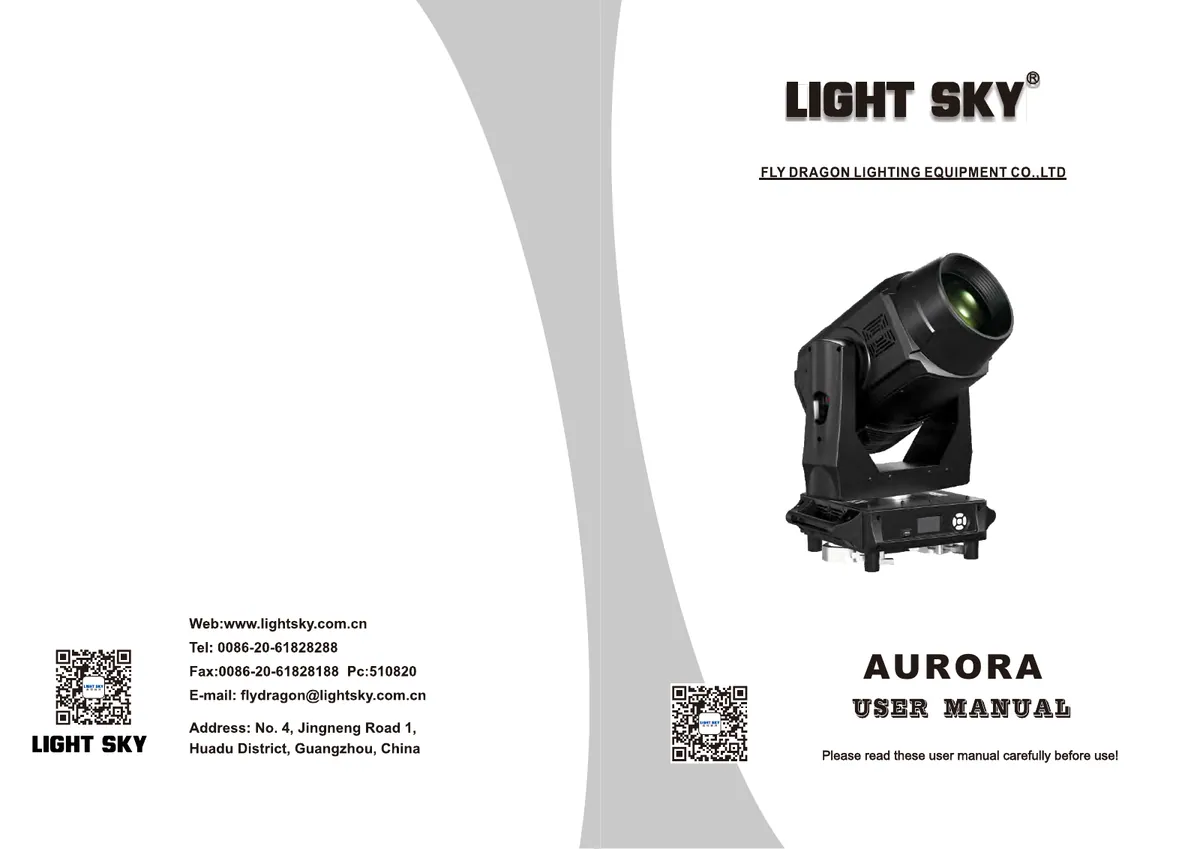

PDFUser manualEN · 29 pages · 3.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System10

Voltage: AC100~240V 50/60Hz
Power: 620W; PF : 0.988
Light source: OSRAM SIRIUS HRI 471 W SN
Light source power: 470W
Light source average life span: 1500h
Ballast: Electronic Ballast
Output color temperature: 6300K

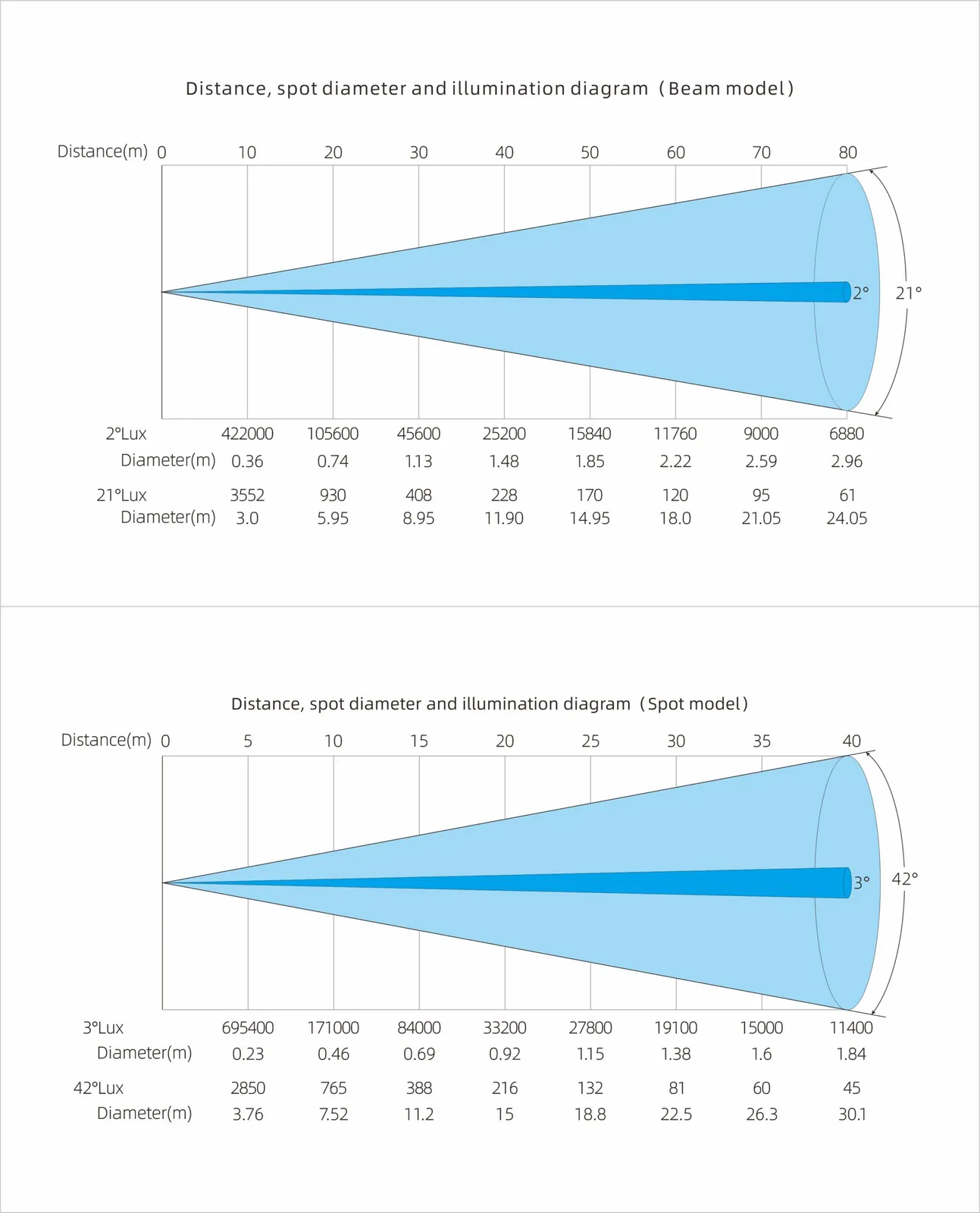

Illuminance: 422000lux@10m at beam mode
CRI: 70+ with CRI Filter value up to 90
Front lens diameter: 160mm

02Color / GOBO / Effects13

Beam angle: 2°to 21° (Beam mode)
ZOOM angle: 3° to 42 ° (Spot mode)

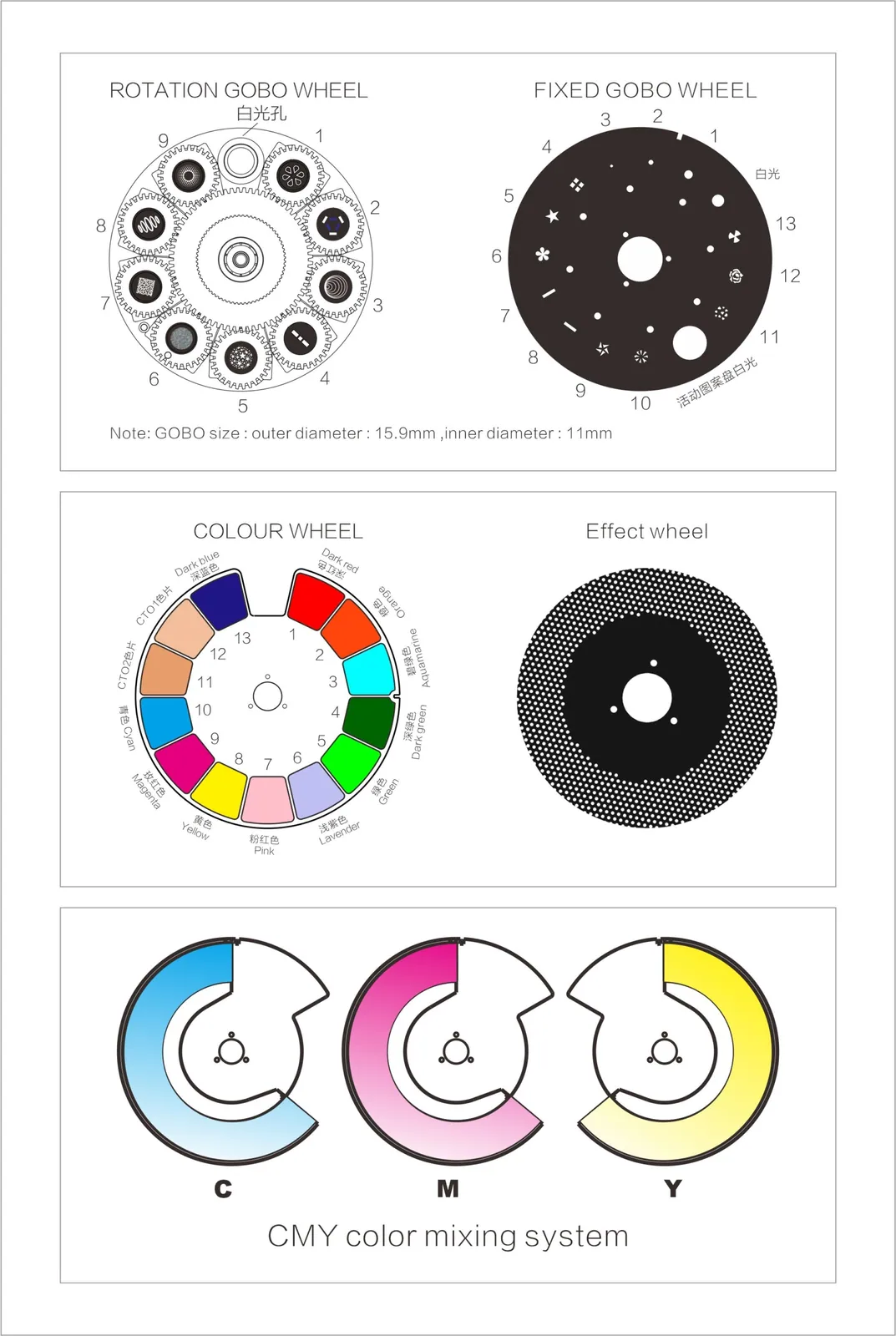

Color wheel: 11 color + 2 CTO + blank
CMY: Linear CMY colour mixing
Iris: Motorized with variable pulse and random effects
Strobe: Electronic pulse strobe and random strobe
Focus: Motorized focus
Dimmer: 0 to 100% linear dimmer
Animation wheel: 1 dynamic animation wheel
Rotation gobo wheel: 1 rotation gobo wheel ,each with 9 pcs interchangable gobo+ 1 blank
Static gobo wheel: 14 fixed gobo + 1 blank
Prism: 4pcs prism (3+1 double prism wheel)& Multiple prism combinations
Frost: 2 frost system : light frost 1° and Heavy frost 5°

03Control System9

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out
Control protocol: DMX 512 RDM ,WIRELESS (OPTION )
Channel mode: 33CH
Motors: 23 ultra-quiet motors
Pan/ Tilt: 540°/250°
Pan/ Tilt fine: 2.11°/0.98°
Pan/ Tilt Speed: 2.7 S/1.6 S
Software upgrade: Via USB

04Other functions6

Other functions: 1、The lamp’s switch can be controlled remotely; the cooling fan can be adjustable automatically; the lamp power will decrease when the fixture turns off.; 2、DMX address can be reset remotely via control panel; 3、The lamp’s heat dissipation can be adjustable with G-sensor system
Lamp safety: overcurrent and overheat protection; automatically interrupts lamp power when the lamp overheats or the cooling system fails.
Cooling System: Forced ventilation with an axial-flow fan
vertical direction: The locking device of vertical arm is used for convenient transportation and maintenance.

05Appearance Parameters8

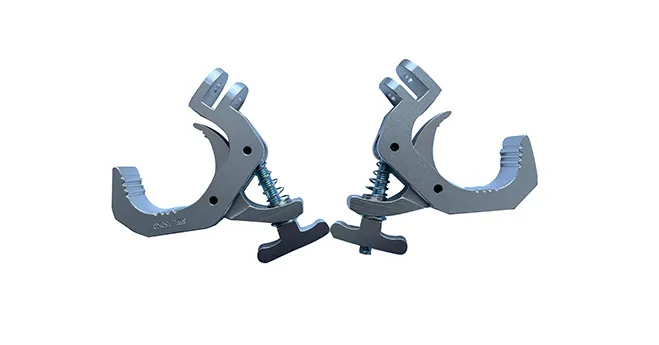

Hanging system: foldable light hook
IP rate: IP20

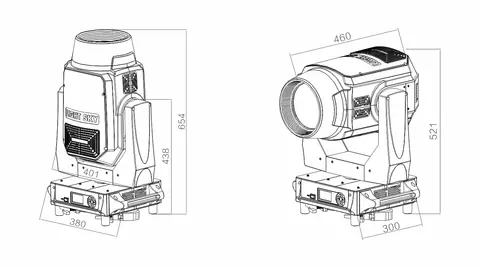

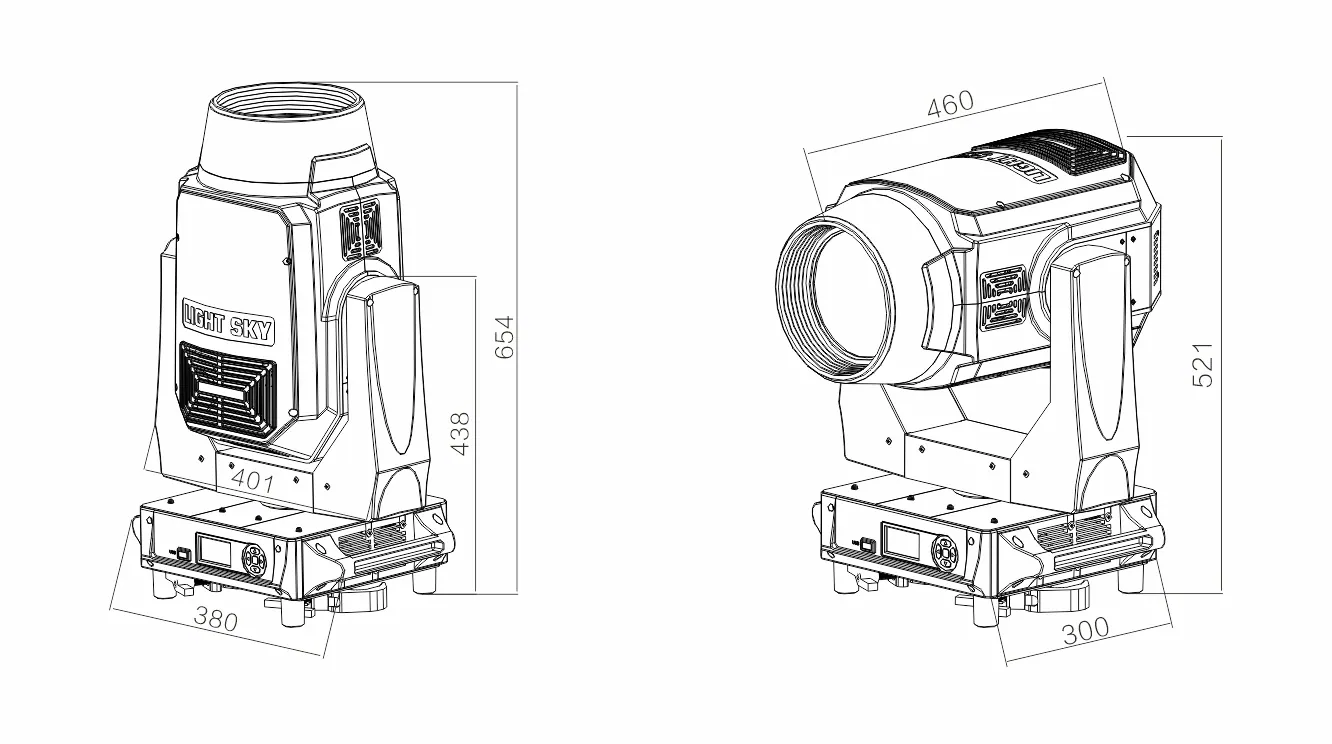

Light Dimension: 380 x 300 x 654mm
N.W: 29kg/pcs
Carton dimension: 490 x 390 x 725mm
G.W with carton: 32.5kg

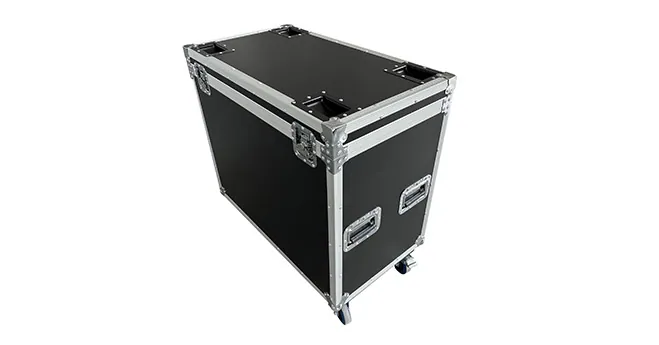

Flycase dimension: 890 x 500 x 850mm
G.W with fly case: 101kg (2 in 1)

03DescriptionManufacturer's description

What it is.

FEATURES

It’s a new professional Moving Beam Spot Wash 3 in 1;
With 3 + 1 double prism and various prism combination effects,
Which is intelligently upgraded via USB.
Easy to install:Its hidden locking device and folding clamp are convenient for installation.
