Sheet 05.740

PR Lighting · Hybrid fixtures

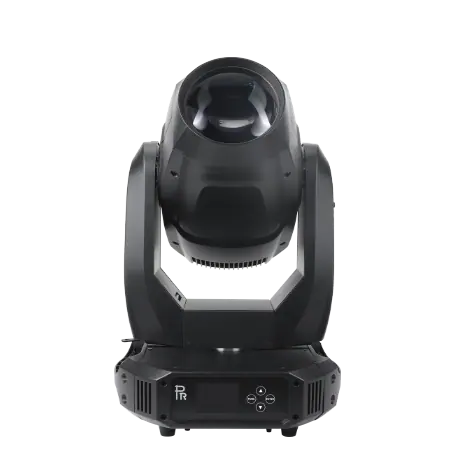

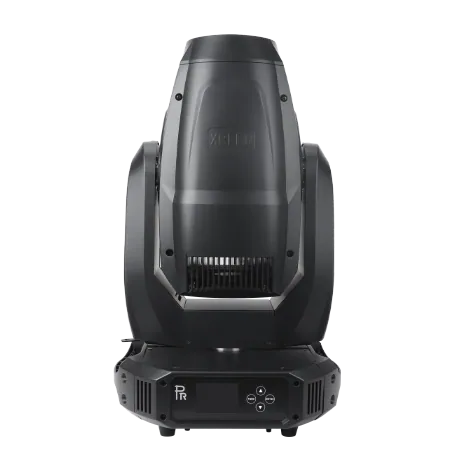

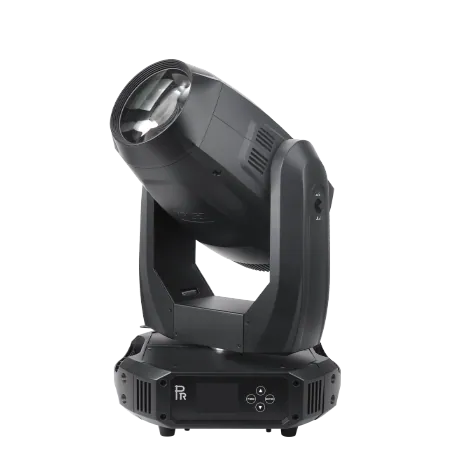

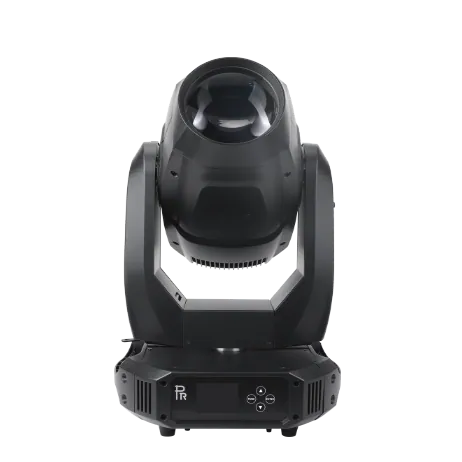

XRLED 1600-W BWS

ModelPR-8193

Light source: 700W, White LED module
Power consumption: 850W @ 220V
Power supply: 100V~240V AC,50/60Hz
Colour temperature: 8000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:39

PR Lighting XRLED 1600-W BWS1:39

02SpecificationManufacturer's data · 24 groups · 65 values

What this product is, in numbers.

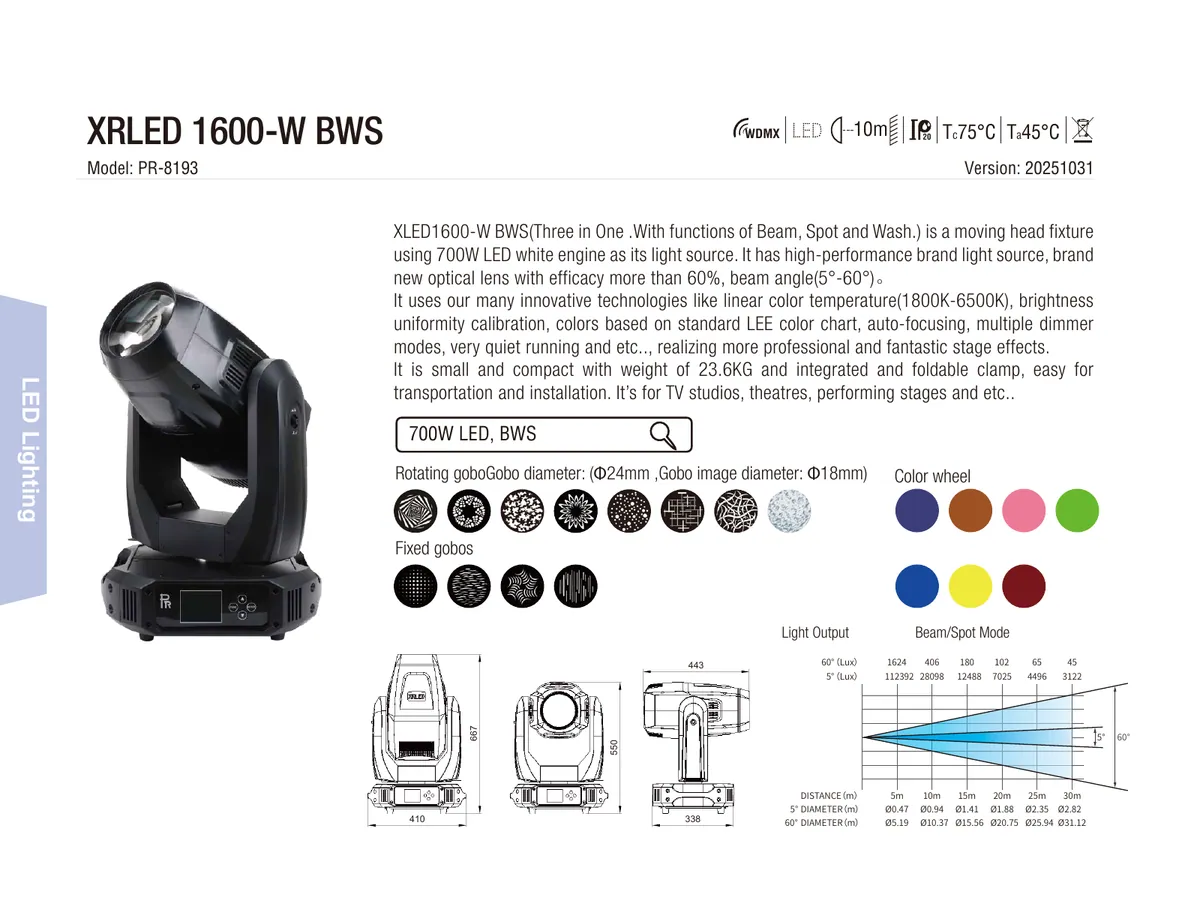

PDFDatasheetEN · 2 pages · 371 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS4

Input voltages: 100V~240V AC,50/60Hz
Input Power: 850W @ 220V
Power factor: PF〉0.95
Max. Current: 3.9 A @ 220V

02LIGHT SOURCE SPECIFICATIONS4

Power consumption: 700W, White LED module
Color Temperature: 8000K
Manufacturers Rated Lamp Life: >20000hour
CRI: Ra ≥ 70

03CTO1

Linear CTO system(0-100%, 1800K-6500K)

04EFFECT WHEEL1

Bi-directional rotation at variable speeds

05IRIS1

5-100% linear with macros

06PRISM1

1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

Show the full specificationHide the rest of the specification18 more groups · 53 values

07FROST1

1 frost filter ,0-100% linear

08BEAM ANGLE1

5°~60°,linear with 16 bit control

09FOCUS1

DMX linear with auto focus function

10DIMMER4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

5 dimmer curves

Dimmer frequency(1.2K-25K) good for 4K high speed video camera

11STROBE1

Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds

12HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction and 16 bit control

13DVANCED MACROS2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart.

14IXED TYPE5

Including moving head light, fixed-focus profile light, zoom profile light; Moving head light with beam angle range(5-60°); Fixed focus profile light with beam angle options including 5°,10°,19°,26°,36°,60°; Zoom profile light with beam angle ranges including 5-15°,15-35°,35-60°
(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

15AN MODE1

Standard and theater modes. Theater mode is quiet mode

16RIGHTNESS CALIBRATION FUNCTION2

With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness

values into the fixtures

17MODE1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

18CONTROL6

International standard DMX512 signal and RDM function

31channels in short mode, 36channels in standard mode,41channel in extended mode

Art Net protocol(optional) , sACNprotocol(optional), DMX512 wireless control

Master/Slave mode

Standalone mode

Master Mode

19CONTROL INTERFACE2

DMX512 ports(5-pin)

Ethernet port RJ45

20OTHER FUNCTIONS12

Adjustable Pan & Tilt speeds

Pan and Tilt invertible and swappable

Light source’s and fixture’s hours displayed

LCD color Chinese/English screen, display invertible and touch keys

Intelligently controllable fans

Sensor diagnostic system

Input signal isolated

modular construction for easy maintenance

DMX channel voltages monitoring

Non-touchable magnetic sensor for positioning, signal feedback, absolute position memory, auto-positioning after power-off or DMX signal disrtuption

Firmware upgrade via DMX cable

Optional ethernet port

21HOUSING1

High temperature ABS, IP20

22NET WEIGHT1

23.6Kg

23AMBIENT TEMPERATURE2

Temperature at maximum 45°C
【Version: 20251031】

24General9

CMY color mixing system with macros
1 Color wheel: 7colors+ Open,; Half color , bi-directional rainbow effect at variable speeds,; Stepping/linear color changing
1 Rotating gobo wheel: 8 Rotating Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds; Gobo Replaceable
1 fixed gobo wheel: 4 fixed Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

XLED1600-W BWS(Three in One .With functions of Beam, Spot and Wash.) is a moving head fixture using 700W LED white engine as its light source. It has high-performance brand light source, brand new optical lens with efficacy more than 60%, beam angle(5°-60°). It uses our many innovative technologies like linear color temperature(1800K-6500K), brightness uniformity calibration, colors based on standard LEE color chart, auto-focusing, multiple dimmer modes, very quiet running and etc.., realizing more professional and fantastic stage effects. It is small and compact with weight of 23.6KG and integrated and foldable clamp, easy for transportation and installation. It’s for TV studios, theatres, performing stages and etc..
