Sheet 05.658

LIGHT SKY · Beam

LUNAR BEAM

Light source: USHIO NSL421M
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 2.0°
DMX channels: 16CH, 14CH, 16PLUS (see channel chart for details)
Protocols: DMX512, RDM
Colour temperature: 6900K
Net weight: 20.8KG

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:32

LIGHT SKY LUNAR BEAM2:32

02SpecificationManufacturer's data · 11 groups · 41 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01LIGHT SOURCE & OPTICS7

Light source: USHIO NSL421M
Beam angle: 2.0°
Optical lens: High-transmittance coating, φ178mm
Color temperature: 6900K
Color Rendering Index: RA≥78

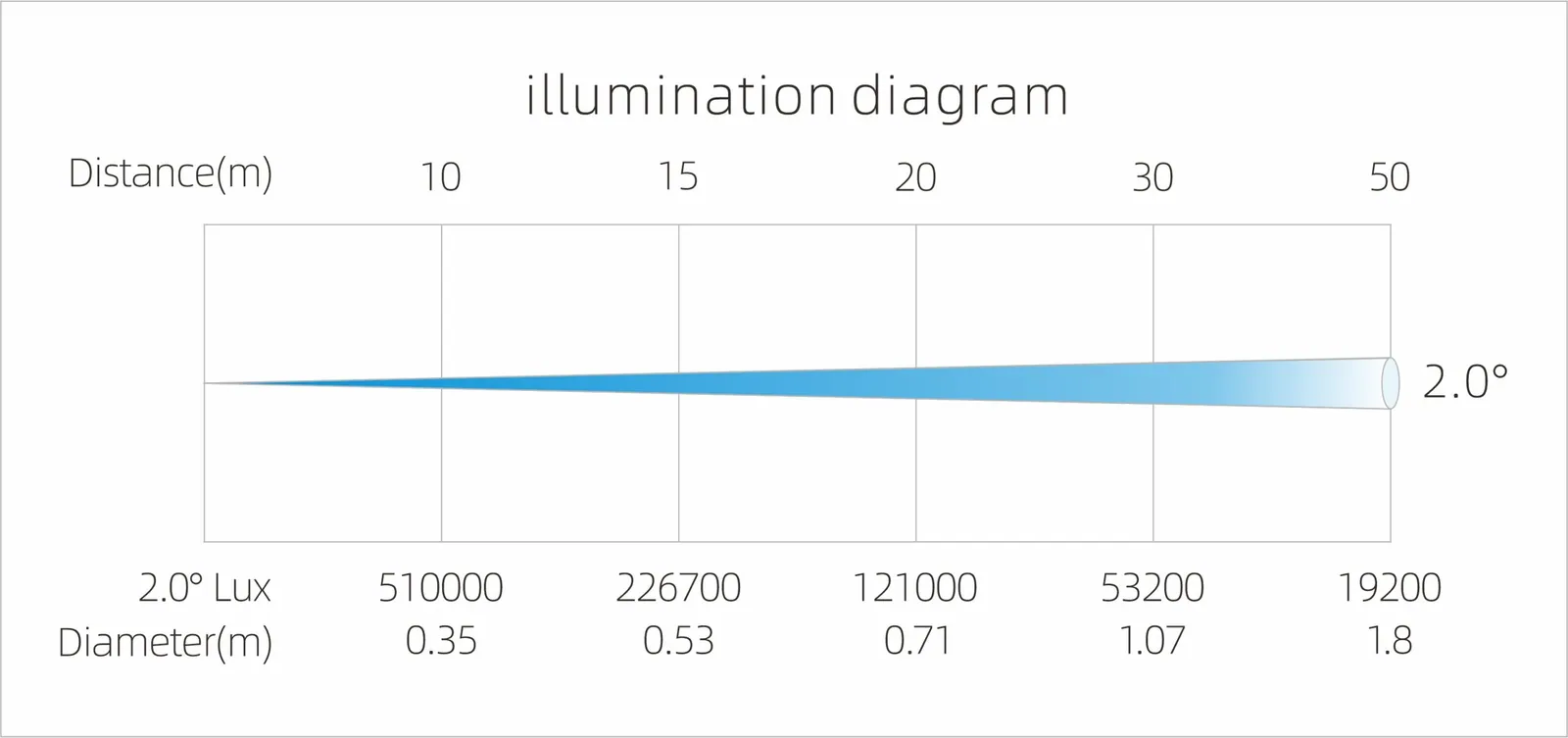

Illuminance: 510,000 Lux@10m
Light source life expectancy: 1,500 hours

02COLOR1

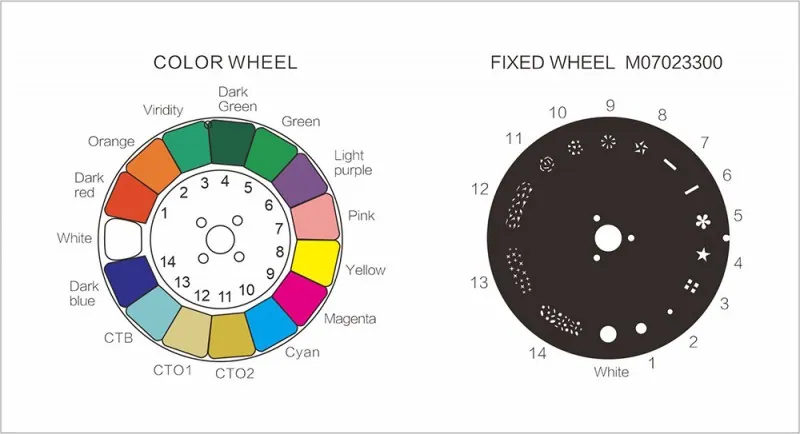

14 color filters + white light: Bidirectional color rainbow, dual-color gradient,color wheel rotation, random modes

03GOBO1

11 gobos + white + 3 animations (animated pattern effects),with bidirectional shaking, animation, and water flow effects

04EFFECTS5

Prism: 24-facet prism + 8-facet prism, bidirectional rotation
Frost effect: Adjustable independent Frost effect
Strobe: 0.5-9 times / sec adjustable pulse strobe and random strobe
Dimming: 0-100% linear adjustment
Focusing: High precision electric focusing

05CONTROL AND PROGRAMMING5

Control channels: 16CH, 14CH, 16PLUS (see channel chart for details)
Protocols: DMX512, RDM

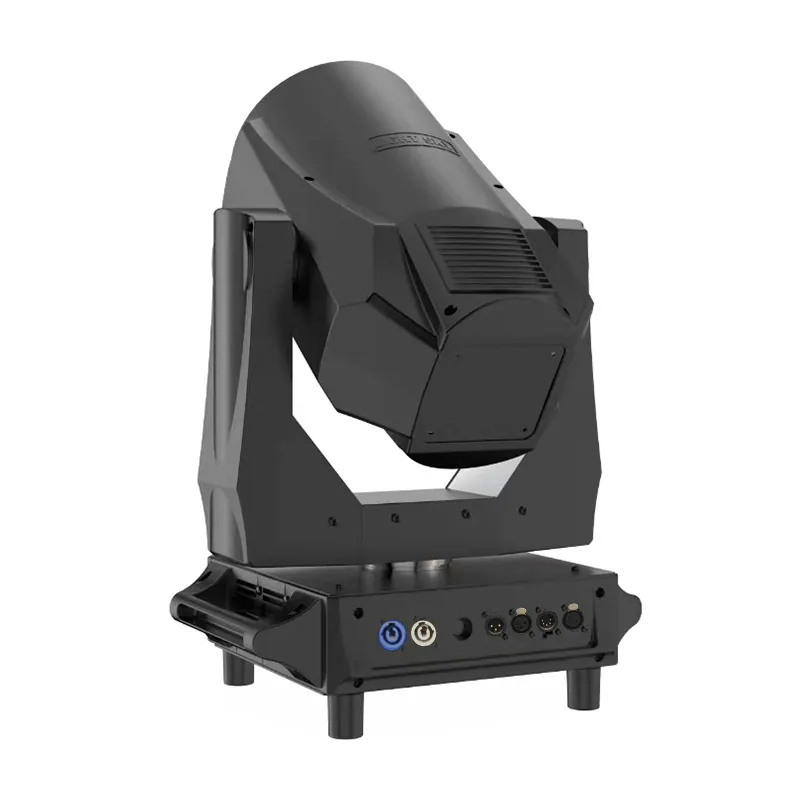

Data connection: Three-core or five-core signal input/output
Display: LCD screen; Upgrade software via DMX signal

06PAN/TILT MOVEMENT4

Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 250°, 8-bit/16-bit precision scan; Reset function with automatic error correction
Fixed lock: Tilt lock

Show the full specificationHide the rest of the specification5 more groups · 18 values

07POWER AND ELECTRICAL4

Input voltage: AC 100-240V 50/60Hz
Max power: 565W
Power factor: 0.985
Max current: 2.5A/220V, 5.5A/100V

08SIZE AND WEIGHT4

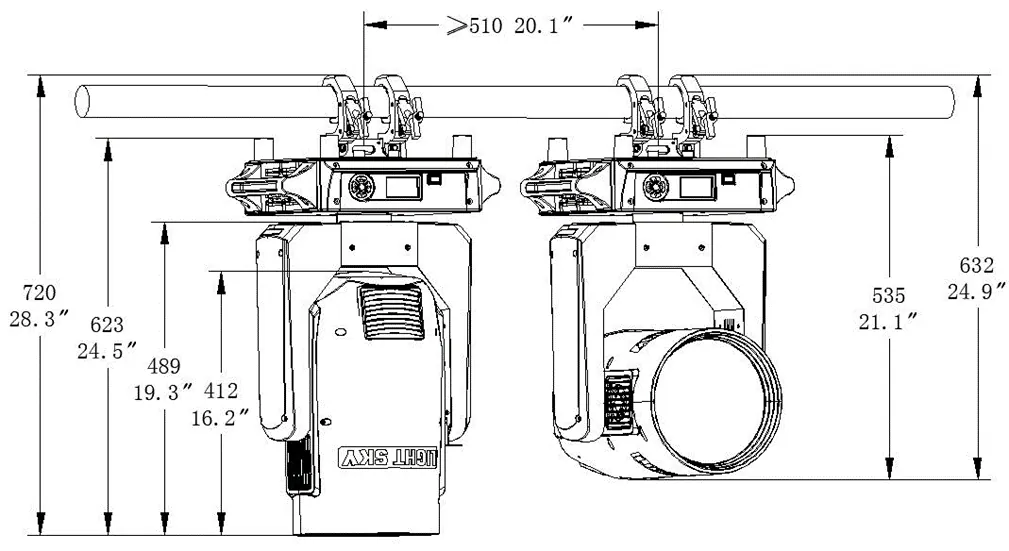

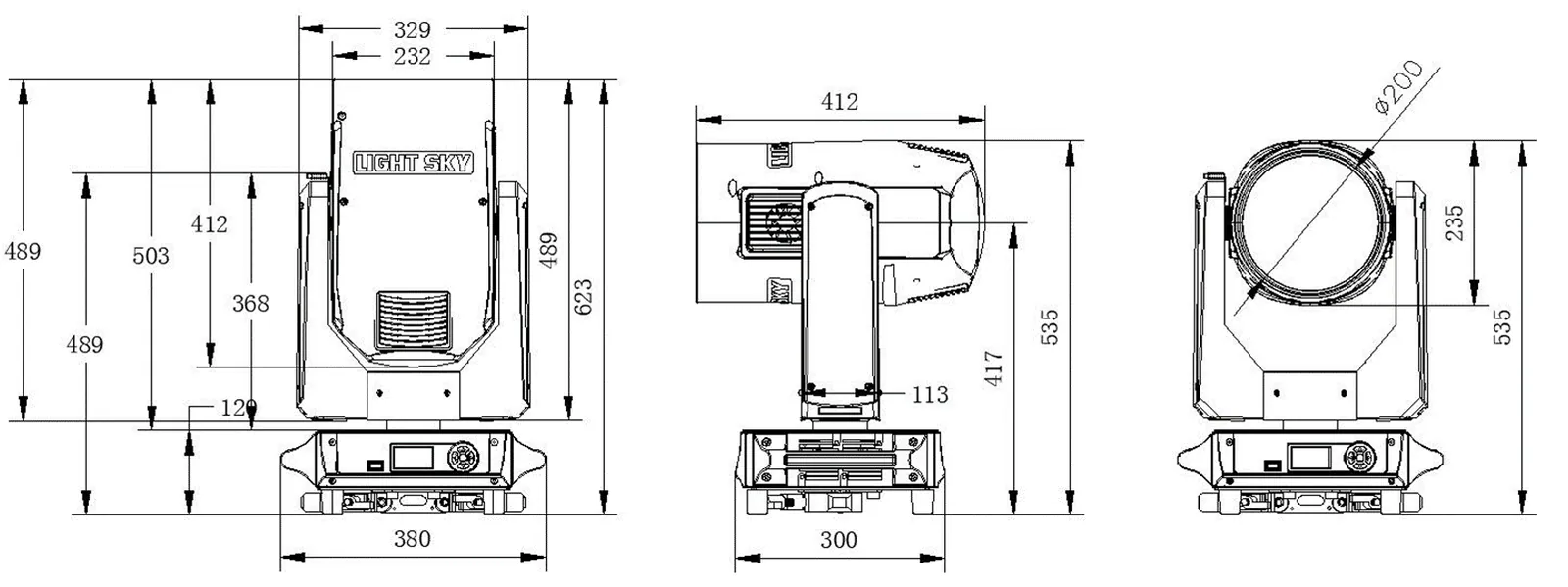

Product size: 380X300X591mm
Net weight: 20.8KG
Carton packaging (default): 445X370X670mm
Gross weight: 24.2KG

09OTHER3

Protection level: IP20
Operating environment: -10°C~40°C
Max surface temperature: ≤80°C

10FACTORY CONFIGURATION4

Power Cable: 1 pc (Part No.: F0200030002)
Signal Cable: 1 pc (C1400060031- 3 core (default)/C1400060032- 5 core (optional))
Safety Rope: 2 pcs (Part No.: F0200010008)
Lamp Hook: 2 set (Part No.: C0499990006)

11OPTIONAL ACCESSORIES/PACKAGING3

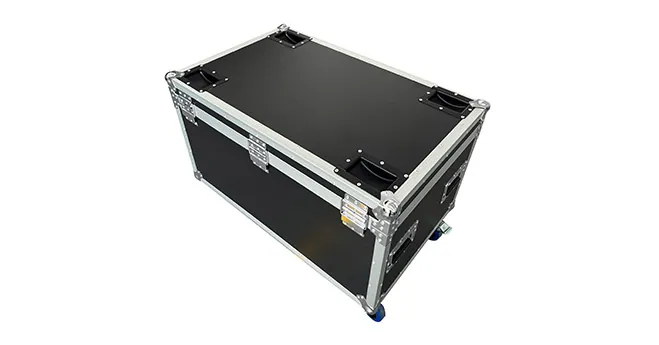

Fly case: Part No.B0100200001
Packaging(Fly case): 820×535×810mm
Gross Weight: 77.3kg(2 in 1)

03DescriptionManufacturer's description

What it is.

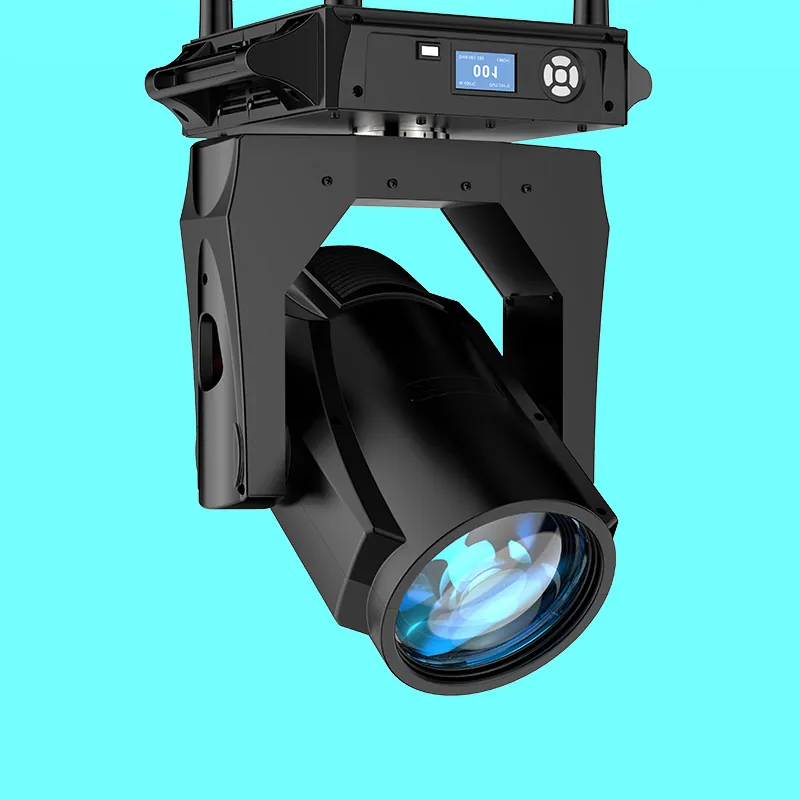

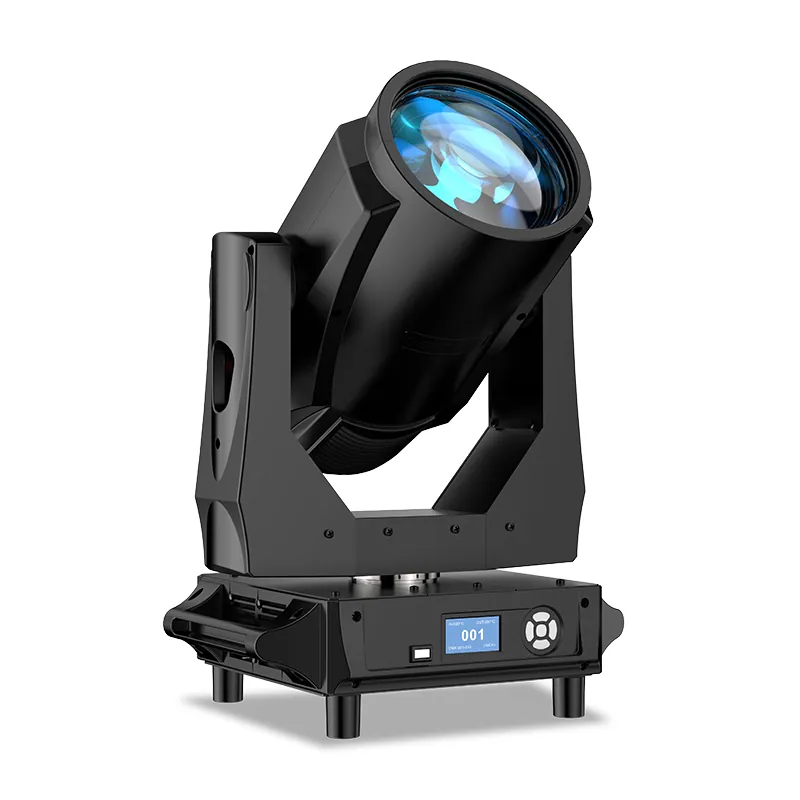

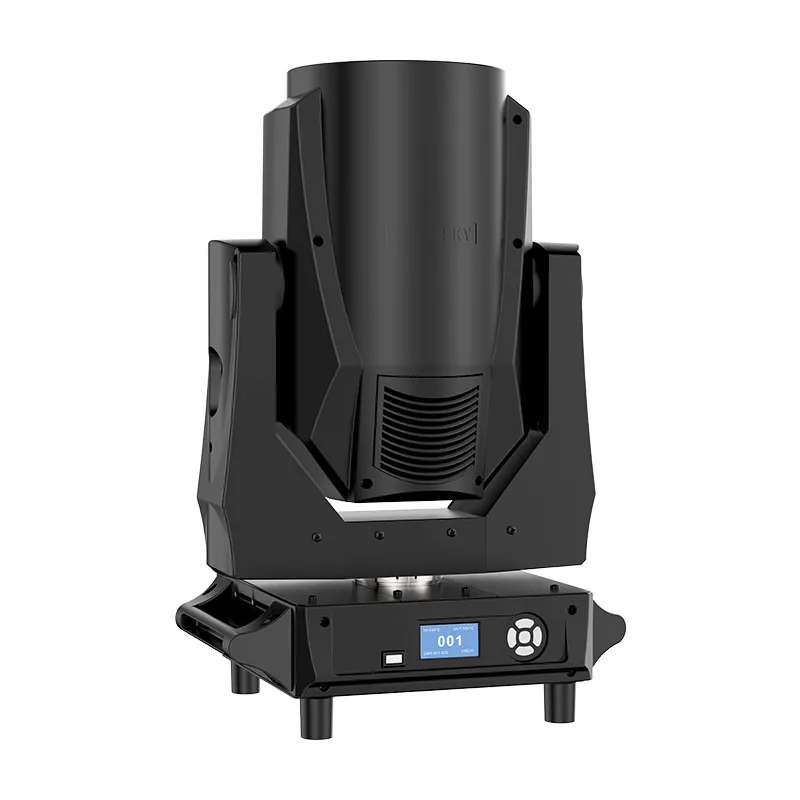

Introducing our advanced stage light fixture, the Lunar Beam! With a φ178mm lens and a powerful 421W(LiGHT SKY NSL421M USHIO) lamp, this moving head beam spot wash light produces even facula and stunning lighting effects. Features 8 prisms, 24prisms, and prism combinations. Easy control with an LCD backlit screen and mobile app. This head-beam light is easy to install with a standard clamp system. Durable and heat-proof, it’s the perfect upgrade for your lighting needs with LiGHT SKY’s advanced stage light fixture.

FEATURES

LENS: The Lunar Beam stage light fixture featured a lens that has an inner diameter of φ178mm.
Lamp: 421W(LiGHT SKY NSL421M USHIO)
Lighting Effect: Luanr Beam stage light fixture produces even facula and stunning lighting effects
Color Combination: Lunar beam moving head-beam light With 8 prism + 24 prism + prism combination
Design: Lunar Beam moving head beam featured LCD backlit screen design

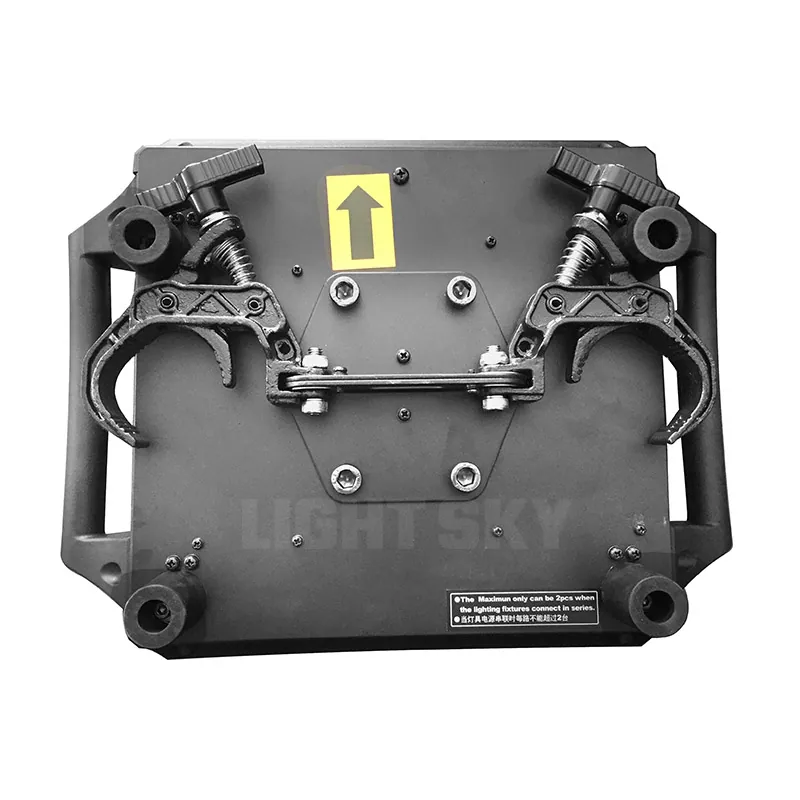

Compact Design: Lunar Beam features a standard clamp system that allows easy installation.

Appearance material: Lunar beam series stage light fixture provides heatproof plastic which prevents UV, Radiation, high pressure, and aging.
