LUNAR MAX

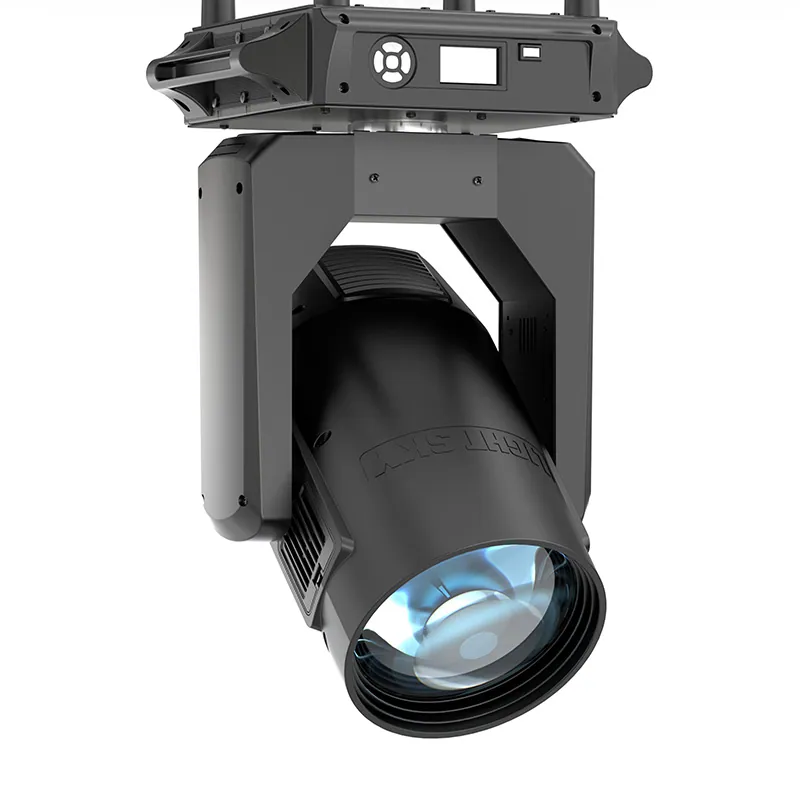

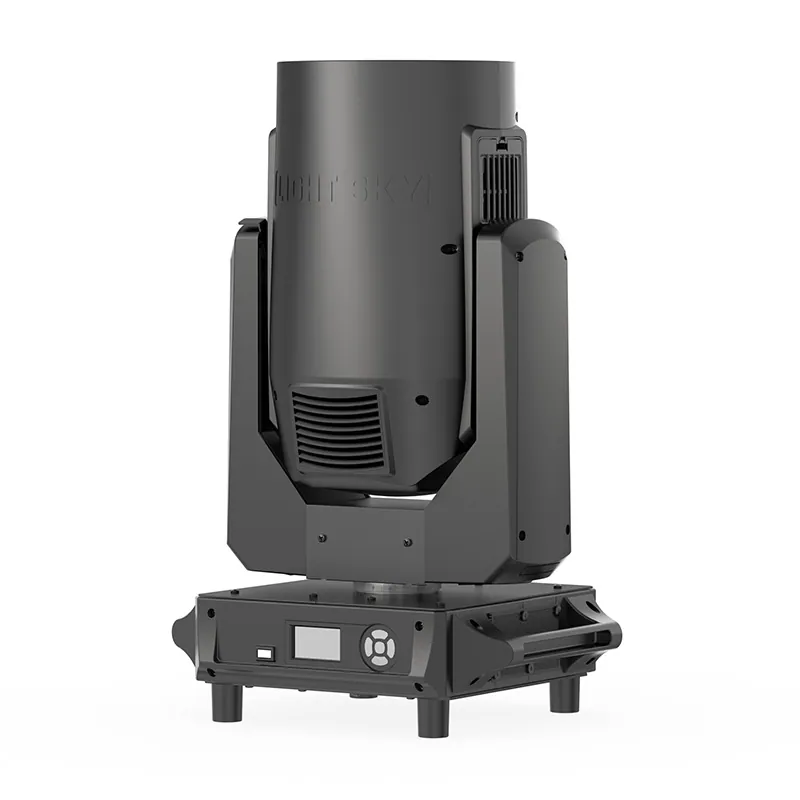

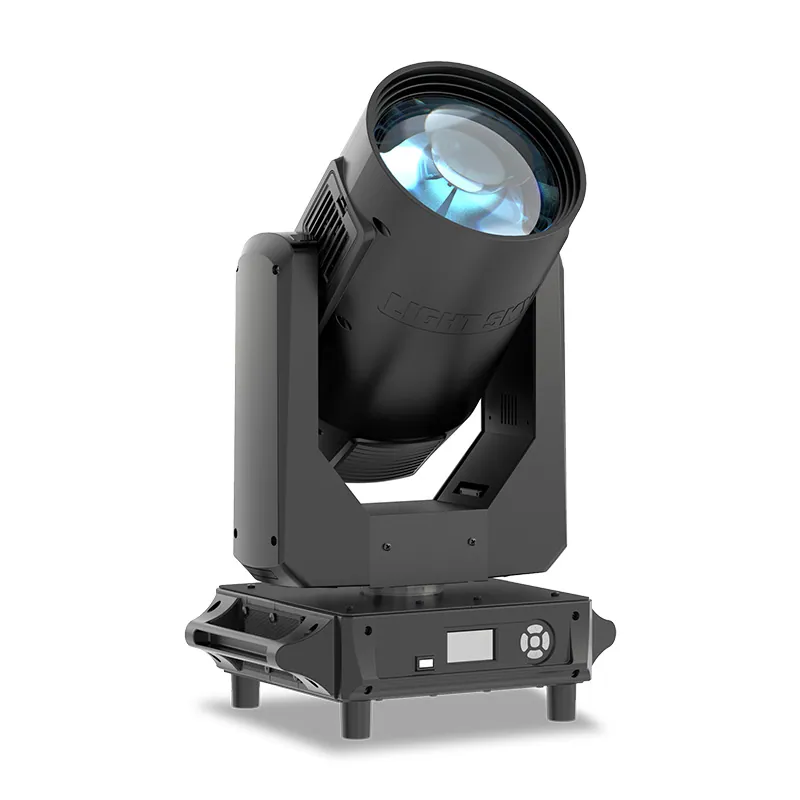

LUNAR MAX Moving Head Lamp – Professional-grade 200mm optical system with ultra-bright 14,000-lumen output.

Light source: OSRAM SIRIUS HRI® 480 SL
Power supply: AC100-240V 50/60Hz
Beam angle / zoom: 1.6°(φ6mm)/1.2°(φ4.5mm)/0.8°(φ3mm) , 3 angles available
Protocols: DMX512, RDM
Net weight: 22.5 kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:36

LIGHT SKY LUNAR MAX2:36

02SpecificationManufacturer's data · 9 groups · 38 values

What this product is, in numbers.

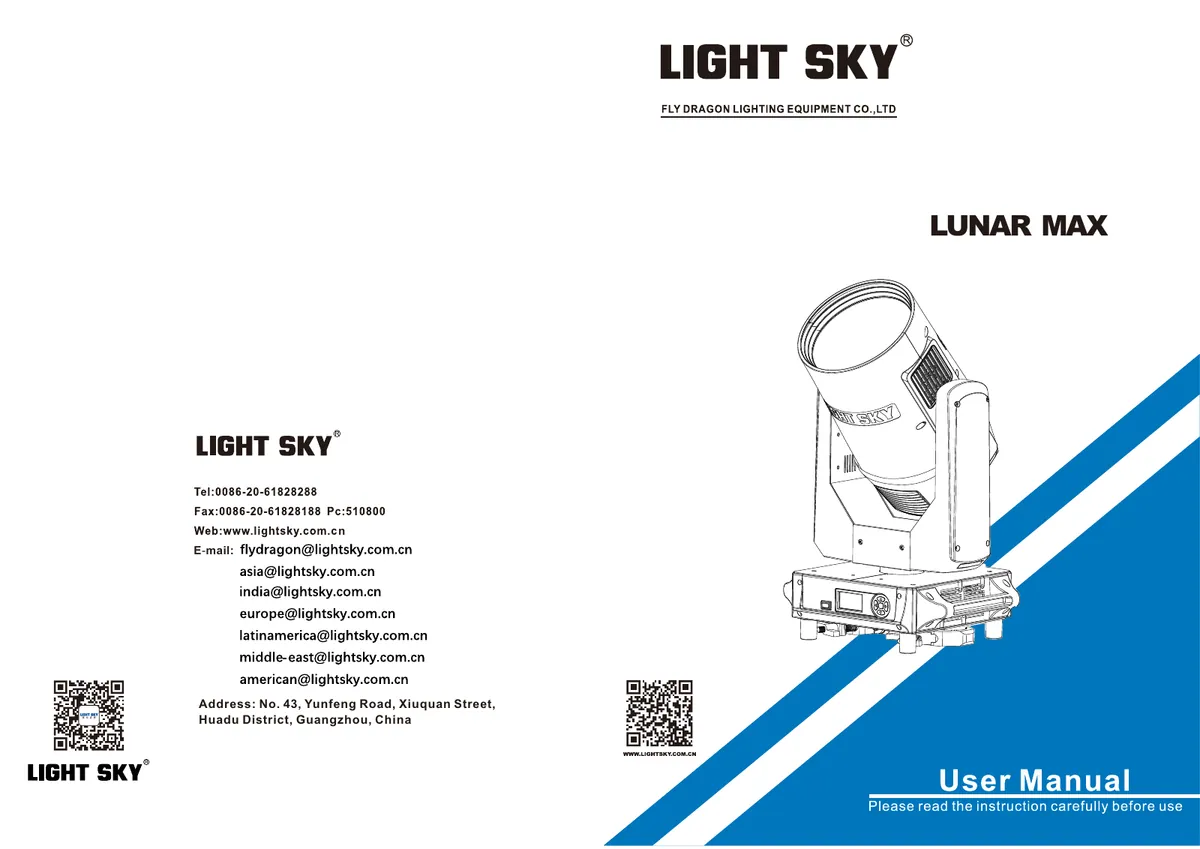

PDFUser manualEN · 36 pages · 3.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL6

Light source: OSRAM SIRIUS HRI® 480 SL
Light source average life span: 2500H
Output color temperature: 6500K

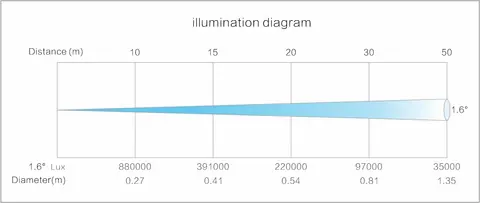

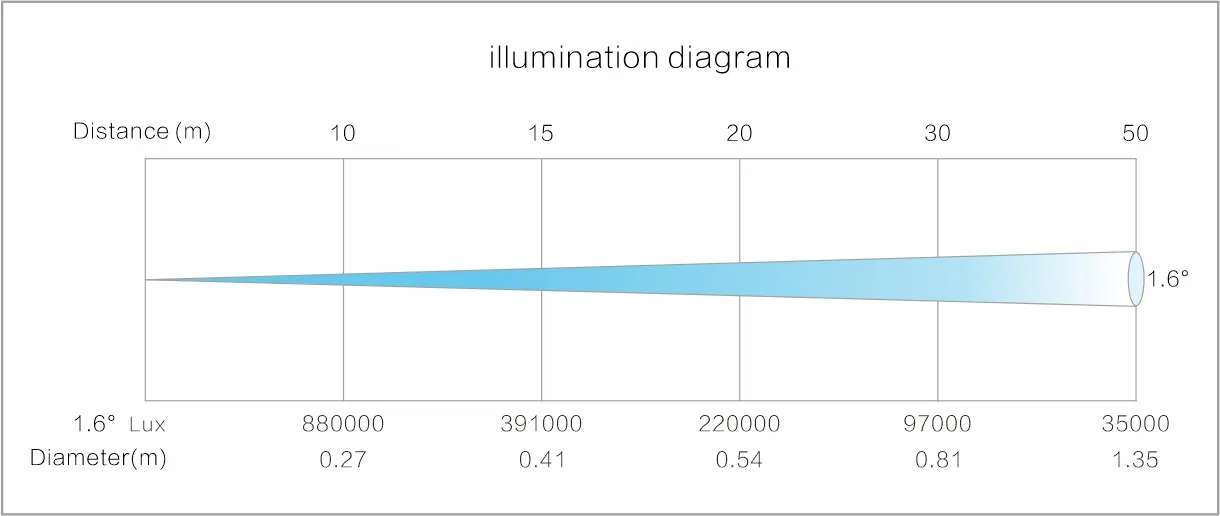

Illuminance: 880000 lux@10m
CRI: Ra≥80
Front lens diameter: 200mm

02EFFECTS8

Beam angle: 1.6°(φ6mm)/1.2°(φ4.5mm)/0.8°(φ3mm) , 3 angles available

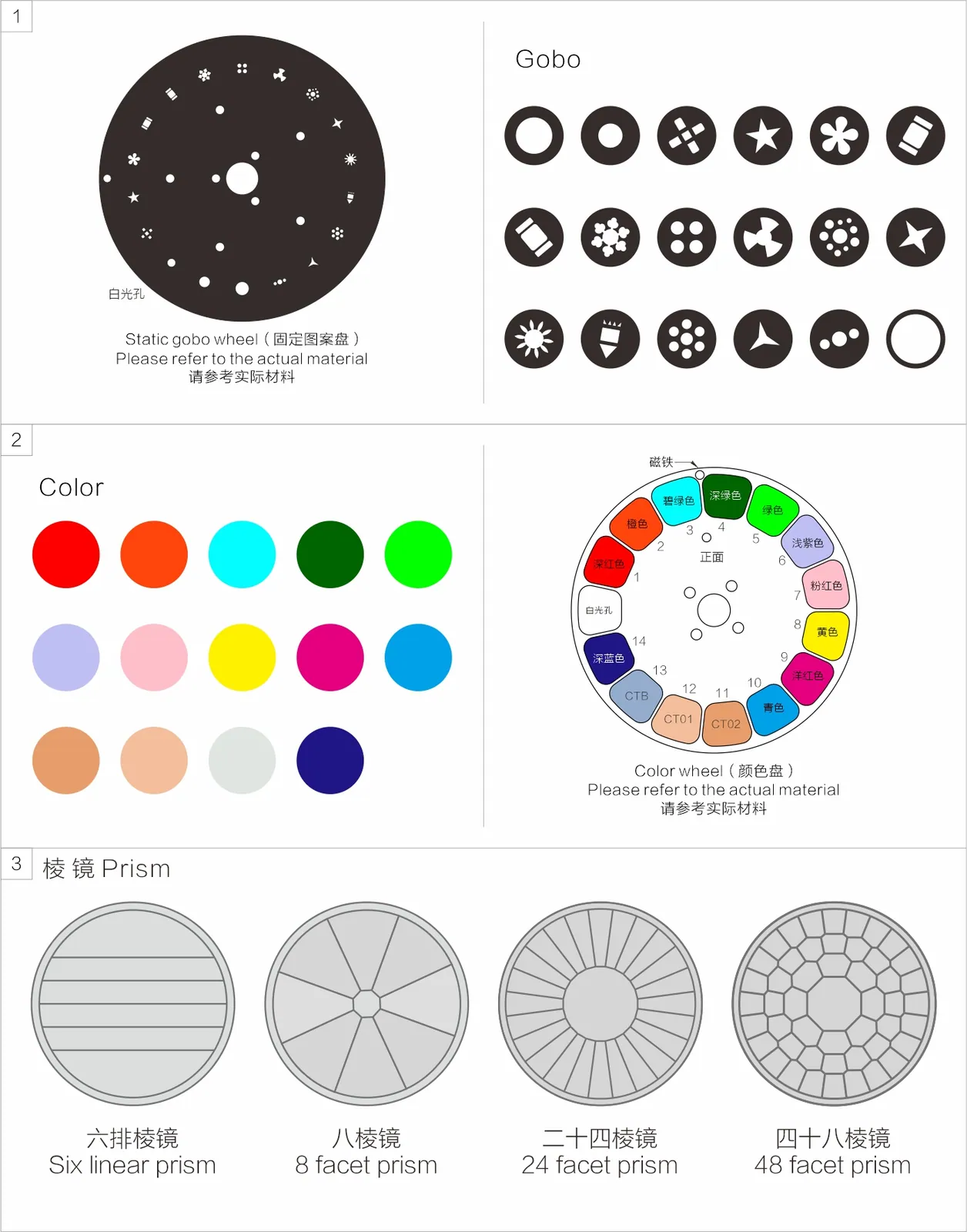

Colour wheel: 12 color + 2 CTO + 1 blank
Static gobo wheel: 17 fixed gobo + 1 blank
Prism: 4 pcs prism : 6 facet liear prism + 8 facet round prism +24 facet round prism +48 facet round prism
Frost: 15° heavy frost
Focus: Motorized focus
Strobe: Electronic pulse strobe and random strobe
Dimmer: 0 to 100% linear dimmer

03CONTROL6

Channel mode: 14CH,16CH,16CH PLUS
Control protocol: DMX512, RDM

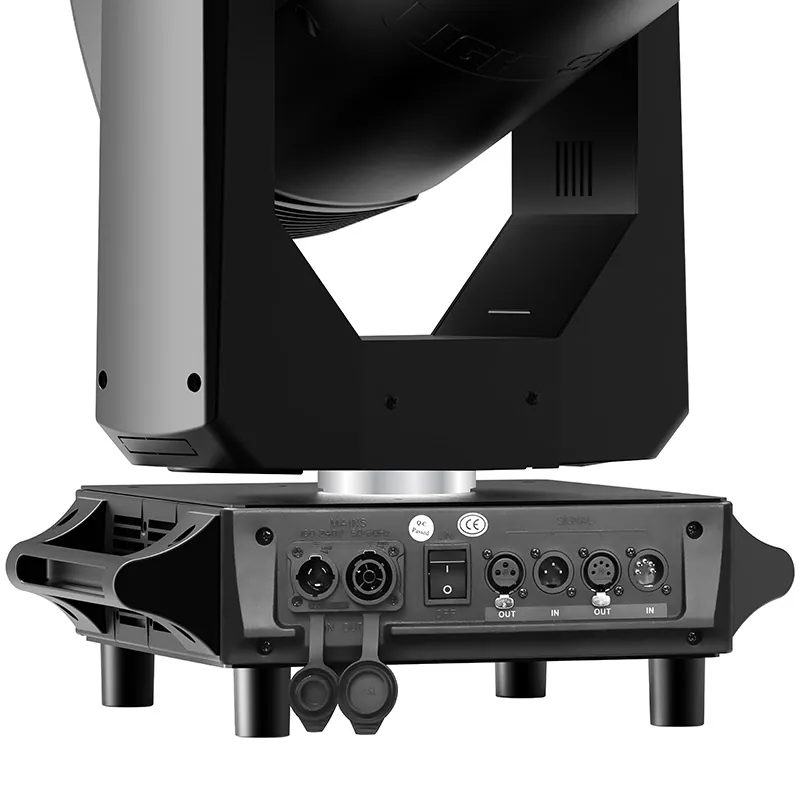

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out

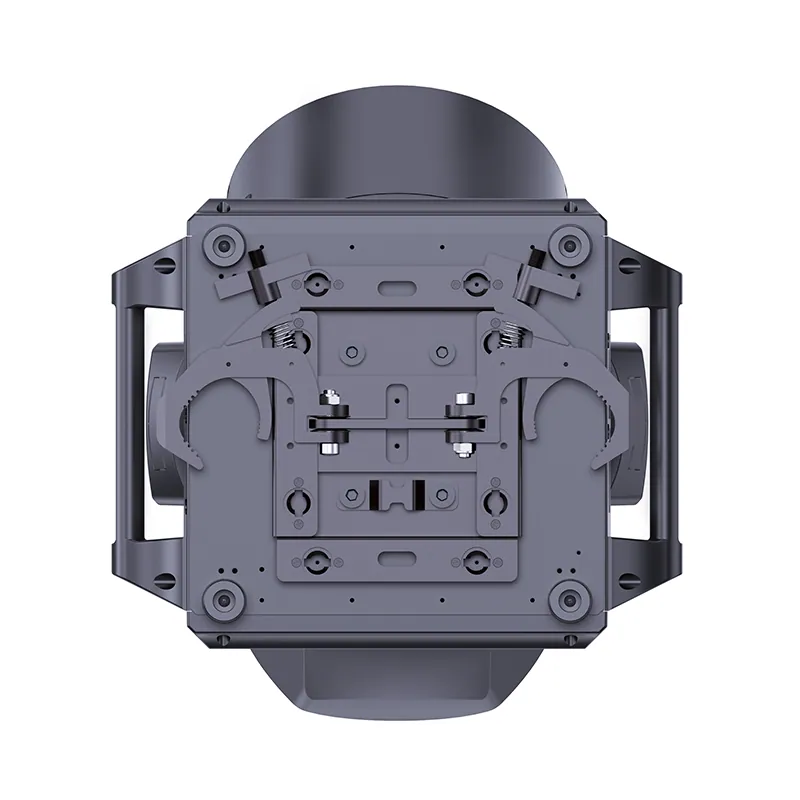

Hanging system: foldable light hook
Display: LCD Menu Display

04SOFTWARE2

Software upgrade: Use DMX signals or Insert USB upgrade software
Control: Intelligent temperature control

05PAN/TILT MOVEMENT1

Pan / Tilt: 540°/270° 8bit/16bit

06POWER2

Voltage: AC100-240V 50/60Hz
Power: 535W, PF 0.987

Show the full specificationHide the rest of the specification3 more groups · 13 values

07SIZE & WEIGHT7

Housing: Engineering plastic PA66

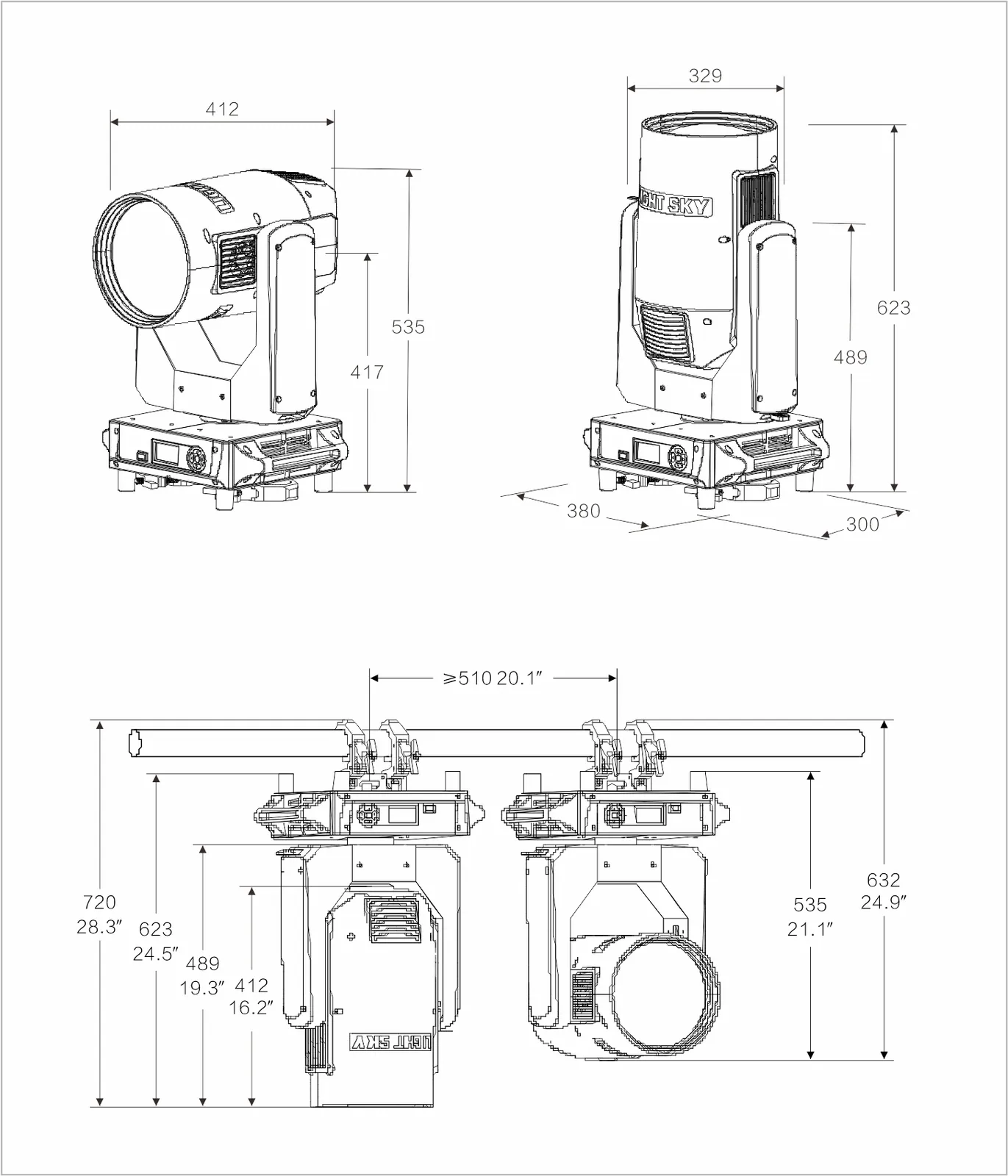

Light dimension: 380×300×623(mm)
N.W: 22.5 kg/pcs
Carton dimension: 450×390×765mm
G.W with carton: 26kg
Flycase dimension: 810×530×845(mm)
G.W with fly case: 84.5kg(2 in 1)

08OTHERS5

IP Rate: IP20
Working Environment: 0°C-40°C
Maximum temperature of fixture body surface: 80°C
Maximum fixture current: 5.35A/110V;2.68A/220V; LiGHT SKY is one of the top moving head lights manufacturers in professional lighting solutions, dedicated to pushing the boundaries of performance and reliability. The LUNAR MAX stage light lamp embodies our engineering excellence – delivering unparalleled brightness, precision optics, and groundbreaking prism effects for transformative stage productions.

09Contact us today1

— let LiGHT SKY China moving head lights illuminate your next breakthrough moment.

03DescriptionManufacturer's description

What it is.

LUNAR MAX Moving Head Lamp – Professional-grade 200mm optical system with ultra-bright 14,000-lumen output. This moving head stage light features patented OSRAM co-developed light source (4,000h lifespan) and multi-faceted prism system (6/8/24/48 facets) for stunning 3D effects.

As one of the most proficient theatrical lighting manufacturers, our moving light lamp has a compact 22.5kg design perfect for stages, concerts, and events.
