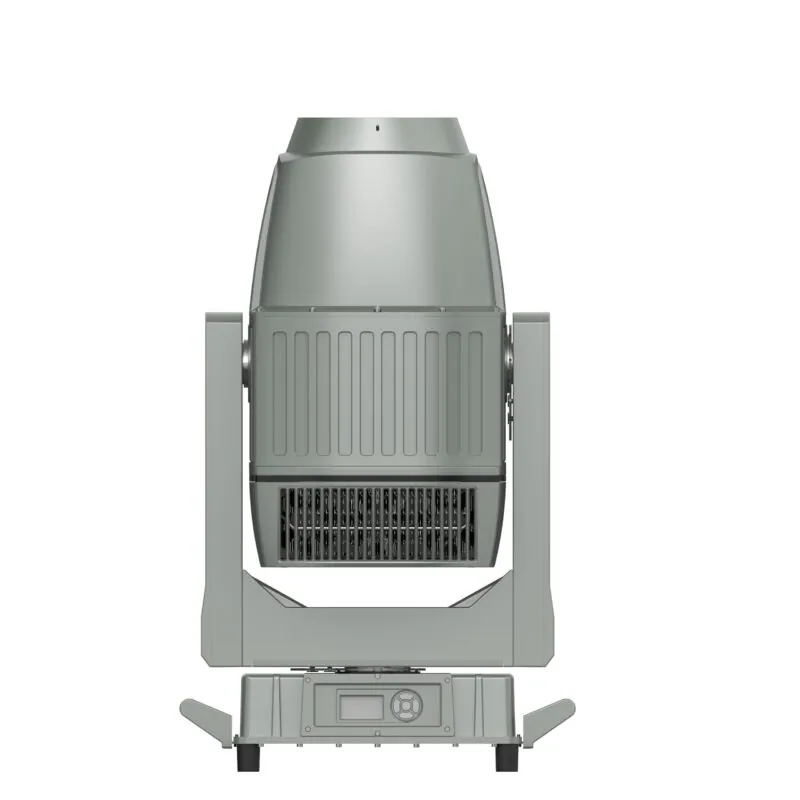

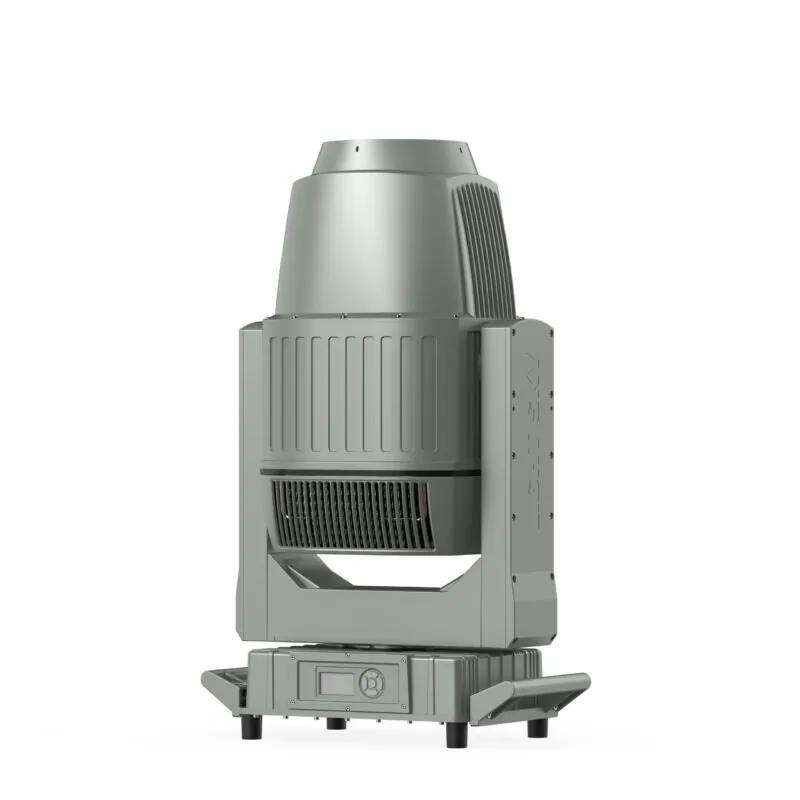

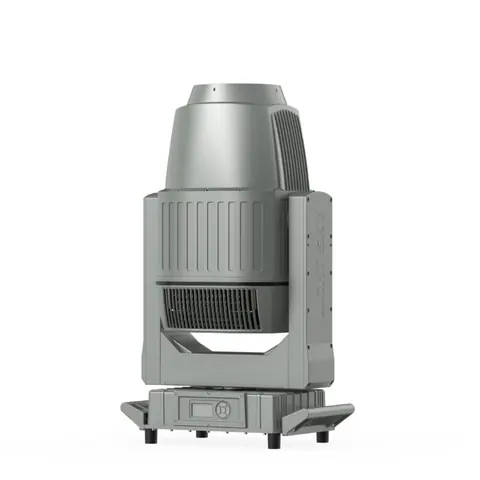

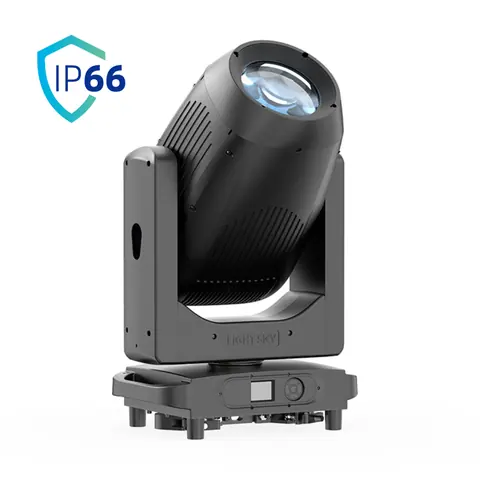

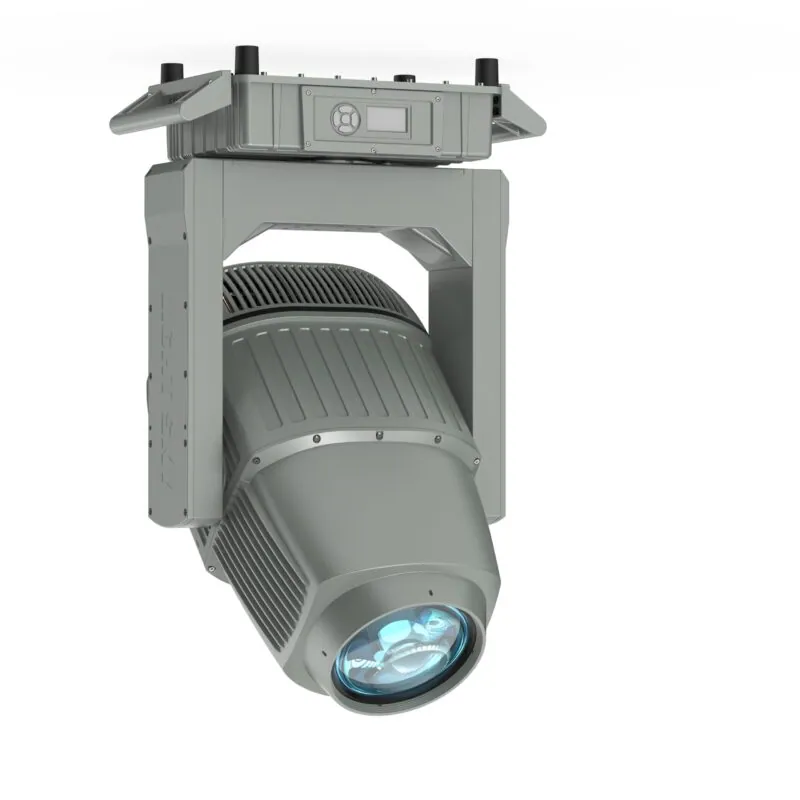

SHARK PROFILE

Adopts a 1200W LED white source, high brightness, long lifespan, and environmental protection

Light source: 1200W LED light engine
Power supply: AC100-240V 50/60Hz;
Protocols: DMX-512, RDM.
Net weight: 55.0kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 4:57

LIGHT SKY SHARK PROFILE4:57

02SpecificationManufacturer's data · 8 groups · 53 values

What this product is, in numbers.

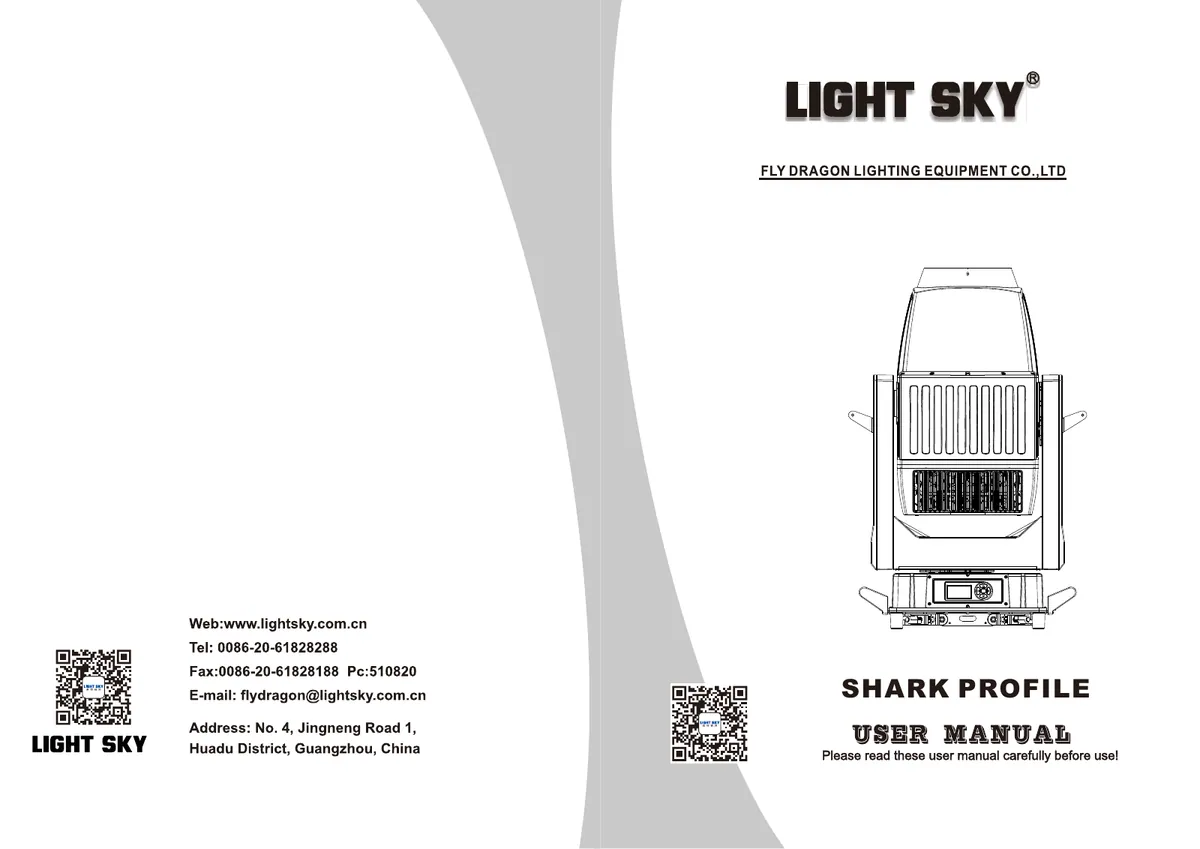

PDFUser manualEN · 28 pages · 5.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Power System7

Voltage: AC100-240V 50/60Hz;
Maximum Power Consumption: 1530W
110V: Max current 15.3A
220V: Max current 7.65A
Power Factor: 0.985
Power Input Connector: PG power input

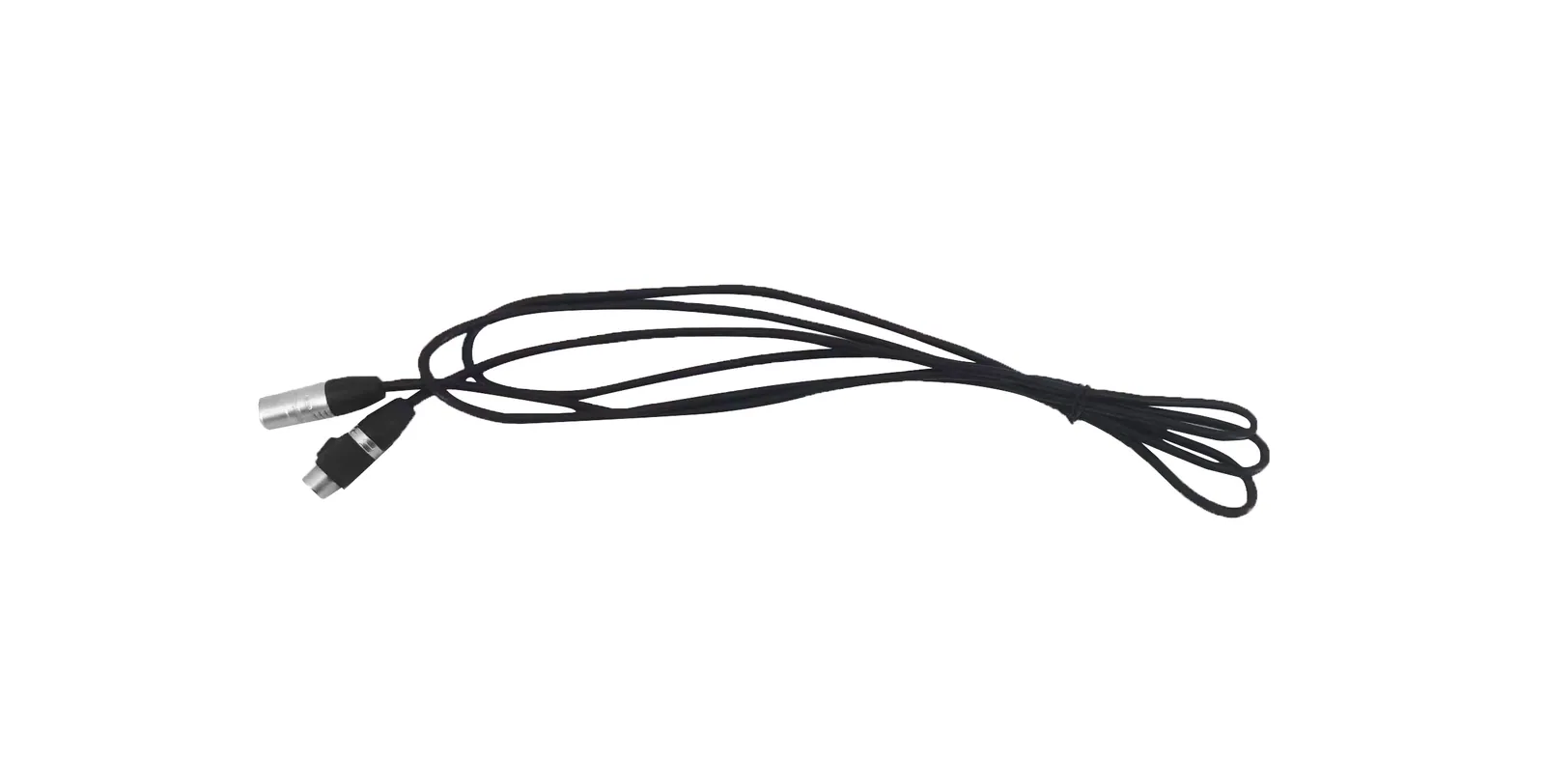

DMX & RDM Data Input/Output: 3-pin XLR connectors (5-pin XLR optional)

02Light Source6

Light Source: 1200W LED light engine
Expected Lifetime: 40,000 hours
Fixture Luminous Flux: Up to 50,700 lm
Color Temperature (CCT): 6800 K
Color Rendering Index (CRI): >70
Optional CRI enhancement filter: Increases CRI to above 88

03Optical System3

Front lens diameter: 186mm
Zoom angle: 6°~ 50°(ratio 8.3:1)

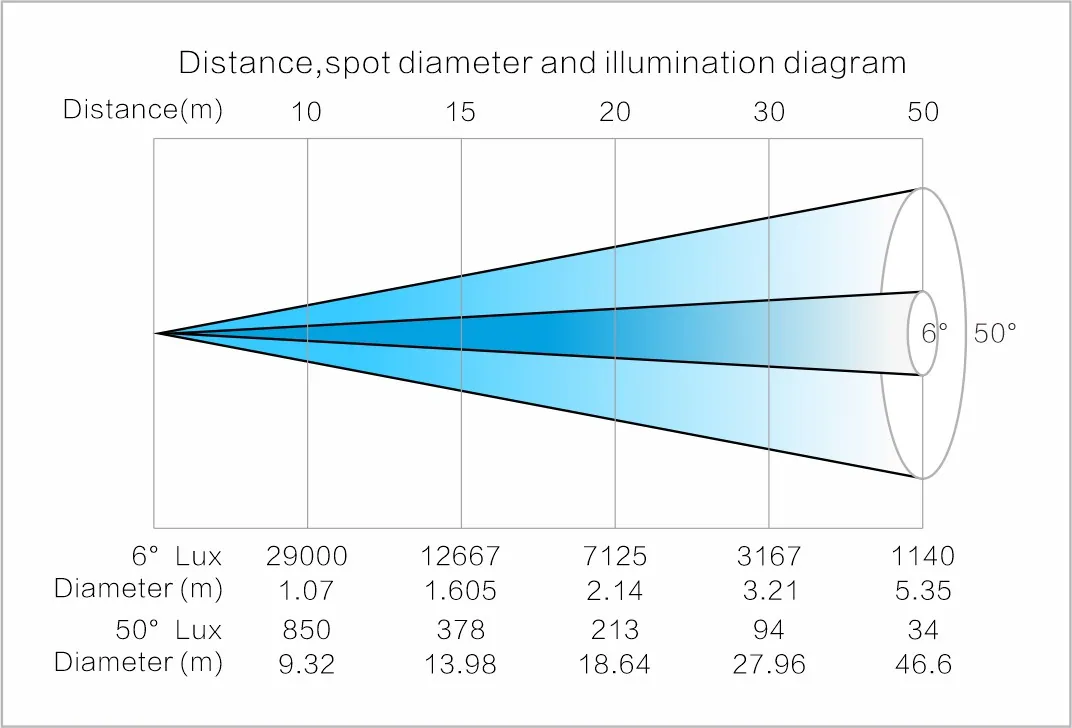

Illuminance: 29,000 lux@10m (the illumination can reach 18,300 lux@10m when using a HIGH CRI filter)

04Dynamic Effects17

▪ Prism: 1 rotating bi-directional four-facet prism
▪ Frost: Two high-transmission frosts, independently insertable and stackable (light and heavy frost), effectively enhancing; brightness in frost mode
▪ Iris: Linear adjustable from 5-100%, with macro function
▪ Framing system: 4 cutting blades, independently controllable in 8 directions, entire framing system rotatable by 90 degrees

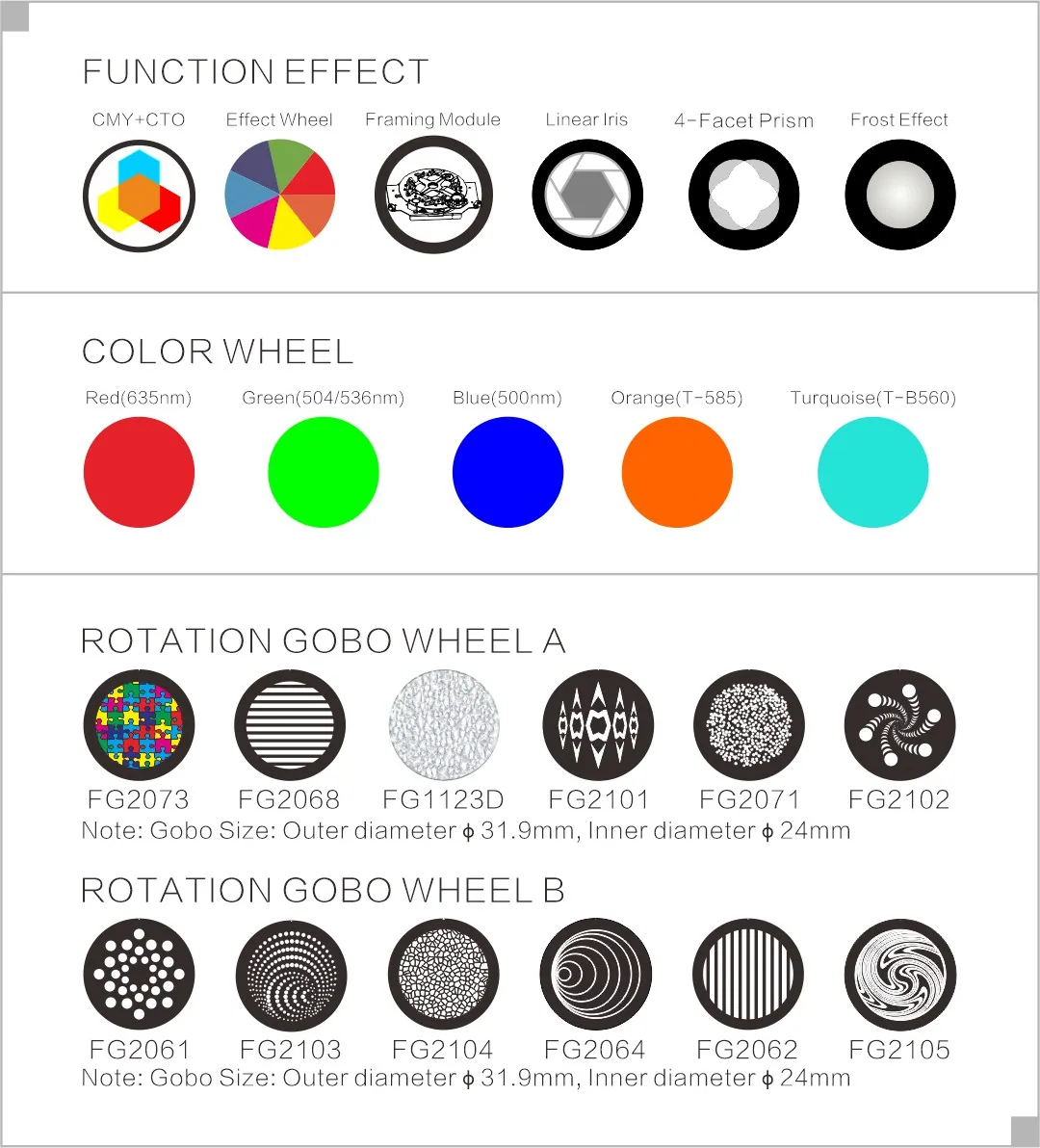

▪ Rotating Gobo Wheel: Dual rotating gobo wheels, each with 6 quickly interchangeable glass gobos made of high-temperature; resistant glass, outstanding gobo overlay effects
▪ Color Wheel: 1 color wheel, 5 colors + blank
▪ Animation wheel: Rainbow effects wheel, usable independently or in combination with the prism wheel, bi-directional rotation; with adjustable speed for kaleidoscope and rainbow effects
▪ Cyan: Linear adjustment from 0–100%
▪ Magenta: Linear adjustment from 0–100%
▪ Yellow: Linear adjustment from 0–100%
▪ CTO: Color temperature adjustment range from 3000K to 6500K
▪ High Precision Motorized Zoom and Focus: High precision motorized zoom and focus
▪ Strobe: Adjustable electronic pulse strobe and random strobe from 1-30 times per second
▪ Dimmer: Linear dimmer from 0-100% without flicker

Show the full specificationHide the rest of the specification4 more groups · 20 values

05Movement5

Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16-bit precision control
Movement Speed: Adjustable standard and fast modes
Position Correction: Automatic error correction and repositioning

06Operating Temperature3

Maximum Ambient Temperature: 40 °C
Maximum Surface Temperature: 80 °C
Minimum Operating Temperature: -10 °C

07Control And Programming3

Control protocol: DMX-512, RDM.
Channel mode: 44CH,56CH
Software upgrade: Insert USB upgrade software

08Appearance Parameters9

Housing: Aluminum

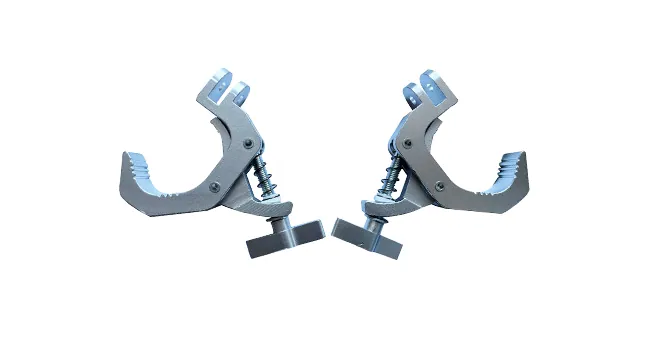

Hanging system: foldable light hook
IP rate: IP66

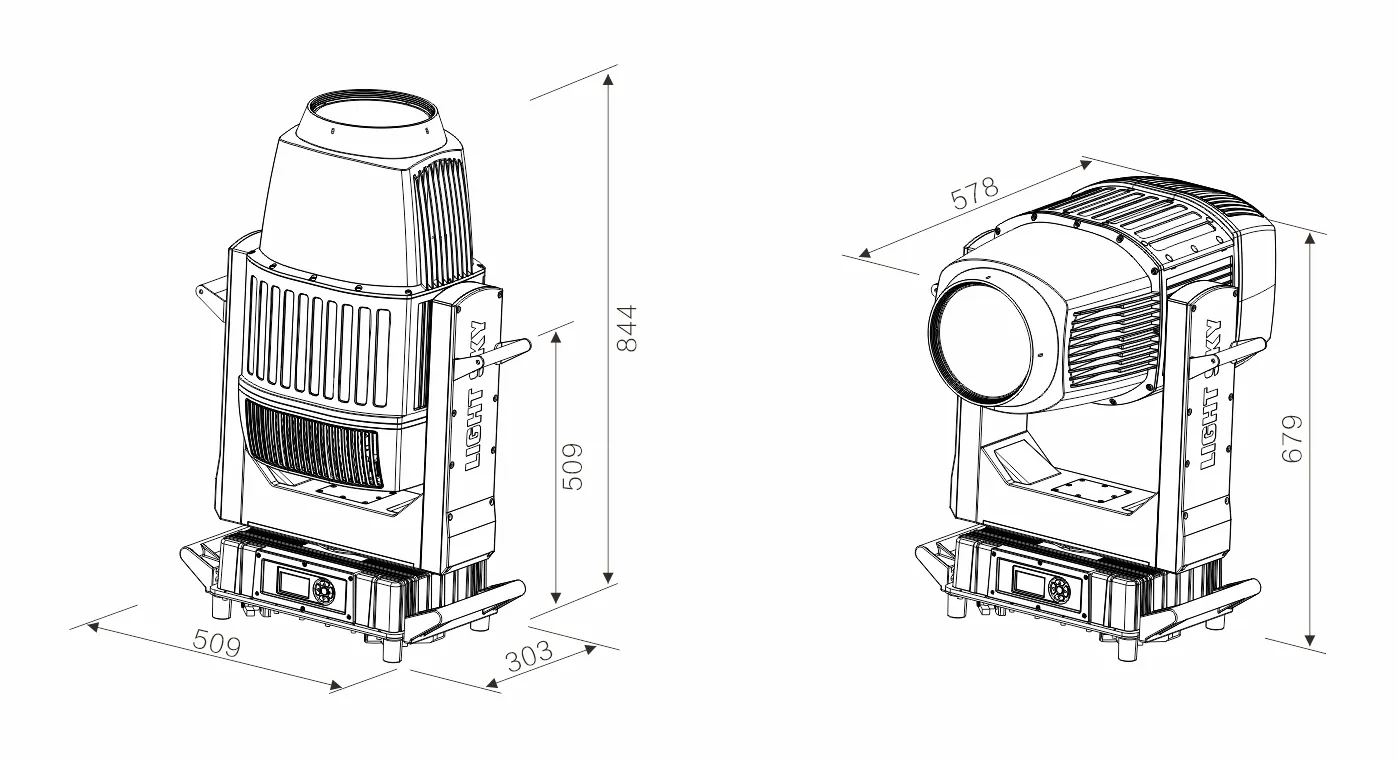

Light Dimension: 509x303x844(mm)
N.W: 55.0kg/pcs
Carton dimension: 950x630x420(mm)
G.W with carton: 61.50kg
Flycase dimension: 960x640x615(mm)
G.W with fly case: 88.0kg (1 in 1)

03DescriptionManufacturer's description

What it is.

FEATURES

High Precision Optical Lens System, φ186mm front lens , 29000 lux@10m (the illumination can reach 18300 lux@10m when using HIGH CRI filter)

Zoom from 6°-50°, Uniform spot project, the edge brightness of the spot reach 85% of the center brightness. Beam full and Uniform.

With BEAM, SPOT, WASH, PROFILE 4 in 1 function, Powerful comprehensive function
Two pcs rotation gobo wheel, each wheel with 6 pcs rotation gobo
CMY color mixing system, which can create pure red, bright green, and dark blue

Professional Framing system: 8 facet &4 blades framing shutters system, which can profile any direction’s triangle, quadrilateral, fan-shaped, circular arc, etc. And the whole framing system can rotate 90°.

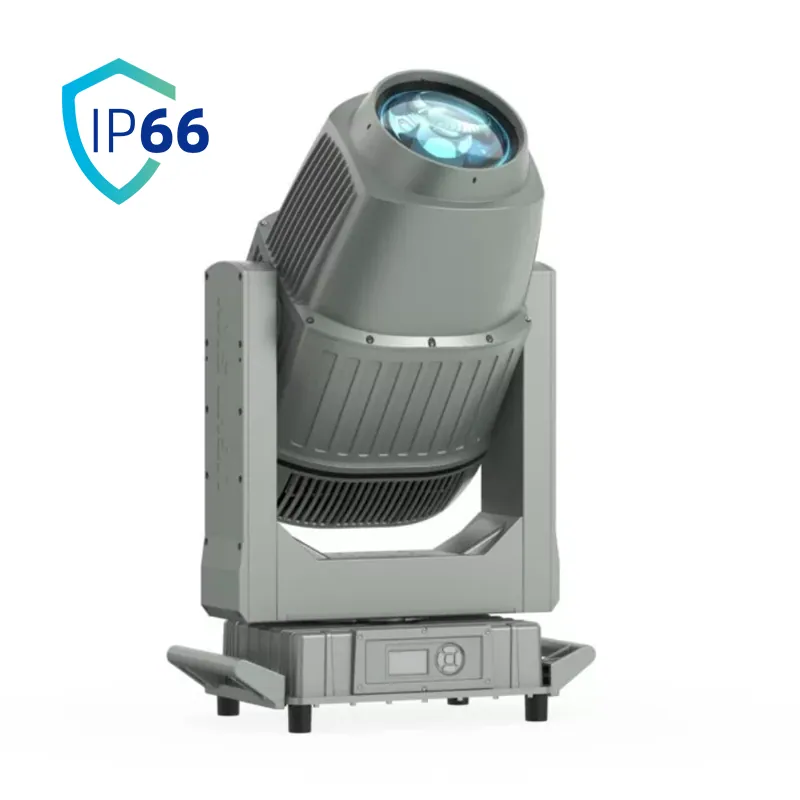

IP66 rate, dustproof, waterproof, Oilproof
