SHARK PROFILE HC

Framing system: 4 cutting blades, independently controllable in 8 directions, entire framing system rotatable by ±45º degrees

Light source: 1200W white LED module
Power supply: AC 100–240V, 50/60Hz
DMX channels: 44CH / 56CH
Protocols: DMX512, RDM, Art-Net (optional)
Net weight: 55 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 9 groups · 53 values

What this product is, in numbers.

PDFUser manualEN · 28 pages · 5.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source8

Light Source: 1200W white LED module
Zoom Angle: 6° – 50°
Optical Lens: High-transmission coated lens, diameter 186mm
Correlated Color Temperature (CCT): 5800 K
Color Rendering Index (CRI): Ra≥96

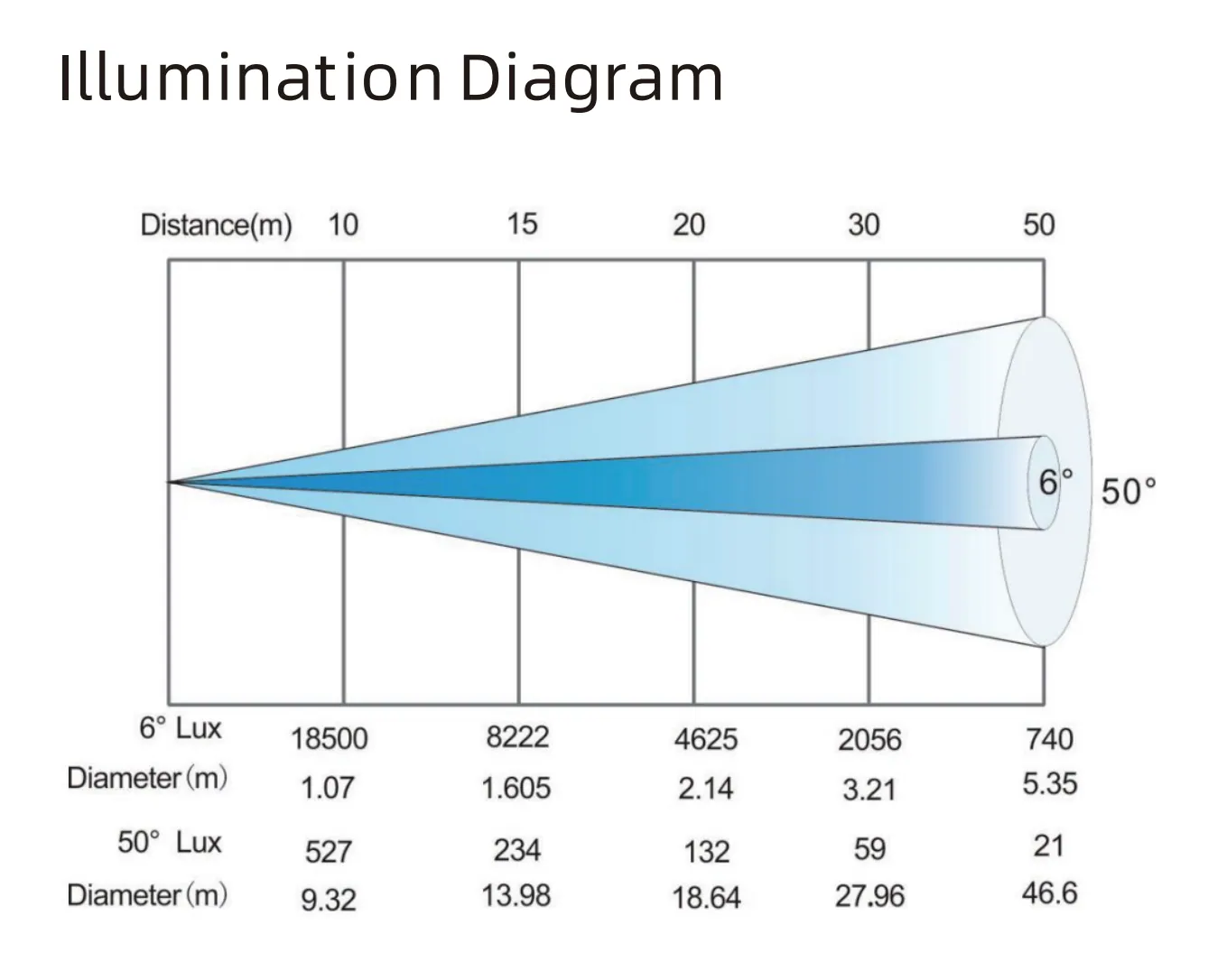

Illuminance: 18,500 lux @10m
Total lumen output: Up to 32,300 lm
LED source life expectancy: 40,000 hours*

02Color3

CMY: CMY infinite colour mixing
CTO: Color temperature adjustment range from 3000K to 6500K

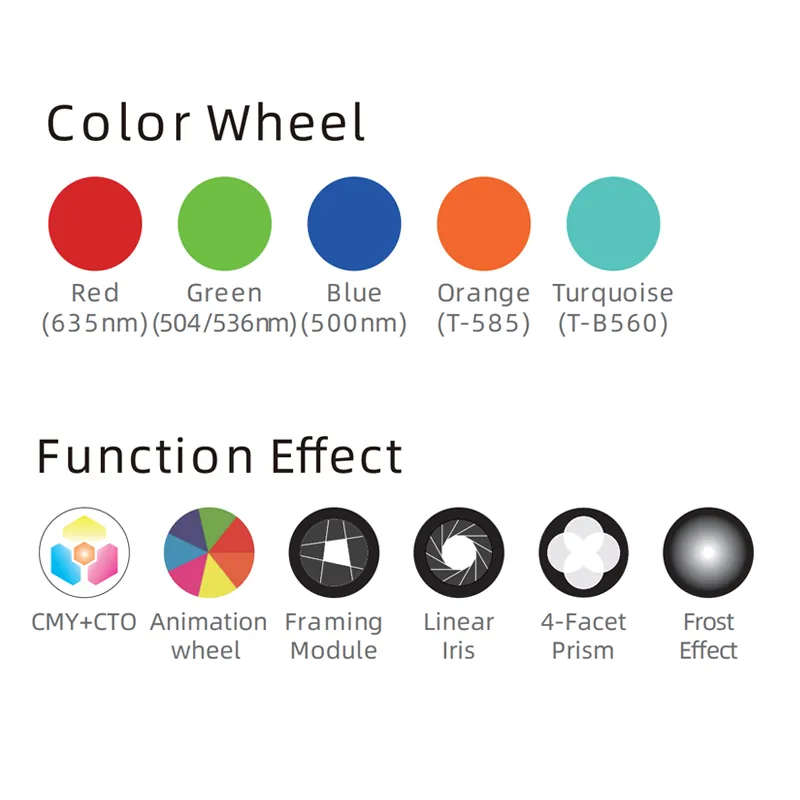

Color Wheel: 1 color wheel, 5 colors + blank, featuring bidirectional color rainbow effect, two-color step and linear gradient effects, bidirectional rotation, and random color mode.

03Gobo4

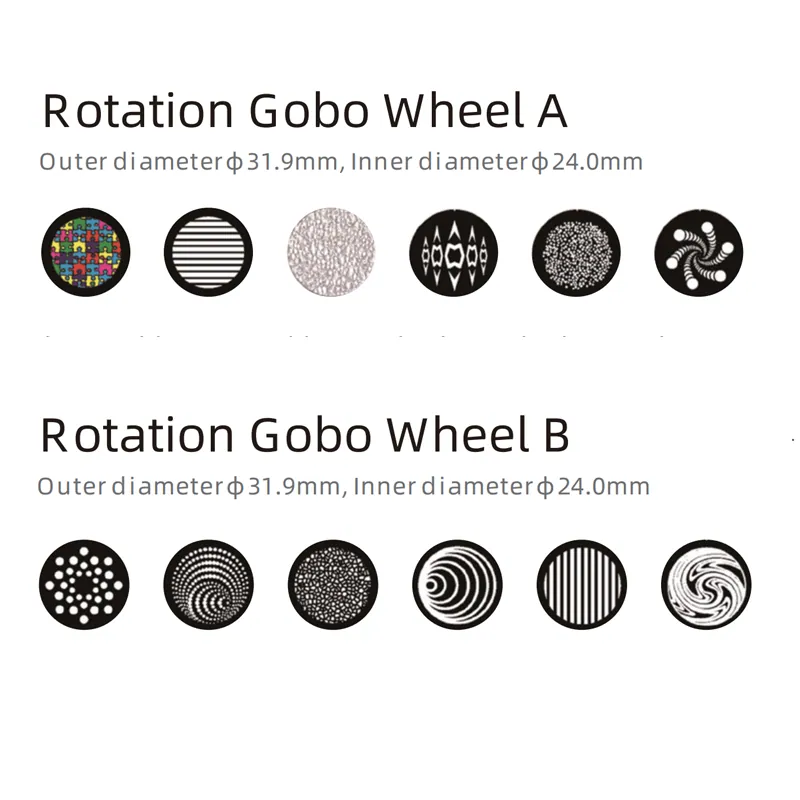

Rotating Gobo Wheel: 2 rotating gobo wheels, 2 rotating gobo wheels, each with 6 quickly interchangeable glass gobos + blank, delivering dynamic overlay effects. Gobos support rotation, flow, and shake effects.
Animation wheel: Rainbow effects wheel, usable independently or in combination with the prism wheel, bi-directional rotation; with adjustable speed for kaleidoscope and rainbow effects
Framing system: 4 cutting blades, independently controllable in 8 directions, entire framing system rotatable by ±45º degrees

04Dynamic Effects7

Prism: 1 rotating bi-directional four-facet prism
Frost: Two high-transmission frosts, independently insertable and stackable (light and heavy frost), effectively enhancing; brightness in frost mode
Iris: Linear adjustable from 5-100%, with macro function
Dimmer: Linear dimmer from 0-100% without flicker
Strobe: Adjustable electronic pulse strobe and random strobe from 1-25 times per second
LED Refresh Rate: 1000 Hz – 25 kHz

05Control And Programming7

Control Channels: 44CH / 56CH
Protocols: DMX512, RDM, Art-Net (optional)
Data Connections: 3-pin or 5-pin XLR input/output
RJ45 Port: Optional
Display: LCD screen
Software Upgrade: Via DMX signal or USB port
Thermal Management: Intelligent temperature control to ensure LED lifespan

Show the full specificationHide the rest of the specification4 more groups · 24 values

06Movement4

Pan axis: 540° 8bit/16bit
Tilt axis: 270° 8bit/16bit; Reset function with automatic error correction
Fixed lock: Pan/Tilt axis lock

07Power & Electrical4

Input Voltage: AC 100–240V, 50/60Hz
Maximum Power Consumption: 1530W
Power Factor: 0.985
Maximum Current: 7.65A @ 220V; 15.3A @ 100V

08Operating Temperature8

IP Rate: IP66
Maximum Ambient Temperature: 40 °C
Maximum Surface Temperature: 80 °C
Minimum Operating Temperature: -10 °C; Factory Configuration
Signal Cable: 1 pc (Part No.: F0200020008)
Safety Rope: 2 pcs (Part No.: F0200010002)
Lamp Hook: 1 set (Part No.: C0499990007)

09Appearance Parameters8

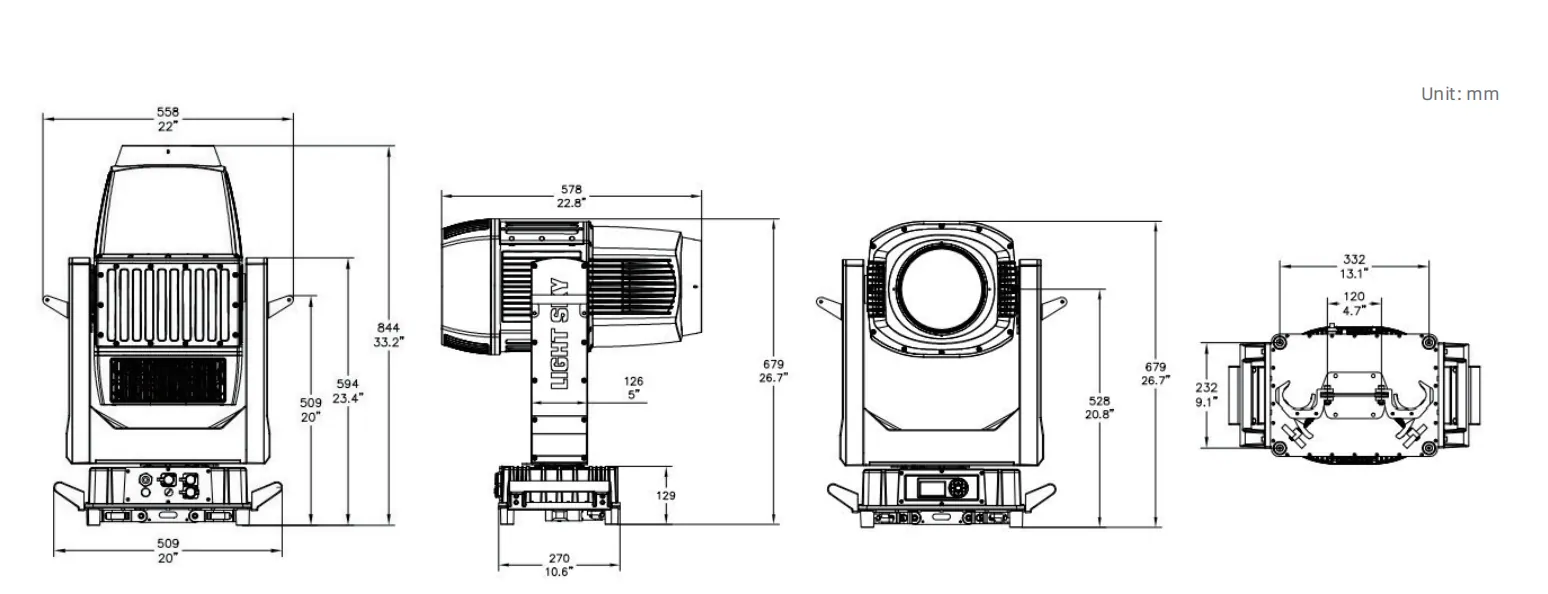

Product Dimensions: 509mm × 303mm × 844mm
Net Weight: 55 kg
Packaging Dimensions (Carton): 950mm × 630mm × 420mm
Gross Weight (Carton): 61.5 kg
Packaging Dimensions (Fly case 1 in 1): 960mm × 640mm × 615mm
Gross Weight (Fly case): 88.0 kg
Disclaimer: Although LiGHT SKY attempts to provide accurate information in this catalog, it cannot guarantee that the content does not contain any technical errors or typographical errors; therefore, LiGHT SKY does not bear any responsibility for the inaccuracy of the information in this catalog.
Note: The catalog is for reference only, and if there is any change, no prior notice will be given.

02DescriptionManufacturer's description

What it is.

LED MOVING BSWP 4 IN 1

FEATURES

Rotating Gobo Wheel: Dual rotating gobo wheels, each with 6 quickly interchangeable glass gobos made of high-temperature resistant glass, and outstanding gobo overlay effects

Animation wheel: Rainbow effects wheel, usable independently or in combination with the prism wheel, bi-directional rotation with adjustable speed for kaleidoscope and rainbow effects

CMY: CMY infinite colour mixing
CTO: Color temperature adjustment range from 3000K to 6500K
Strobe: Adjustable electronic pulse strobe and random strobe from 1-25 times per second
Dimmer: Linear dimmer from 0-100% without flicker

03Documents12 files · 12 MB
