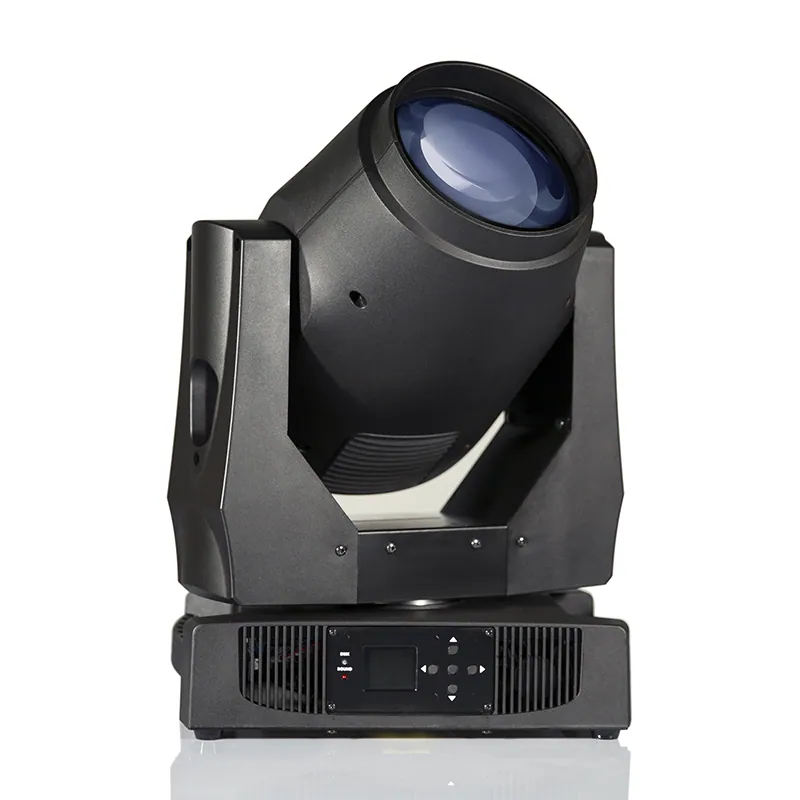

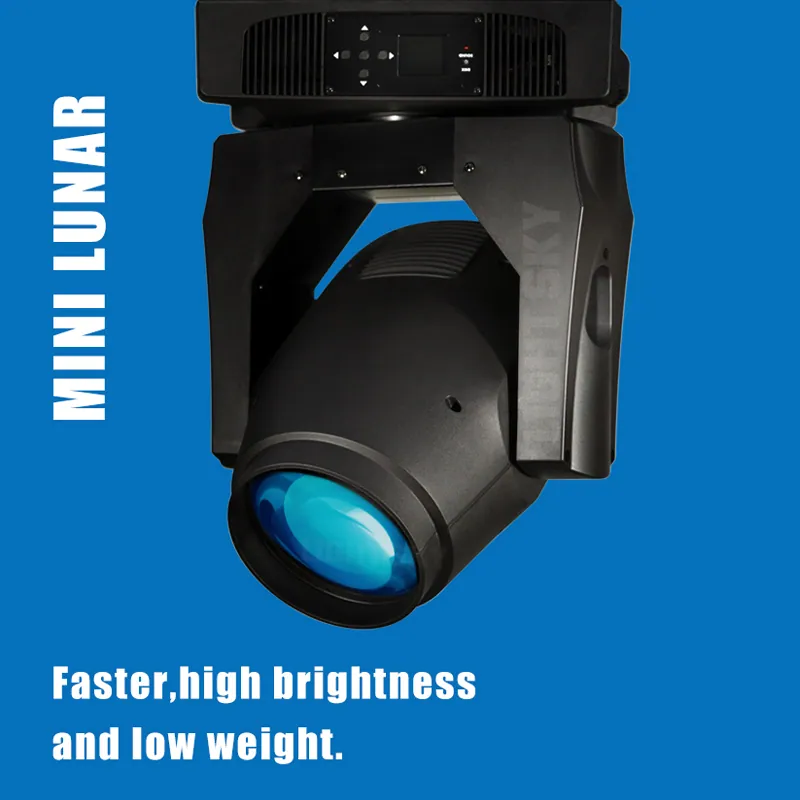

MINI LUNAR

Mini Lunar moving head lights can create various color effects to meet the needs of different scenes.

Light source: USHIO NSL 301
Power supply: AC100-240V 50/60Hz
Protocols: DMX512, RDM
Net weight: 15.4 Kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video3 manufacturer's videos · 7:19

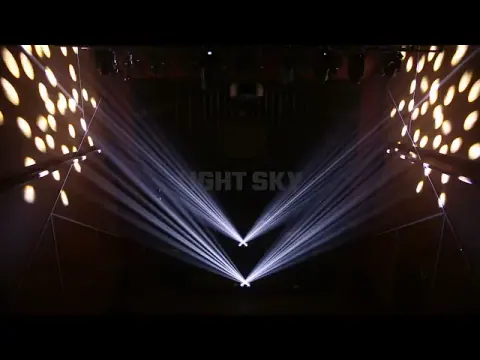

LIGHT SKY MINI LUNARVideo 1 of 3 · 2:12

02SpecificationManufacturer's data · 4 groups · 41 values

What this product is, in numbers.

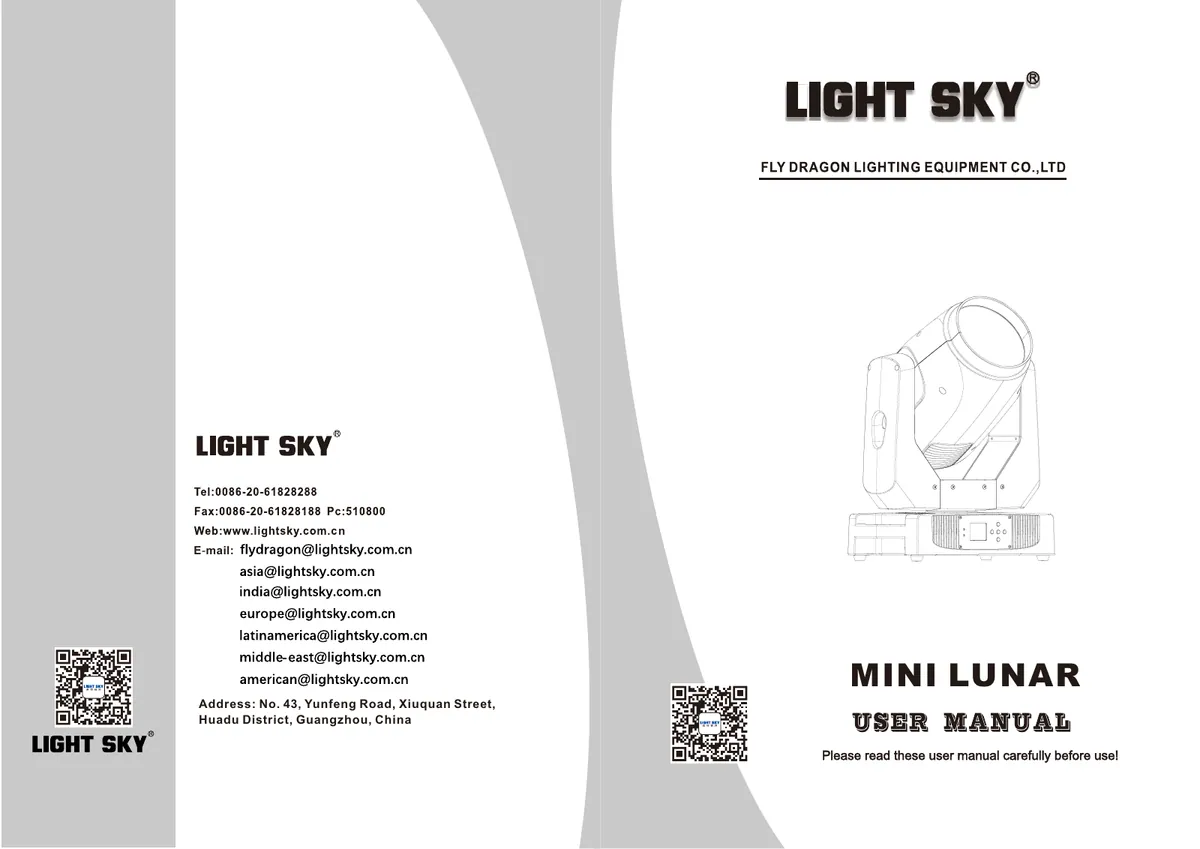

PDFUser manualEN · 26 pages · 4.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System13

Voltage: AC100-240V 50/60Hz
Power rating: 400W; PF : 0.987

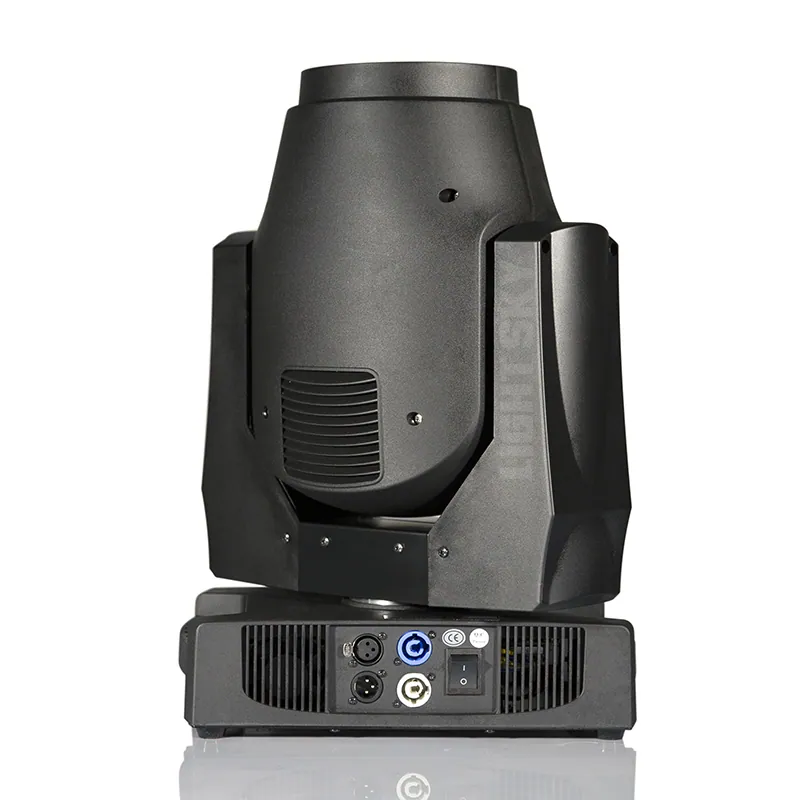

Power in connector: Neutrik power
DMX and RDM IN/OUT: Locking 3-pin ( 5-pin XLR Optional)
Lamp: USHIO NSL 301
Light source power: 300W
Lamp Average Lift span: 2000h
Fixture Total Lumen Output: 19000 LM
Light source CCT: 7300 K
CRI: 80
Ballast: Electronic
Output lens diameter: φ150 mm

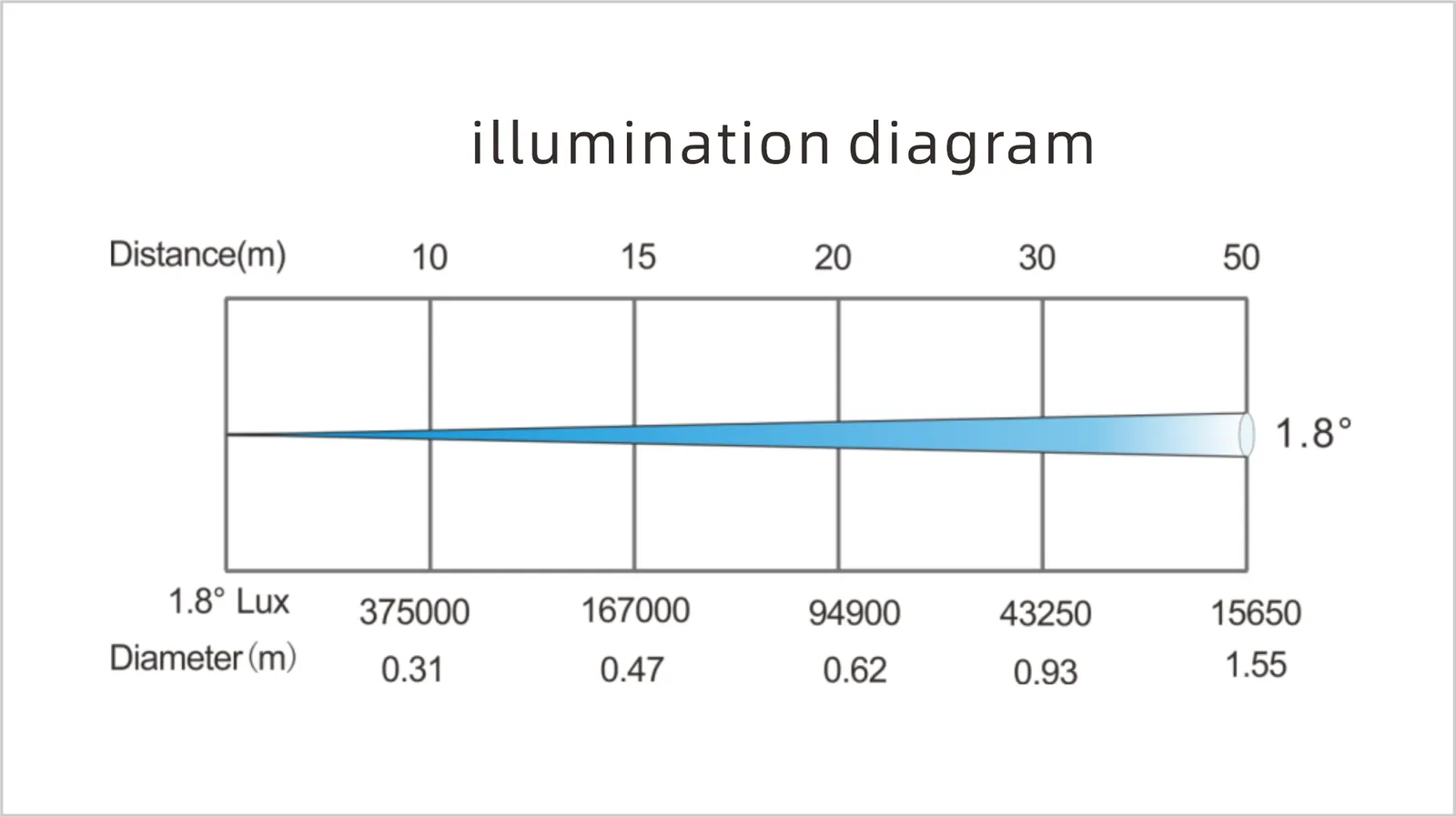

Illuminance: 375000 lux @10m

02Color / GOBO / Effects8

Beam range: 1.8° beam angle (0.6° / 1.2° beam angle selection)

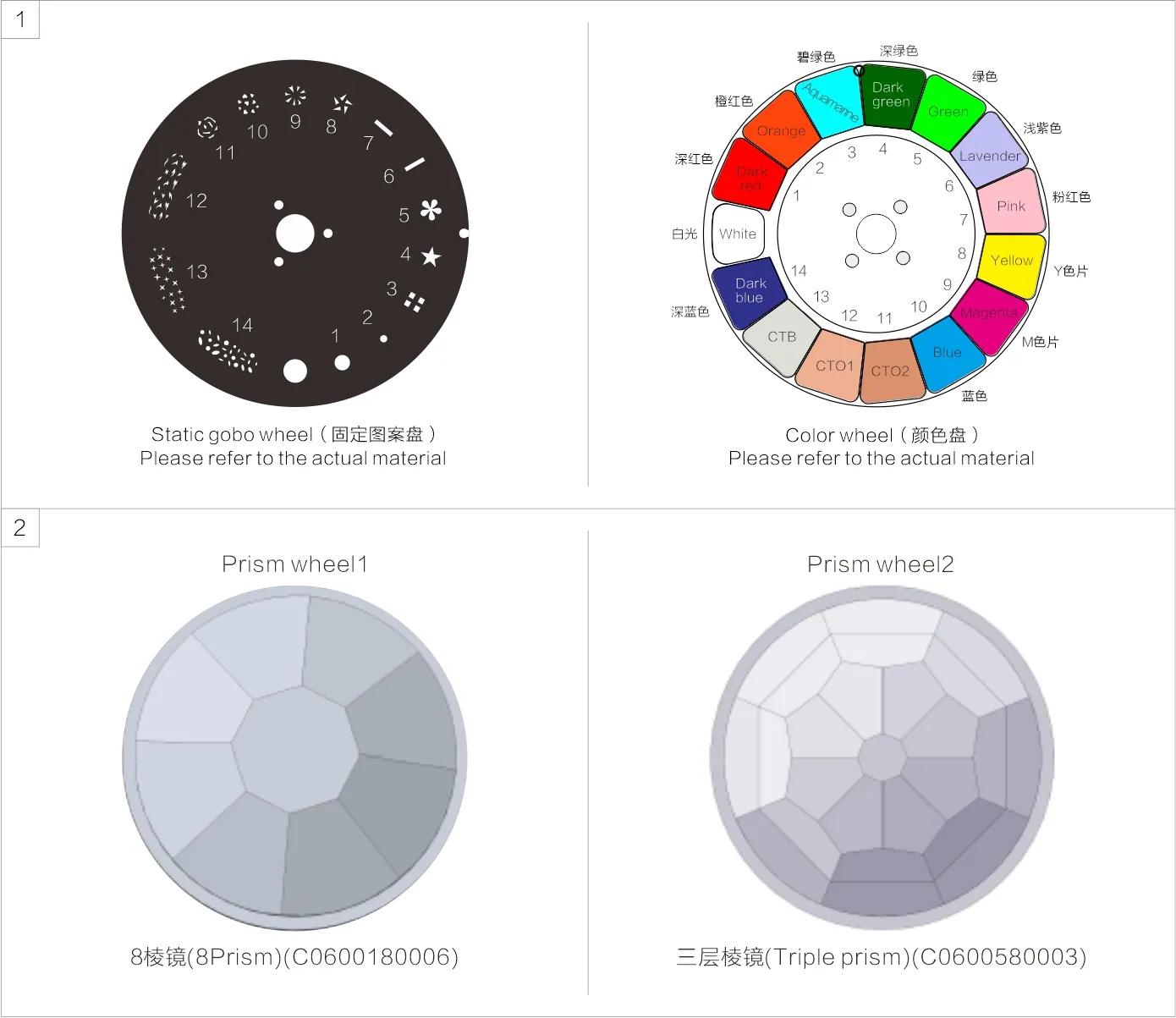

Colour Wheel: Color wheel : 12 color + 2 CTO + 1 blank
Static gobo wheel: 11 Gobos + open + 3 animations range ,Bi-direction flow water
Prism: With 8 facet prism+24 face prism+prism combination
Frost: adjustable wash effect angle
Focus: Motorized focus
Strobe: Electronic pulse strobe and random strobe
Dimmer: 0 to 100% linear dimmer

03Control System9

Pan/Tilt: 540°/270°
Pan / Tilt Resolution: 2.11°/1.05°
Pan / Tilt Speed: 2.7S/1.6S
IP Set: RDM two-way data transmission,Remote reset DMX address.

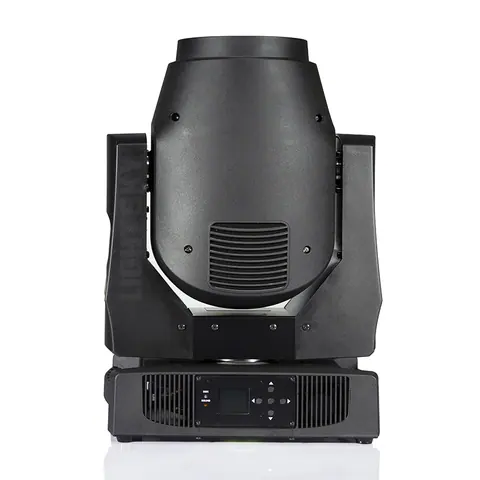

Display: The display panel adopts a 1.77-inch TFT screen
Intelligent control: Display board can record device’s using time , show device’s temperature, channel data and software version .
Software upgrade: Upgrade with DMX
Control protocol: DMX512, RDM
Channel mode: 14CH、16CH 、16 PLUS

04Appearance Parameters11

Housing: Engineering plastic PA66

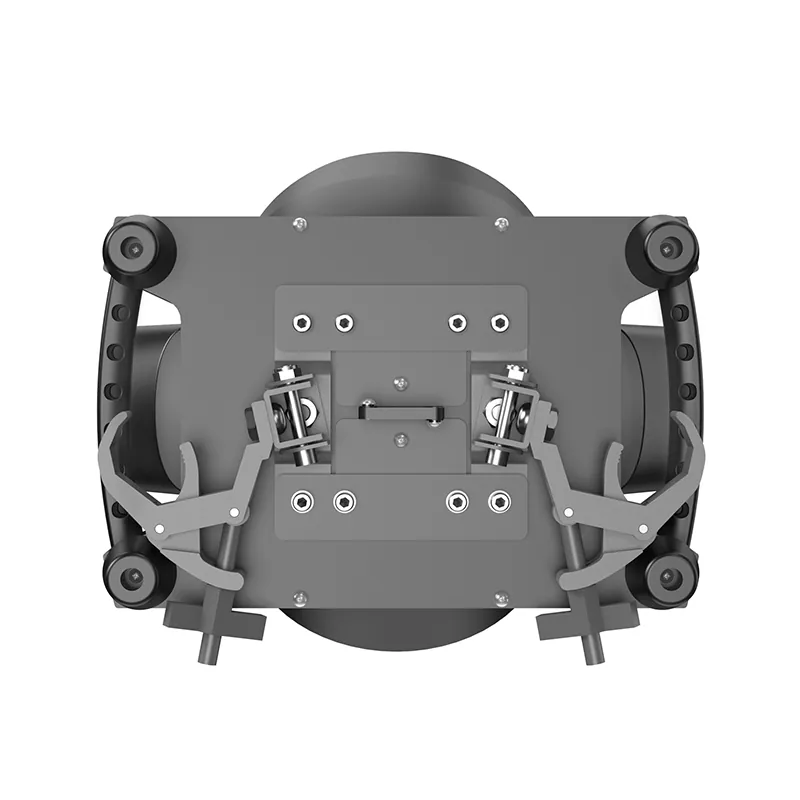

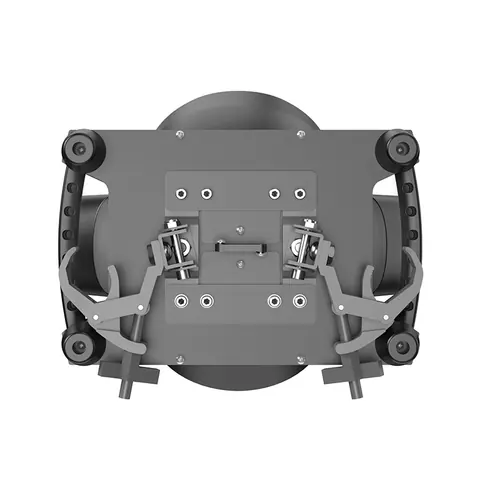

Hanging system: foldable light hook
IP rate: IP20

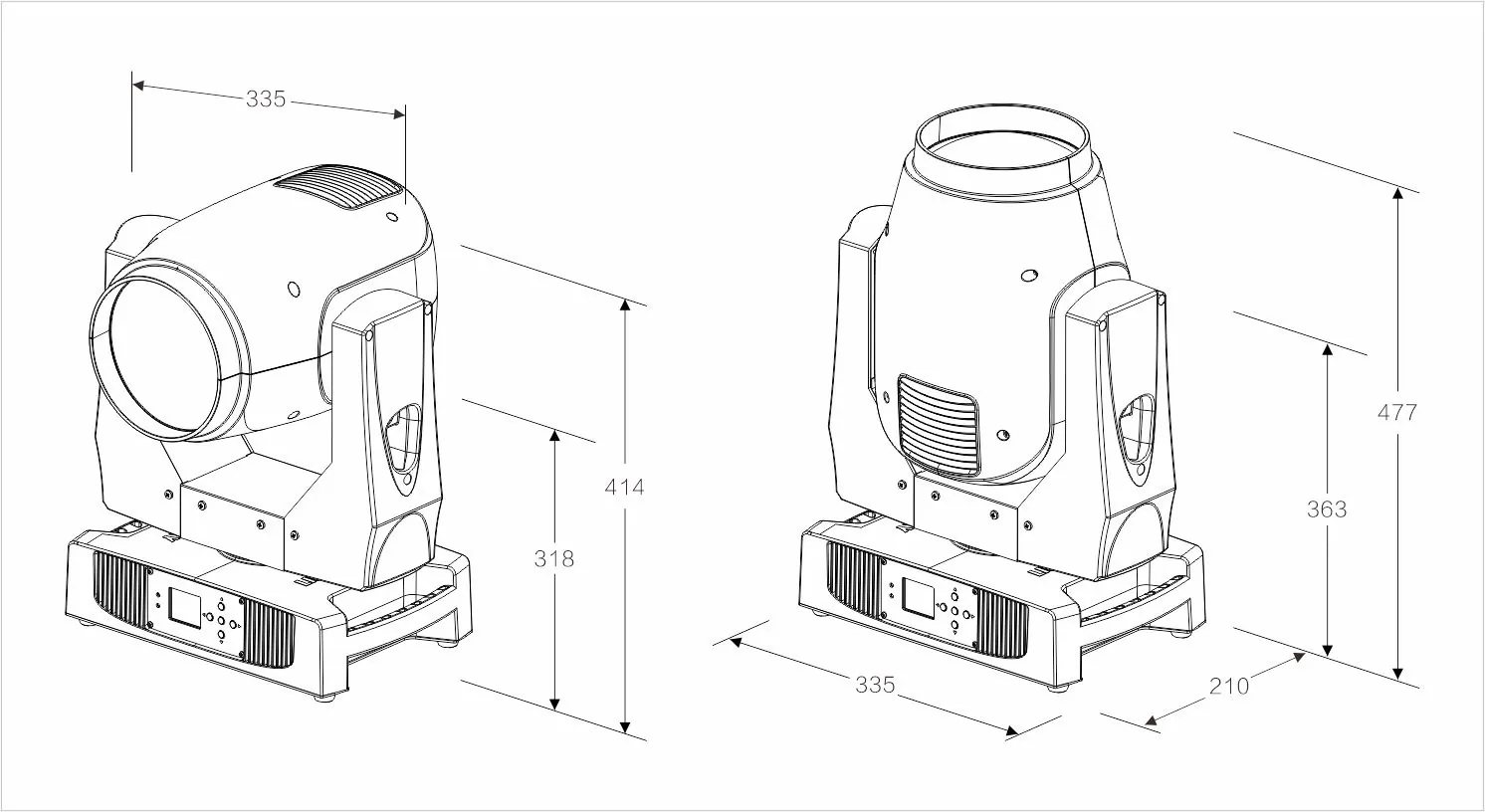

Light dimension: 335x210x477mm
N.W: 15.4 Kg/pcs
Carton dimension: 410x290x635mm
G.W with carton: 18.5 Kg
Flycase dimension: 660x500x720(mm)
G.W with fly case: 62.8Kg(2 in 1)
Flycase dimension: 820x685x720mm
G.W with fly case: 106.6Kg(4 in 1)

03DescriptionManufacturer's description

What it is.

Mini Lunar moving head lights can create various color effects to meet the needs of different scenes. The LiGHT SKY is committed to providing all customers with high-quality mini-beam lights; if you are interested in mini stage lights, please get in touch with us, and our expert team will get back to you as soon as possible.

FEATURES

Lamp: Using USHIO NSL 301 long-life lamp, average lifespan:2000h
Beam: 375000Lux/10m,powerful, strong visual impact
With 8 facet prism+24 face prism+prism combination
CRI: 80, Bright colors and good saturation
Fixture Weight: 15.4kg, Accurate horizontal and Vertical positioning, Fast response
