Sheet 05.661

LIGHT SKY · Beam

SCOPE BEAM

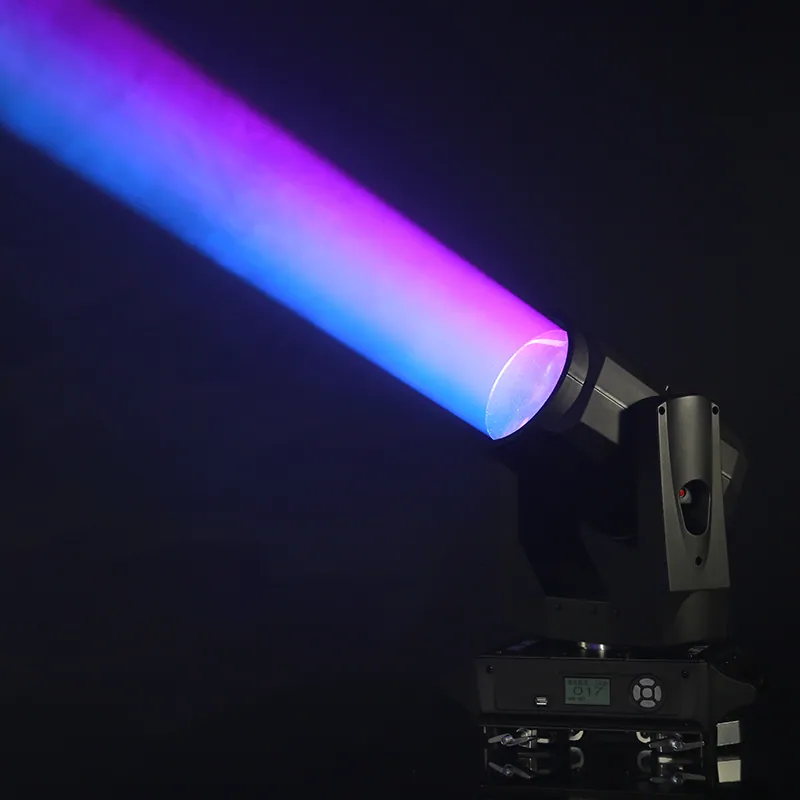

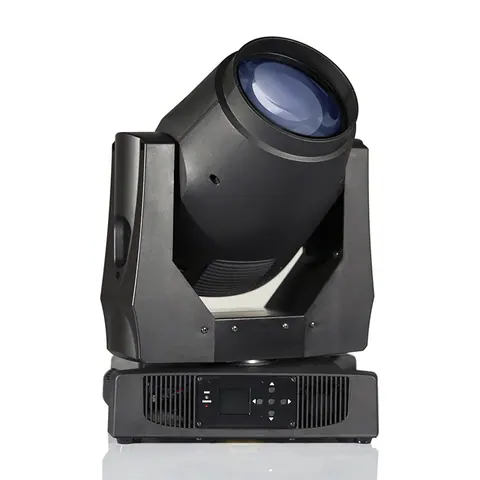

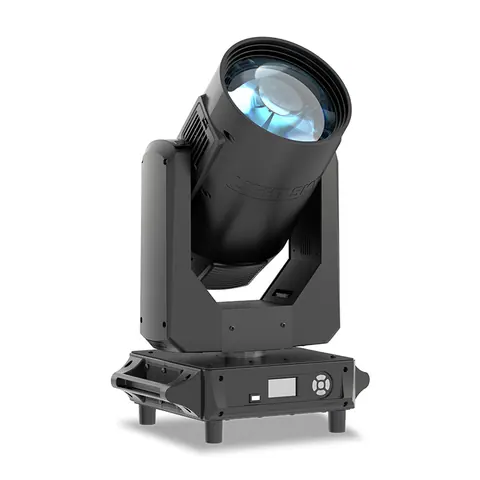

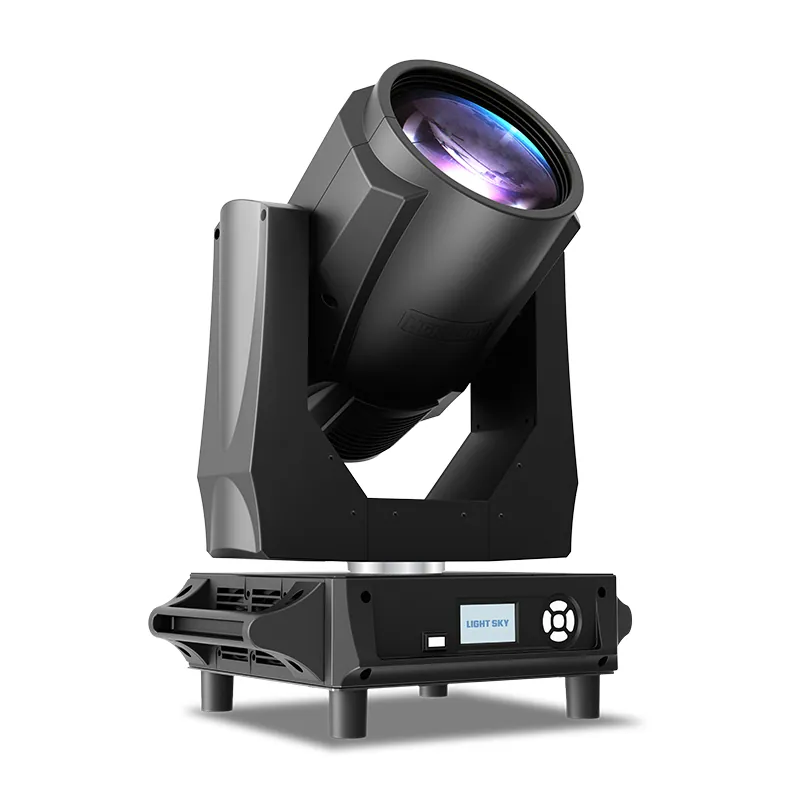

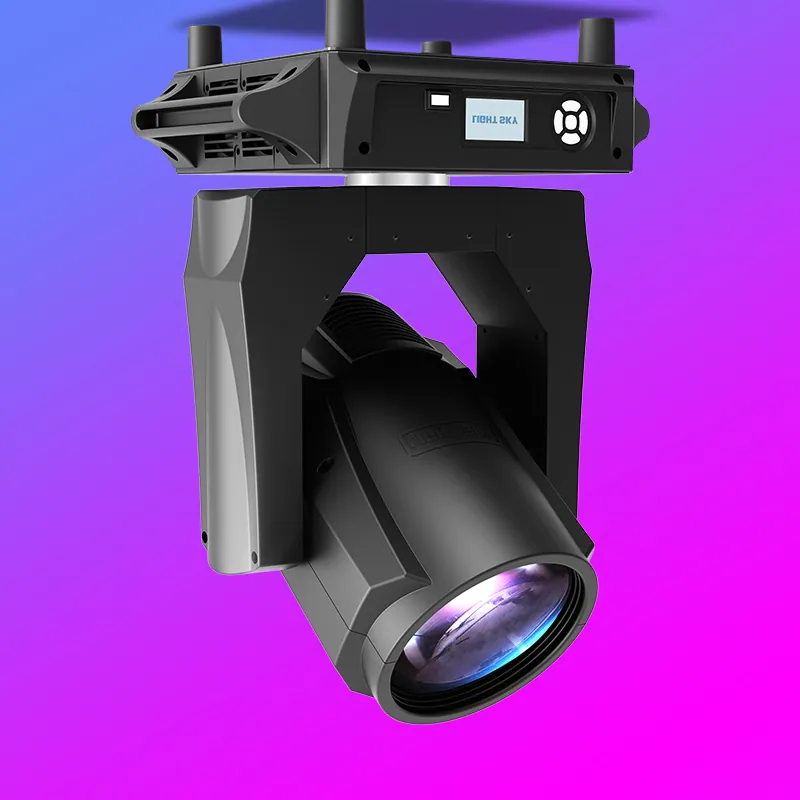

Introducing the LiGHT SKY Scope Beam – a high-performance mini LED spot moving head light designed for professional stage lighting.

Light source: OSRAM White light LED module
Power supply: AC100-240V 50/60Hz;
Protocols: DMX-512, RDM
Net weight: 18.8Kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video2 manufacturer's videos · 6:56

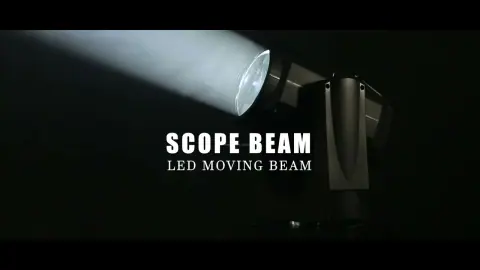

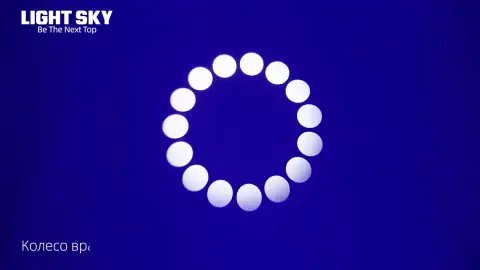

LIGHT SKY SCOPE BEAMVideo 1 of 2 · 3:08

02SpecificationManufacturer's data · 11 groups · 42 values

What this product is, in numbers.

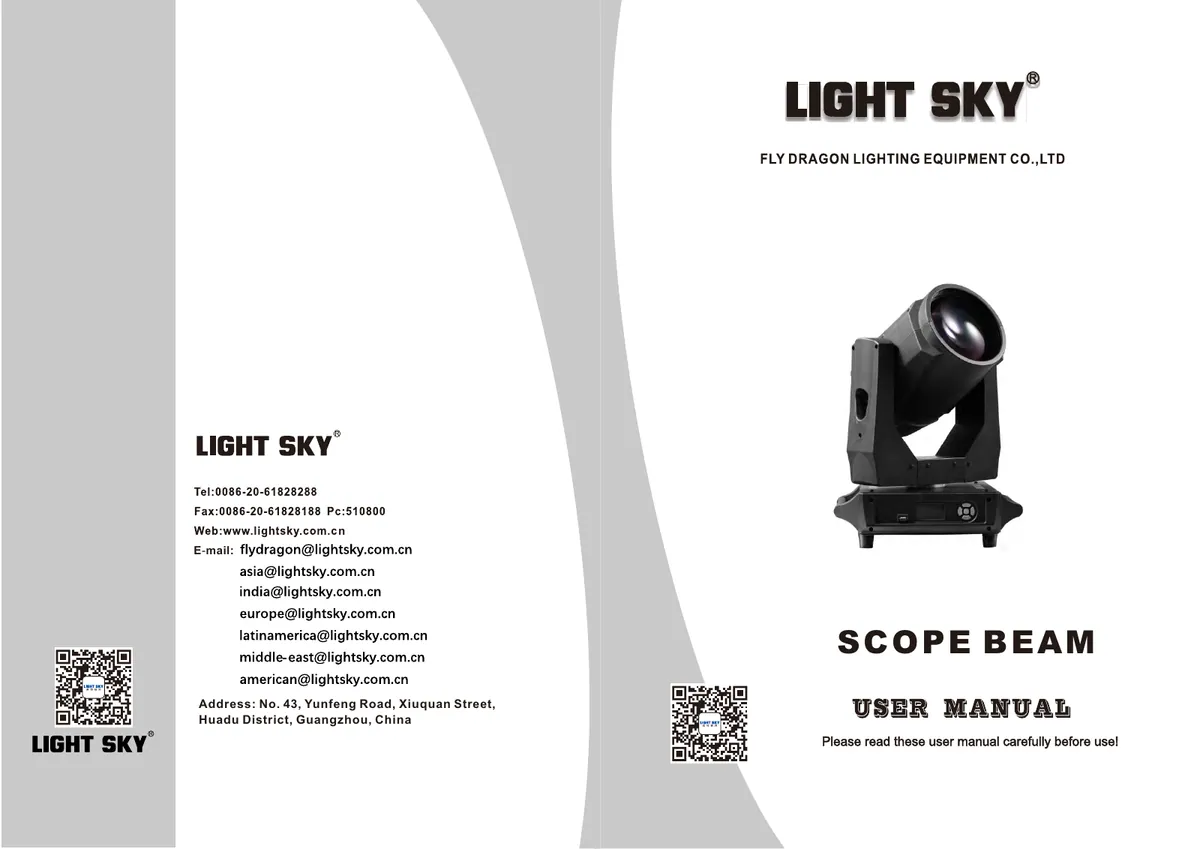

PDFUser manualEN · 26 pages · 5.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL9

Light source: OSRAM White light LED module
Light source power: 230W
Light source average life span: 20000 h
Total lumen output: 6850lm
Output color temperature: 7700K
CRI: 70
Beam range: 2.3° beam angle (0.8° / 1.5° beam angle selection)
Front lens diameter: 163mm

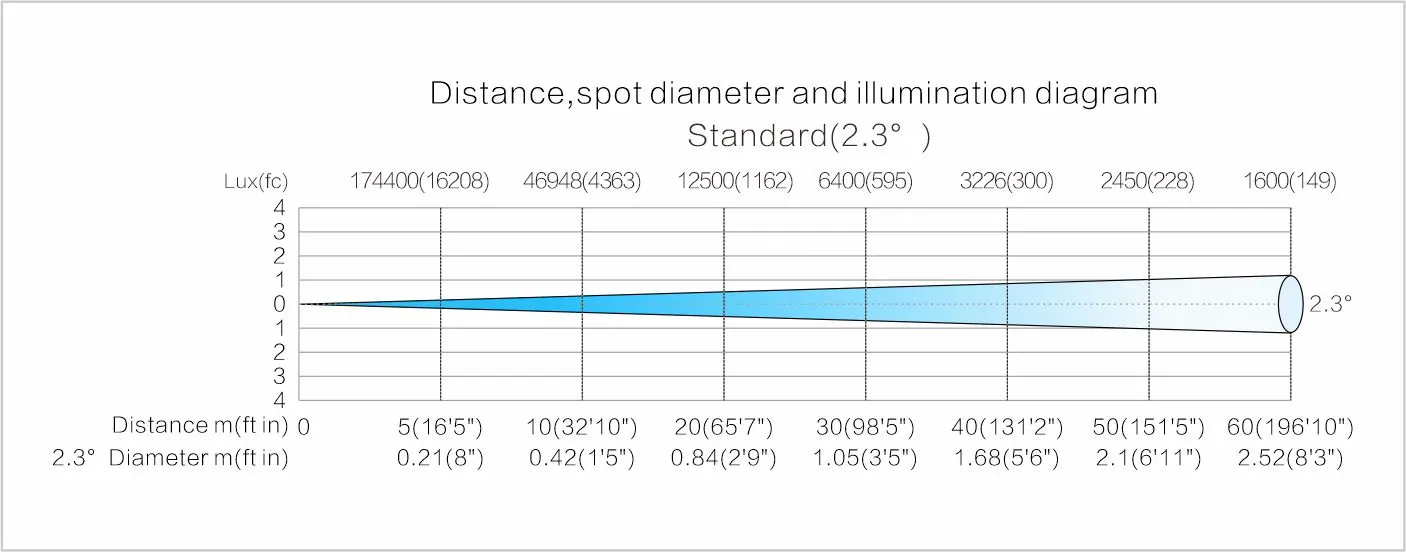

Illuminance: 46948 lux @10m

02COLOR1

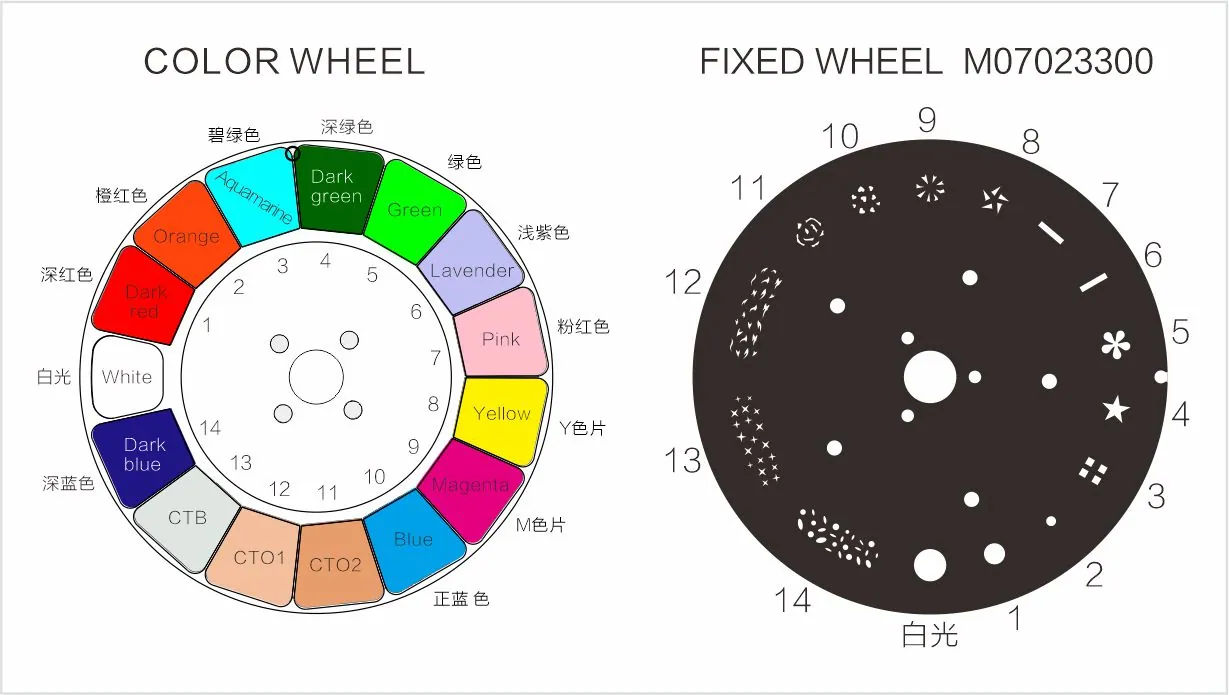

Colour Wheel: 12 color + 2 CTO + 1 blank

03GOBO1

Static gobo wheel: 11 Gobos + open + 3 animations range ,Bi-direction flow water

04EFFECTS5

Prism: The advanced prism system equipped with the Light Sky scope beam combines an 8-face prism and 16-face double prism with multiple prism combination effects, while the prism macro function delivers stunning close-up refraction details for dynamic lighting possibilities.
Frost: adjustable wash effect angle
Focus: Motorized focus
Strobe: Electronic pulse strobe and random strobe
Dimmer: 0 to 100% linear dimmer

05CONTROL4

Setting & Addressing: Automatic charge battery, IP could be set without electricity; RDM two-way data transmission, Remote reset DMX address
Display: The display panel adopts a 2.0-inch LCD12864 LCD screen
Control protocol: DMX-512, RDM
Channel mode: 14CH、16CH、16PLUS

06SOFTWARE3

Intelligent control: Display board can record device’s using time, show device’s temperature, channel data and software version.
Error alarm: Automatic alarm for fixture failure
Software upgrade: Insert USB upgrade software

Show the full specificationHide the rest of the specification5 more groups · 19 values

07PAN/TILT MOVEMENT2

Pan / Tilt: 540°/ 250°
Pan / Tilt Resolution: 2.11°/0.98°

08POWER4

Voltage: AC100-240V 50/60Hz;
Power: 350W;

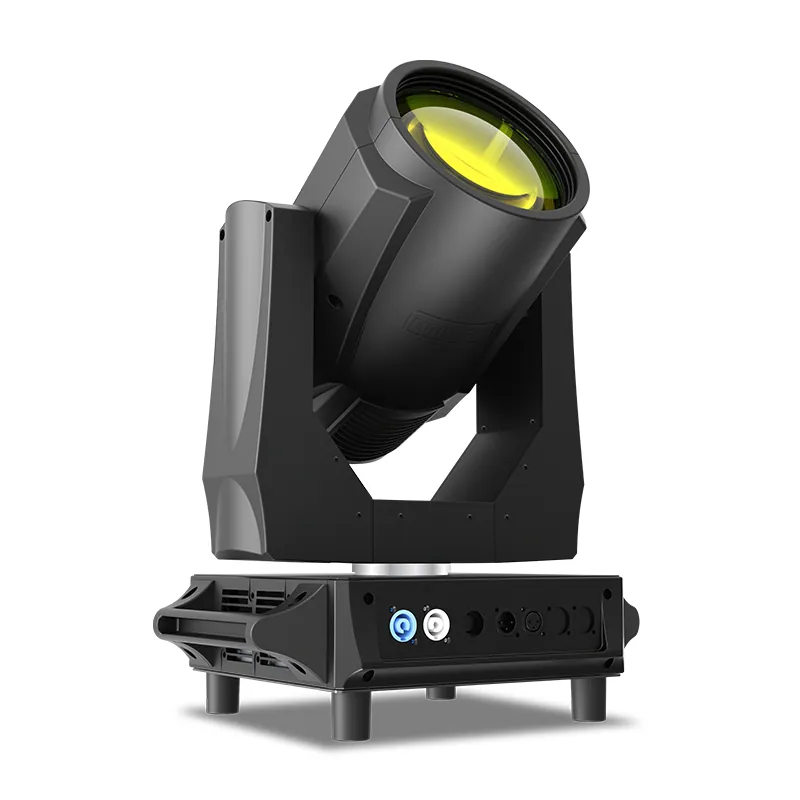

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out

09SIZE & WEIGHT6

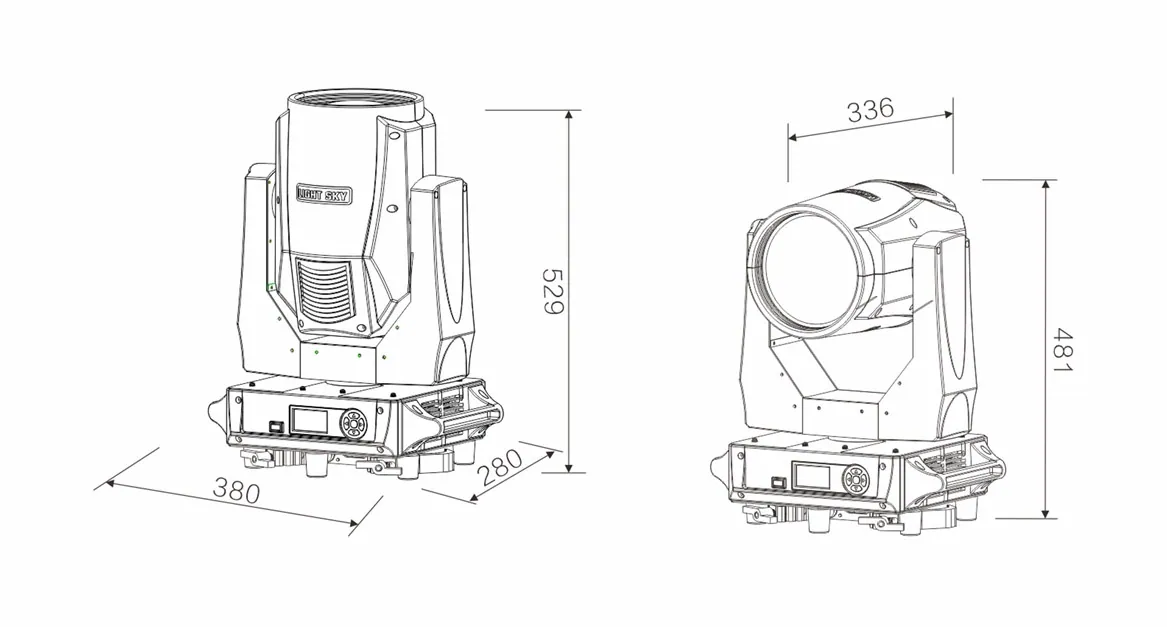

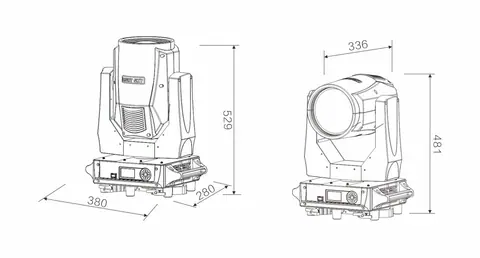

Light dimension: 380x280x529(mm)
N.W: 18.8Kg/pcs
Carton dimension: 400x345x570(mm)
G.W with carton: 21.2Kg/pcs

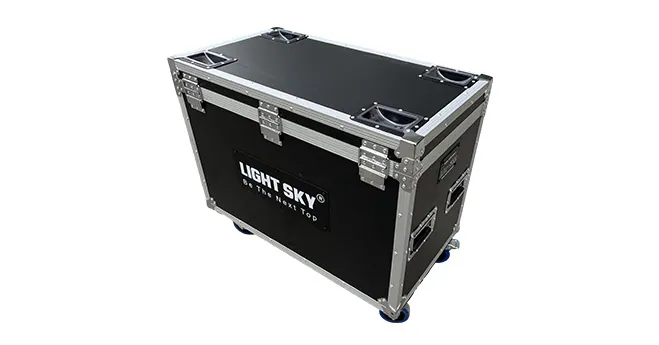

Flycase dimension: 885x490x740(mm)
G.W with fly case: 71.8Kg(2 in 1)

10THERMAL SPECIFICATION3

Maximum ambient temperature: 40 °C
Maximum housing temperature: 80 °C
Minimum operating temperature: -20 °C

11OTHERS4

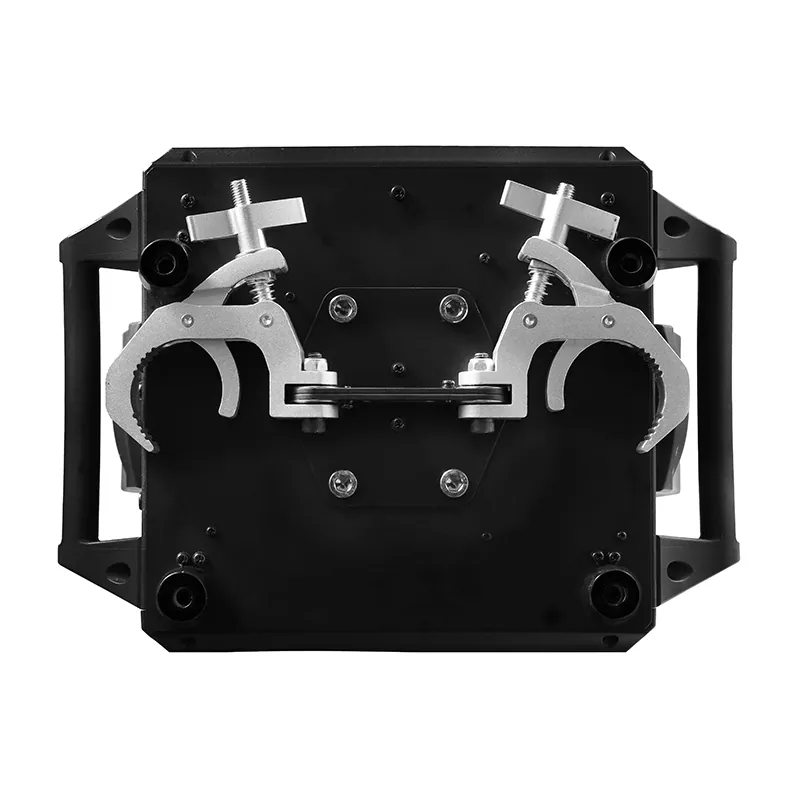

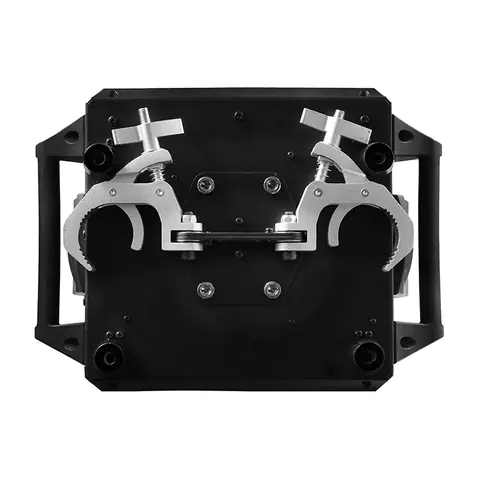

Hanging system: foldable light hook
Housing: Heat-proof plastic+module pressing alloy materials.
IP rate: IP20

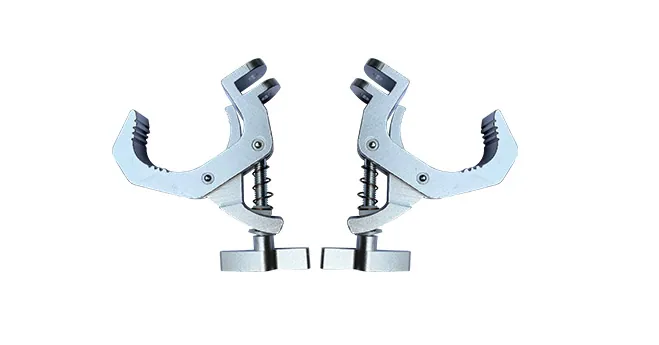

Accessory: clamp, DMX cable ,AC Power cable,Neutrickpower con(white),safety rope,singal cable, service card,instruction manual

03DescriptionManufacturer's description

What it is.

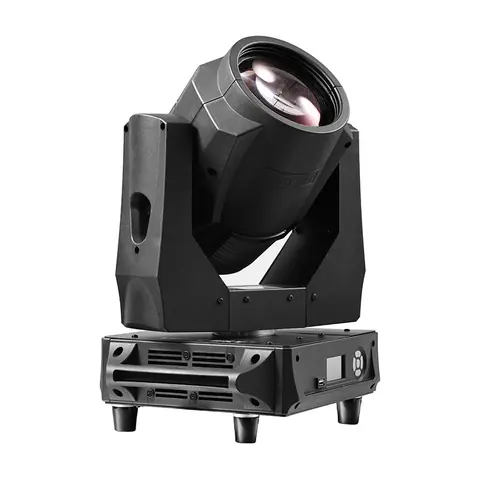

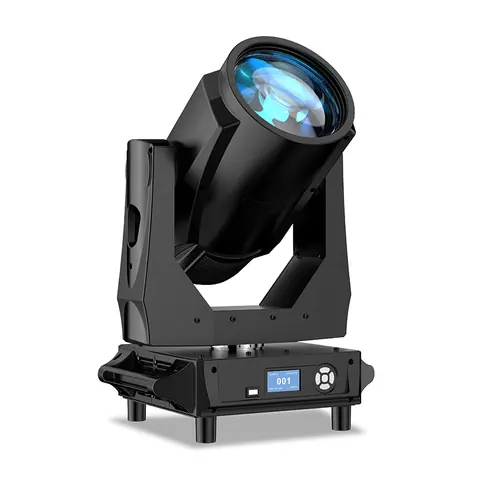

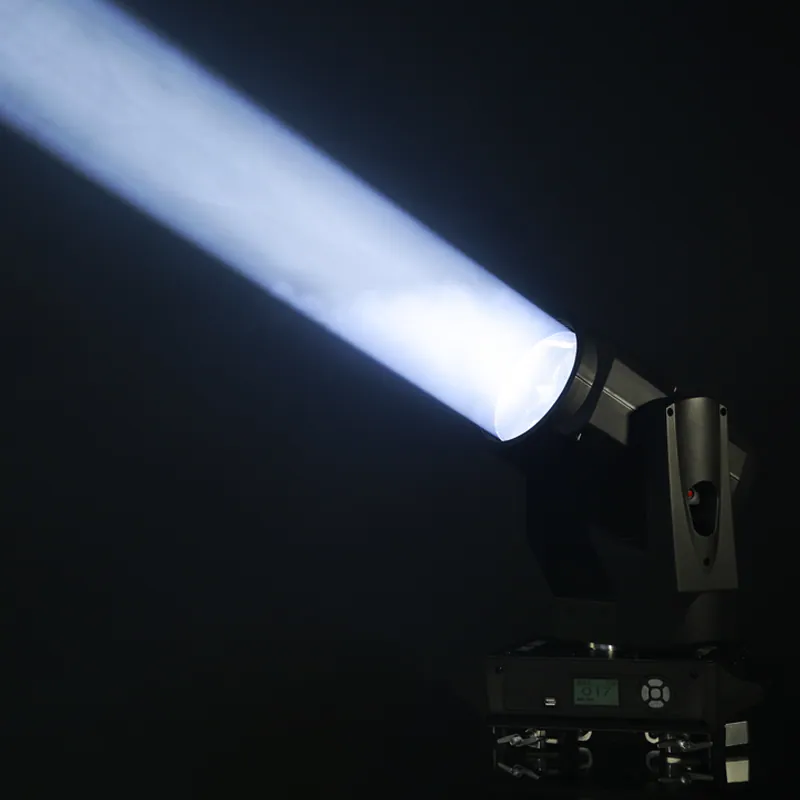

Introducing the LiGHT SKY Scope Beam – a high-performance mini LED spot moving head light designed for professional stage lighting. This compact yet powerful mini LED beam moving head features an OSRAM 230W LED module, delivering sharp 7700K brightness, instant on/off, and smooth dimming for dynamic effects.

As one of the leading stage lighting equipment suppliers, LiGHT SKY offers premium LED stage lighting solutions, including this energy-efficient moving head light beam and LED wash light. Ideal for theaters, events, and concerts, it ensures long-lasting performance (20,000+ hours) with easy installation.

Are you looking for reliable wholesale moving head lights or wholesale stage lighting? Contact LiGHT SKY today for expert support and competitive pricing!

FEATURES

Long Lifespan: The LiGHT SKY Scope Beam utilizes an OSRAM 230W LED module, delivering an extended lifespan of 20,000 hours, significantly reducing maintenance and replacement costs.

Eco-Friendly Design: This mini LED beam moving head emits minimal direct heat radiation, making it an energy-efficient and environmentally sustainable lighting solution.

Instant On/Off & Fast Response: With instant activation and shutdown, themoving head light beam ensures rapid performance readiness, enhancing lighting control and energy savings.

High-Intensity & Uniform Light Output: Boasting a 7700K color temperature and a remarkable 46,948 lux at 10m, theLED stage lighting delivers sharp, bright, and consistent illumination for powerful stage effects.

Smooth Linear Dimming: The LED wash light offers flicker-free, continuous dimming with precise control, ensuring seamless transitions for dynamic lighting scenarios.

Compact & Easy Installation: Designed with a lightweight, integrated hook, the mini LED spot moving head light’s compact structure allows for quick setup and portability in any venue.
