TX1920 ZOOM

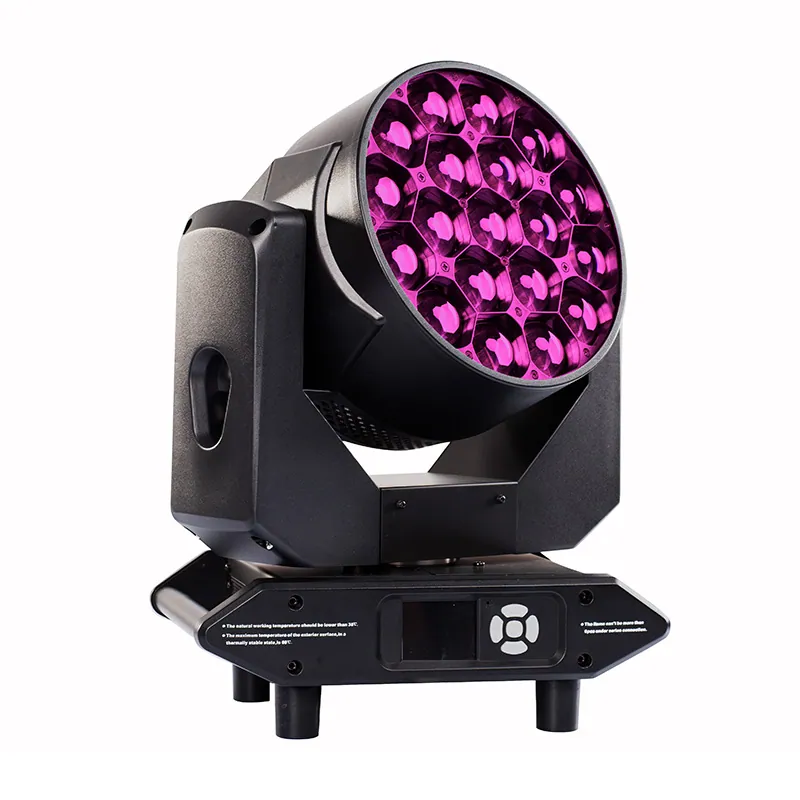

The LiGHT SKY TX1920 ZOOM is a high-brightness, compact, and energy-efficient LED zoom moving head light for color rendering or backdrop lighting on stage.

Light source: TYANSHINE 19×20W RGBW 4 in 1 LED
Power supply: AC100V-240V~/ 50-60Hz
Protocols: DMX512、RDM
Net weight: 10.6kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

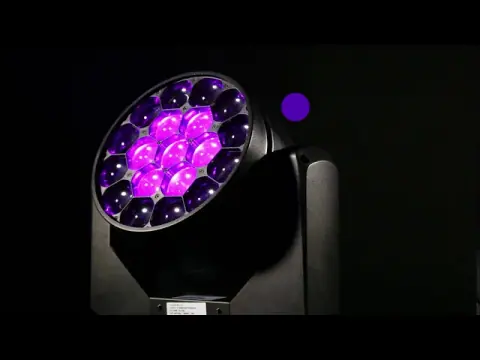

01Video2 manufacturer's videos · 4:21

LIGHT SKY TX1920 ZOOMVideo 1 of 2 · 1:43

02SpecificationManufacturer's data · 5 groups · 32 values

What this product is, in numbers.

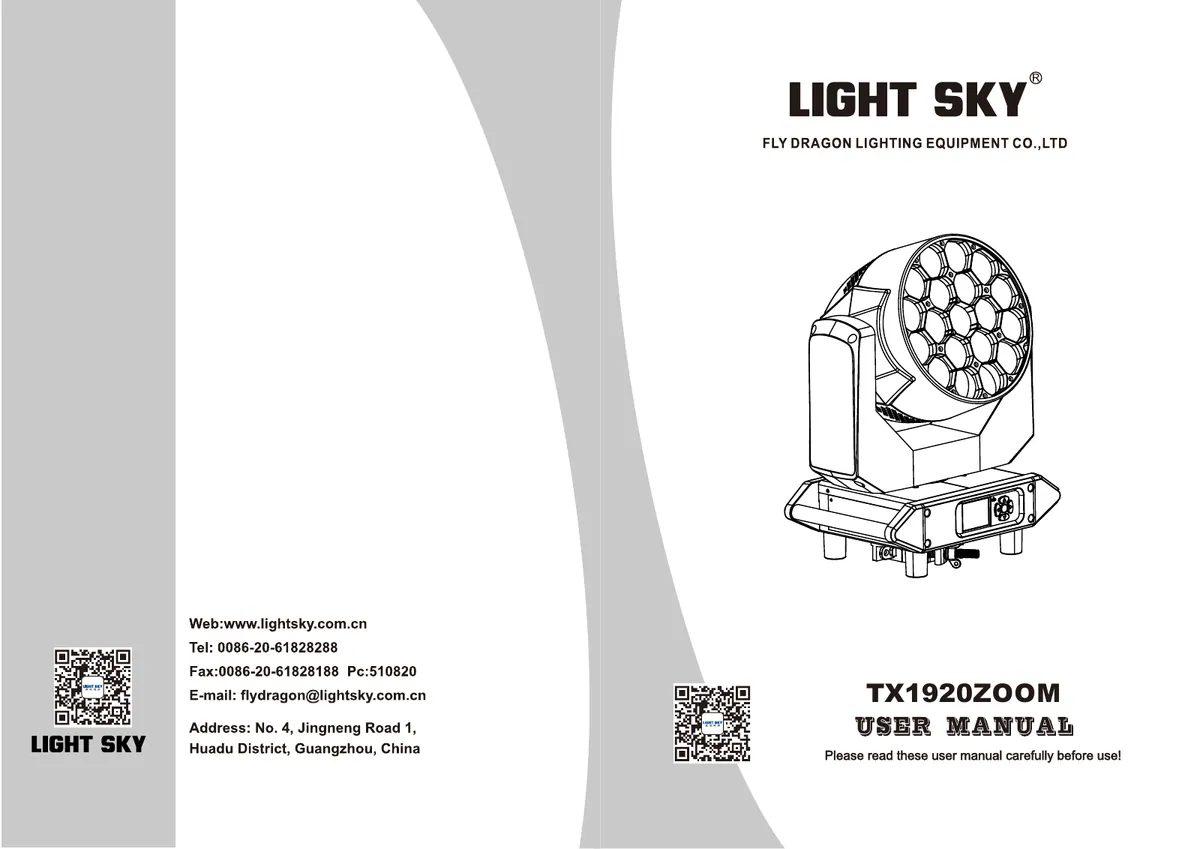

PDFUser manualEN · 22 pages · 3.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System5

Voltage: AC100V-240V~/ 50-60Hz
Power: 403W,PF0.98
Light source: TYANSHINE 19×20W RGBW 4 in 1 LED
Light source average life span: 30000h
Optical system: High precision combination structure,high permeable glass light rod +PMMA lens

02Color / GOBO / Effects9

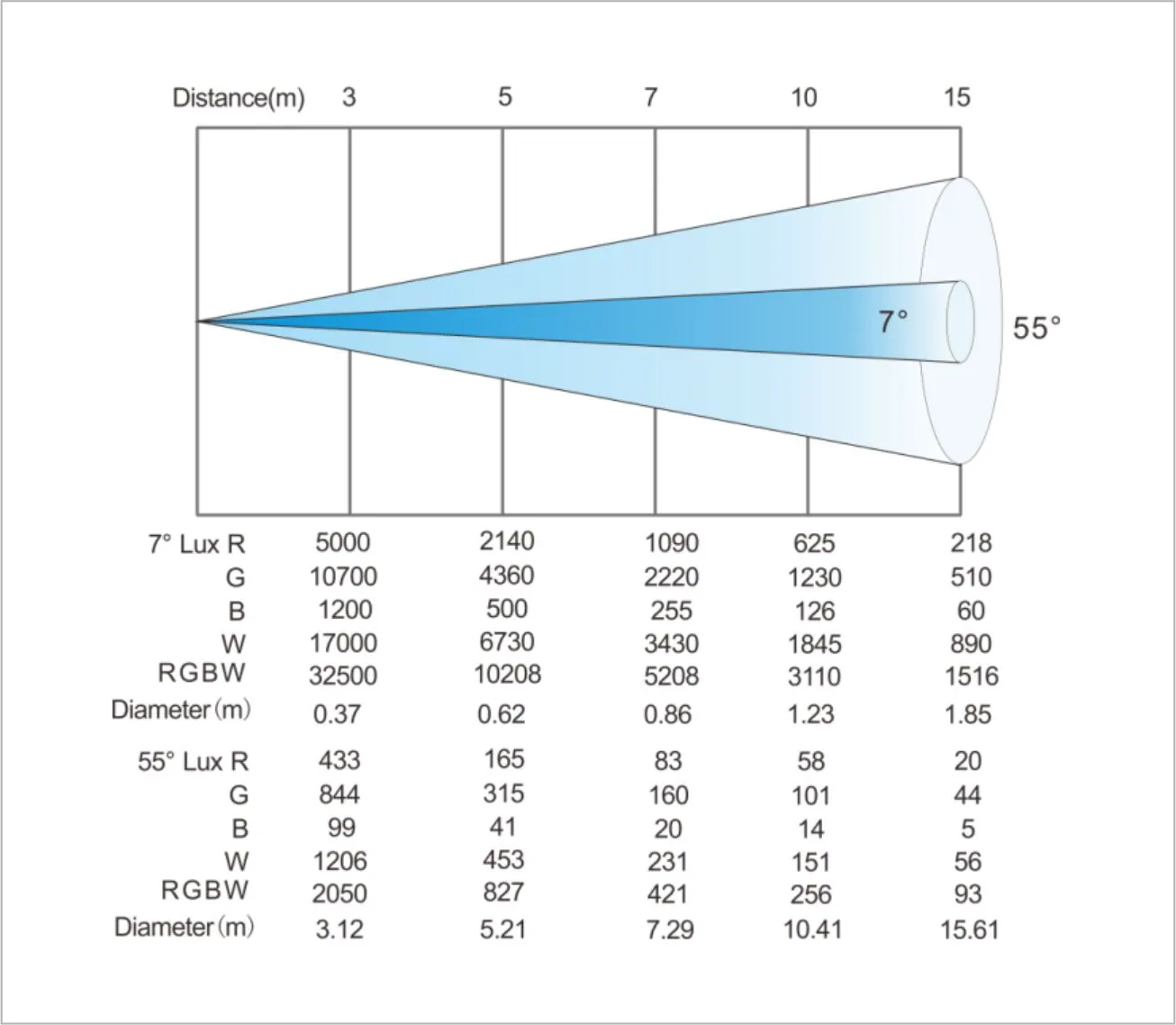

Zoom angle: 7°-55°
Color: RGBW macro color system.
Color temperature adjustable range: 2500~10000K
CRI: Ra≥75
Zoom system: Linear electric zoom
Ring Control: Yes Independent control of outer and inner ring
Effect macro: Static effect macro functions and Dynamic effects macro function
Strobe: 1-30Hz electronic strobe and random strobe
Dimmer: Electronic dimmer,provides four dimming options

03Control System5

Pan/Tilt: 540°/210°;Pan/Tilt Fine: 2.11°/0.82°;
Pan/Tilt Speed: 2.5S/1.0S
Control protocol: DMX512、RDM
Channel mode: Standard-15CH、Extend-24CH、Extend-25CH
Display: 2.4 inches LCD12864 display screen. WithChinese and English two version language.Working mode : Silent mode; Standard mode; High Brightness mode Intelligent control : Display board can record device’s using time , show device’s temperature, channel data and software version .

04Other functions5

Error alarm: Automatic alarming for fixture error
Software upgrade: Upgrade via DMX connector
Magnetic encoder: non-touch magnetic rotation encoder ,100% correct position memory
RDM: RDM signal two-way transmission
Safety Devices: Over current and overheat protection

05Appearance Parameters8

IP rate: IP20
Housing: Metal base and anti-fire plastic

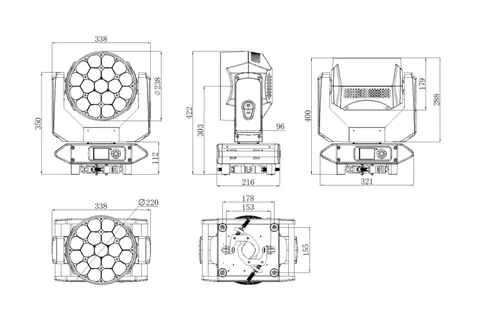

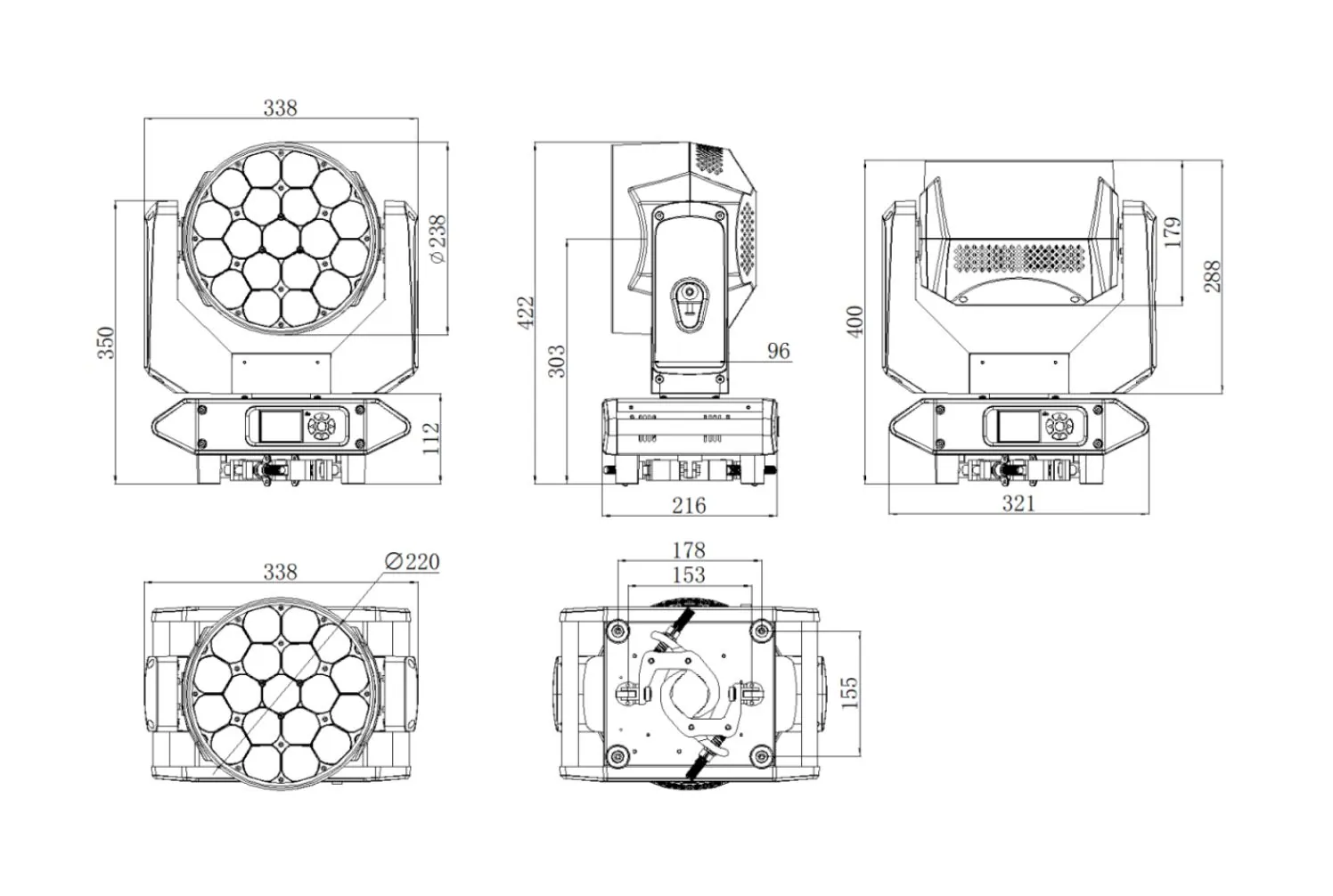

Light Dimension: 338x216x422mm
N.W: 10.6kg/pcs
Carton dimension: 480x400x280mm
G.W with carton: 12.6kg

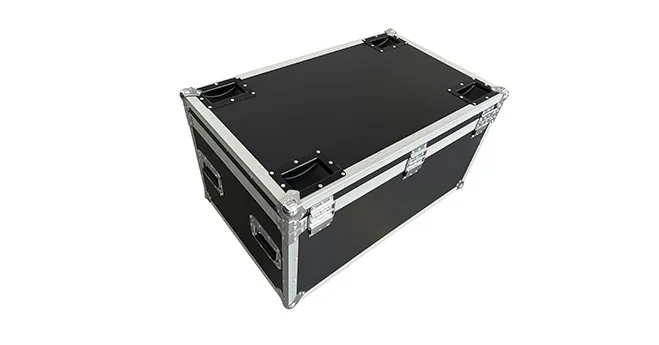

Flycase dimension: 920x580x615mm
G.W with fly case: 78.8kg (4 in 1)

03DescriptionManufacturer's description

What it is.

The LiGHT SKY TX1920 ZOOM is a high-brightness, compact, and energy-efficient LED zoom moving head light for color rendering or backdrop lighting on stage. Light sky has been providing intelligent lighting solutions for the entertainment and architectural industries; you will find all the information you need to know about the wash moving head light if you are interested in moving head wash zoom. Please get in touch with us, and our team of experts will get back to you as soon as possible.

FEATURES

LED chip: TYANSHINE 19X20W RGBW 4 in 1 LED, stable performance,long life span.
use integrated combination optical lens,high brightness ,long life span, multi-function .
build-in color calibration system,for make sure every equipment mixed color consistent.

The light have three kinds of work mode:silent,standard,high brightness for different work place.Heat dissipation use intelligent temperature control.
