Sheet 05.710
LIGHT SKY · Wash

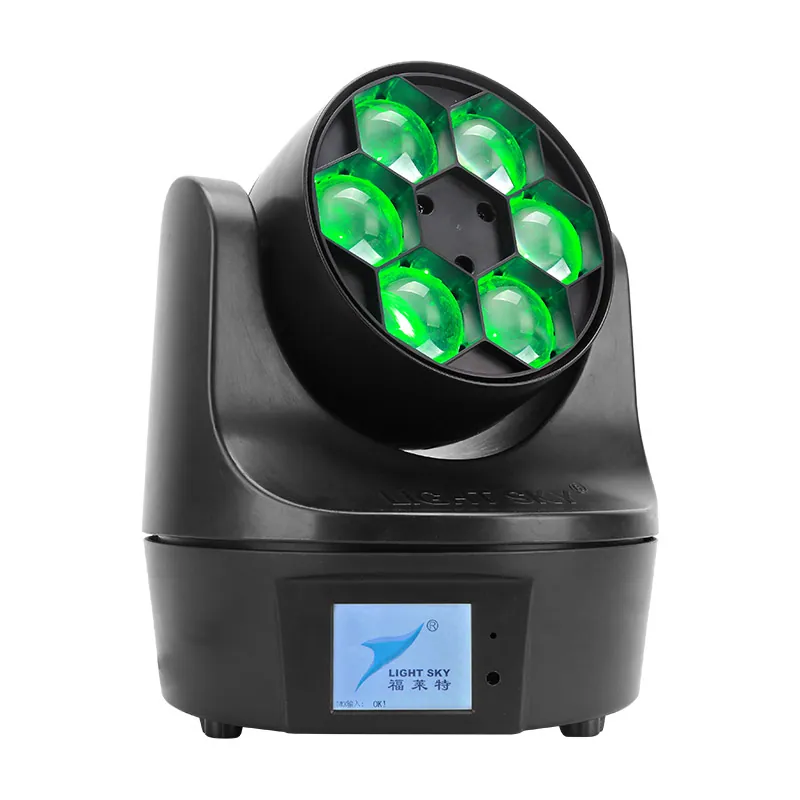

TX0610 BEAM
RGBW 4 in 1 led chip ,Led moving head beam light.
- Light source
- 6 pcs *10W , RGBW 4 in 1 LED chip
- Power supply
- AC100V~240V/50Hz~60Hz
- Beam angle / zoom
- 1.5°
- DMX channels
- Standard Channel : 11 , Extend Channel : 17
- Net weight
- 3.8Kg G.W : 5.7Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
TX0610 BEAMPrice on requestRequest a quotation
01VideoManufacturer's video · 2:33
LIGHT SKY TX0610 BEAM: the manufacturer's video
02SpecificationManufacturer's data · 5 groups · 29 values
What this product is, in numbers.

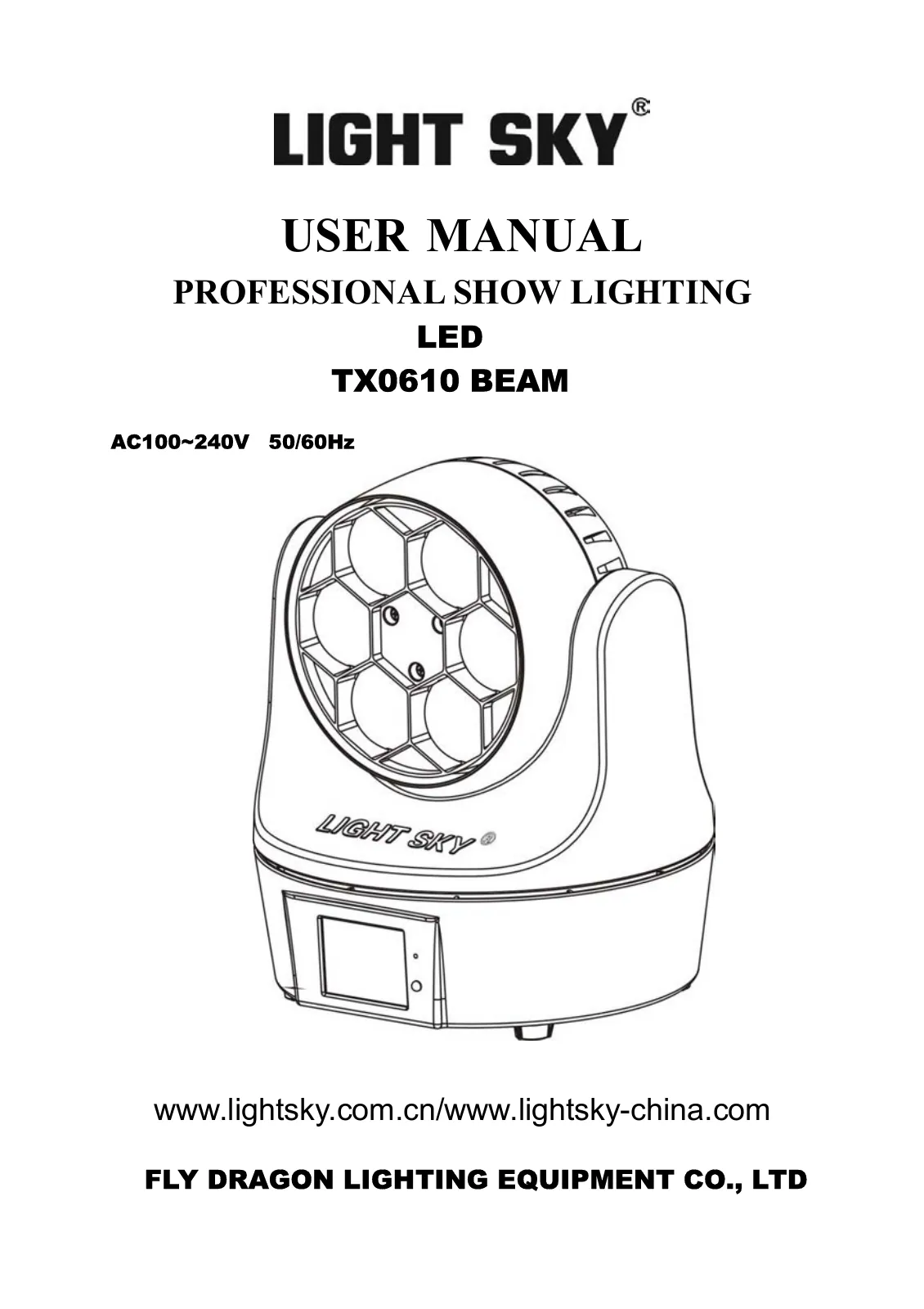

PDFUser manualEN · 26 pages · 506 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source / Power System7
- Voltage
- AC100V~240V/50Hz~60Hz
- Power
- 91W
- LED chip
- 6 pcs *10W , RGBW 4 in 1 LED chip
- LED life span
- 30000h
- Lens
- Aspheric lens
- Strobe
- 1~30 times/ second electronic strobe and random strobe
- Dimmer
- 65536 class dimmer
02Color / GOBO / Effects3

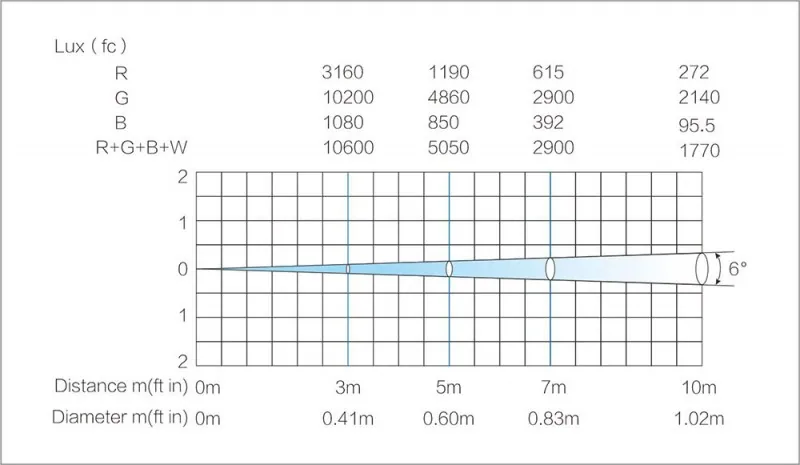

- Beam angle
- 1.5°
- Facula angle
- minimum 6°, Maximum 51°
- Color rotation system
- RGBW 4in 1 rotation , Marco color system
03Control System4
- Pan/Tilt
- Pan : 540°/1.5 seconds Tilt : 180°/0.5 seconds
- Control Mode
- DMX512, RDM, Stand-alone mode ,Voice Control
- mode , Mater-Slave mode , Wireless DMX512.
- Channel
- Standard Channel : 11 , Extend Channel : 17
04Other functions9
- Display Menu
- 1 、2.4 inches TFT touch screen , Chinese and English two version language.
- 2 、display board can record device’s using time , show device’s
- temperature, channel data and software version .
- 3 、Edit the procedure
- Other feature
- 1 、Extend IP address function , each IP address maximum can set 64 ID
- 2 、Support DMX signal priority identification, when lose the
- signal it would be turn into Black , default scene , Automatic
- function etc according to setting
- 3、 software upgrade
- upgrade software by XRL cable
05Appearance Parameters6
- Outlooking
- adopt ABS anti-fire plastic

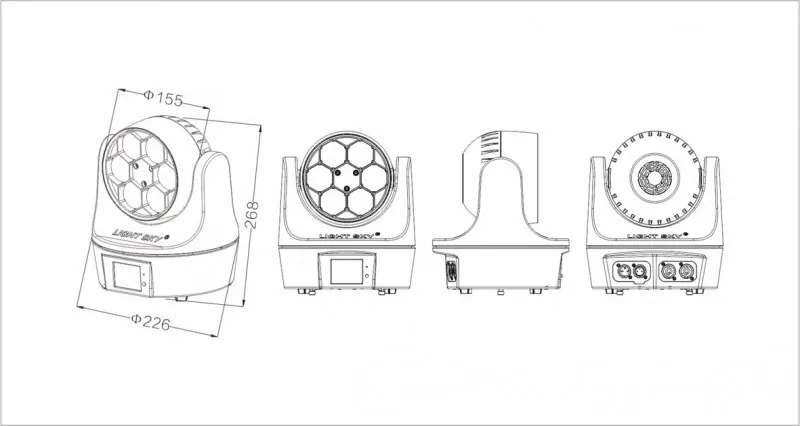

- Light size
- Φ226×268(mm)
- Carton Size
- 270x260x350(mm)
- N.W
- 3.8Kg G.W : 5.7Kg
- Carton dimension
- 570x560x385(mm)
- G.W with carton
- 24.6KG(4 in 1)
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
FEATURES
Brightness and lighting effect equal to any kind of roller / wizard / electrodeless / finger light Shape likes a football with only 3.8KG.
High speed, high sensitive and responsive, fast pan /tilt speed and nice combination of matrix light effect.
04Documents7 files · 838 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
05Related products
In the same range.

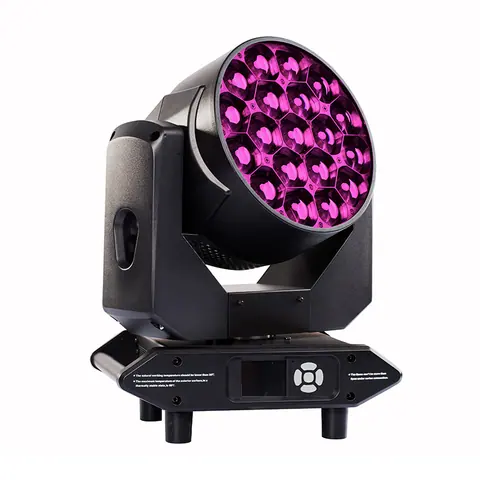

EQ-709LIGHT SKYPEARL WASH MAXWashLight source37×60W RGBWLA LEDBeam angle / zoom5°~42°DMX channels26CH, 44CH, 56CH, 39CH(see channel chart for details)
