Sheet 05.829
LIGHT SKY · Effects and lasers

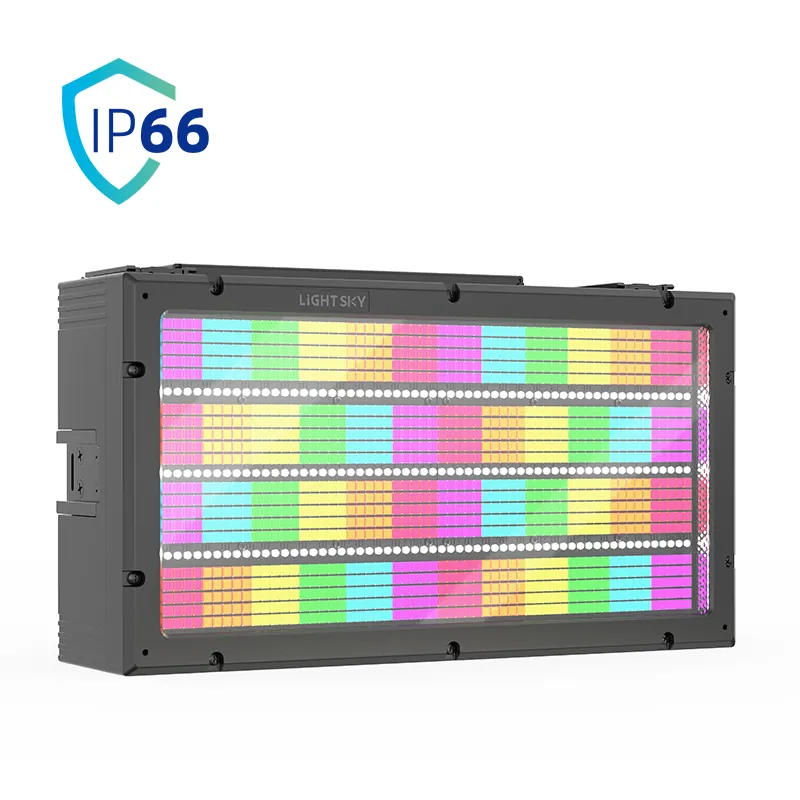

SEAGUL

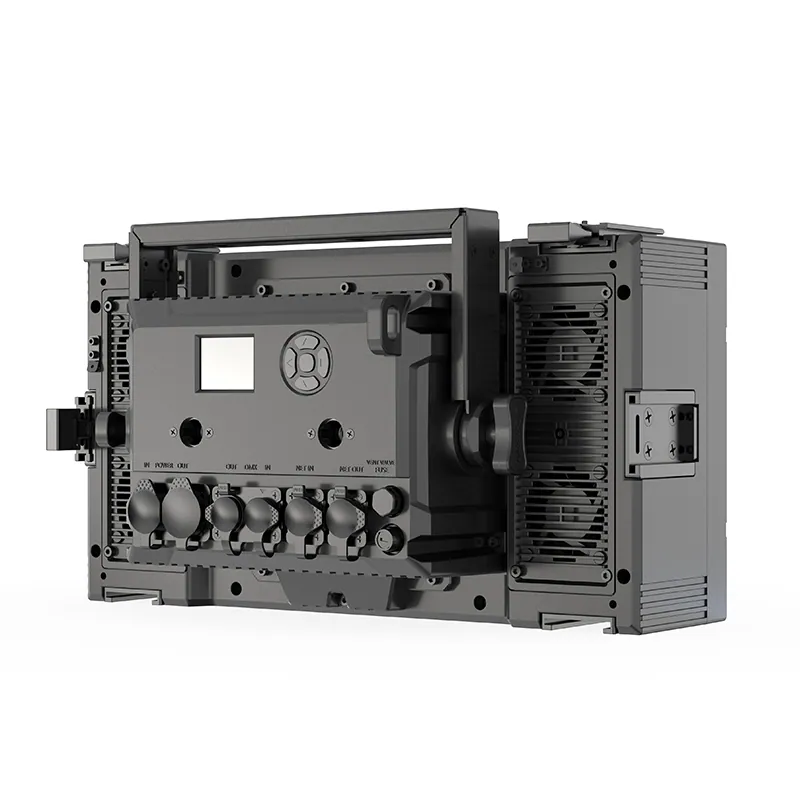

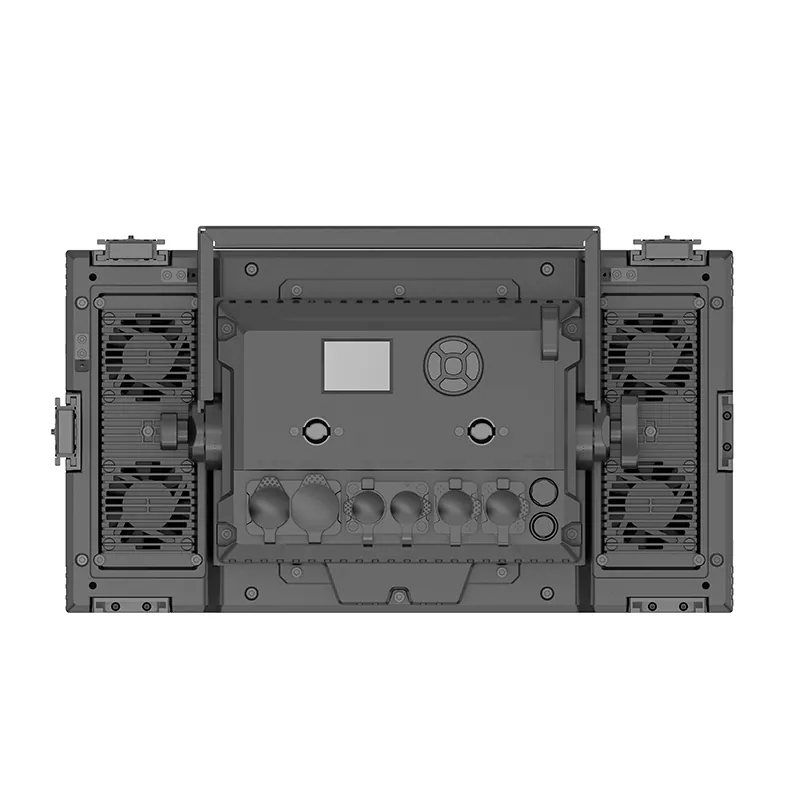

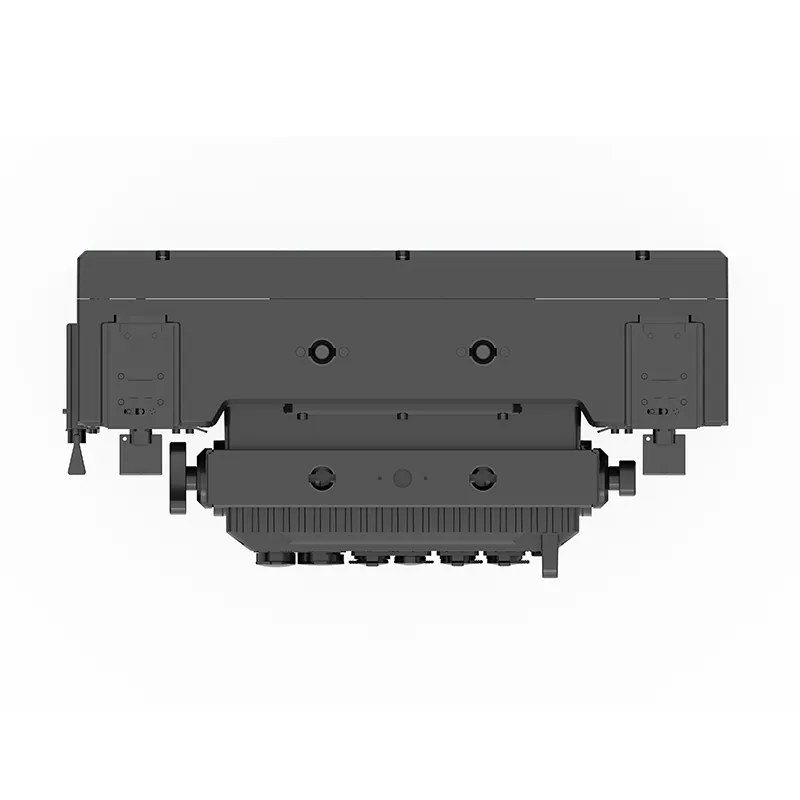

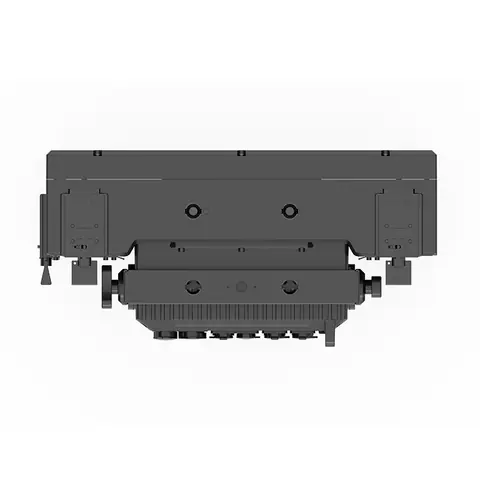

Multi-functional waterproof strobe light integrating strobe and wash effects, seamless switching between intense strobe patterns and soft wash lighting.
- Light source
- 180x5W CW+1200 x 0.5W RGB
- Power consumption
- 620W
- Power supply
- AC 100-240V 50/60HZ
- Beam angle / zoom
- 68°
- DMX channels
- Standard 21 channels, Extended 168 channels (see channelchart for details)
- Net weight
- 13.1kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SEAGULPrice on requestRequest a quotation
01SpecificationManufacturer's data · 8 groups · 37 values
What this product is, in numbers.

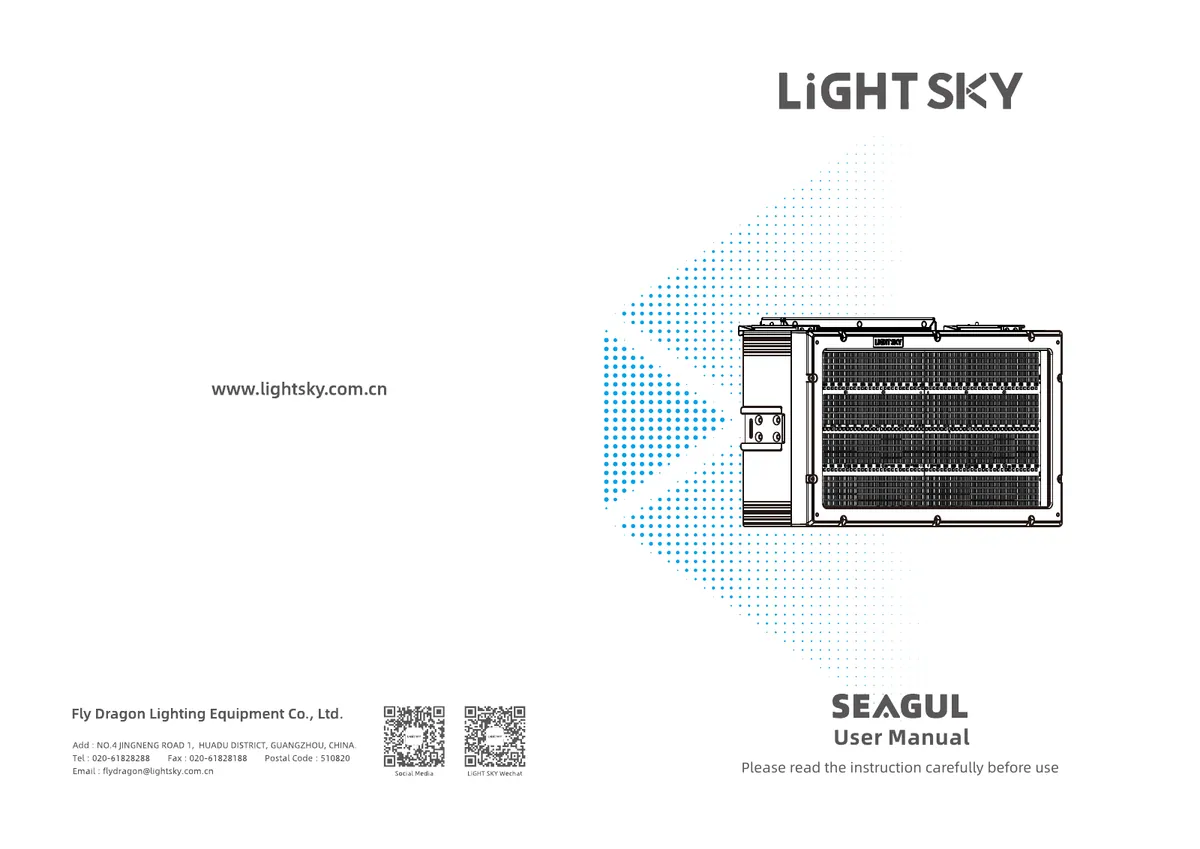

PDFUser manualEN · 22 pages · 7.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light source & Optics9
- Light source
- 180x5W CW+1200 x 0.5W RGB
- Beam Angle
- 68°
- Spot Angle
- 115°
- Color Rendering Index
- RA≥79.2
- Light Flux RGB
- 13,882 Lm
- Light Flux W
- 34,829 Lm
- Output llluminance RGB
- 338 lx@ 5m
- Output llluminance W
- 910 lx@ 5m
- Light source average life span
- 30,000 hours
02EFFECTS4
- Color Mixing System
- Uniform RGB color mixing system, each color can be controlled separately, presenting a variety of effects.
- Effect Macros
- Static effect macros and dynamic effect macros functions
- Dimming
- Electronic dimming, providing four dimming curves
- Strobe
- 1-30Hz electronic strobe and random strobe
03CONTROL AND PROGRAMMING4
- ControlChannels
- Standard 21 channels, Extended 168 channels (see channelchart for details)
- ControlProtocols
- Standard DMX512, RDM, ART-NET, sACN
- Data Connection
- Three-core or five-core signal input/output, RJ45 Ethernet input/output.
- Display
- LCD screen
04SOFTWARE2
- Through the DMX signal interface
- Intelligent temperature control, ensuring LED lifespan
05POWER AND ELECTRICAL5
- Input Voltage
- AC 100-240V 50/60HZ
- Rated Power
- 620W
- Strobe Maximum Power
- 1500W
- Power Factor
- 0.99
- Maximum Lamp Current
- 6.3A/100V 2.8A/220V
06SIZE & WEIGHT4

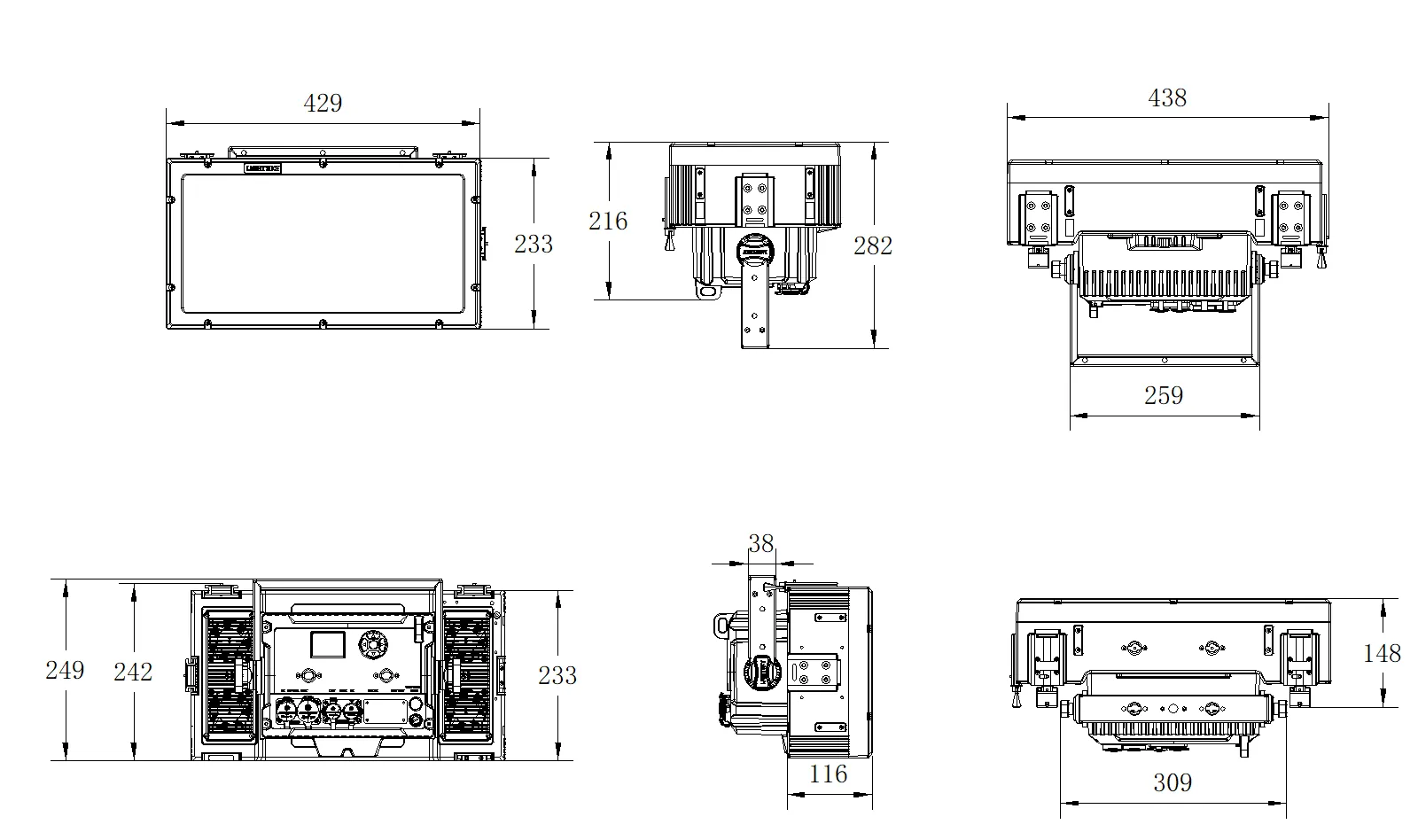

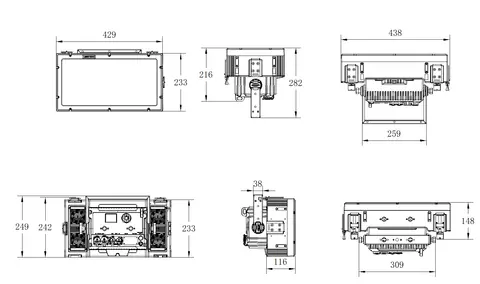

- Product Dimensions
- 438X216X249mm
- Net Weight
- 13.1kg
- Carton Packaging(default)
- 510X320X380mm
- Gross Weight
- 15.8 kg
Show the full specificationHide the rest of the specification2 more groups · 9 values
07OTHERS4
- Protection Level
- IP66
- Operating Environment
- -20°C~45°C
- MaximumLamp Surface Temperature
- 65°C
- LiGHT SKY Mortise Locking System
08FACTORY CONFIGURATION5
- Power Cable
- 1 pc(Part No.:F0200030016)
- Signal Cable
- 1 pc(PartNo.: F0200020008)
- Safety Rope
- 1 pc (Part No.: F0200010002)
- Optional Packaging
- Packaging(Fly case)
- 960 × 700 × 465 mm
- Gross Weight(Fly case)
- 86.2 kg
02DescriptionManufacturer's description
What it is.
FEATURES
OUTDOOR STROBE LIGHT
- 1,200 x0.5W RGB high-brightness LEDs with 40-zone independent control
- 180 x 5W white LEDs with 30-zone dynamic adjustment
- Modular design supporting vertical/horizontal rapid splicing
- Compact aluminum alloy housing with weather-resistant engineering plastics
- Optimized for concerts, festivals, outdoor stages, and TV productions
