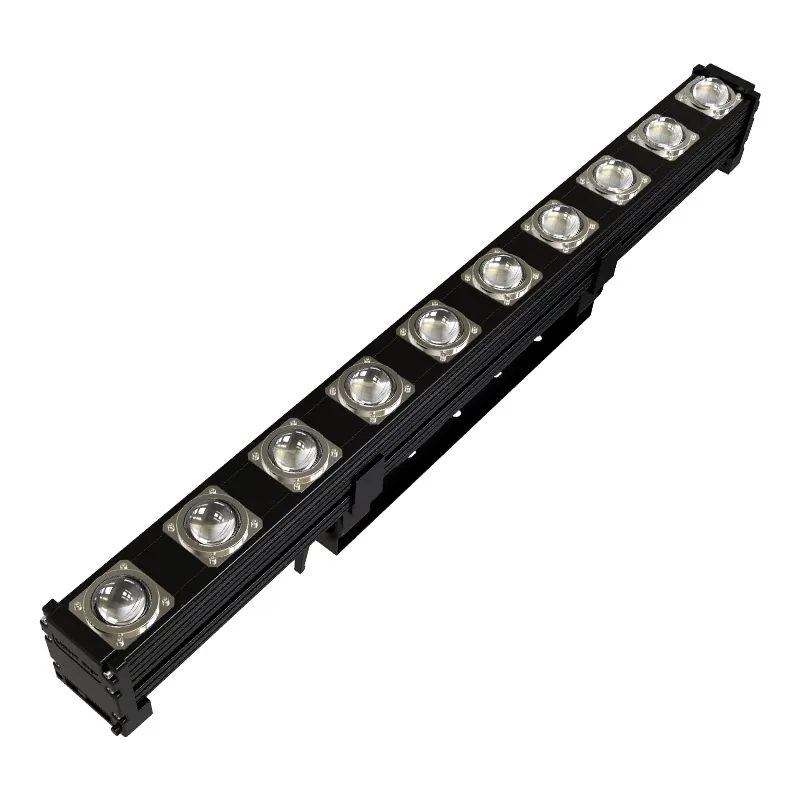

Sheet 05.869
LIGHT SKY · PAR and static light
PL1015B
Convenient fast-lock type, Seamless light splicing (same distance from the light source after stitching)
- Light source
- Tianxin 4-in-1 LED, 15W per LED
- Power supply
- AC100–240V~, 50/60Hz
- Ingress protection
- IP65
- Protocols
- DMX512, RDM
- Net weight
- 7.3 kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PL1015BPrice on requestRequest a quotation
01VideoManufacturer's video · 0:56
LIGHT SKY PL1015B: the manufacturer's video
02SpecificationManufacturer's data · 2 groups · 31 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- Voltage
- AC100–240V~, 50/60Hz
- Rated Power Consumption
- 100W
- LED Source
- Tianxin 4-in-1 LED, 15W per LED
- LED Quantity
- 10 pcs
- Chip Driving Current
- 1A
- LED Lifetime
- Over 50,000 hours
- Color Mixing System
- Individual pixel control and single-color control, enabling rich visual effects and three-dimensional beams
- Strobe
- 1–30 flashes/sec electronic strobe and random strobe
- Dimming
- 65536-step smooth electronic dimming, flicker-free
- Control Protocol
- DMX512, RDM
- Channel Modes
- Standard 9CH; Extended 45CH / 25CH / 18CH (see IPL1015B channel table for details)
- Installation

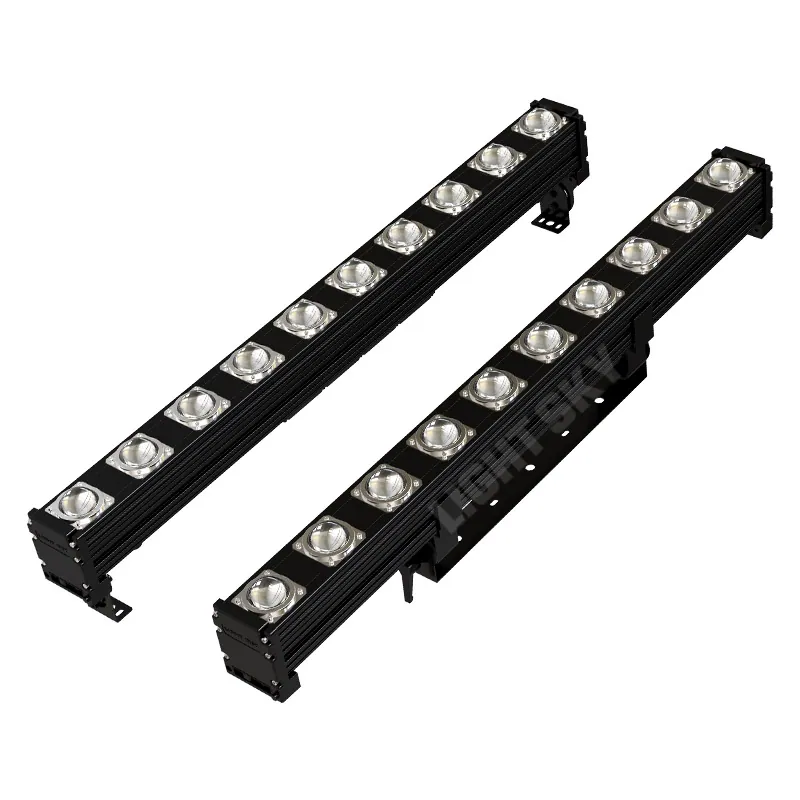

- Quick-lock seamless connection (consistent LED spacing after linking), allowing faster and easier installation
- Protection Rating
- IP65
- Certification
- CE
- Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
02Appearance Parameters16

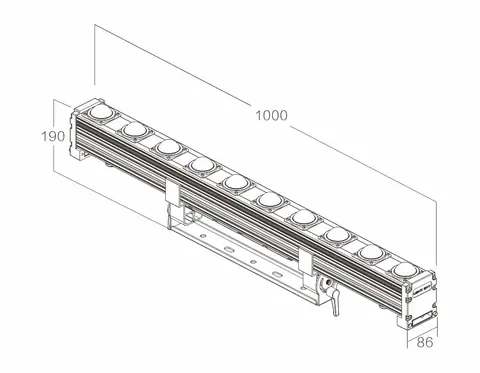

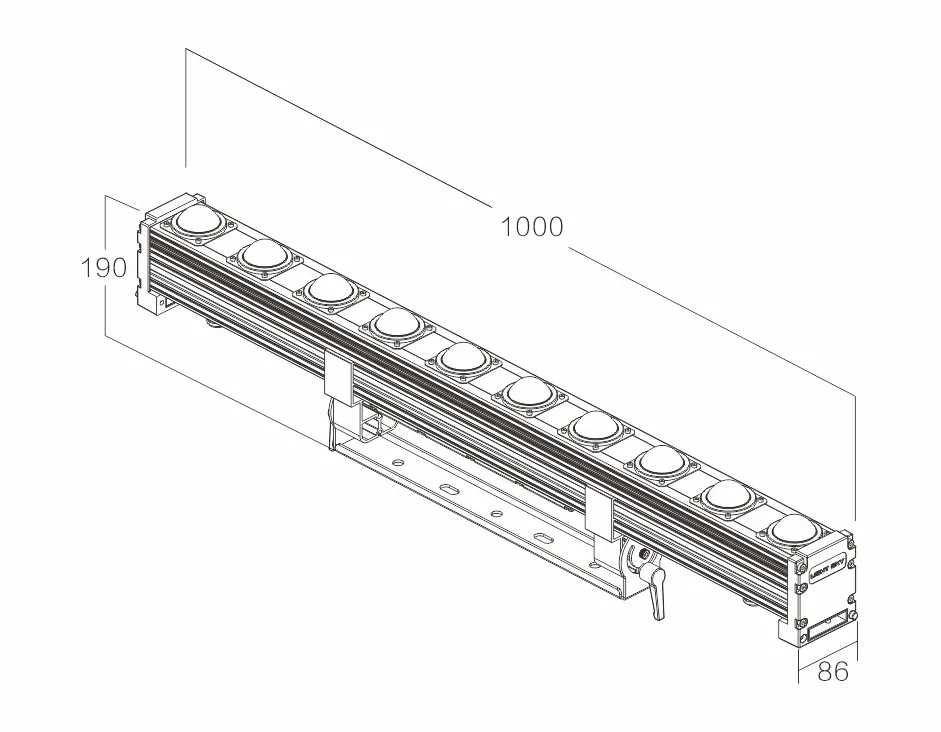

- Fixture Dimensions
- 1000 × 86 × 190 mm
- Inner Carton Size (1 unit)
- 1020 × 100 × 215 mm
- Net Weight
- 7.3 kg
- Gross Weight
- 9.45 kg
- Outer Carton Size (5 units)
- 1035 × 580 × 235 mm
- Net Weight
- 36.5 kg
- Gross Weight
- 41.5 kg

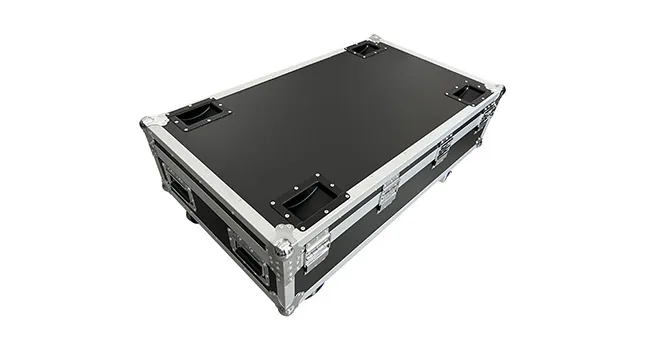

- Flight Case Size (5 units – standard, without clamps)
- 1065 × 630 × 385 mm
- Net Weight
- 36.5 kg
- Gross Weight
- 65 kg

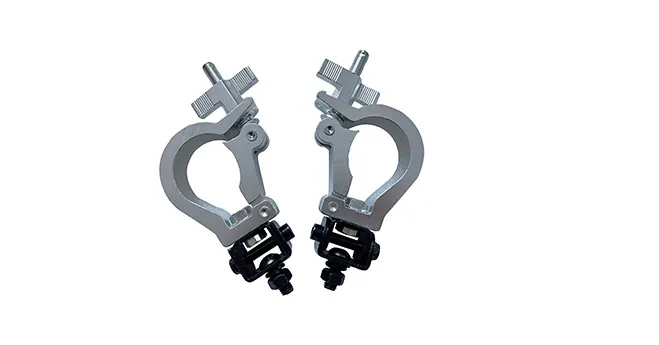

- Flight Case Size (5 units – with clamps)
- 1150 × 630 × 420 mm
- Net Weight
- 40.3 kg
- Gross Weight
- 70.75 kg
- Flight Case Size (8 units – optional)
- 1060 × 510 × 640 mm
- Net Weight
- 58.4 kg
- Gross Weight
- 99.5 kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
FEATURES
- Single beam can emit two color
- 2 optional installation methods
- LED chip:10pcs 15w RGBW (4 in 1)
- LED can be controlled pixel by pixel, delivering versatile effects
- IP65
