Sheet 05.867
PR Lighting · PAR and static light

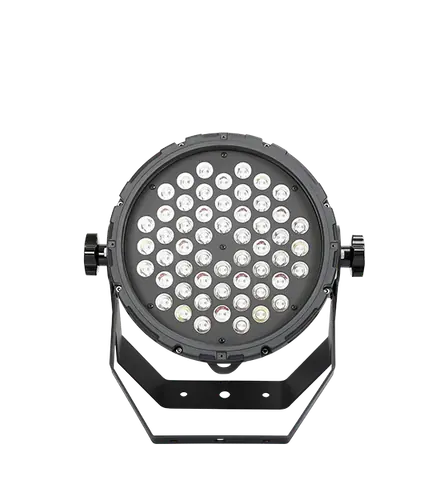

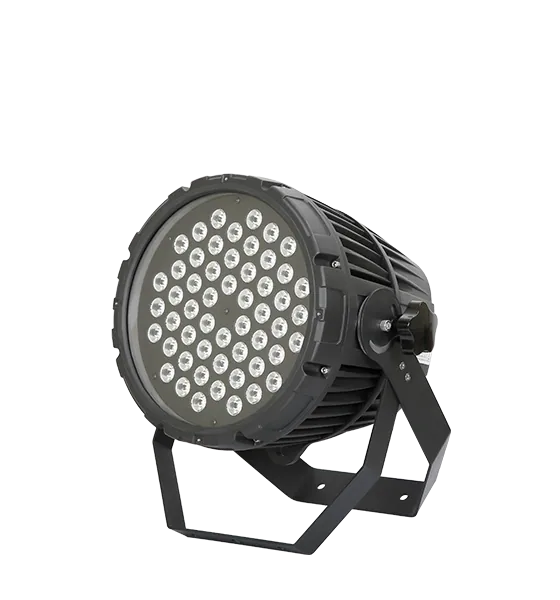

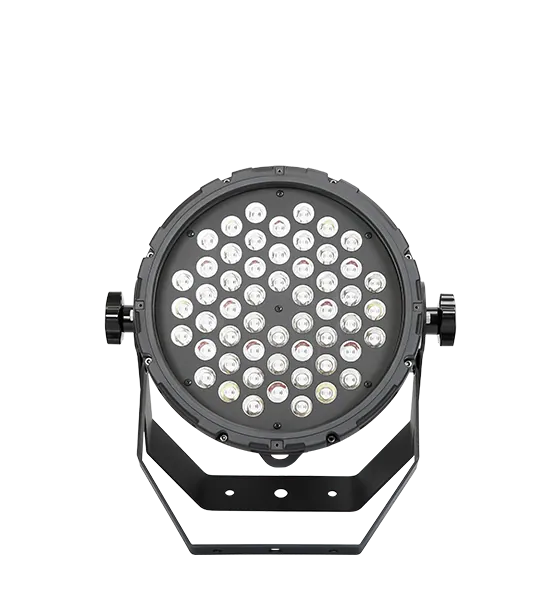

XPAR 354
ModelPR-6209A
XPAR 354 is a new launched exterior par, rating IP67. It’s equipped with 54 pcs of 3W LEDs, provides R/G/B/W single color and countless color mixing effects, ideal for multi-scale outdoor stages, buildings, theme parks, etc.
- Net weight
- 10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XPAR 354Price on requestRequest a quotation
01VideoManufacturer's video · 1:15
PR Lighting XPAR 354: the manufacturer's video
02SpecificationManufacturer's data · 14 groups · 29 values
What this product is, in numbers.

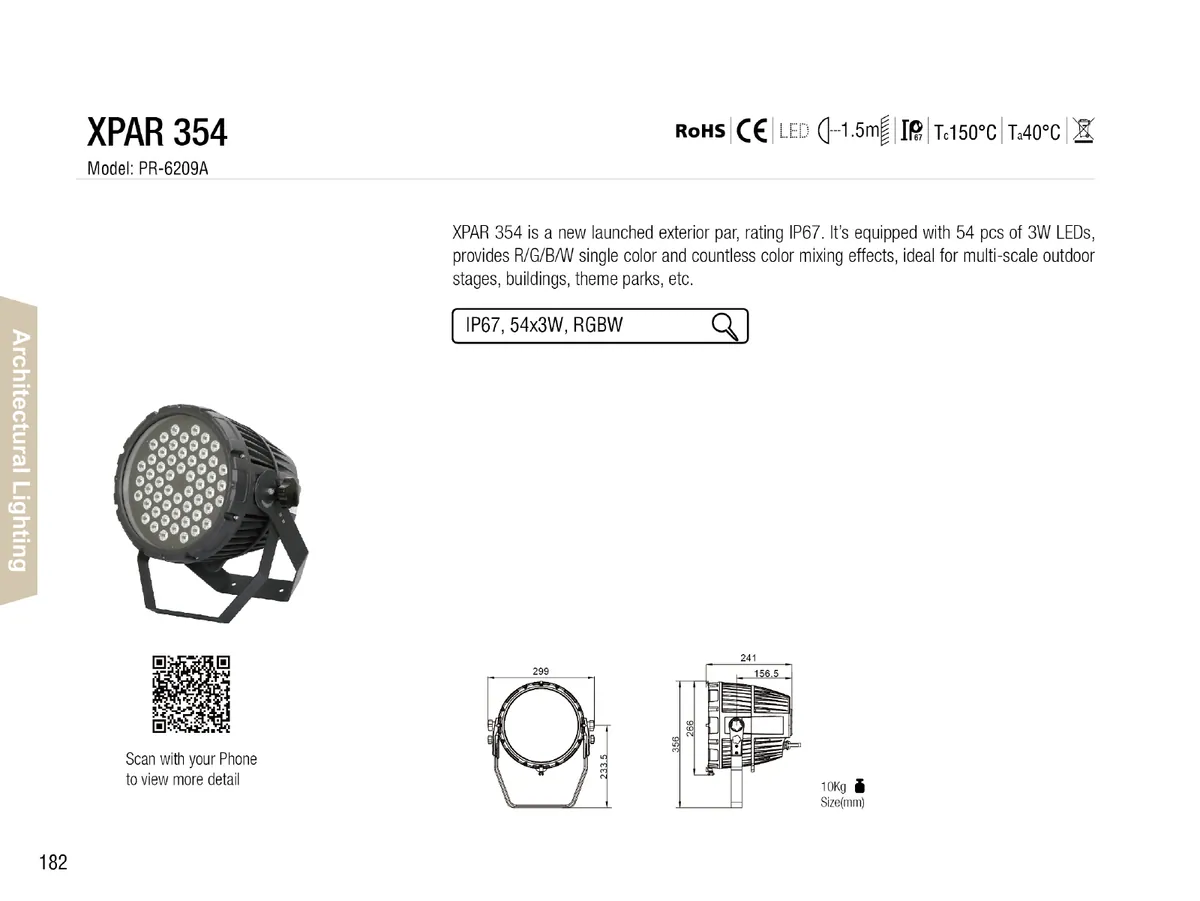

PDFDatasheetEN · 2 pages · 1.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 180W@220V
03Light Source1
- 54pcsX3W RGBW light source(162W) , 50000 hrs
04Strobe1
- Electronic strobe, 0.5-33 F.P.S
05Dimmer1
- 0-100% linear adjustment
06Light Angle1
- Beam angle(1/2 peak) θ1/2
- 8° (optional 7°, 10°, 20°, 40°)
07Other Functions5
- LCD screen and its brightness adjustable
- DMX channel mode and setting display
- LCD display and menus invertible
- Backlight of LCD display automatically turns off after some delay
- Control mode and other information can be transmitted via synchronization
08Control5
- International standard DMX512 signal control protocol
- Standard mode 6 channels and extended mode 11 channels
- Master/Slave synchronized Mode
- 3 operation modes(DMX mode, user memory, preset memory)
- Test mode
09Physical2
- Housing
- high intensity cast aluminum alloy, IP67
- Ambient working temperature
- -20°C~40°C
10Weight1
- Net weight
- 10kg
11Packaging2
- Standard
- carton 700x690x480(mm), 4 in 1
- Optional
- flight case 875x590x512(mm), 4 in 1
12Accessories6
- Clamp, 1 pc
- Signal adapter cord, 2 pcs
- Power cord, 1 pc
- Safety cord, 1 pc
- Optional
- transparent cover+seal+screws x6, 1set;
- barndoor assembly+frost board, 1 set; top hat, 1 set
13General1
- 【Version
- 20240426】
14Color System1
- R/G/B/W, optional(R/G/B/Amber, R/G/B/Lime)
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Documents2 files · 3.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
