Sheet 05.868
PR Lighting · PAR and static light
XPAR 1514 Zoom
ModelPR-8210
XPAR 1514 Zoom adopts OSRAM RGBW LEDs as its light source rated at IP67, having color temperature 2700K~10000K linearly adjustable, suitable for outdoor use and etc..
- Light source
- 14pcs 15W RGBWB,4 in 1, SMT LED ,50000 hrs
- Net weight
- 10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XPAR 1514 ZoomPrice on requestRequest a quotation
01VideoManufacturer's video · 0:43
PR Lighting XPAR 1514 Zoom: the manufacturer's video
02SpecificationManufacturer's data · 14 groups · 31 values
What this product is, in numbers.

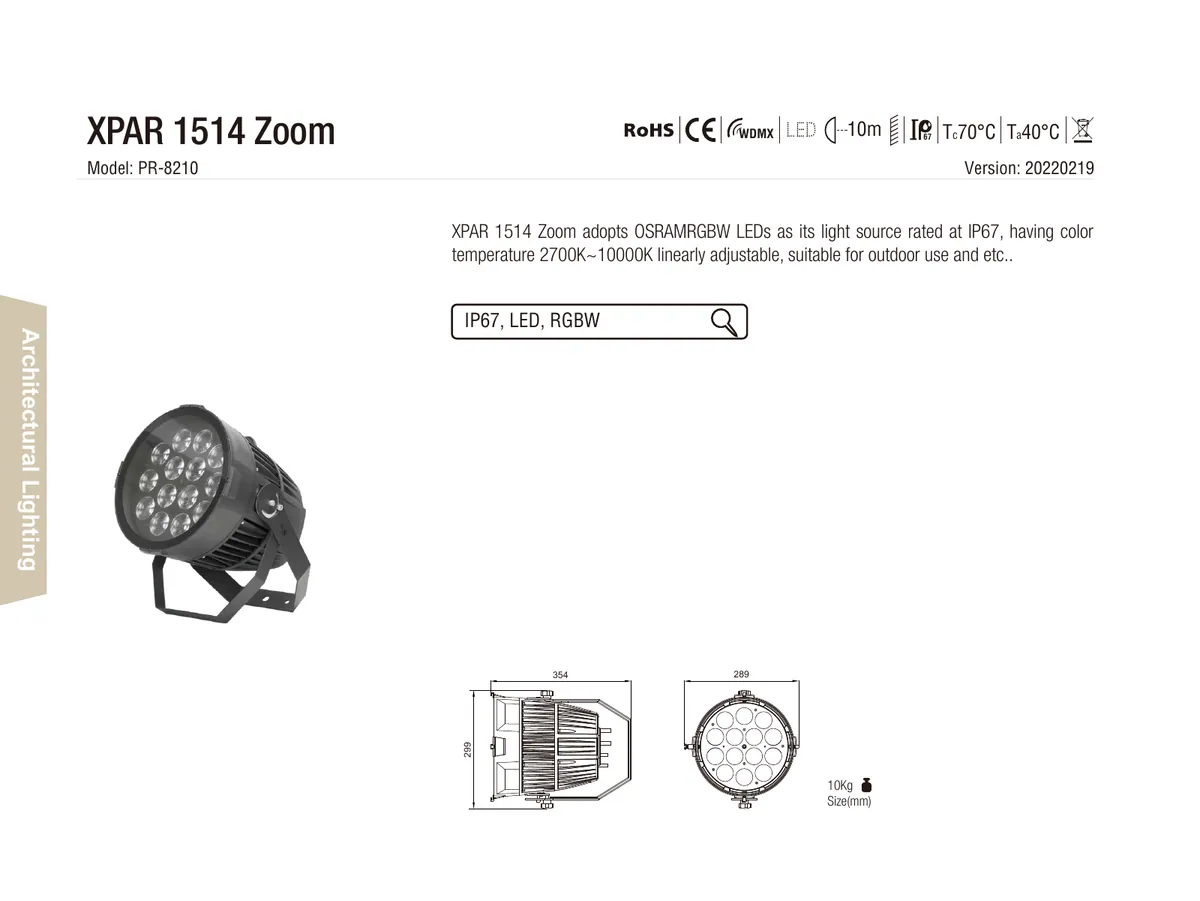

PDFDatasheetEN · 2 pages · 311 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 220W@220V
03Light Source1
- 14pcs 15W RGBWB,4 in 1, SMT LED ,50000 hrs
04Strobe1
- Electronic strobe, 0-25 F.P.S
05Dimmer1
- 0-100% linear adjustment
06Light Angle2
- Beam angle(1/2 peak) θ1/2
- 14°~42° ,linear adjustment
- Field angle(1/10 peak)
- 23°~68°,linear adjustment
07Other Functions5
- LCD screen and its brightness adjustable
- DMX 512 port for firmware upgrade, a convenient and quick way for firmware upgrade via DMX cable
- Over temperature protection
- Fixture time, DMX512 channel value and software version will be displayed
- Display can be inverted
08Control5
- International standard DMX512 signal control protocol DMX512 3 pin and 5 pin interfaces
- 5 Control modes
- basic, standard, extended and HIS/HSIC modes
- Master/Slave synchronized Mode
- Standard alone mode, preset mode, self test mode and single scene mode
- 3 operation modes(DMX mode, user memory, preset memory)
09Physical2
- Housing
- high intensity cast aluminum alloy, IP67
- Maximum ambient temperature
- 40 °C
10Weight1
- Net weight
- 10kg
11Packaging2
- Standard
- carton 727x727×481(mm), 4 in 1
- Optional
- flight case 875x590x512(mm), 4 in 1
12Accessories7
- G clamp, 1 pc
- Power cord, 1 pc
- XLR cable, 2 pcs
- Safety cord, 1 pc
- User manua, 1 set
- Transparent Cover+ seal+ screws ×6,1 set(optional)
- Barn Door + Frost panel(Optional),1 set
13General1
- 【Version
- 20251020】
14Colors1
- R/G/B/W, Macros, unlimited color mixings
Show the full specificationHide the rest of the specification0 more groups · 0 values
