Sheet 05.830
LIGHT SKY · Effects and lasers

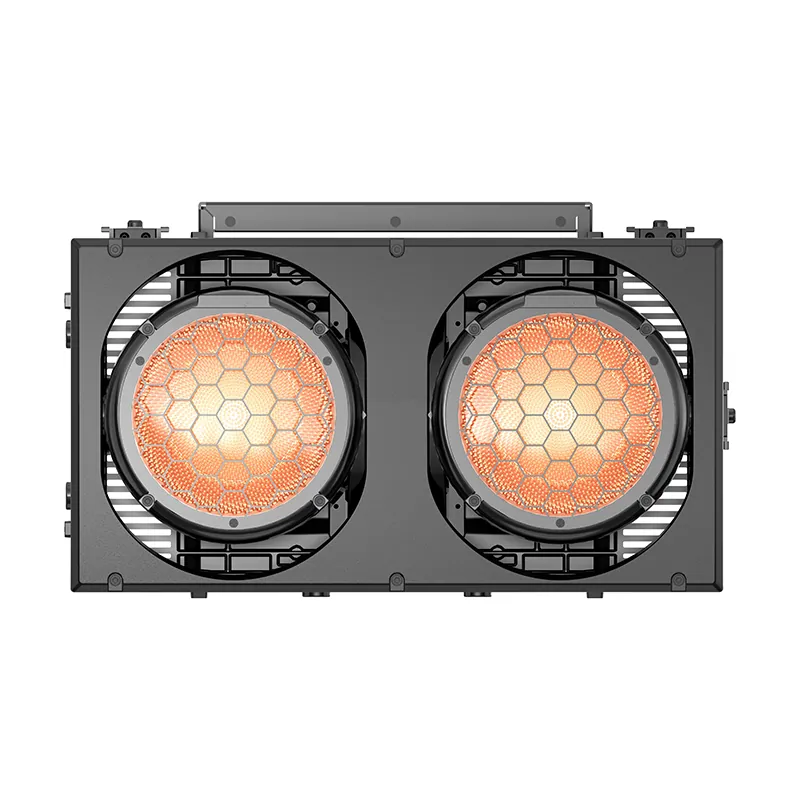

SEAL
High-brightness waterproof audience light with +25° manual tilt adjustment, warm white/red/amber LED chipset for pure color rendering and nuanced tungsten-like effects, optimized for outdoor concerts, TV shows, photo zones, and large-scale events.
- Light source
- 2 x 230W WRA (warm white, red, amber) COB
- Beam angle / zoom
- 50°
- DMX channels
- Standard modes 1CH/2CH/8CH/14CH (see channelchart for details)
- Colour temperature
- 2653K±250K
- Net weight
- 11.3 kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SEALPrice on requestRequest a quotation
01VideoManufacturer's video · 1:45
LIGHT SKY SEAL: the manufacturer's video
02SpecificationManufacturer's data · 9 groups · 33 values
What this product is, in numbers.

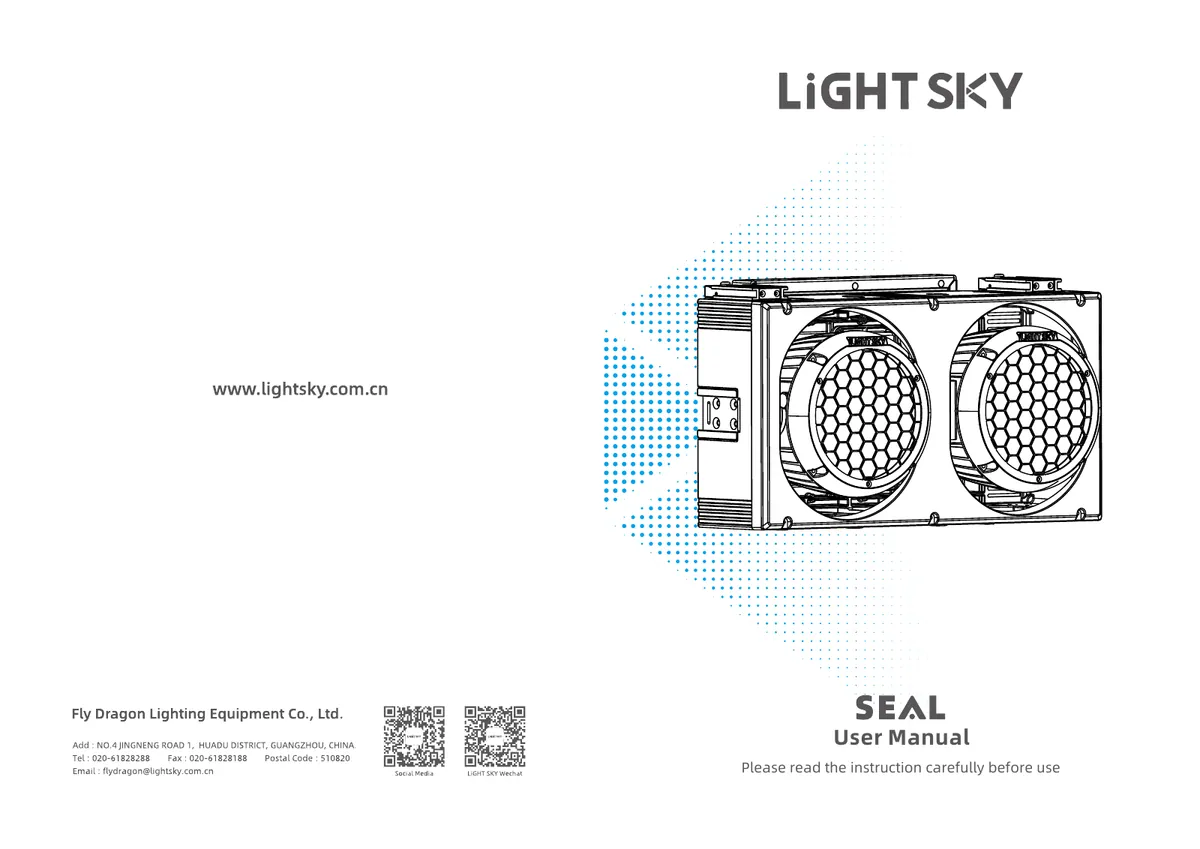

PDFUser manualEN · 21 pages · 6.5 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light source & Optics8
- Light source
- 2 x 230W WRA (warm white, red, amber) COB
- Beam Angle
- 50°
- Spot Angle
- 84.6°
- Color Rendering Index
- RA≥93.5
- Color Temperature
- 2653K±250K
- Liaht Flux
- 21,747 Lm

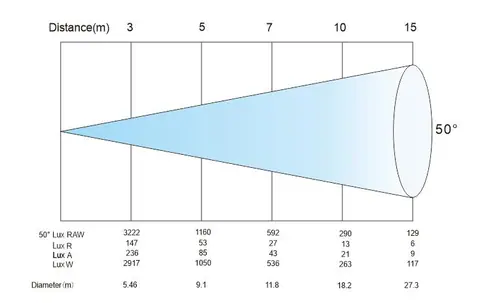

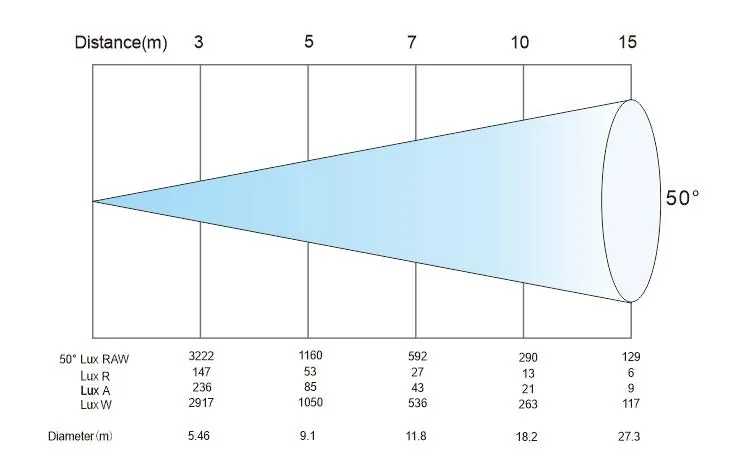

- Illuminance
- 1,160 lux@5m
- Light source average life span
- 30,000 hours
02EFFECTS3
- Dimming
- Electronic dimming with four dimming curves
- Dimming Effect
- Simulates traditional tungsten lamp response
- Strobe
- 1-30Hz electronic strobe and random strobe
03CONTROL AND PROGRAMMING4
- Control channels
- Standard modes 1CH/2CH/8CH/14CH (see channelchart for details)
- Control Protocols
- DMX512, RDM, ART-NET, sACN

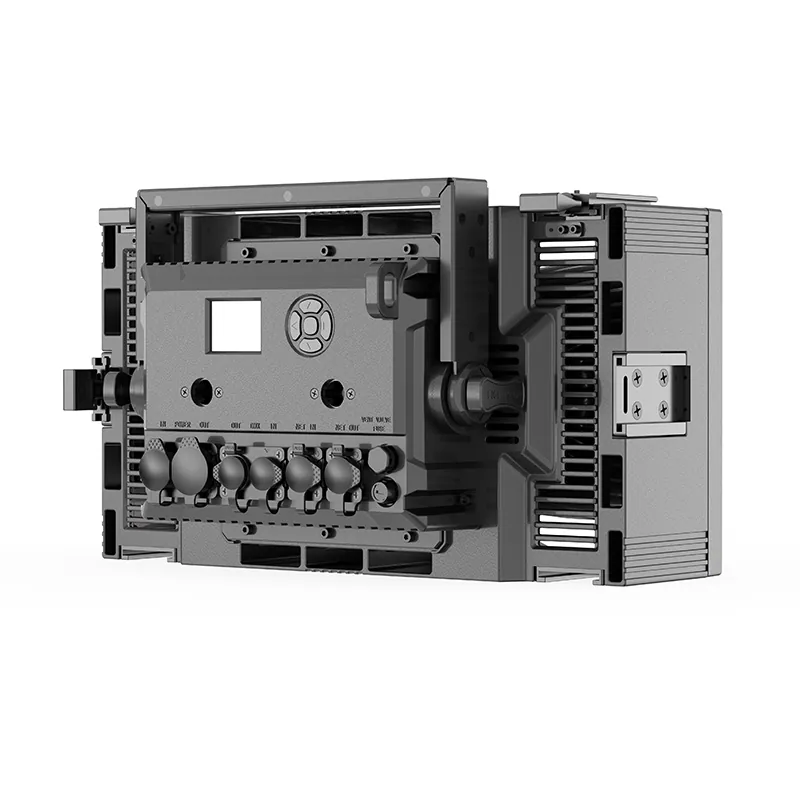

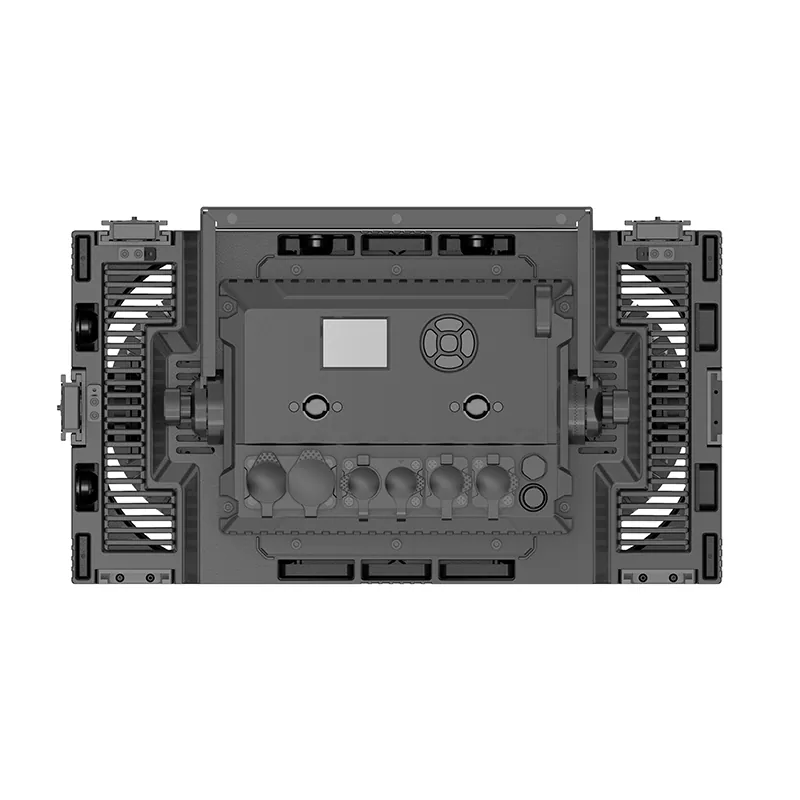

- Data Connection
- 3-pin or 5-pin signal input/output, RJ45 Ethernet input/output.
- Display
- LCD screen
04SOFTWARE2
- Software upgrade
- via DMX interface
- Temperature control
- Intelligent system for LED lifespan
05POWER AND ELECTRICAL4
- Rated Voltage
- AC 100-240V 50/60HZ
- Maximum Power
- 464W
- Power Factor
- 0.99
- Maximum Current
- 4.7A/100V 2.1A/220V
06SIZE & WEIGHT4

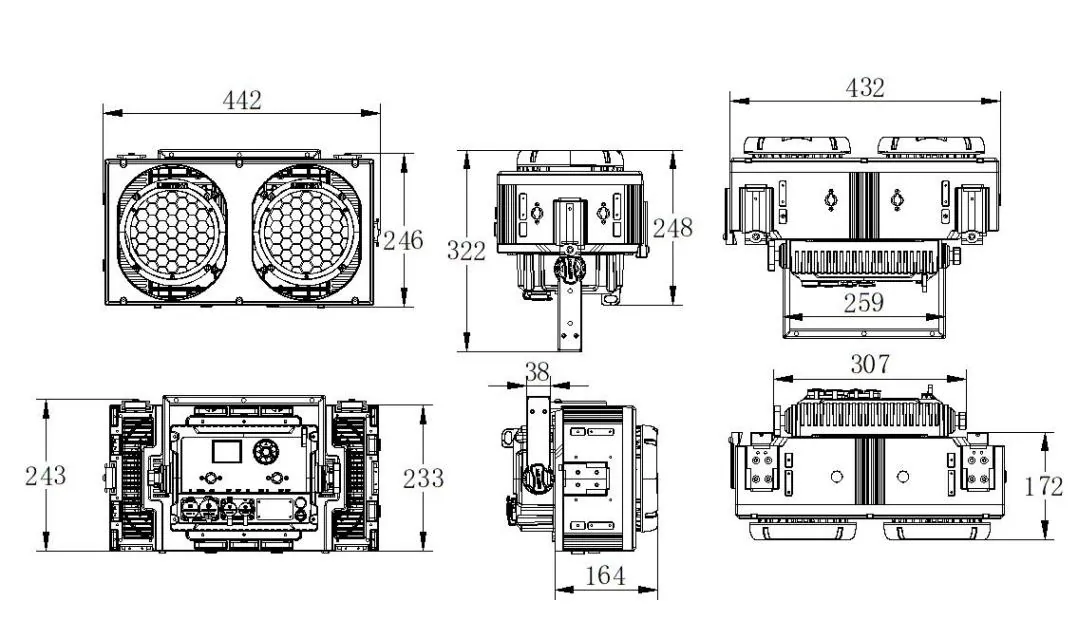

- Product Size
- 438x248x242mm
- N.W
- 11.3 kg
- Carton packaging (default)
- 510×320×380mm
- G.W
- 14.1kg
07OTHERS3

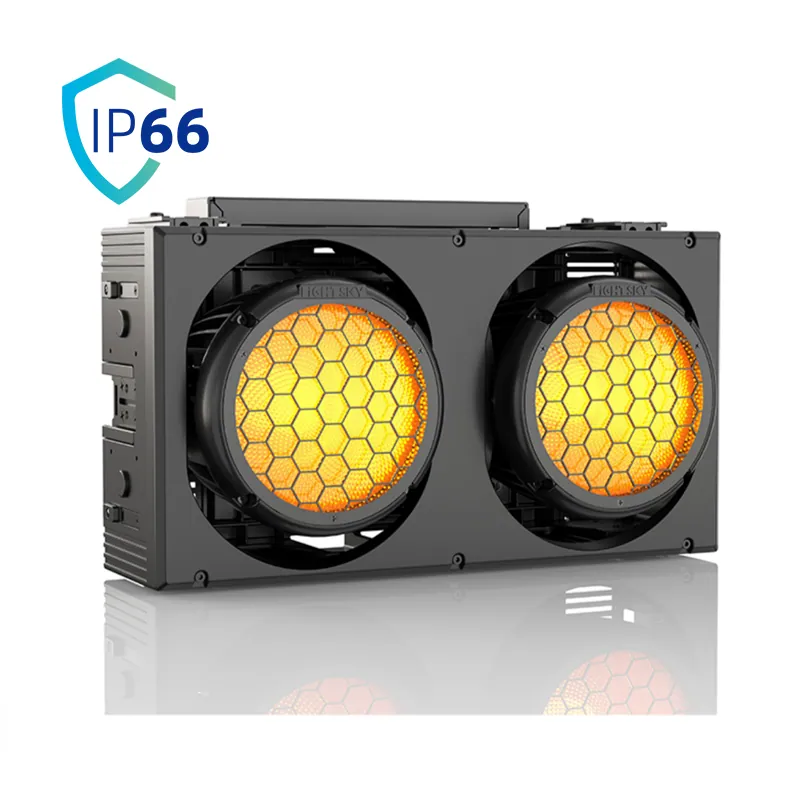

- Protection Level
- lP66
- Operating Environment
- -20°C~45°C
- Maximum Surface Temperature
- 65°C
08FACTORY CONFIGURATION3
- Power cable
- 1pc (Part No.:F0200030016)
- SiqnalCable
- 1pc (PartNo.:F0200020008)
- Safety Rope
- 1 pcs (Part No.: F0200010002)
09Optional accessories/packaging2
- Flight case dimensions (4IN1)
- 960×700×465mm
- Flight case gross weight
- 79.0 kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
FEATURES
OUTDOOR LED BLINDER
- High color rendering index(CRI) for authentic stage color reproduction
- Patented quick-splice mechanism enabling vertical/horizontal rapid assembly
- Compact weather-resistant housing with lP66 protection rating
