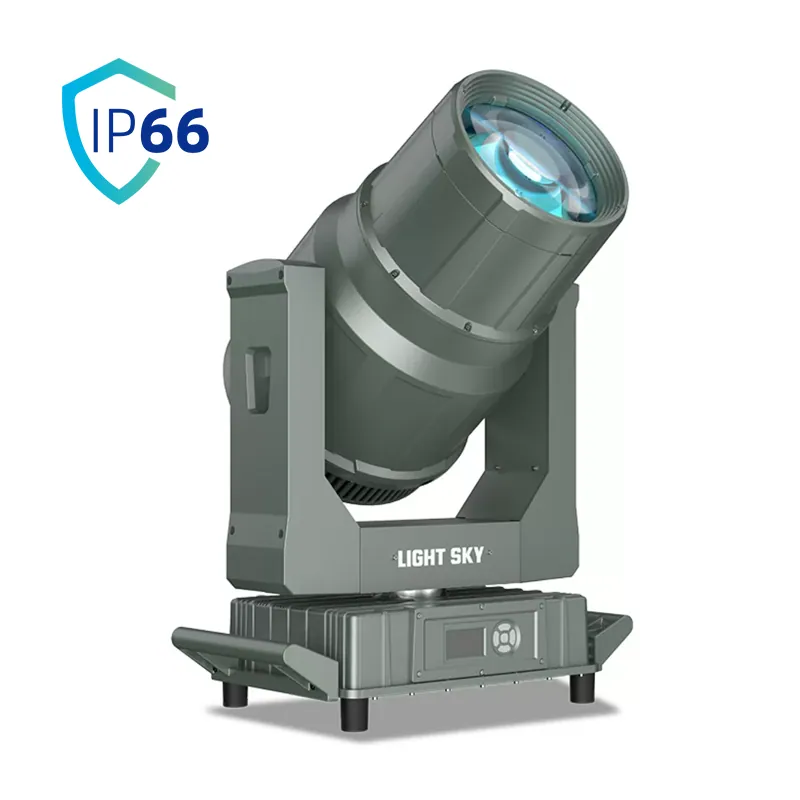

SHARK LASER

SHARK LASER Version is an efficient and stable laser fixture with IP66 rate. The whole light is designed with an aluminum alloy die-casting shell to ensure stable outdoor use.

Light source: 260W White Laser module
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 0.88° (Optional: 0.63° or 1.13°)
DMX channels: 17CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net(Optional)
Net weight: 36 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video2 manufacturer's videos · 3:31

LIGHT SKY SHARK LASERVideo 1 of 2 · 2:14

02SpecificationManufacturer's data · 10 groups · 47 values

What this product is, in numbers.

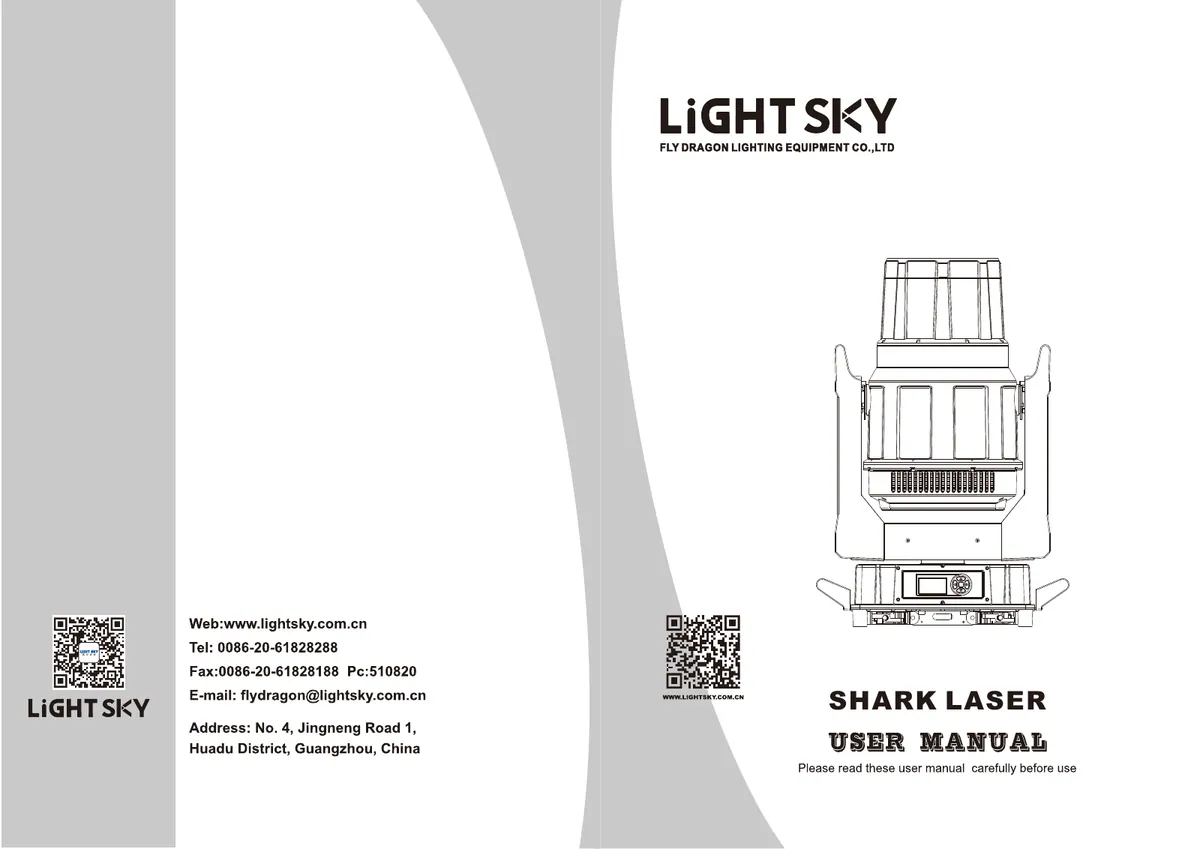

PDFUser manualEN · 22 pages · 3.4 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light source & Optics8

Light Source: 260W White Laser module
Beam Angle: 0.88° (Optional: 0.63° or 1.13°)
Front Lens: φ190mm High Definition Lens
Colour Temperature Output: 7490 K
Color Rendering Index (CRI): Ra≥64
Lumem Output: 10,090 lm

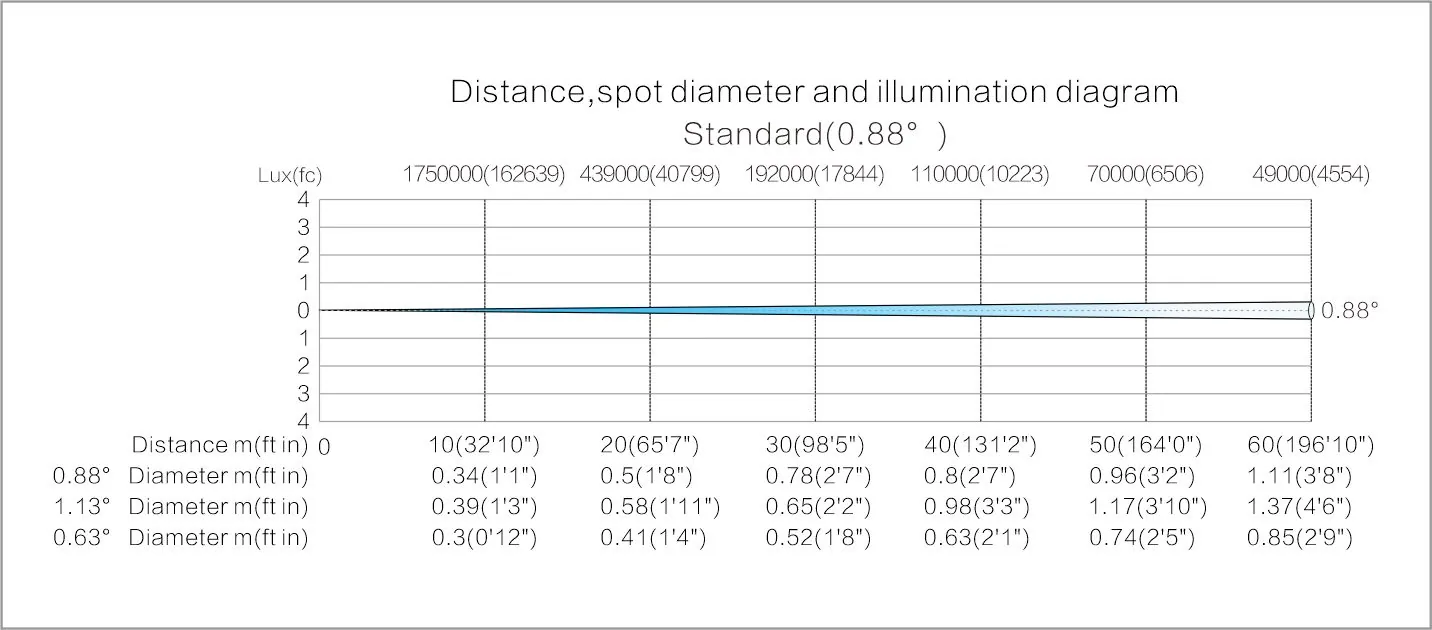

Illuminance: 439, 000 lx @20m

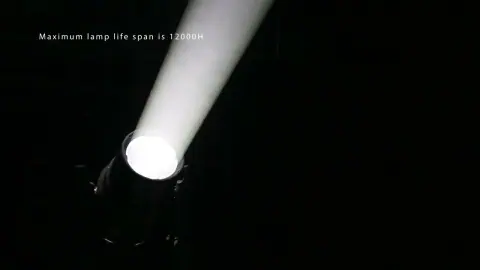

Light Source Theory Life Span: 12,000 h*

02Color4

Color Wheel: 14Colors + blank, capable of bi-directional color rainbow effect, bi-color; step gradient (linear movement), bi-directional rotating color wheel,; random color mode
CMY: Linear CMY Color Mixing System

03Effects8

Static gobo wheel: 11 gobos +1 blank+3 animation,Bi-directional animation,; flowing and shaking
Prism: 8 facet prism+24 facet prism, rotatable in both directions,; independently switchable, stackable
Frost: Independent Frost Effect; Adjustable pulsed and random strobing from 0.5 to 25 times per second
Dimmer: 0 to 100% linear dimmer
Focus: Motorized focus

04Control and Programming5

Control Channels: 17CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net(Optional)
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT, RJ45(Optional)
Display: LCD screen; Software upgrade via DMX signal

05Pan/Tilt Movement4

Pan axis: 540°, 8/16-bit resolution
Tilt axis: 240°, 8/16-bit resolution; Reset function with automatic error correction
Fixed lock: Tilt axis lock

Show the full specificationHide the rest of the specification5 more groups · 18 values

06Power and Electrical4

Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 380W
Power factor: 0.976
Maximum current of the fixture: 1.73A/220V; 3.8A/100V

07Size and Weight4

Product dimensions: 509mm × 320mm × 742mm
Net weight: 36 kg
Carton packaging: 810mm × 580mm × 395mm
Gross weight: 41 kg

08Other3

IP Rate: IP66
Operating environment: -20°C ~ 45°C
Maximum surface temperature: ≤ 60°C

09Factory Configuration4

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: F0200020008(3-pin)/ F0200020009(5-pin, Optional))
Safety Rope: 2 pcs (Part No.: F0200010002)
Clamp: 2 pcs (Part No.: C0499990007)

10Optional Accessories/Packaging3

Fly case: Part No.:B0100230001
Packaging(Fly case): 620mm x 640mm x 825mm
Gross Weight: 71 kg(1 in 1)

03DescriptionManufacturer's description

What it is.

SHARK LASER Version is an efficient and stable laser fixture with IP66 rate. The whole light is designed with an aluminum alloy die-casting shell to ensure stable outdoor use. Equipped with a 190mm diameter front lens , the minimum beam angle is 0.8 degrees; Illuminance is 439000lux @20m, with long-distance and strong penetration; equipped with rich colors And gobo, combined with the use of multiple superimposed prisms, can produce beautiful laser beam effects. It is suitable for outdoor performances, concerts, entertainment, rental and various live performances and other places.
