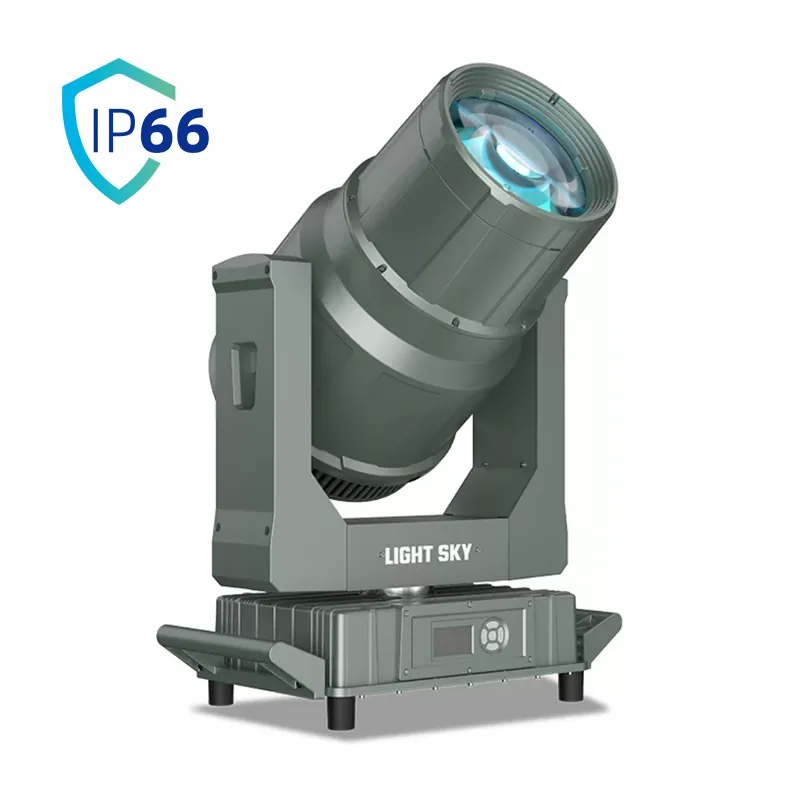

SHARK LASER (Economic)

SHARK LASER (Economic) Version is an efficient and stable laser fixture with IP66 rate. The whole light is designed with an aluminum alloy die-casting shell to ensure stable outdoor use .

Light source: 260W white Laser module
Power supply: AC100-240V 50/60Hz;
Ingress protection: IP66
Beam angle / zoom: 0.88°( 0.63°/1.13°beam angle selection)
DMX channels: 14CH
Colour temperature: 7490K
Net weight: 35.1Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video2 manufacturer's videos · 3:31

LIGHT SKY SHARK LASER (Economic)Video 1 of 2 · 2:14

02SpecificationManufacturer's data · 6 groups · 42 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System12

Voltage: AC100-240V 50/60Hz;
Power: 370W
Power con: IP66 Waterproof Neutrik I/O Power Jack (SAC3PX 16A 250V)
DMX and RDM: 3-pin (standard) or 5-pin waterproof (optional) (IP66) XLR
Light source: 260W white Laser module
Light source power: 260W
Average Lifespan: ≥20000h
Total laser source output Lumen: 12000LM
Laser source CCT: 7000K
Total laser fixture output Lumen: 10090 Lm
Color temperature: 7490K
CRI: >64

02Optical System4

Illuminance: 439000lux @20m
Beam angle: 0.88°( 0.63°/1.13°beam angle selection)
Out put lens diameter: φ190 mm
Illuminance: 1750000 lux @10m 7680lux @150m

03Dynamic Effects7

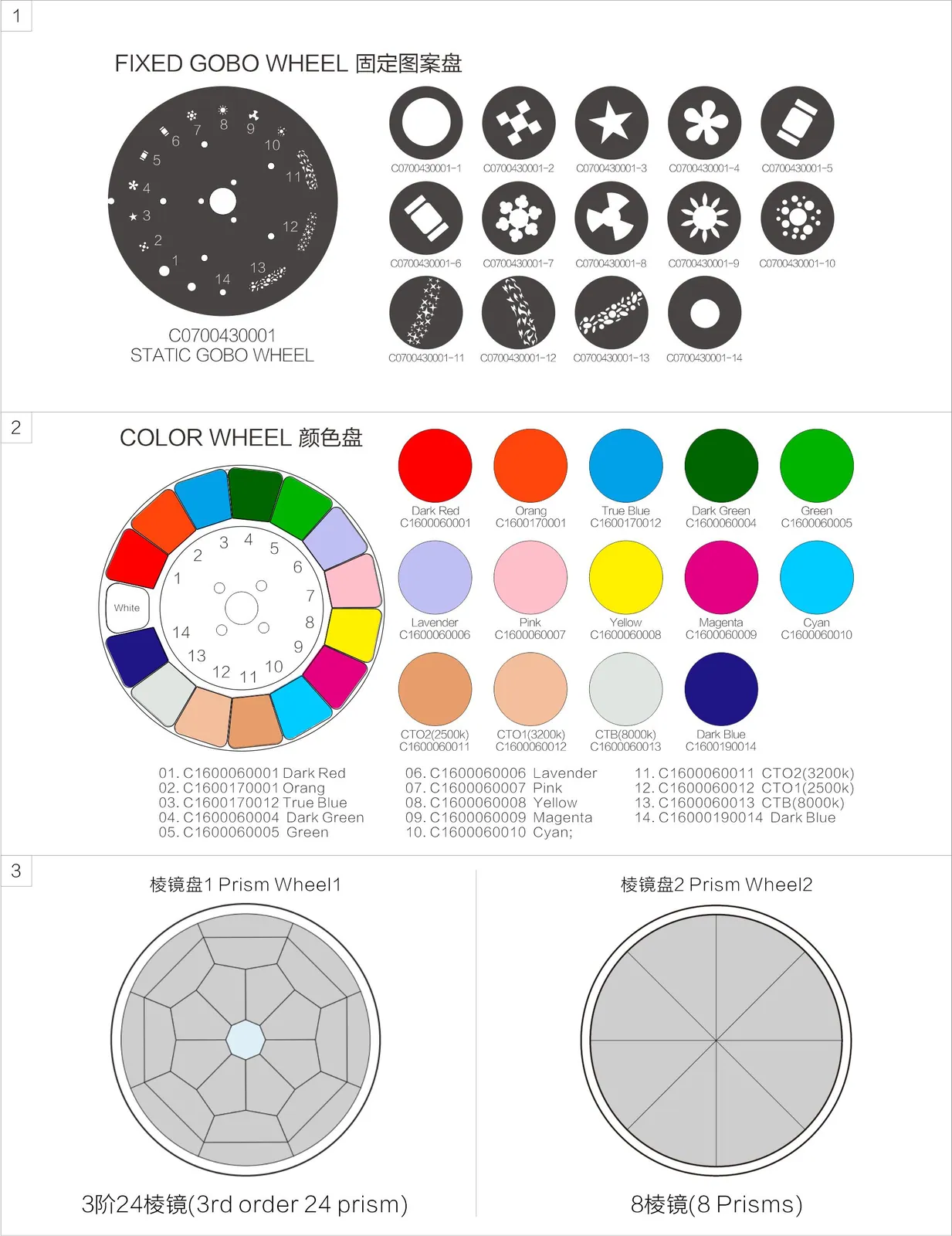

Color Wheel: 14 colors + white,Bi-direction rainbow effect
Fixed gobo wheel(φ106): 11 patterns + white + 3 animation range,Bi-direction flow
Prism: 8 facet Prism + 24(8+8+8) facet Prism + multi combination effect
Frost Effect: Adjustable independent frost effect
Focus: Electric focus
Strobe: 1-25 times/second pulse strobe and random strobe
Dimmer: 0-100% linear adjustment

04Movement5

Pan movement: 540°
Tilt movement: 240°
Pan / Tilt Resolution: 2.11°/0.94°
Pan/Tilt Movement control: Standard and Speed option Pan/Tilt; Automatic Pan / Tilt position correction system Pan/Tilt

05Control And Programming6

Setting IP Address: RDM two-way data transmission, Remote reset DMX address。
Display: The display panel adopts a 2.0-inch LCD12864 LCD screen
Intelligent control: Display board can record device’s using time , show device’s temperature, channel data and software version .
Software upgrade: Insert USB upgrade software
Control mode: DMX512, RDM
Channel: 14CH

06Appearance Parameters8

Structure: The fixture adopted all aluminum alloy shell, anti-oxidation treatment, high salt spray protection level.
IP Rating: IP66

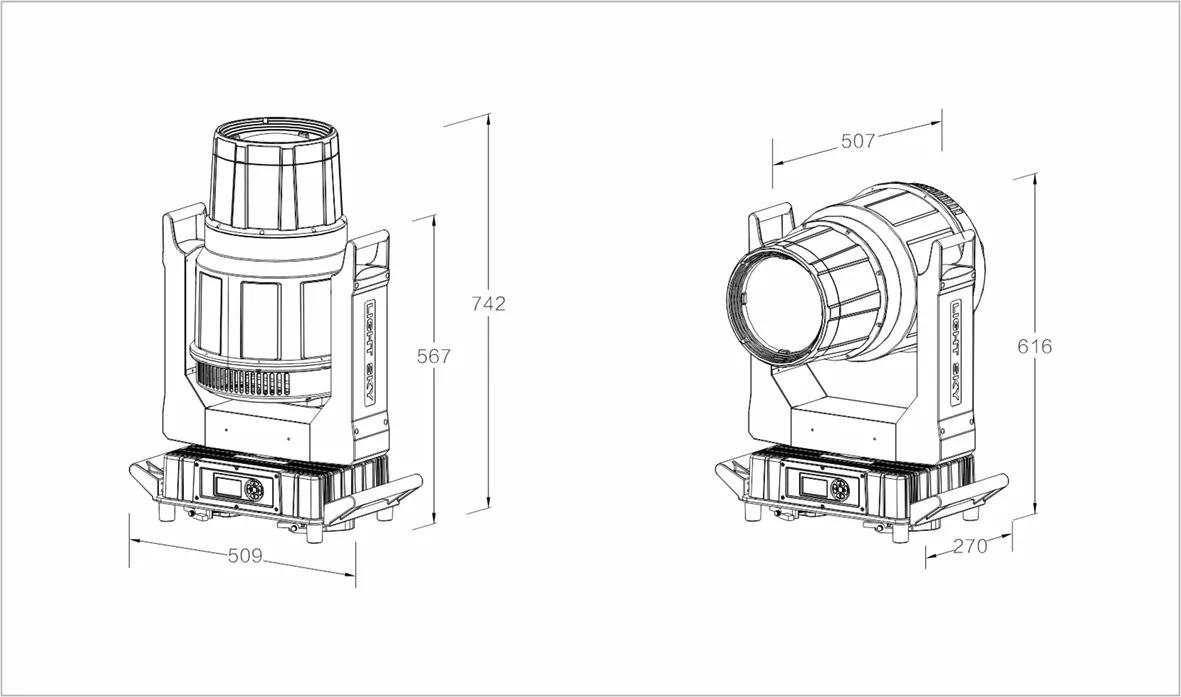

Product dimension: 509×320×742mm
Net weight: 35.1Kg
Packing dimension (carton): 810×580×395mm
Gross weight (carton): 40Kg
Packing dimension (Flycase): 640×620×825mm
Gross weight (Flycase): 70Kg

03DescriptionManufacturer's description

What it is.

FEATURES

SHARK LASER (Economic) Version is an efficient and stable laser fixture with IP66 rate. The whole light is designed with an aluminum alloy die-casting shell to ensure stable outdoor use . Equipped with a 190mm diameter front lens , the minimum beam angle is 0.8 degrees; Illuminance is 439000lux @20m ,with long distance and strong penetration; equipped with rich colors And gobo, combined with the use of multiple superimposed prisms, can produce beautiful laser beam effects. It is suitable for outdoor performances, concerts, entertainment, rental and various live performances and other places.
