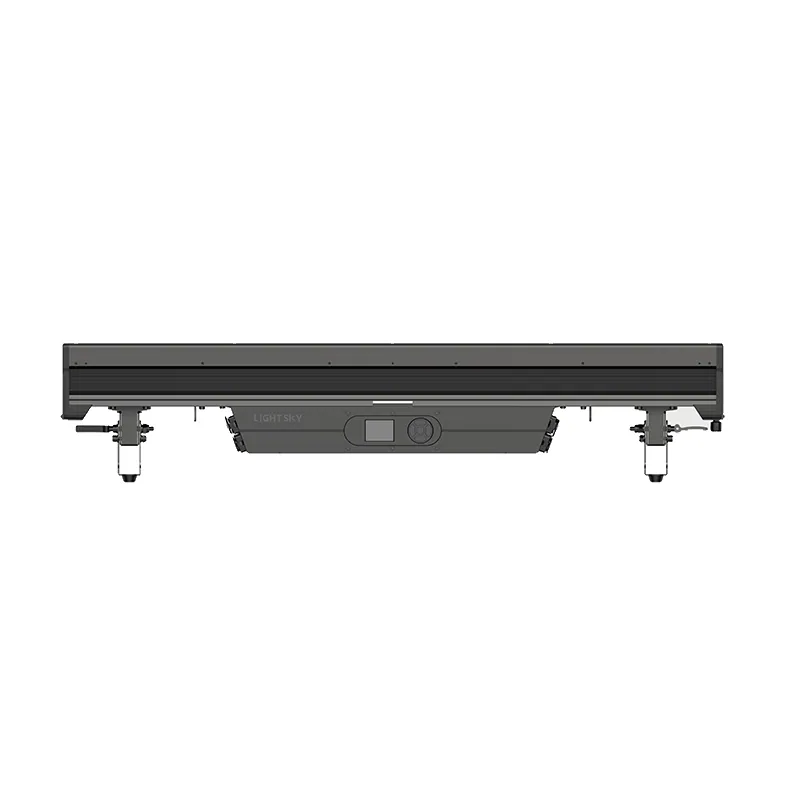

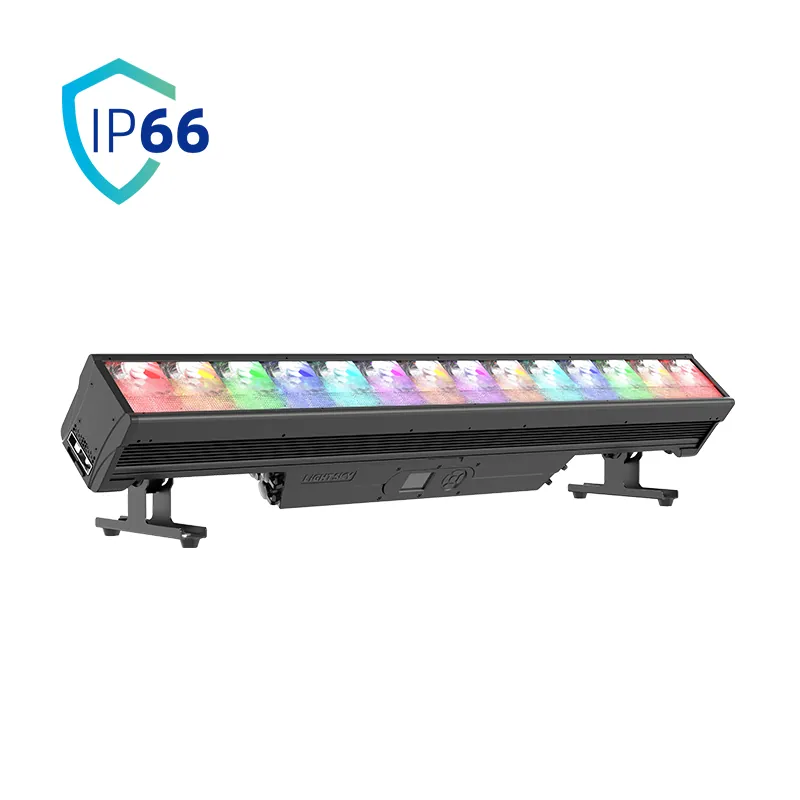

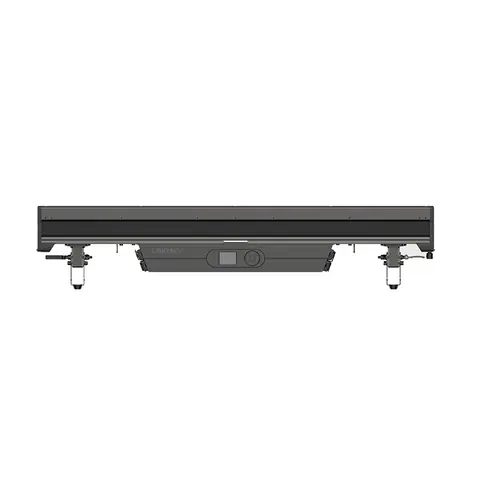

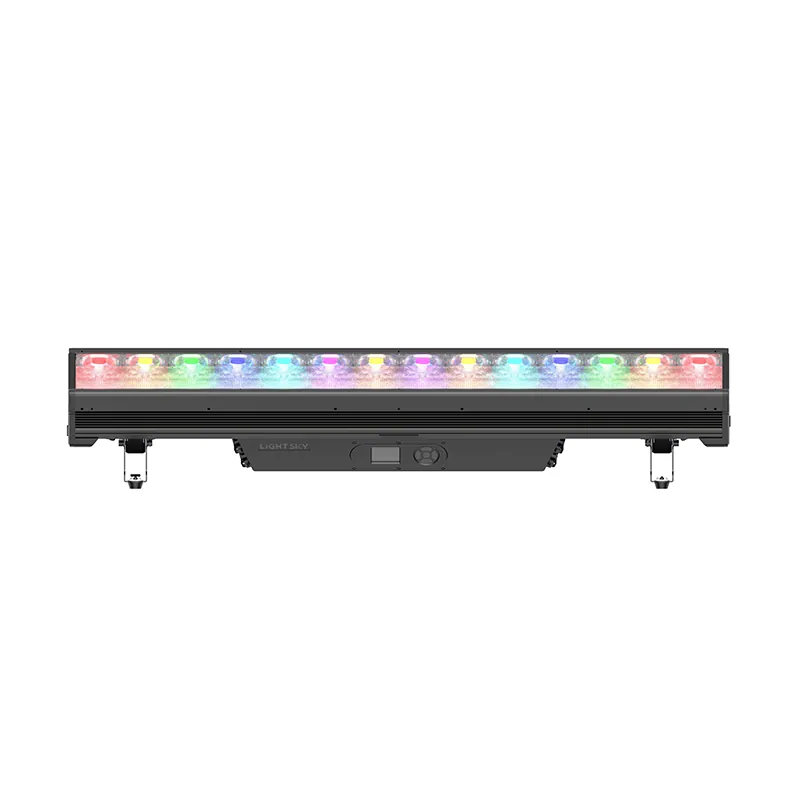

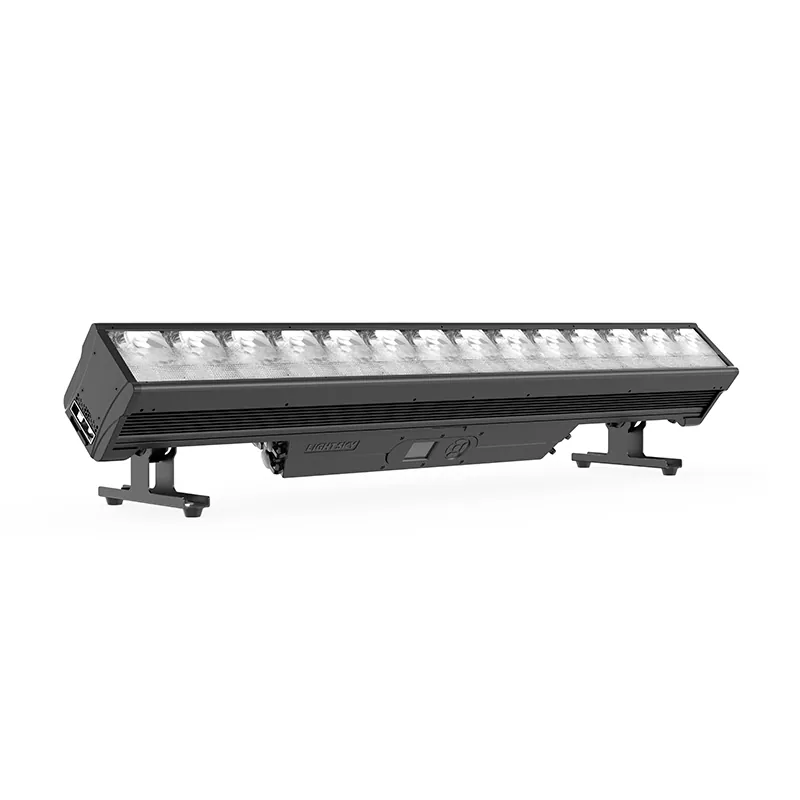

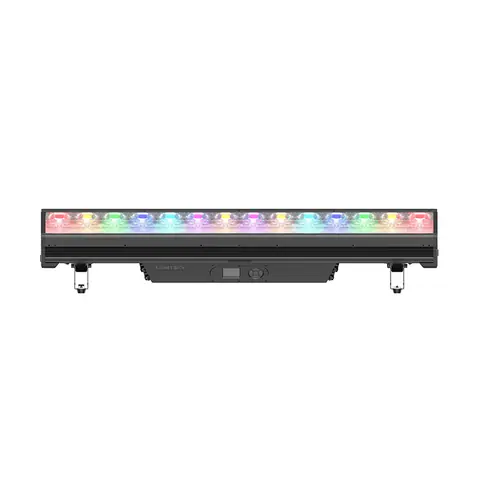

SIRENA BAR

SIRENA BAR is a multi-functional linear color floodlight designed for versatile stage lighting applications. It can be used for cyclorama lighting and stage washes, while also serving as a professional footlight to highlight performers on stage.

Light source: 14 × 20W RGBA LEDs
Power supply: AC 100–240V, 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 28°
DMX channels: 16 CH (default), 68 CH
Net weight: 12.0 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 43 values

What this product is, in numbers.

PDFUser manualEN · 23 pages · 3.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Optical9

Light Source: 14 × 20W RGBA LEDs
Beam Angle: 28°
Field Angle: 60°
Effective Projection Adjustment: 0°–90°
Colour Temperature Output: 1800K–10000K
CRI: up to 80
Illuminance: 1124 lx @ 5 m
Lumen Output: 11,347 lm
Lifetime: 30,000 h

02Effects5

Color Mixing: Uniform RGBA color mixing system with rainbow effect
Control: Light sources support zonal control of RGBA and white light with dynamic effects
Effect Macros: Static and dynamic effect macros
Dimming: Electronic dimming with four selectable dimming curves
Strobe: 1–25 Hz electronic strobe and random strobe

03Control & Programming4

Channel: 16 CH (default), 68 CH
Control Protocols: Standard DMX512, RDM, Art-Net, sACN
Data Connection: 3-pin or 5-pin DMX input/output, RJ45 Ethernet input/output
Display: LCD display

04Software2

Software Upgrade: Upgrade via DMX signal interface
Temperature Management: Intelligent temperature control to ensure LED lifetime

05Tilt Movement1

Manual Tilt Adjustment: 0°–180°

06Power & Electrical4

Input Voltage Range: AC 100–240V, 50/60Hz
Max Power Consumption: 356W
Power Factor: > 0.99
Max Current: 1.6 A / 220 V; 3.6 A / 100 V

Show the full specificationHide the rest of the specification4 more groups · 18 values

07Dimensions & Weight4

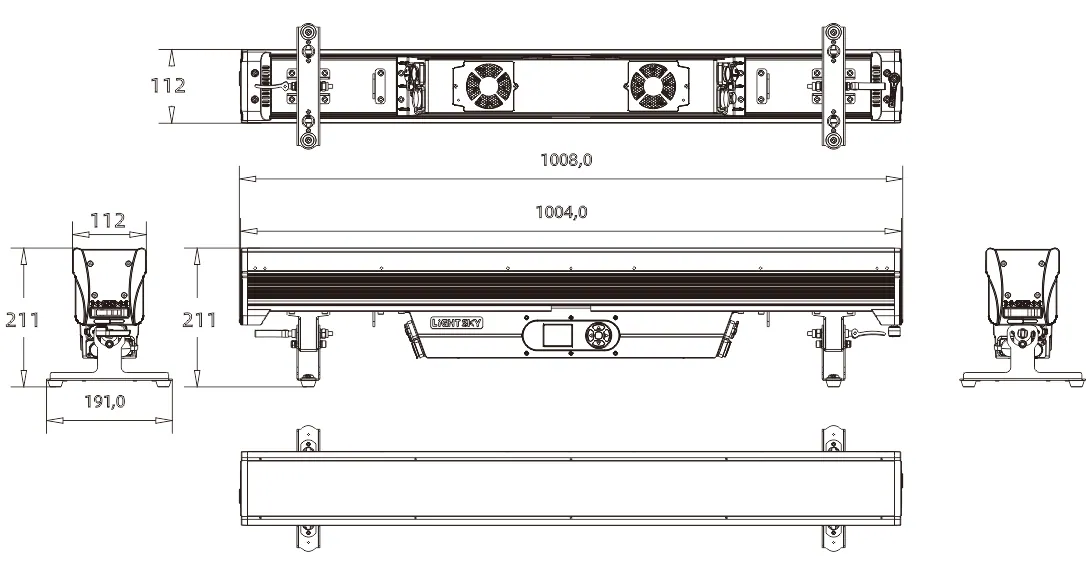

Net Dimensions: 1008 × 191 × 211 mm
Net Weight: 12.0 kg
Carton Size (Standard): 1100 × 310 × 245 mm
Gross Weight: 16.2 kg

08Other4

IP Rating: IP66
Operating Temperature: -20°C ~ 45°C
Max Surface Temperature: 65°C; Built-in mortise locking system for fast fixture alignment and connection

09Factory Configuration4

Power Cable: 1 pc
Signal Cable: 1 pc (3-pin default / 5-pin optional)
Safety Cable: 2 pcs
Quick-Lock Components: 2 sets

10Optional Accessories / Packaging6

Flight Case: Code B0101190001
Packaging(Fly case): 1060mm x 895mm x 440mm
Gross Weight: 90.7 kg(4 in 1); Barn Doors
Frost Filters: C-HE20 / C-HE30 / C-HE40 / C-HE55
Clamps: 2 pcs

02DescriptionManufacturer's description

What it is.

Outdoor Cyc & Footlight Bar

Equipped with high-brightness LEDs, it delivers rich and pure colors, easily creating immersive stage atmospheres. The slim linear design fits neatly along the stage edge, providing soft, even, and glare-free illumination.

With a non-slip base and adjustable bracket, SIRENA BAR supports both floor placement and hanging installation, making it suitable for theatres, studios, and live events.
