LIGHT SKY · Spot and profile

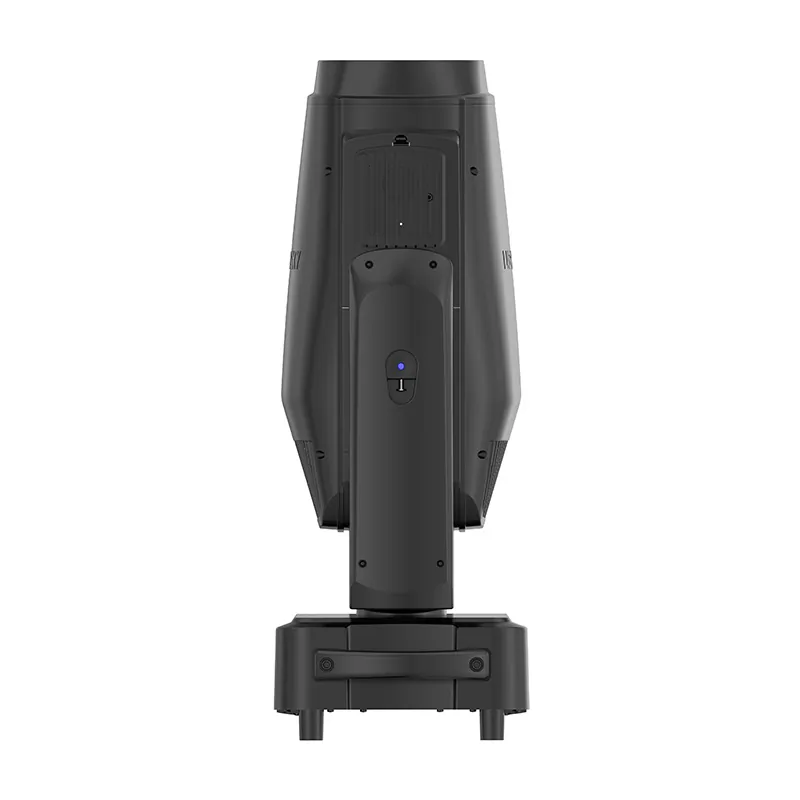

SUPER SCOPE COLOR

As an experienced stage lighting supplier, LiGHT SKY delivers one of the best moving head lights – SUPER SCOPE COLOR.

Light source: 600W five color LED module (RGBAL)
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 5.9 ° -52 °
DMX channels: 60CH, 35CH, 64CH, 49CH, see channel table for details
Protocols: DMX512, RDM, Art-Net, sACN
Colour temperature: 2700-8000 K
Net weight: 37.5kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:45

LIGHT SKY SUPER SCOPE COLOR1:45

02SpecificationManufacturer's data · 10 groups · 44 values

What this product is, in numbers.

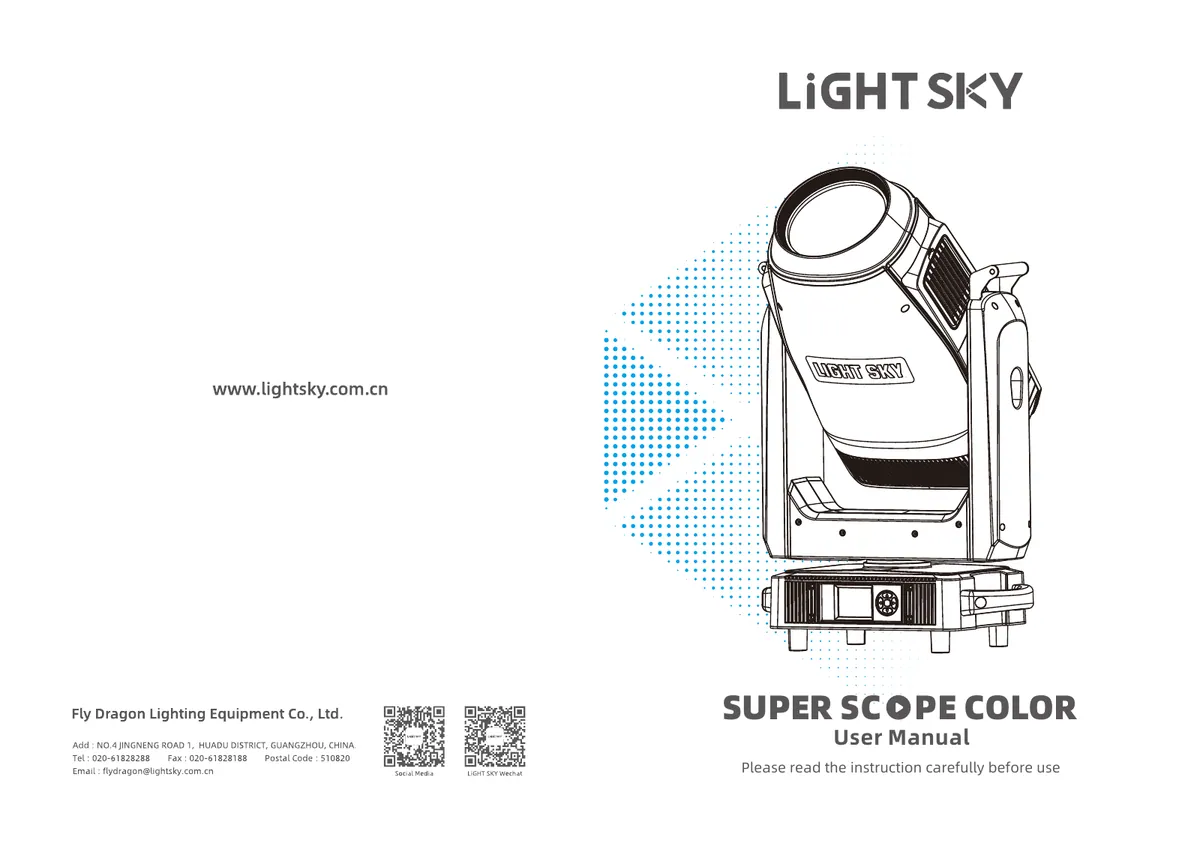

PDFUser manualEN · 38 pages · 11 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL8

Light source: 600W five color LED module (RGBAL)
Zoom range: 5.9 ° -52 °
Optical lens: coated with high anti reflective film, diameter 180mm
Color temperature: 2700-8000 K
Color rendering index(CRI ): up to 95

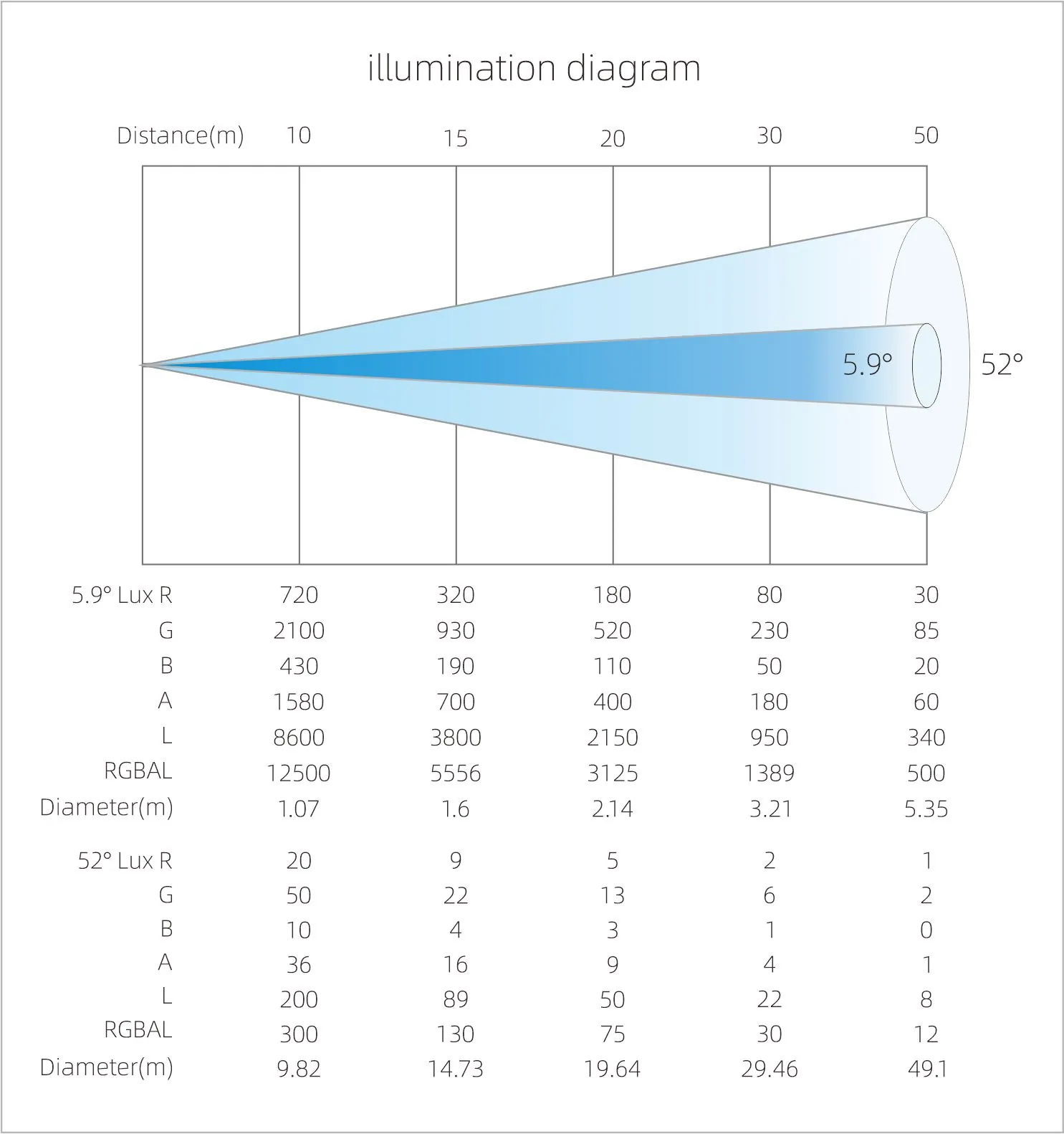

Illuminance: 12500lux@10m
Total lumen output: 17600 Lm
LED source life expectancy: 50,000 hours*

02COLOR3

165 electronic color chips, rich in color

Virtual CMY

Virtual CTO

03GOBO3

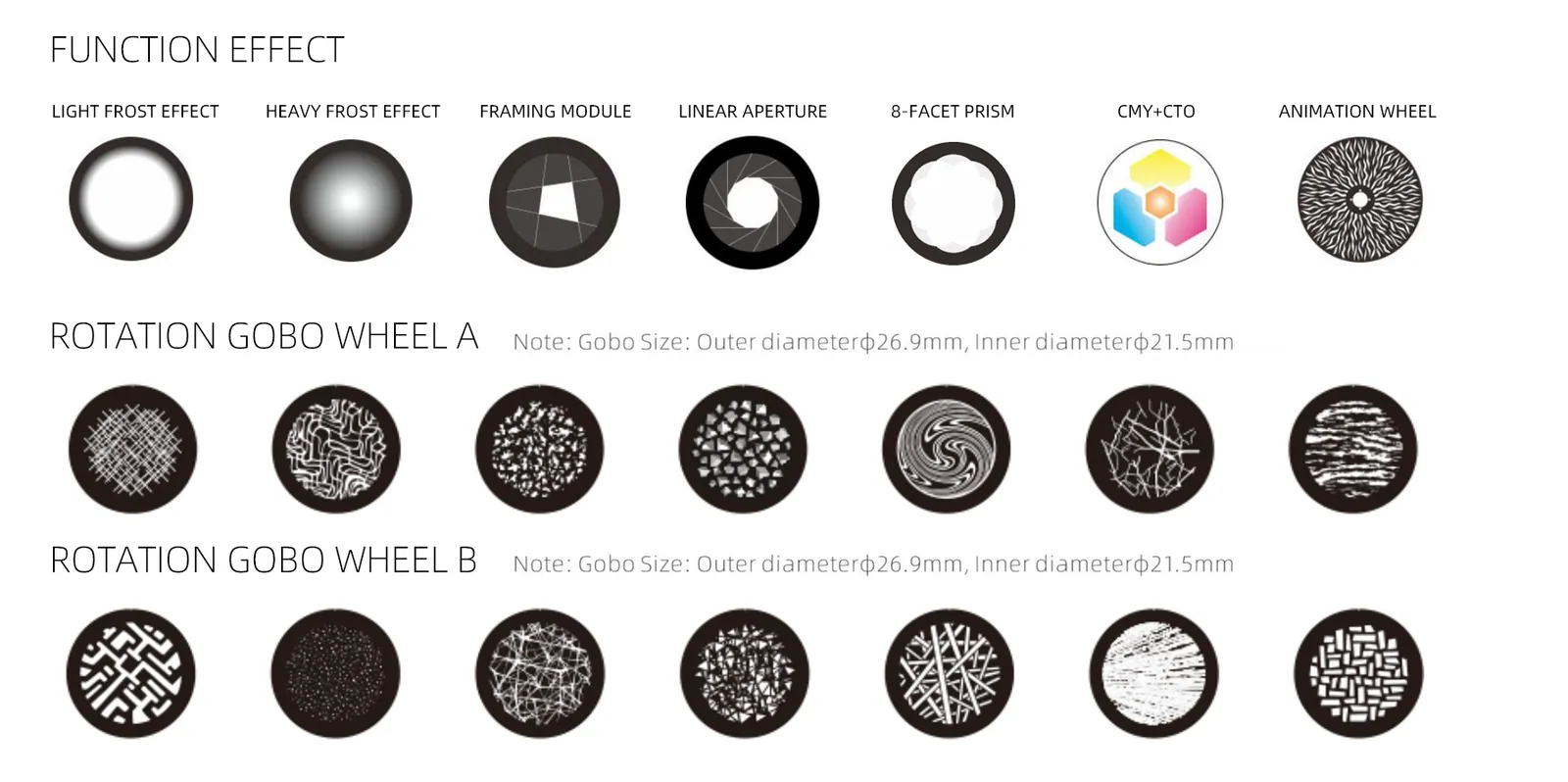

2 Rotating Gobo Wheels, each with 7 Glass Gobo Patterns, allowing dynamic overlay effects, interchangeable and capable of rotation, flowing, and shaking effects.; Animation wheel
Framing system: 4 blade plates enable quick and smooth cutting, with eight independent control directions and angles, each plate capable of complete blackout, and the entire cutting module can rotate ±55º

04EFFECTS6

Prism: 8-facet Prism; light frost and Heavy frost ,independently switchable, stackable
Iris: Motorized Iris, 5-100% linear adjustment, with macro function for multiple effect changes.
Dimmer: Electronic Dimmer, 0-100% linear dimming, uniform light spot.
Electronic Strobe Speed: 1-25 times per second.
LED Refresh Rate: 1000Hz ~ 25KHz.

05CONTROL4

Control Channels: 60CH, 35CH, 64CH, 49CH, see channel table for details
Protocols: DMX512, RDM, Art-Net, sACN
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD screen

06SOFTWARE3

Software: Software upgrades via DMX signal or USB interface
Silent fan: Silent fan with three working modes (high brightness / silent / ultra-silent)
Temperature control: Intelligent temperature control to ensure LED lifespan

Show the full specificationHide the rest of the specification4 more groups · 17 values

07PAN/TILT MOVMENT4

Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 270°, 8-bit/16-bit precision scan; Reset function with automatic error correction
Fixed lock: Tilt axis lock

08POWER4

Input voltage: AC 100-240V 50/60Hz
Maximum power: 1050W (100V input)
Power factor: 0.996
Maximum current: 10.5A (100V input)

09SIZE & WEIGHT6

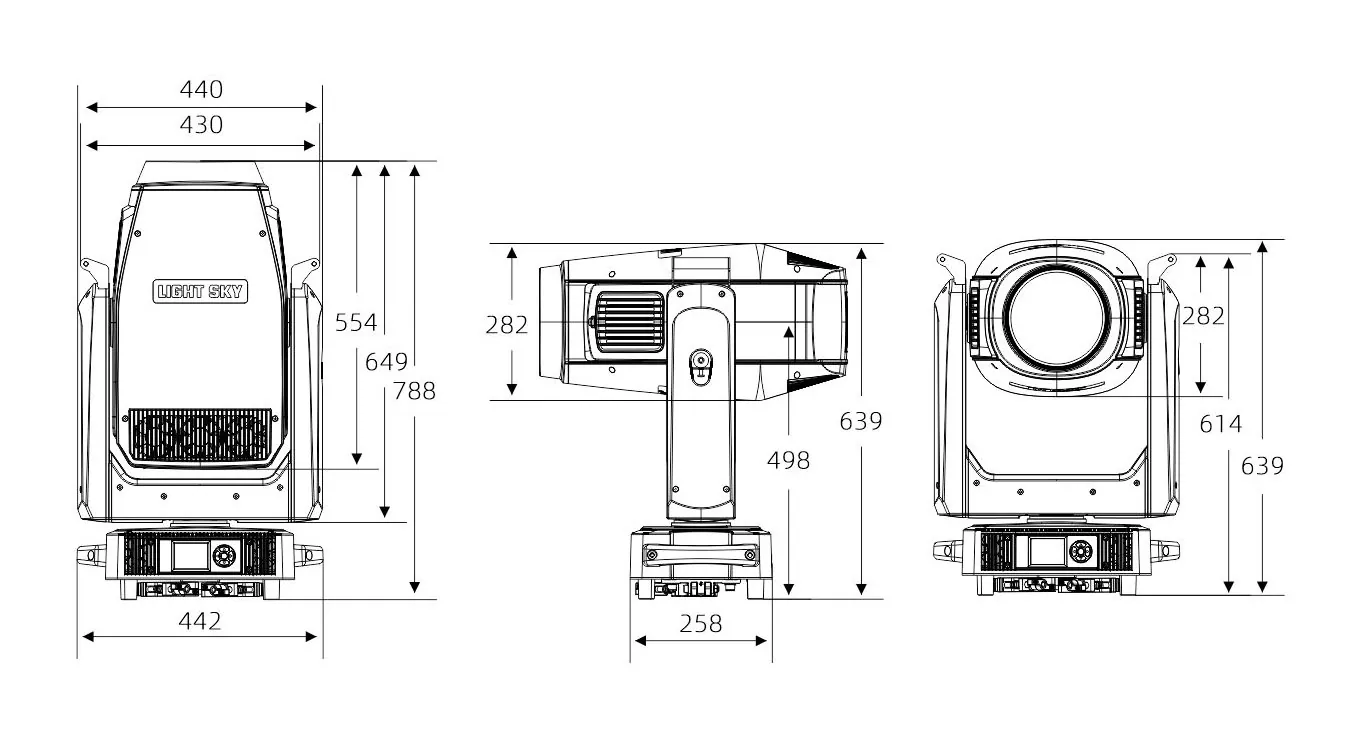

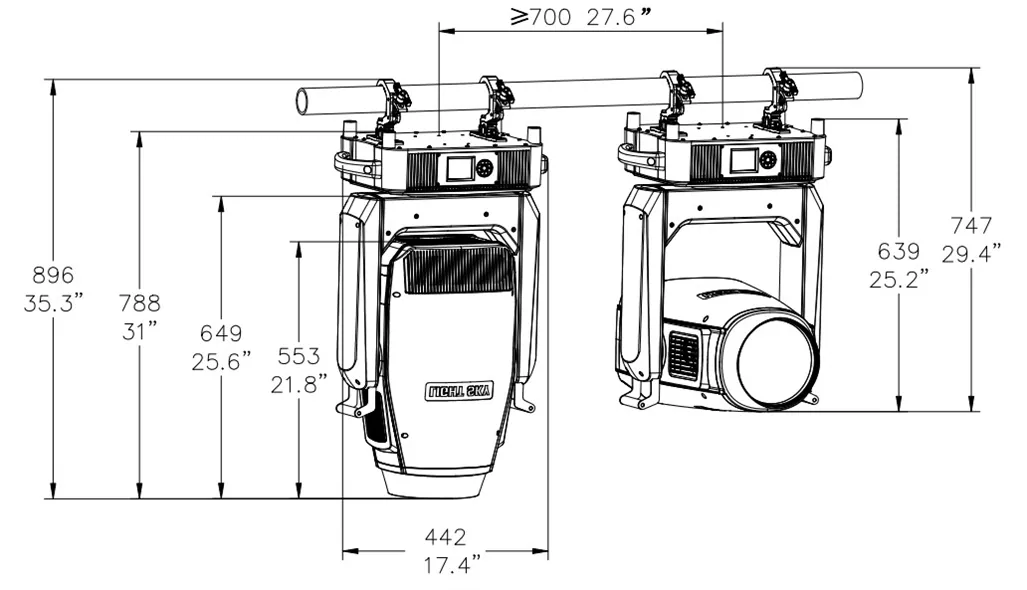

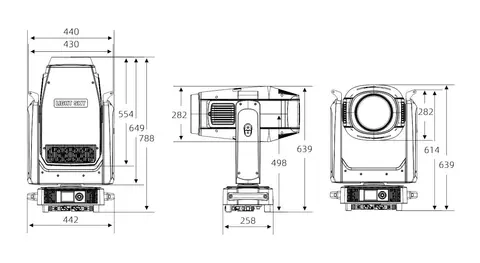

Product dimensions: 442×282×788(mm)
Net weight: 37.5kg
Carton packaging: 660×560×740(mm)
Gross weight: 46.6kg
Packaging(Fly case 1 in 1): 700×700×880(mm)
Gross Weight: 75.1kg (1 in 1)

10OTHERS3

IP Rate: IP20
Operating environment: -10°C ~ 45°C
Maximum surface temperature of the lamp body: 75°C

03DescriptionManufacturer's description

What it is.

As an experienced stage lighting supplier, LiGHT SKY delivers one of the best moving head lights – SUPER SCOPE COLOR. Our beam moving head lights feature a low-noise heat dissipation system with an optional ultra-silent mode, ideal for noise-sensitive environments.

Wherever top-tier lighting is essential, like theaters, TV studios, concerts, and stadiums, our LED wash moving head light is your perfect choice.

FEATURES

4-in-One Versatility: The LED profile spot light seamlessly integrates beam, wash, spot, and profile functions into a single high-performance moving head.

Precise Front Lens Diameter: Our LED moving head profile is equipped with a 180mm beam aperture and high-grade optical components, ensuring a long-throw projection and exceptional brightness.

Dynamic Gobo Effects: With 2 rotating gobo wheels that deliver vibrant patterns with flawless edge-to-edge clarity and color fidelity.

Framing System: Our LED moving head profile has 4 blades and adjustable framing with ±55° rotation for crisp, distortion-free beam shaping.

Powerful Output: The LED wash moving head boasts an impressive 17,600 lumens of total light output for a dominant stage presence.

Advanced Light Source: Powerful 600W RGBAL 5-color LED module delivers a vibrant experience.

Wide Zoom Angle: The LED profile spot light has 5.9° to 52° adjustable zoom for precise beam control from tight spots to wide washes.

Rich Color: 165 electronic color chips for a better visual experience.

Dual Virtual Systems: Virtual CMY + Virtual CTO
