Sheet 05.595

LIGHT SKY · Spot and profile

SUPER SCOPE AQUA

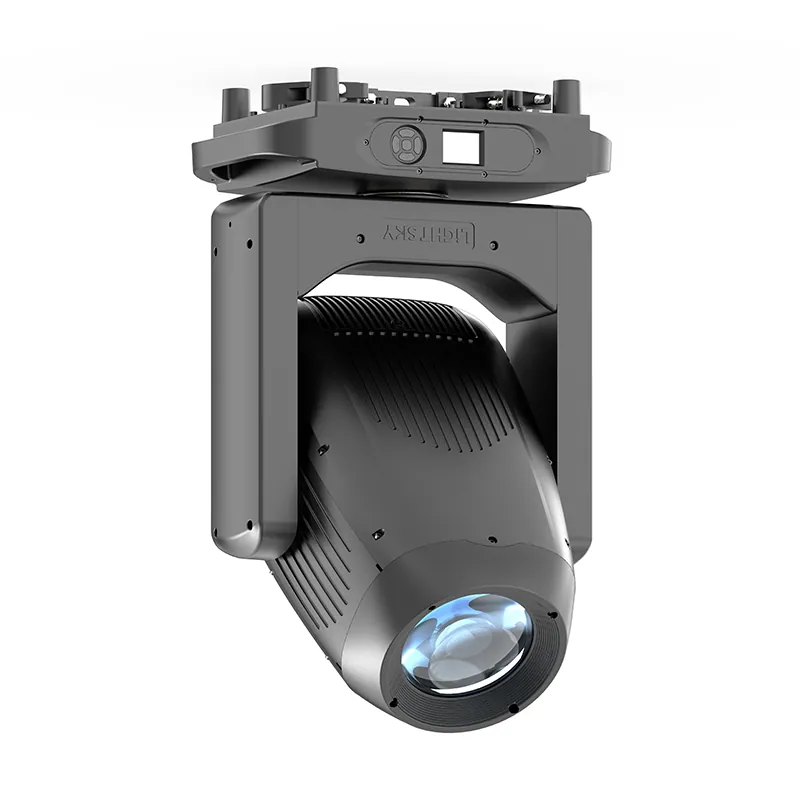

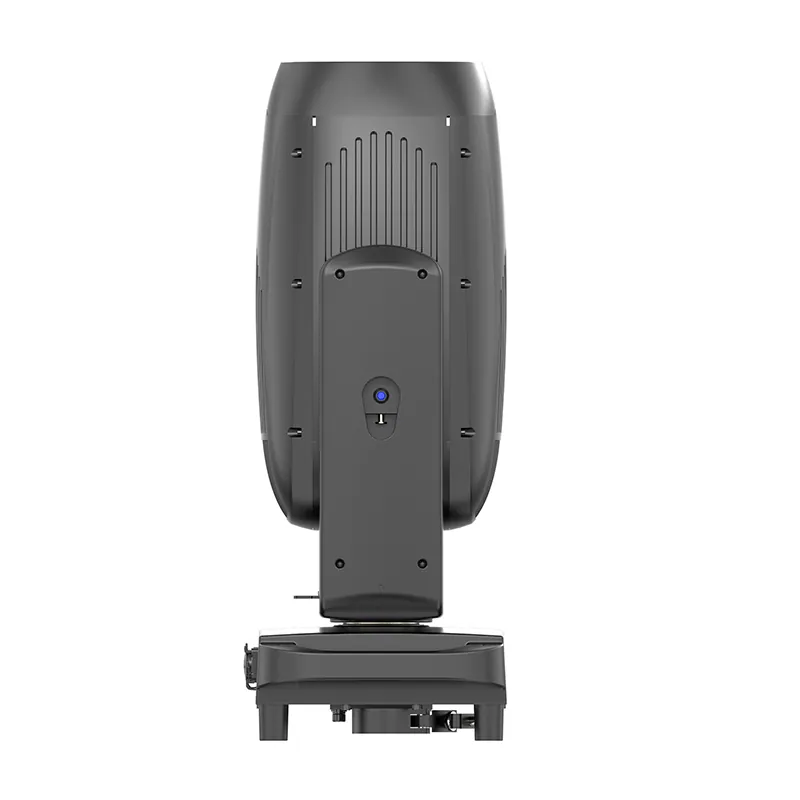

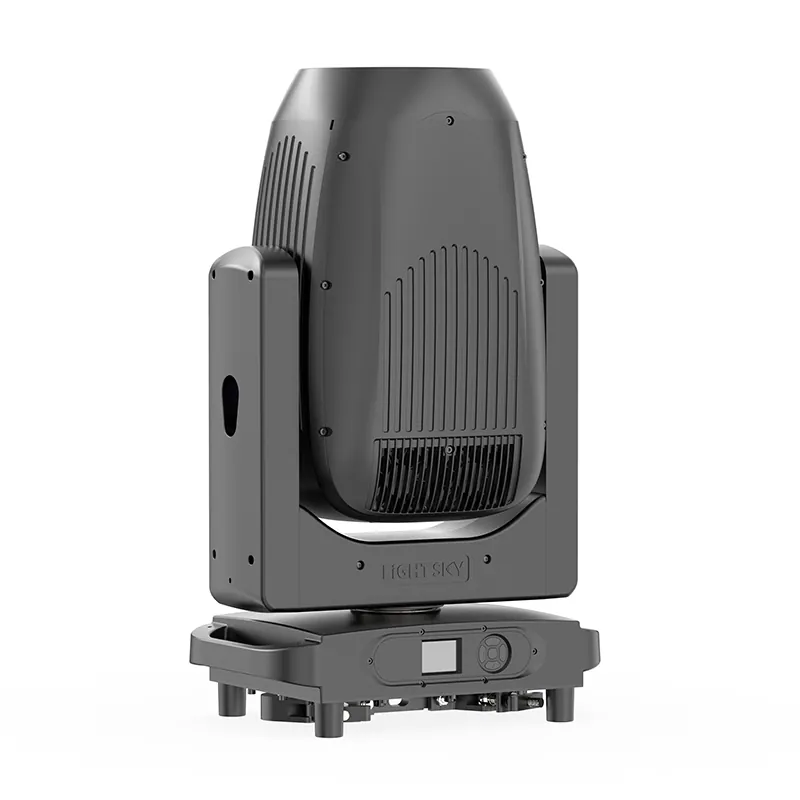

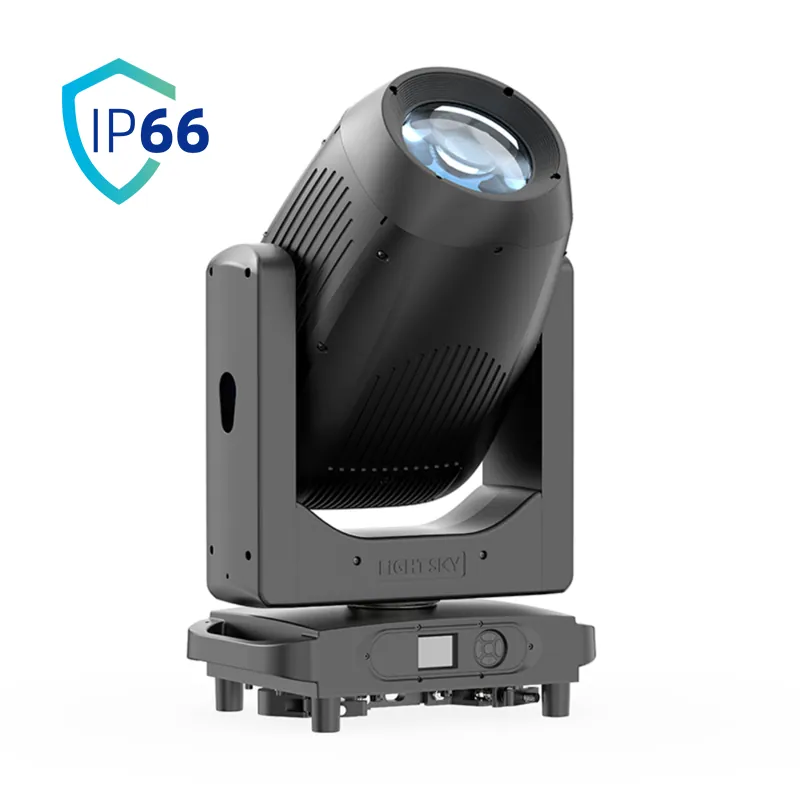

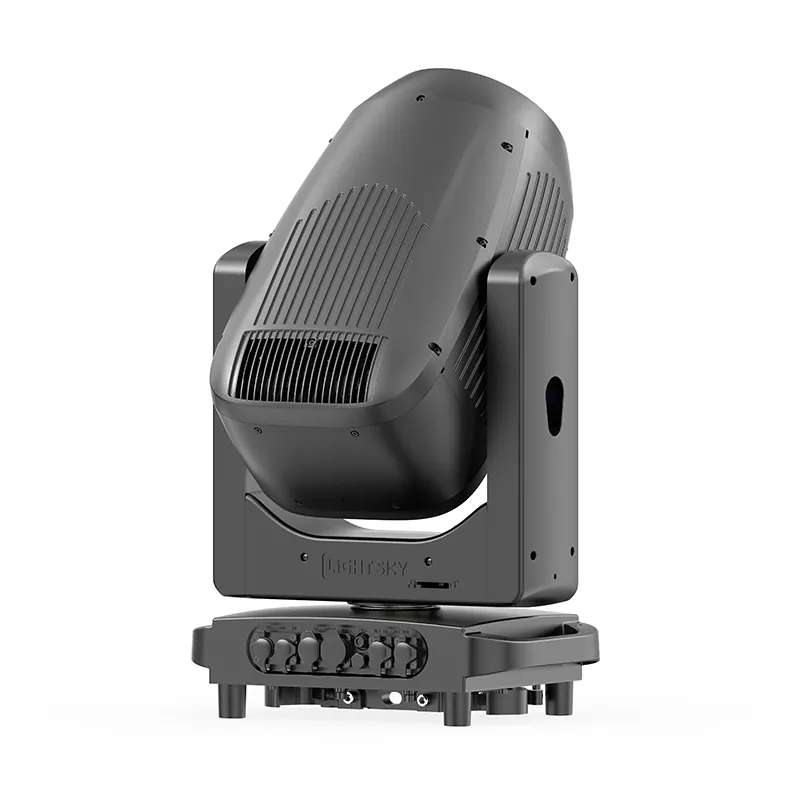

SUPER SCOPE AQUA is a waterproof 520W LED BSWP 4in1 moving head light that combines beam, spot, wash, and profile effects in one professional fixture, perfectly suited to meet the demanding needs of any stage lighting designer.

Light source: 520W White LED module
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 3.8°- 50°
DMX channels: 41CH, 53CH, Compatible Channel 42CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net, sACN
Colour temperature: 7000 K
Net weight: 29.6 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:38

LIGHT SKY SUPER SCOPE AQUA2:38

02SpecificationManufacturer's data · 11 groups · 51 values

What this product is, in numbers.

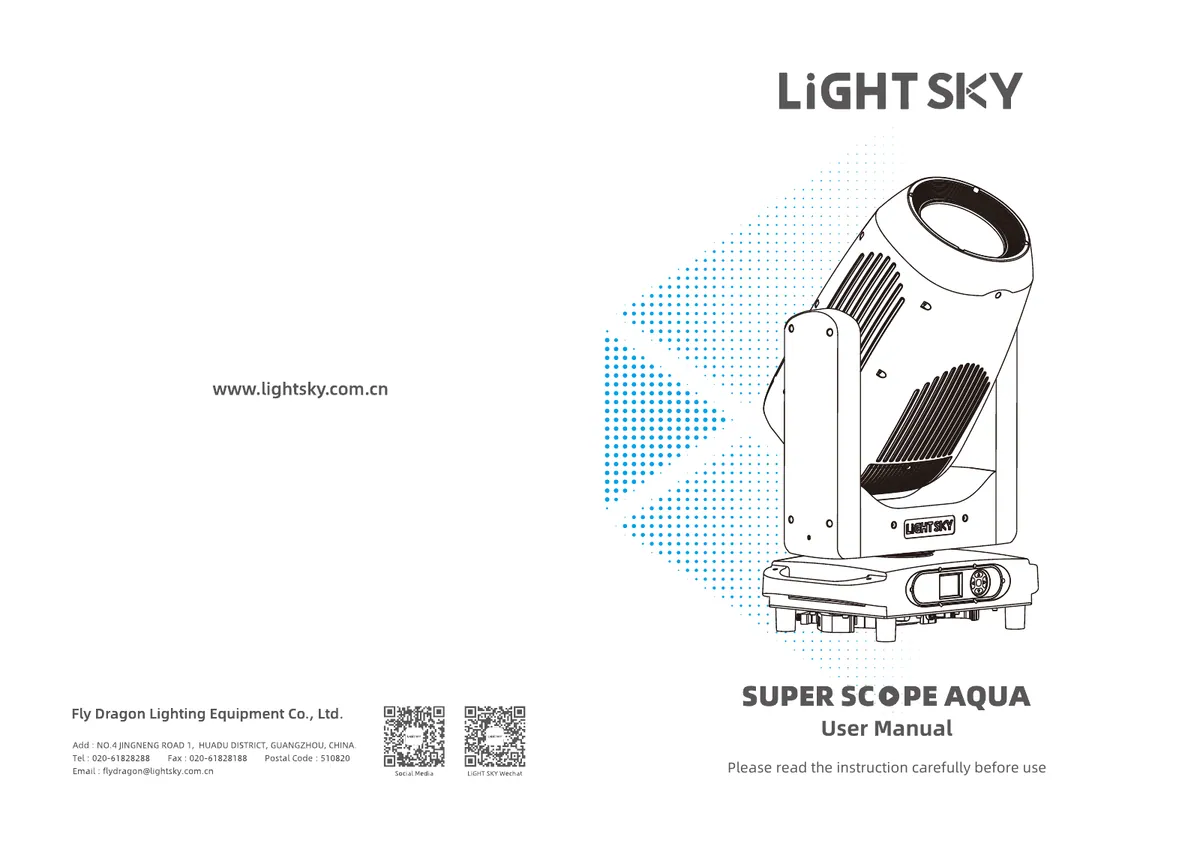

PDFUser manualEN · 33 pages · 8.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01LIGHT SOURCE & OPTICAL8

Light Source: 520W White LED module
Zoom Range: 3.8°- 50°
Optical Lens: Coated with High Transmission Anti-Reflection Film, Diameter 146mm
Color Temperature: 7000 K
Color Rendering Index (CRI): RA≥70 / RA≥88 (with high CRI filter)

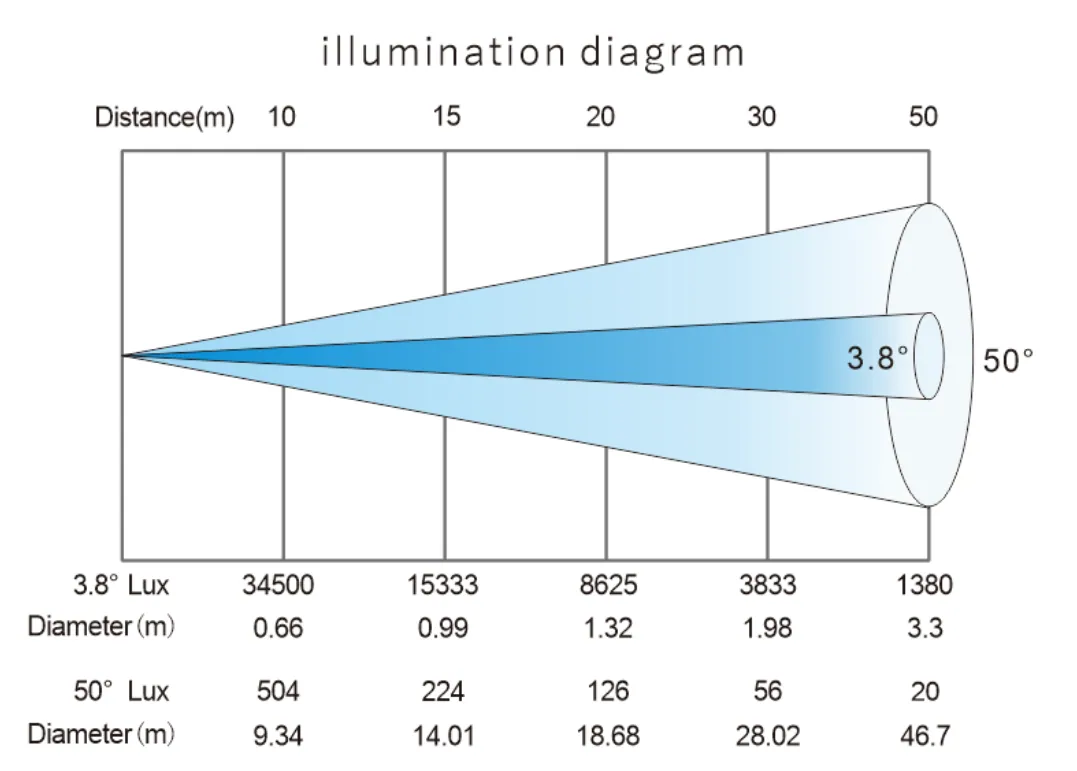

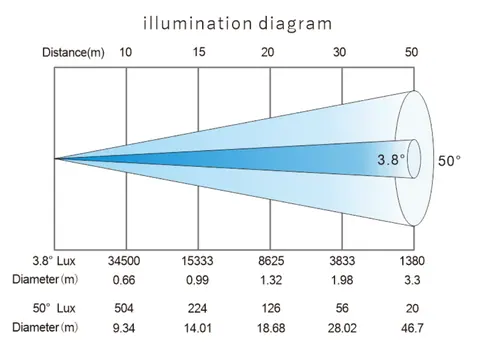

Illuminance: 34,500 Lux@10m
Total Lumen Output: 24,000 Lm
LED source life expectancy: 50,000 hours*

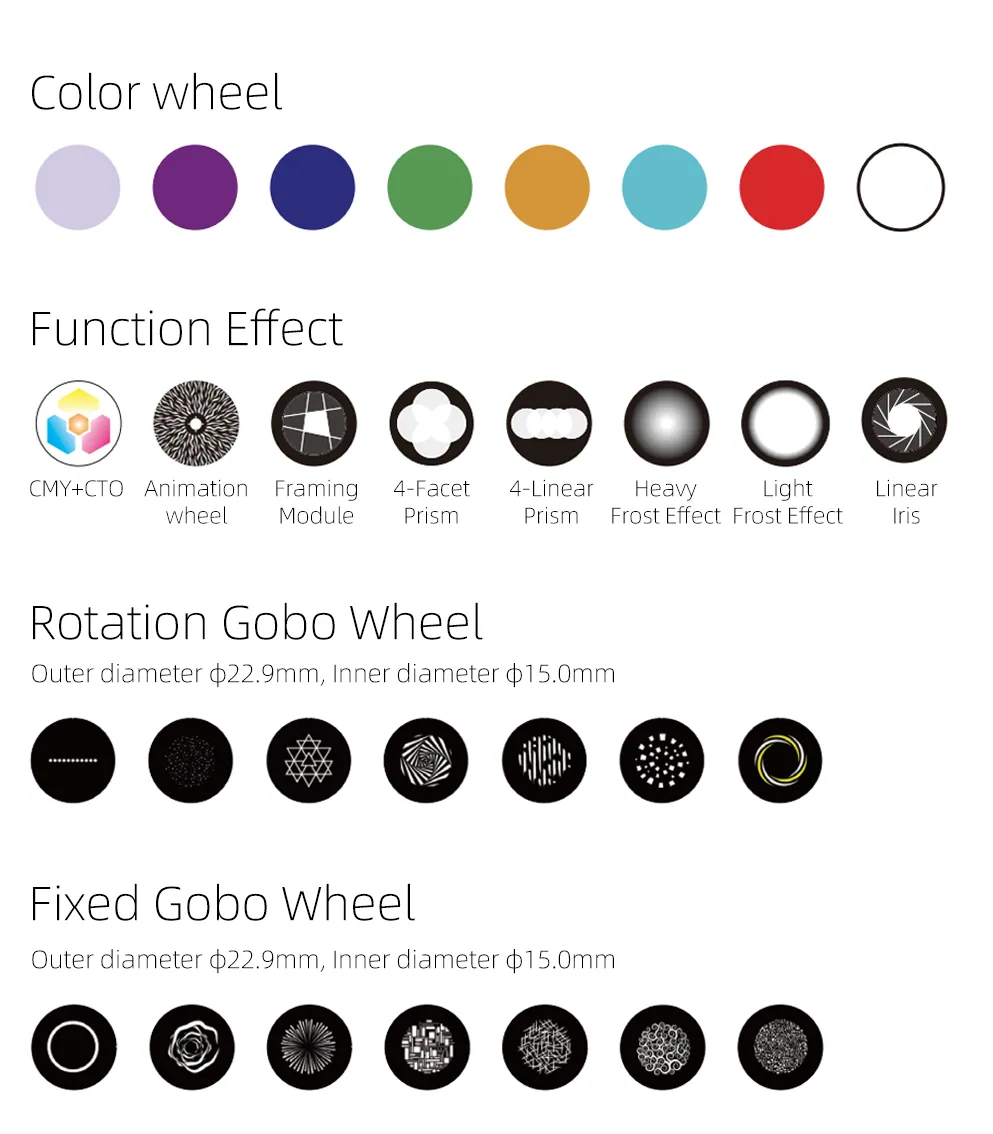

02COLOR4

-CMY infinite color mixing

-CTO color temperature linear adjustment (3000K-7000K)

-6 color filters + blank + high CRI filter, capable of bi-directional color rainbow effect, bi-color step gradient (linear movement), bi-directional rotating color wheel,

random color mode.

03GOBO4

-Rotating Gobo Wheel: 7 glass gobos + blank, replaceable, with rotating, flowing, and shaking effects.
-Fixed Gobo Wheel: 7 glass gobos + blank, with flowing and shaking effects.
-Animation Wheel: Bi-directional flowing effect, linear speed adjustment.
-Eight-blade Framing: 4 shutter blades for fast, smooth cutting, each blade independently controllable, module rotatable ±90º.

04EFFECTS6

-4-Linear Prism + 4-facet prisms with bi-directional rotation; -Light frost and Heavy frost, independently switchable, stackable; -Motorized iris, linear adjustment from 5-100%, with macro function for multiple effect variations; -Electronic dimmer, linear adjustment from 0-100%, uniform light spot; -Electronic strobe speed adjustable from 0.5-25 flashes per second
-LED refresh rate: 1000Hz ~ 25KHz

05CONTROL & PROGRAMMING4

-Control Channels: 41CH, 53CH, Compatible Channel 42CH (see channel chart for details)
-Protocols: DMX512, RDM, Art-Net, sACN
-Data Connection: 3-pin or 5-pin XLR IN/OUT, Dual RJ45 ports
-Display: LCD screen

06SOFTWARE3

-Software upgrade via DMX signal

-Temperature intelligent control, ensuring LED longevity

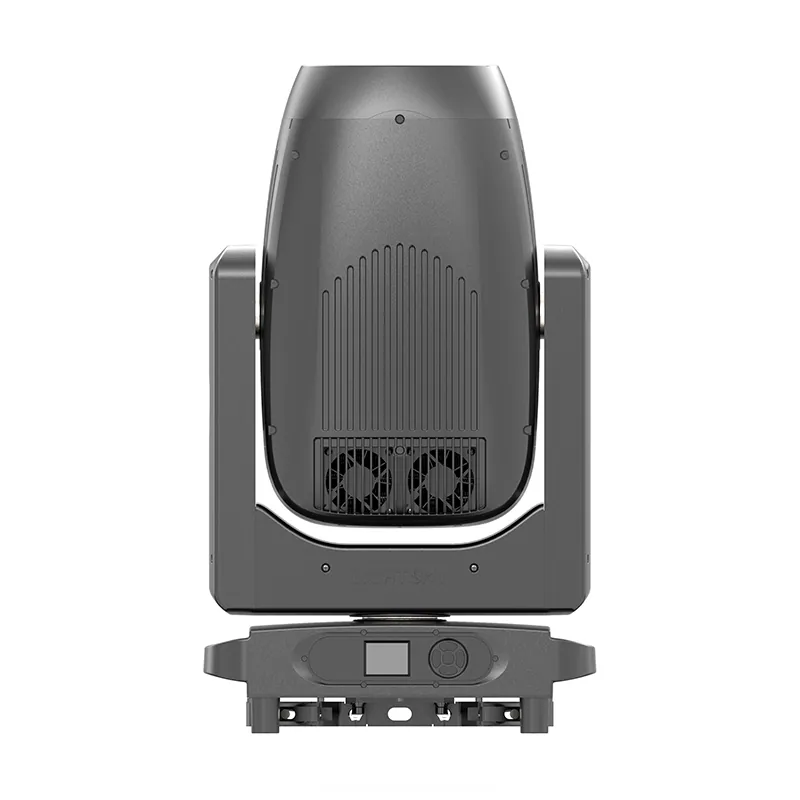

-Silent fan, three operation modes (high brightness/standard / silent) (Noise <40 dB in Silent Mode)

Show the full specificationHide the rest of the specification5 more groups · 22 values

07PAN/TILT MOVEMENT4

Pan Axis: 540°, 8-bit/16-bit precision scan
Tilt Axis: 270°, 8-bit/16-bit precision scan; Reset Function with Automatic Error Correction
Fixed Lock: Tilt / Pan axis lock

08POWER & ELECTRICAL4

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 847W
Power Factor: 0.99
Maximum Fixture Current: 8.47A/100V; 3.8A/220V

09SIZE & WEIGHT4

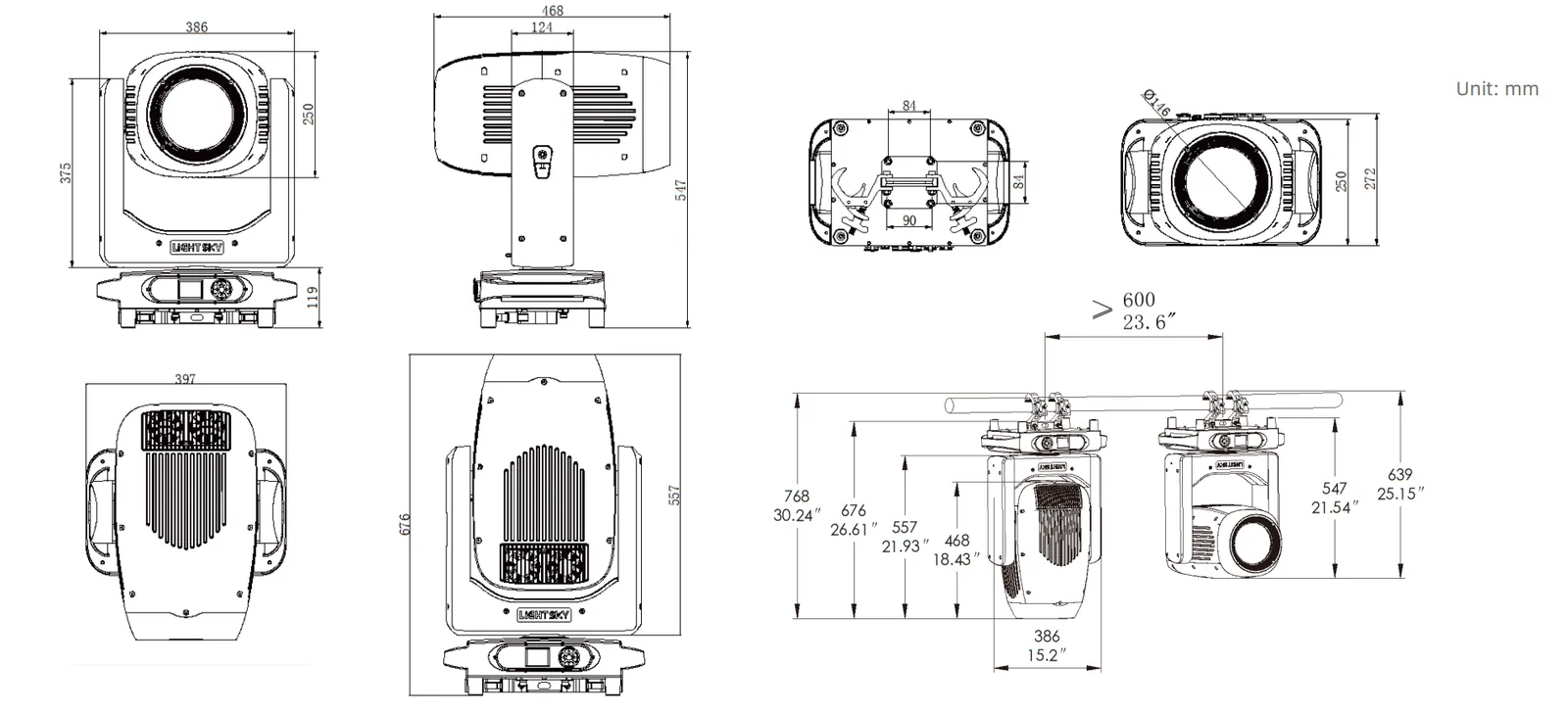

Product Dimensions: 397 × 272 × 676mm
Net Weight: 29.6 kg
Packaging: 515mm × 360mm × 800mm
Gross Weight: 35.8 kg (including folding hook)

10OTHERS3

IP Rate: IP66
Operating Environment: -20°C ~ 45°C
Maximum Surface Temperature: 65°C

11FACTORY CONFIGURATION7

Power Cable: 1 pc (Part No.: C1400050050)
Signal Cable: 1 pc (Part No.: F0200020087)
Safety Rope: 2 pcs (Part No.: F0200010002)

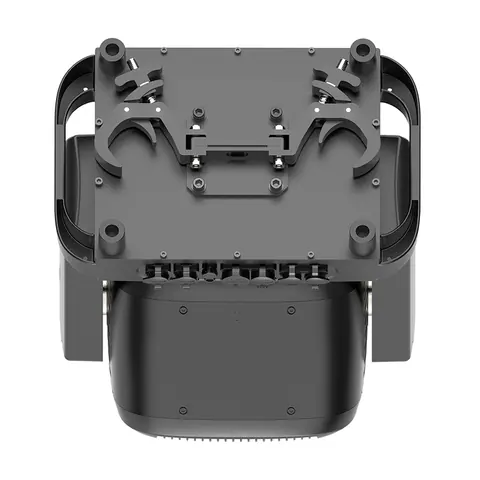

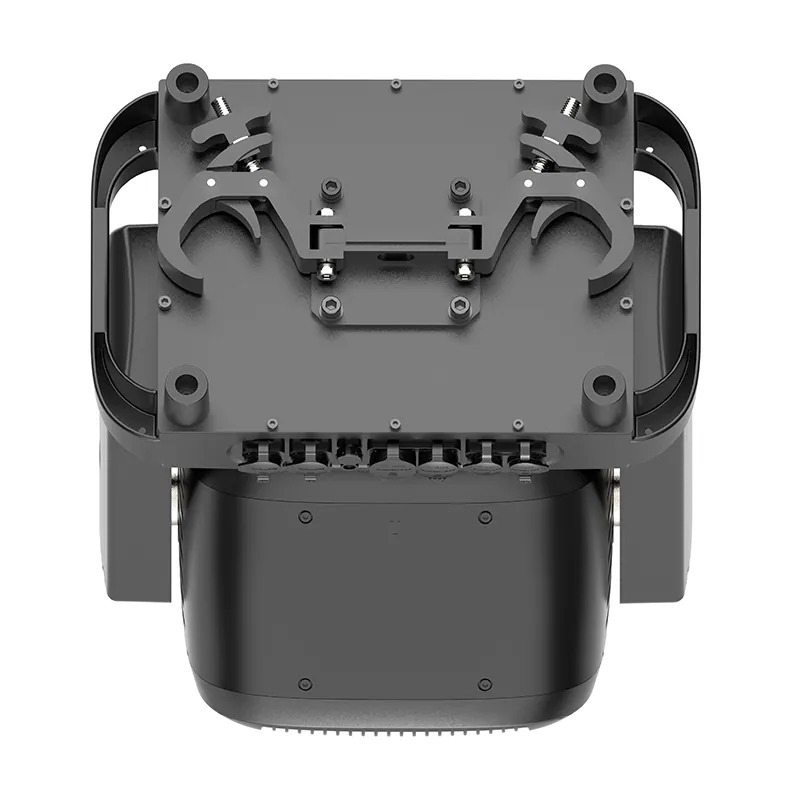

Clamp: 1 set (Part No.: C0499990040)
Packaging(Fly case 2 in 1): 870×550×920mm
Gross Weight (Fly case): 103.5 kg; LiGHT SKY as a leading professional lighting company with 30+ years of experience, delivers reliable LED moving spot lights and waterproof beam spot wash profile for theatres, touring concerts, TV studios, outdoor events, and large venues. So contact us, we are your trusted partner for all stage lighting solutions.

03DescriptionManufacturer's description

What it is.

As a leading stage light manufacturer, LiGHT SKY designs this versatile LED moving head spot for productions that need strong output, precise framing, smooth color control, and reliable outdoor performance for touring concerts, theatres, TV studios, outdoor events, and large venues.

FEATURES

4IN1 LED Moving BSWP: Combines beam, spot, wash, and profile effects in one fixture.
High-Output LED Source: 520W white LED delivers 34,500 lux at 10 meters.
Wide Zoom Range: 3.8°–50° zoom supports narrow beam, spot projection, and wide wash effects.
CMY Color Mixing: Super-smooth CMY mixing with linear CTO correction for seamless color transitions.

Professional Color System: 6 color filters plus 1 high-CRI filter provide vivid colors and natural color reproduction.

Rich Visual Effects: Gobo wheels, animation wheel, prism, frost, iris, dimming, and strobe create flexible stage looks.

Precise Framing: 4-blade, 8-directionframing system supports ±90° rotation, allowing accurate beam shaping and projection control.

Outdoor-Ready Design: IP66 protection, temperature control, and silent fan modes support demanding indoor and outdoor use.
