Sheet 05.597

LIGHT SKY · Spot and profile

SUPER SCOPE II

LiGHT SKY is one of the leading moving head light manufacturers dedicated to offering types of indoor & outdoor moving head lights.

Light source: 520W White LED module
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 3.8°- 50°
DMX channels: 42CH, 54CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net, sACN
Colour temperature: 7000 K
Net weight: 28.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 3:48

LIGHT SKY SUPER SCOPE II3:48

02SpecificationManufacturer's data · 11 groups · 50 values

What this product is, in numbers.

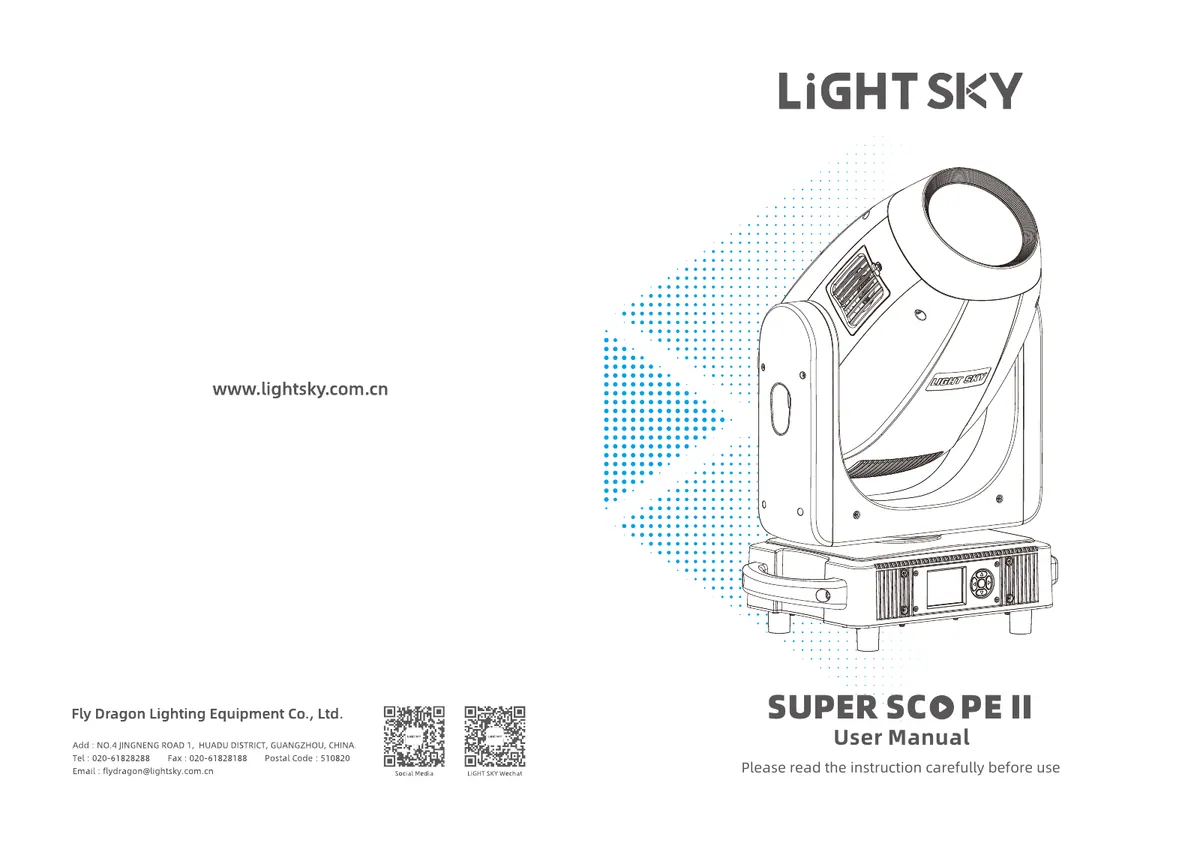

PDFUser manualEN · 29 pages · 8.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL8

Light Source: 520W White LED module
Zoom Range: 3.8°- 50°
Optical Lens: High-transmission coated lens, diameter 140mm
Color Temperature: 7000 K
Color Rendering Index (CRI): RA≥72 (High CRI filter up to 88)
Illuminance: 24,500 Lux@10m
Total lumen output: 20000 Lm
LED source life expectancy: 50,000 hours*

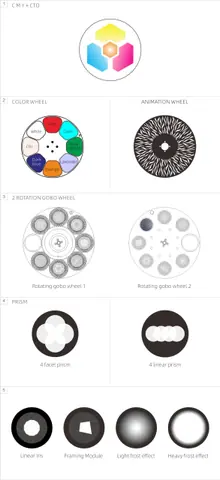

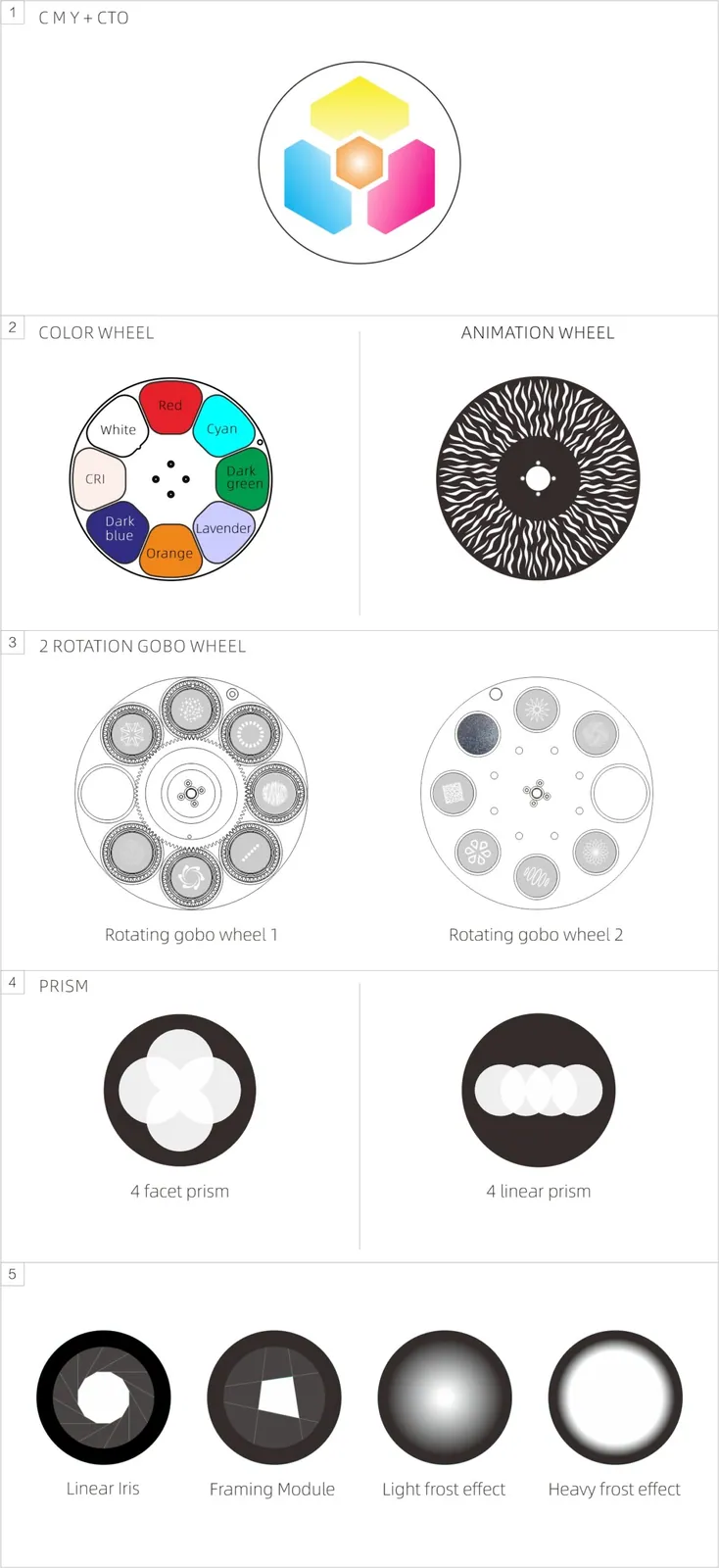

02COLOR3

C M Y: CMY infinite colour mixing
C T O: Linear CTO from 3000K to 7000K
Color wheel: 6 Color pieces + High CRI filter + Blank, can achieve bi-directional color rainbow effect, double color step gradient(linear movement), color wheel bi-directional rotation, and random color mode.

03GOBO3

Rotation gobo wheel: 2 rotation gobo wheels, each with 7 pcs interchangeable gobo, gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm;
Animation wheel: 1 dynamic animation wheel -flow water effect
Framing system: 4-blade, each blade can rotate in eight directions and +/- 60° degrees

04EFFECTS6

Prism: 4-Linear Prism + 4-facet prism, bidirectional rotation
2 frost system: light frost and Heavy frost
Electric Iris: Linear adjustment from 5% – 100%, with macro function for multiple effects
Electronic Dimmer: Linear dimming from 0% to 100%, uniform light spot
Electronic Strobe: Speed adjustable from 0.5 to 25 flashes per second
LED Refresh Rate: 1000Hz ~ 25KHz

05CONTROL4

Control Channels: 42CH, 54CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net, sACN

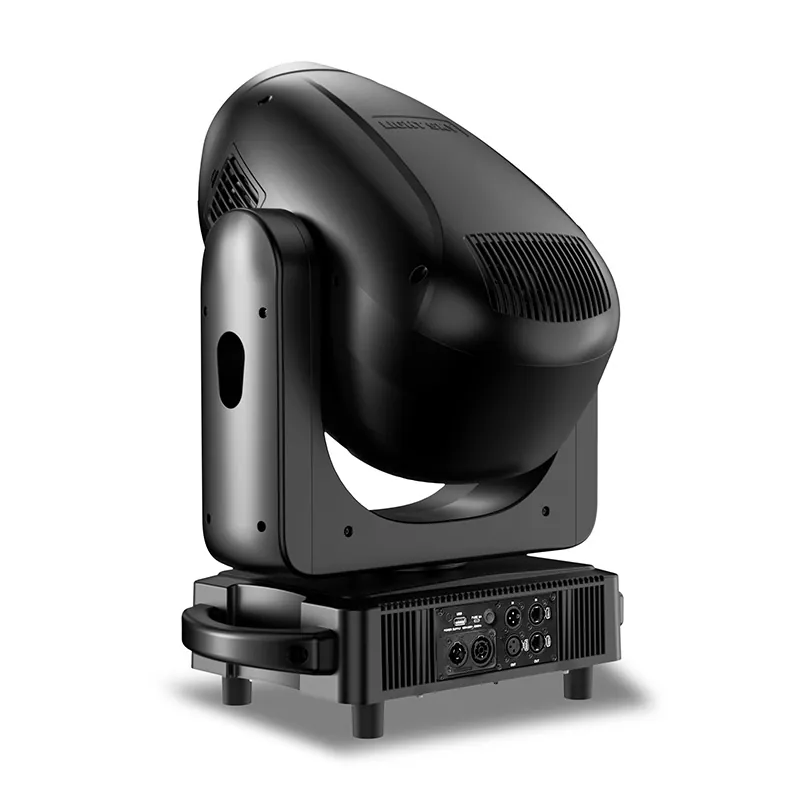

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD screen

06SOFTWARE3

-Software Upgrade via USB or DMX interface; -Temperature Intelligent Control, ensuring LED lifespan
-Noise level control: High brightness mode, Standard mode, Silent mode

Show the full specificationHide the rest of the specification5 more groups · 23 values

07Pan/Tilt Movement4

Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 270°, 8-bit/16-bit precision scan; Reset function with automatic error correction
Fixed lock: Pan/Tilt

08POWER4

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 960W
Power Factor: 0.99
Maximum Current of Fixture: 9.6A/100V; 4.36A/220V

09SIZE & WEIGHT4

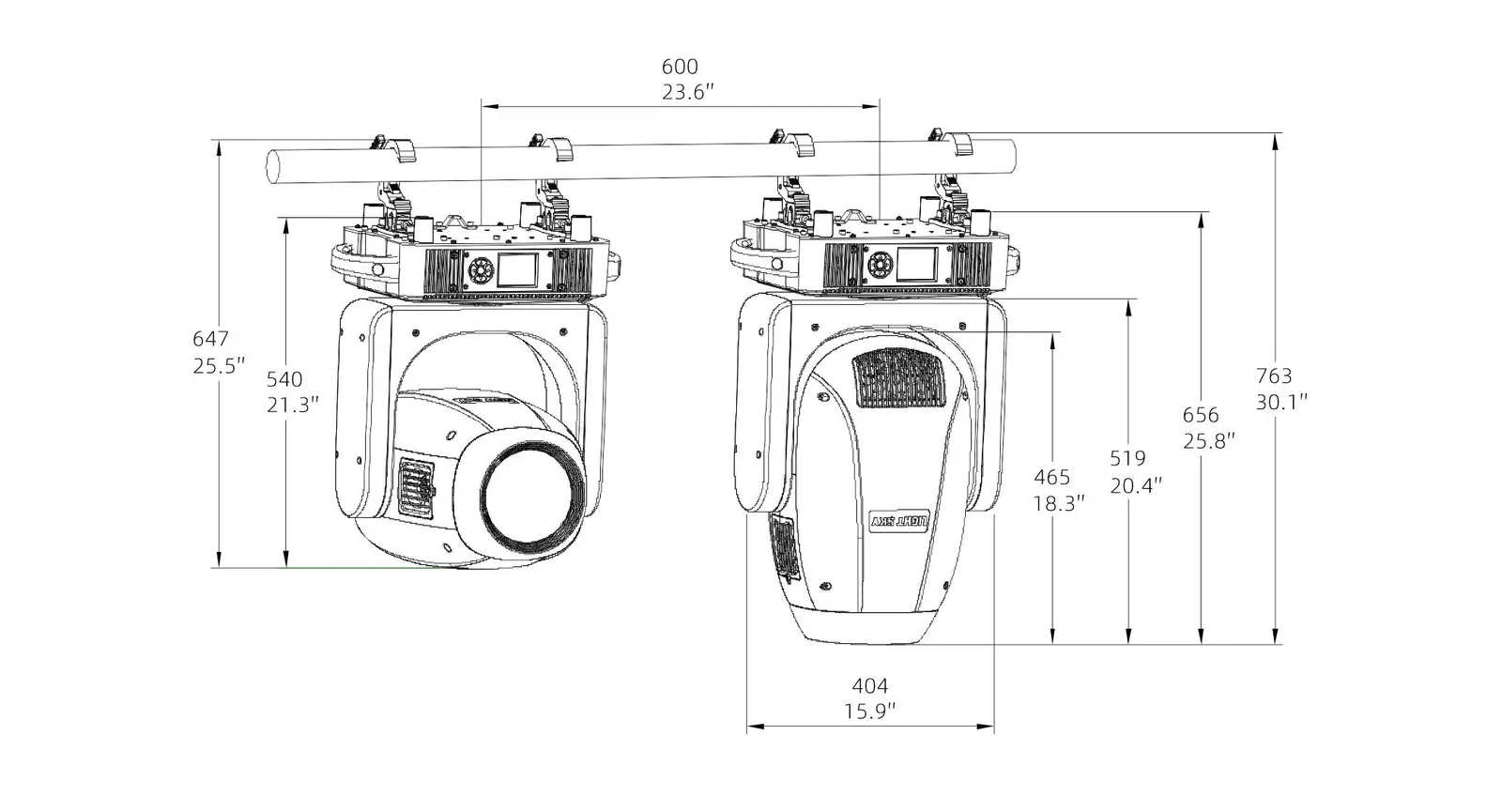

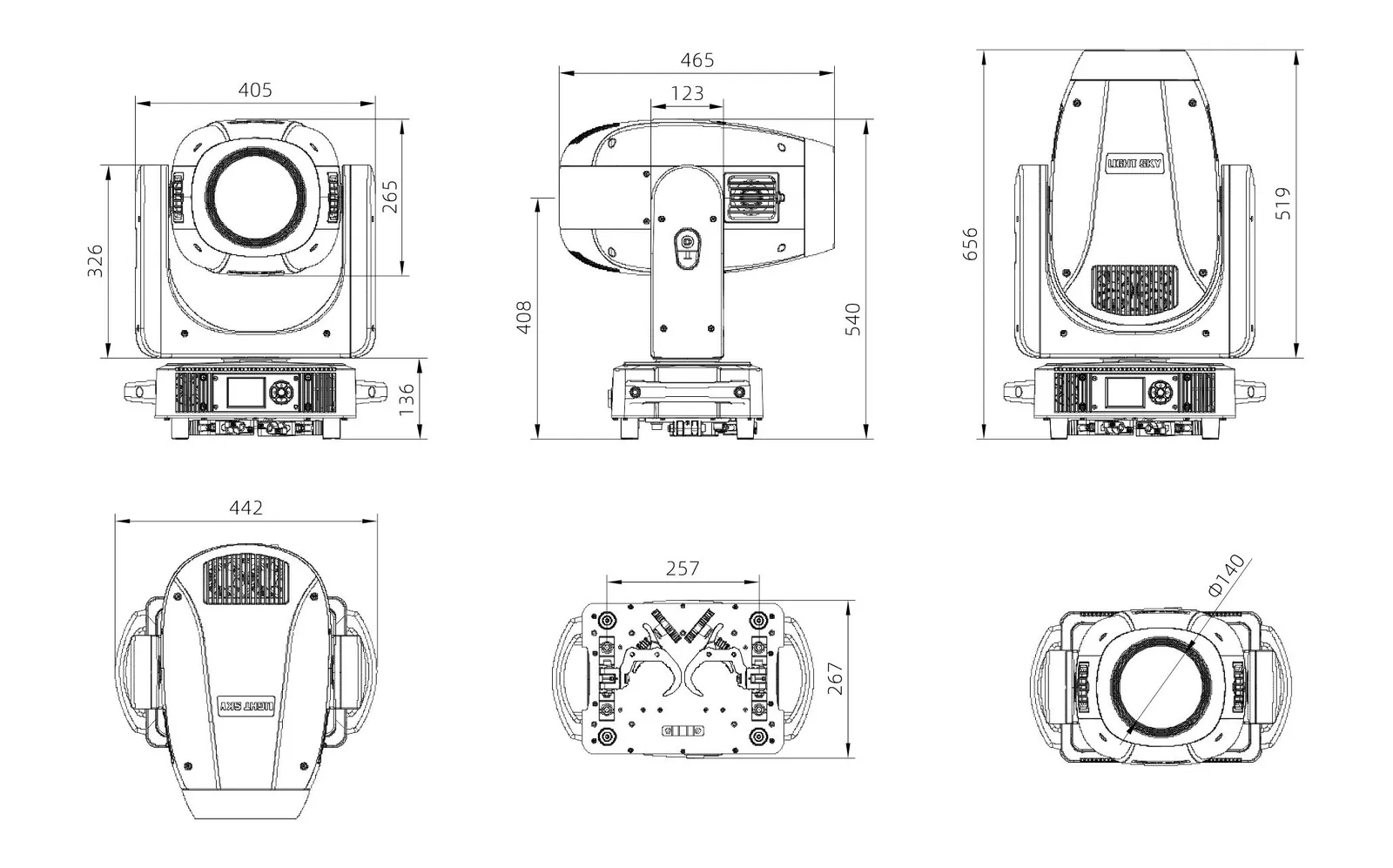

Product Dimensions: 442 × 267 × 656mm
Net Weight: 28.3kg
Carton Packaging: 495mm × 345mm × 775mm
Gross Weight: 34.7 kg (including folding hook)

10OTHERS8

IP Rate: IP20
Operating Environment: -10°C ~ 45°C
Maximum Surface Temperature of Fixture: 80°C; Factory Configuration
Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: C1400060031)
Safety Rope: 2 pcs (Part No.: F0200010002)
Lamp Hook: 2 sets (Part No.: C0499990023)

11Optional Accessories/Packaging3

Flight Case: Code B0100810001
Packaging(Fly case): 730x575x850mm
Gross Weight: 97.9kg(2 in 1)

03DescriptionManufacturer's description

What it is.

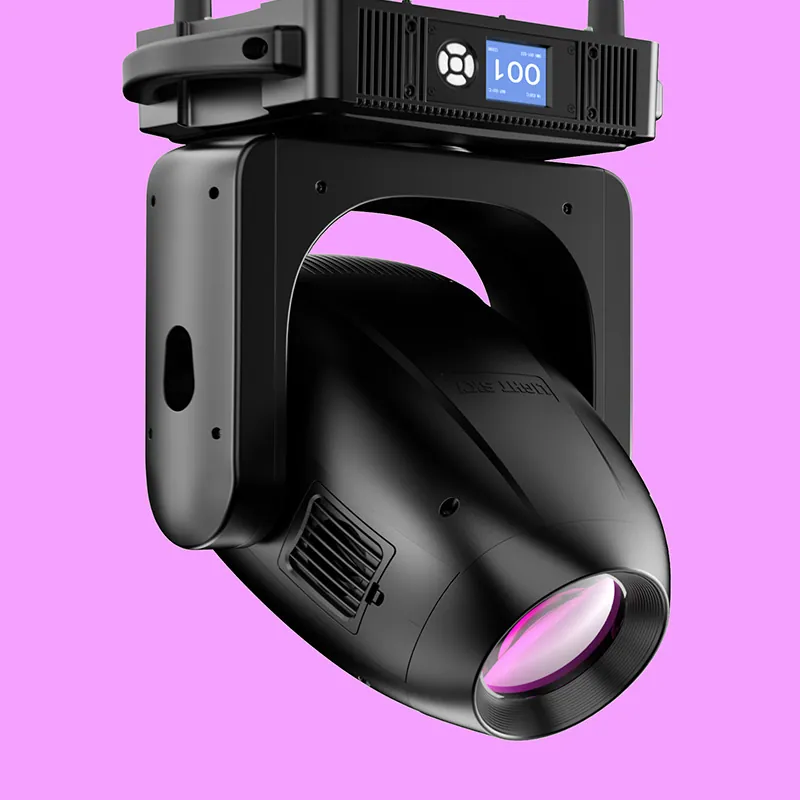

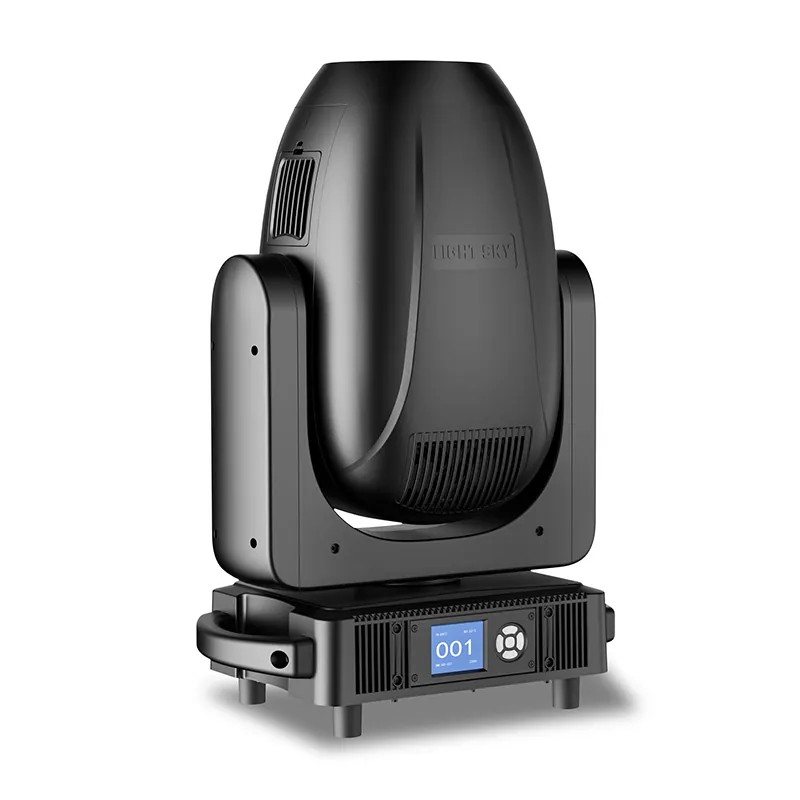

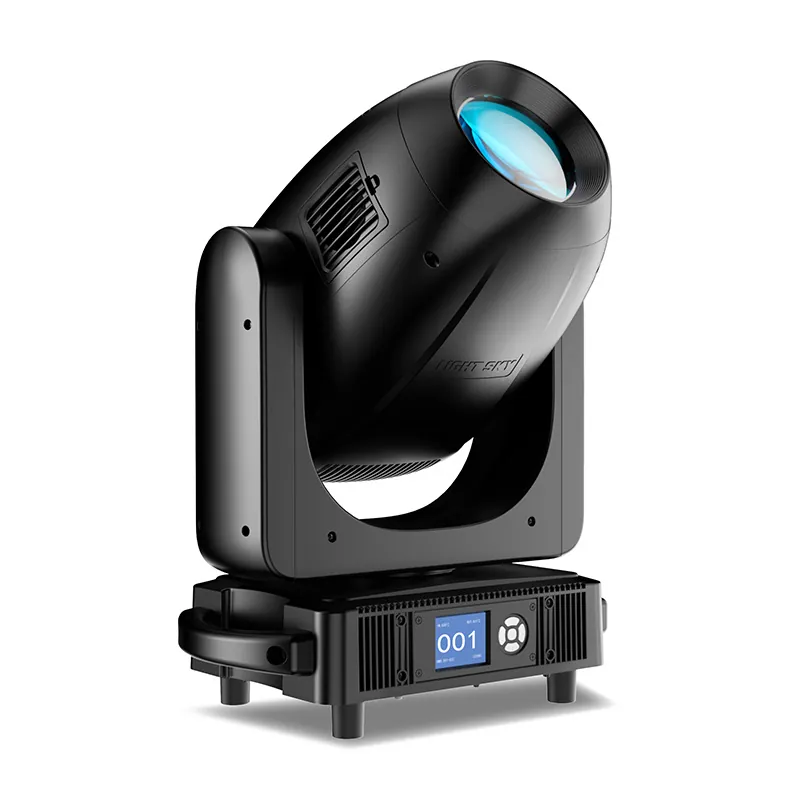

Our SUPER SCOPE II is a unique LED moving head spot light and has a compact and lightweight design with precise pan/tilt control, suitable for theaters, TV studios, concerts, stadiums, and professional venues.

FEATURES

SUPER SCOPE II – Professional 4-in-1 Moving Head Spot Light

4-in-1 Versatility: Our spot profile light combines beam, spot, wash, and profile functions in one powerful unit.

Eco-Friendly Design: Energy-efficient LED module with 50,000 hours lifespan.
Exceptional Optics: The moving head spot has a 140 mm front lens with a wide 3.8°-50° zoom range.
Vivid Color: Standard CRI ≥72 (upgradeable to 88 with high-CRI filter).
Precision Color Mixing: The moving head profile light has an advanced CMY infinite color system.
Brilliant Output: 24,500 Lux @10m (20,000 Lumens total output).
Advanced Framing: 4 independently rotating blades (±60°) with 8-direction control.
