Sheet 05.598

LIGHT SKY · Spot and profile

SUPER SCOPE MAX

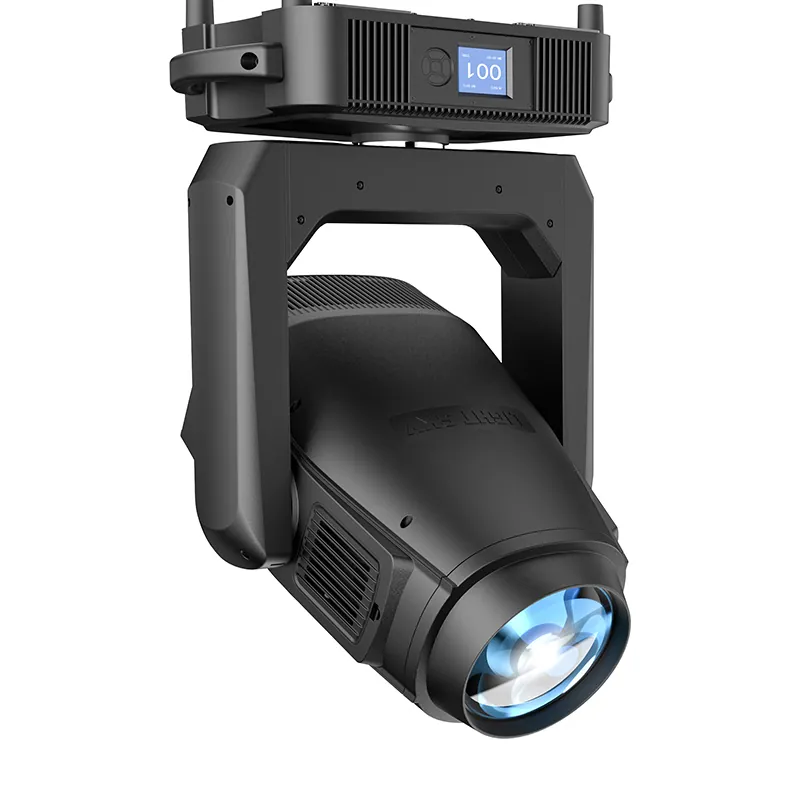

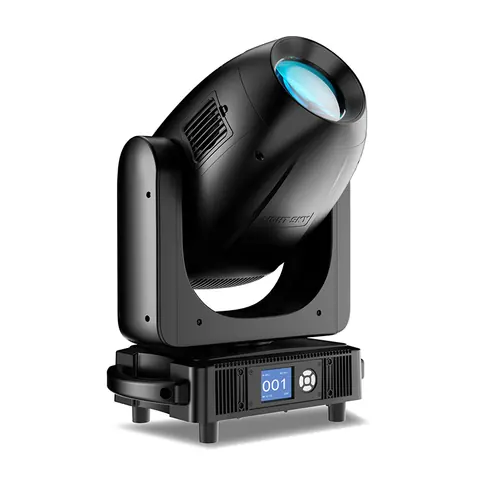

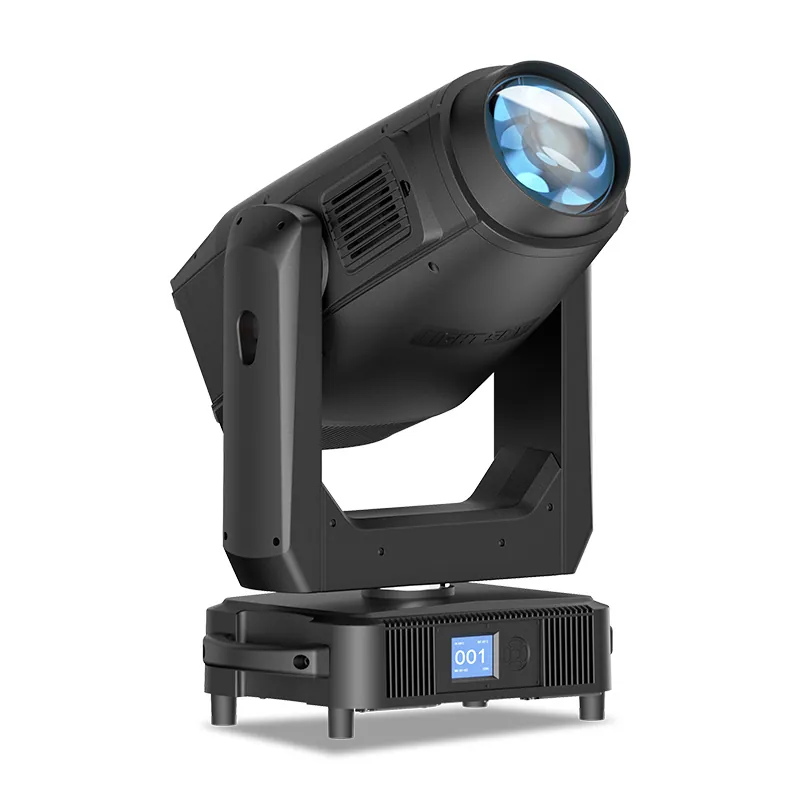

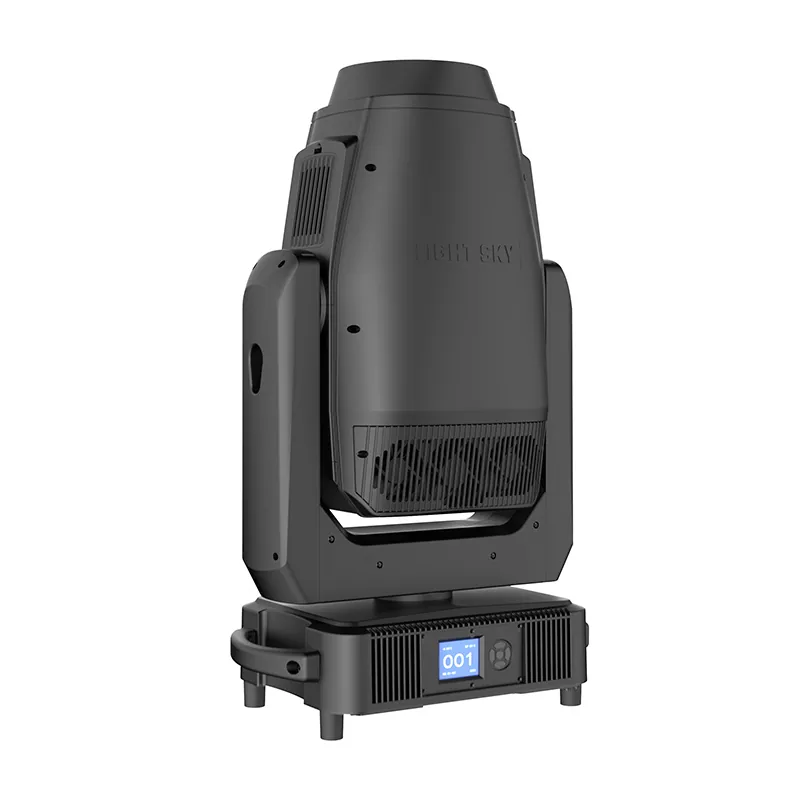

Meet Super Scope Max, a professional moving headlight for theatrical lighting effects.

Light source: 1200W white LED module
Power supply: AC 100-240V 50/60Hz
Protocols: DMX 512,RDM ,ARTNET (optional)
Net weight: 44kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video3 manufacturer's videos · 9:17

LIGHT SKY SUPER SCOPE MAXVideo 1 of 3 · 2:59

02SpecificationManufacturer's data · 10 groups · 48 values

What this product is, in numbers.

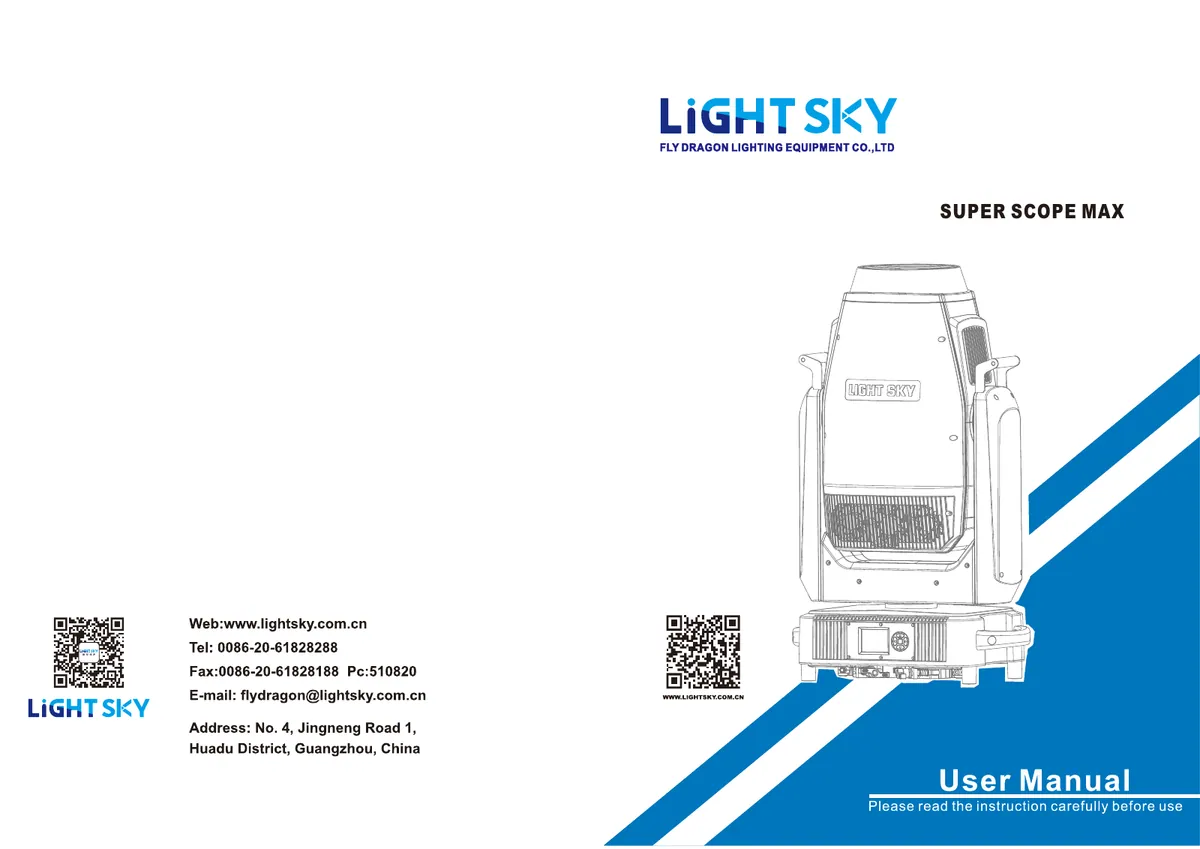

PDFUser manualEN · 45 pages · 13 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL9

Light source: 1200W white LED module
LED source life expectancy: 50,000 hours*
Zoom angle: 6° -50 °
Optical lens: coated with high anti-reflection film, 186mm diameter
Output color Temperature: 6500 K
CRI: 70+ with CRI Filter value up to 90
Total lumen output: 50700Lm
Illuminance: 29000lux@10M
Front lens diameter: 186MM

02COLOR4

C M Y: Linear CMY colour mixing
C T O: Linear CTO from 3000K to 6500K
Color wheel: 5 color + Blank, can achieve bidirectional color rainbow, double color step gradient; (linear movement), color wheel bidirectional rotation,Random color mode

03GOBO3

Animation wheel: 1 dynamic animation wheel -flame effect
Rotation gobo wheel: 2 rotation gobo wheel ,each with 6 pcs interchangable gobo
Framing system: 4 blade ,each blade can be eight direction and +/- 45 degree rotation

04EFFECTS8

Prism: 4 facet prism + bidirection rotation
Frost: 2 frost system : light frost 1° and Heavy frost 20°
Single channel: Single channel high finger filter -CRI 90
Iris: Motorized with variable pulse and random effects
Dimmer: 0 to 100% linear dimmer
Strobe: Electronic pulse strobe and random strobe
Focus: Motorized focus
LED refresh frequency: 1000Hz ~ 25KHz

05CONTROL4

Channel mode: 42CH , 56CH
Control protocol: DMX 512,RDM ,ARTNET (optional)
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD liquid crystal display (LCD)

Show the full specificationHide the rest of the specification5 more groups · 20 values

06SOFTWARE3

Software upgrade: Upgrade software via DMX signal or USB interface
Noise level control: High brightness mode,Standard mode,Silent mode
Ntelligent temperature control: Ntelligent temperature control to ensure LED life

07X/Y ANGLE OF MOTION3

Pan / Tilt: 540° / 270°; Reset function with automatic error correction
Fixed lock: Tilt axis lock

08POWER2

Voltage: AC 100-240V 50/60Hz
Power: 1430W (110V: maximum current 14.3A; 220V: Maximum current 7.15A) PF0.987

09SIZE & WEIGHT9

Housing: Engineering plastic PA66

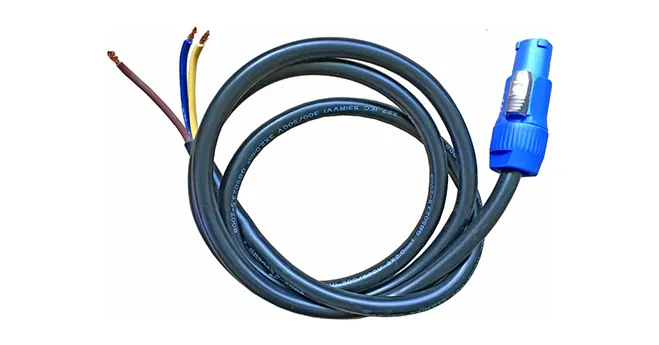

Power connector: Seetronic

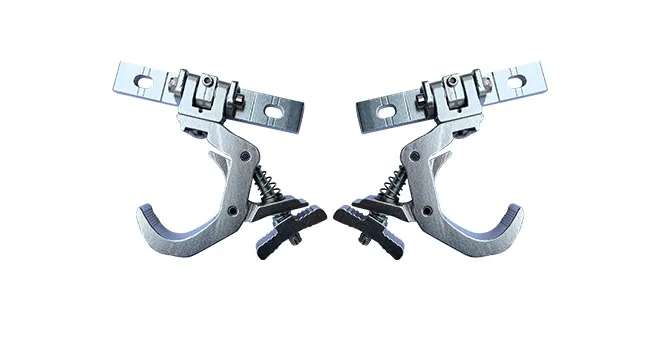

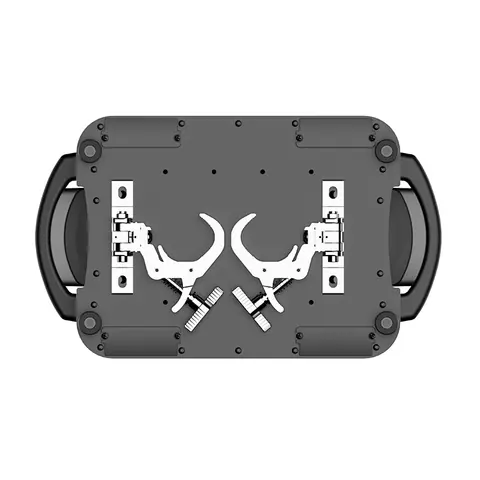

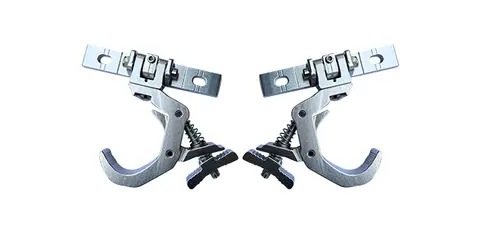

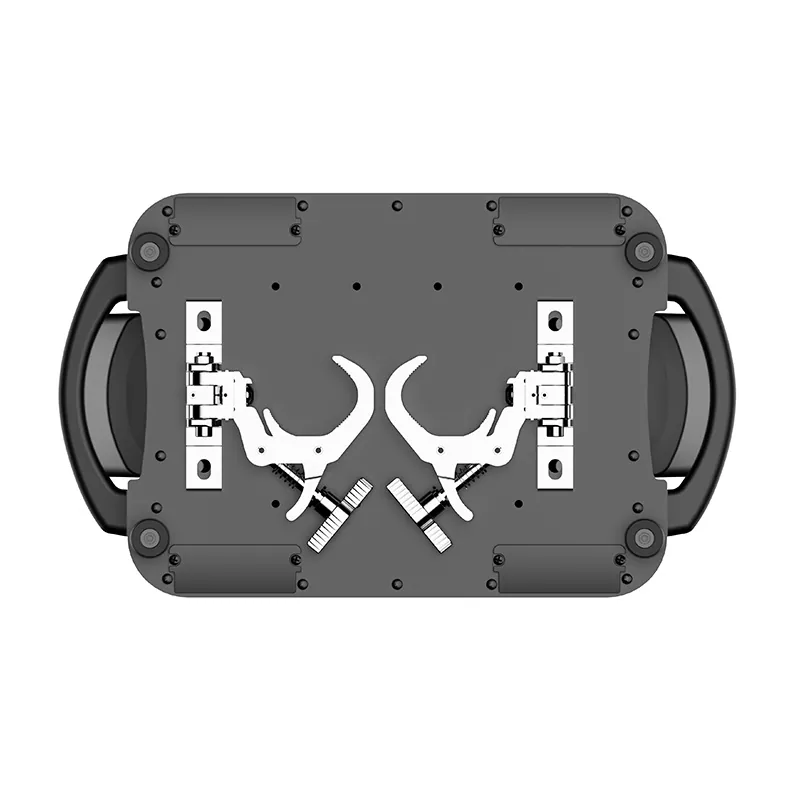

Hanging system: foldable light hook

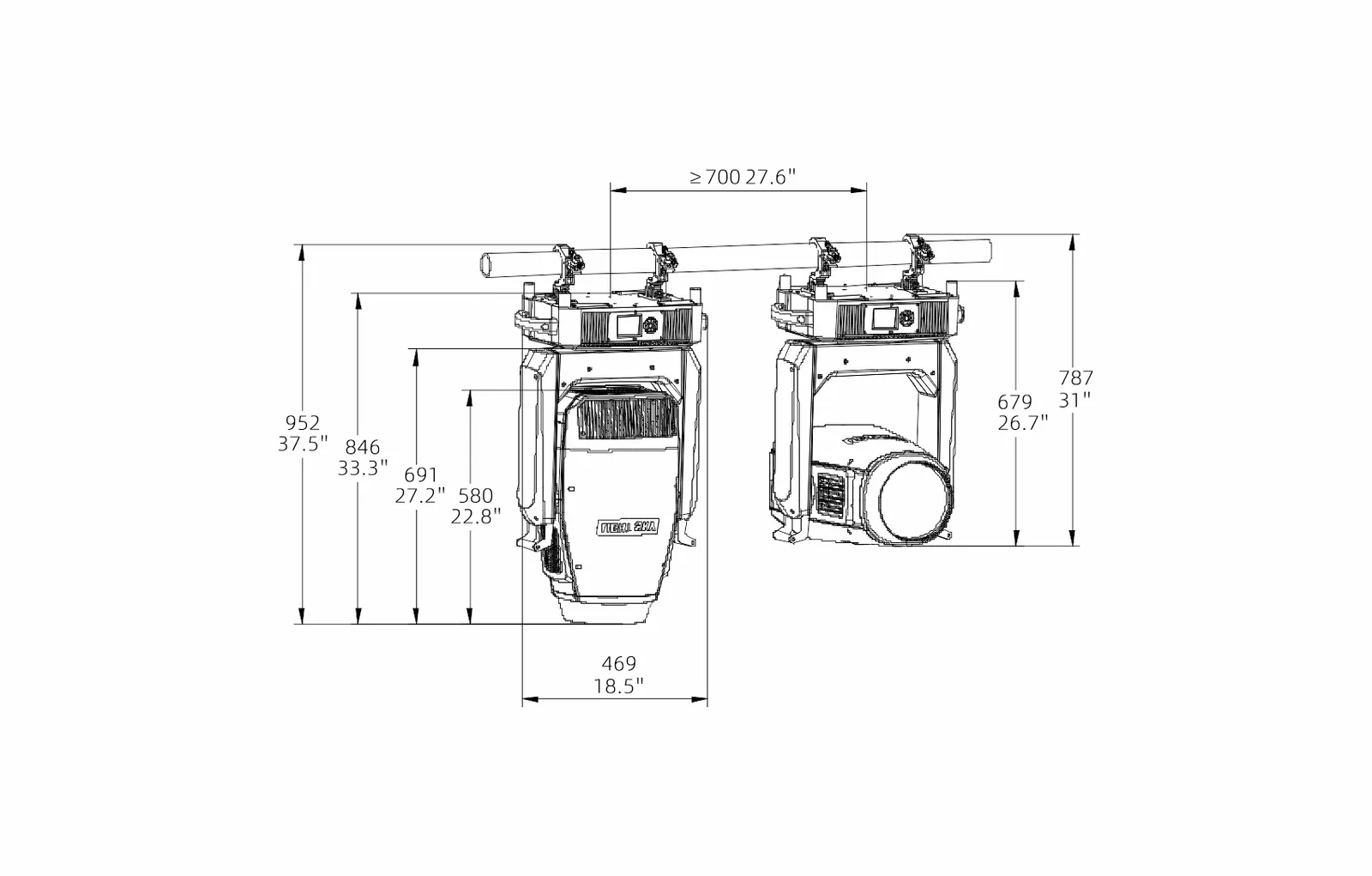

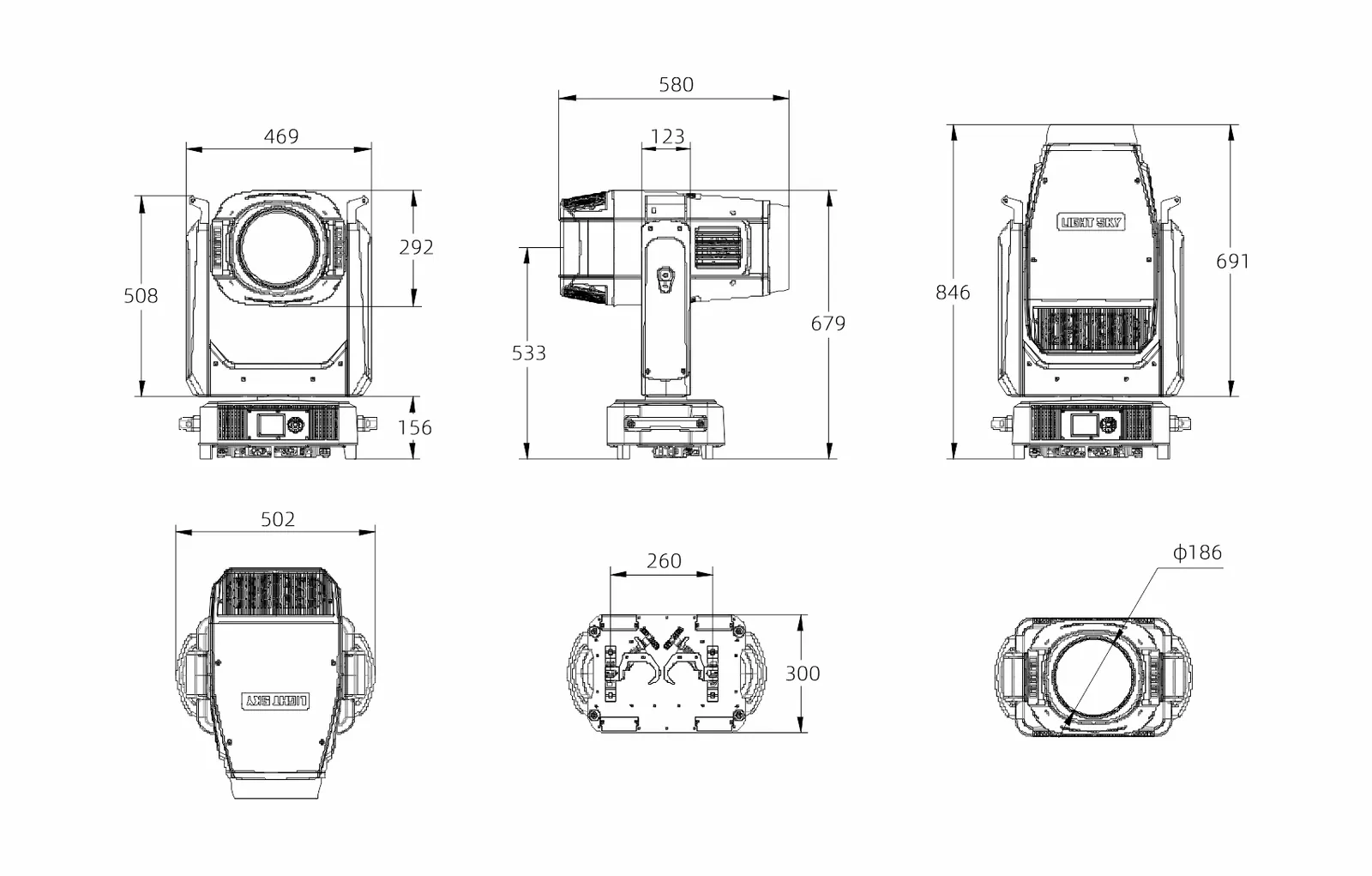

Light Dimension: 502 x 300 x 846mm
N.W: 44kg/pcs
Carton dimension: 945 x 590 x 380mm
G.W with carton: 48.8 kg

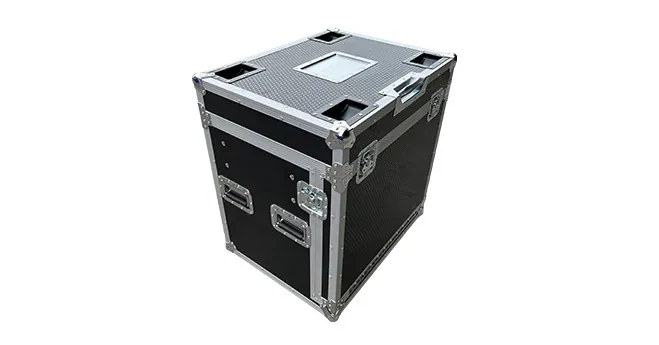

Flycase dimension: 700 x 550 x 865mm
G.W with fly case: 83.6kg (1 in 1)

10OTHERS3

IP rate: IP20
Working Ambient: -10°C~ 40 °C
Maximum temperature of lamp body surface: 80 °C

03DescriptionManufacturer's description

What it is.

Meet Super Scope Max, a professional moving headlight for theatrical lighting effects. Equipped with a 1200W LED light source and high-efficiency lenses that maximize this LED profile spotlight’s brightness and allow the beam to penetrate stronger and brighter, this professional moving headlight also adopts a noise-canceling design, which provides an immersive experience during the performance. LiGHT SKY provides comprehensive after-sales service and technical support for Super Scope Max. If you want to know more about this LED profile spot light, contact us now!

FEATURES

Powerful Light Source: Super Scope Max LED profile spotlight adopts a 1200W LED light source, providing high brightness, long life, green environmental protection, and low heat radiation illumination.

Advanced Optical System: Super Scope Max spotlight is equipped with a professional and efficient optical system, providing 8x optical zoom, high light source utilization, and good uniformity effects.

Comprehensive Function: Super Scope Max series professional moving headlight combines BEAM, WASH, SPOT, and PROILE into 1.

Excellent color mixing: Super Scope Max LED profile spotlight features the CMY linear color mixing function, which can mix colors into pure red, bright green, and deep blue; the linear CTO can expand CMY color mixing and can also control the color temperature of white light from 3000K to 6500K.

Professional Cutting System: Providing LED profile spotlightability to continuously and smoothly cut out transformation patterns such as triangles, quadrilaterals, sectors, arcs, etc., in any direction. The whole process of cutting is free of distortion.

Wide Zoom Range: Super Scope Max offers a wide zoom range from 6 to 50 degrees, which is capable of covering the preferred field angles of most theatre and TV lights

Low Noise Operation: The heat dissipation on Super Scope Max adopts an intelligent noise reduction design, providing low noise and a good heat dissipation effect.

Display Panel: Super Scope Max series professional moving headlight adopts a 2.8-inch resistive color touch screen with good pressing sensitivity.
