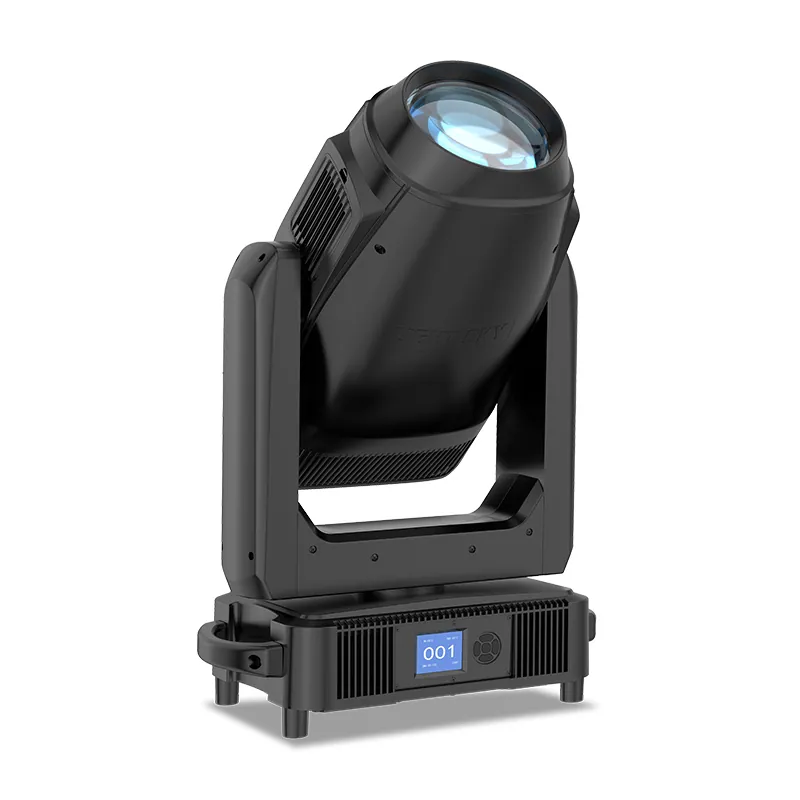

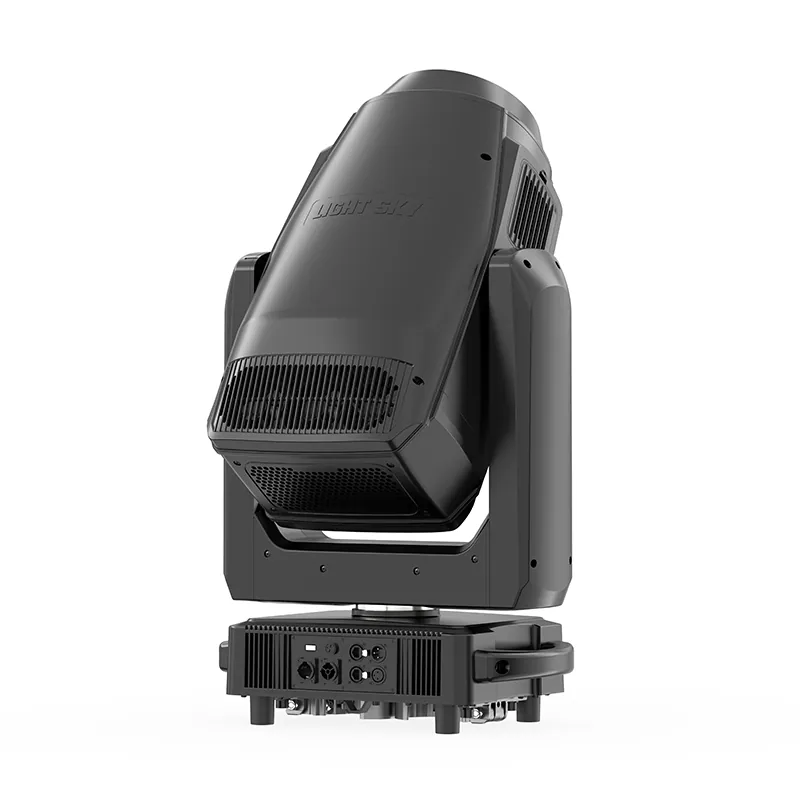

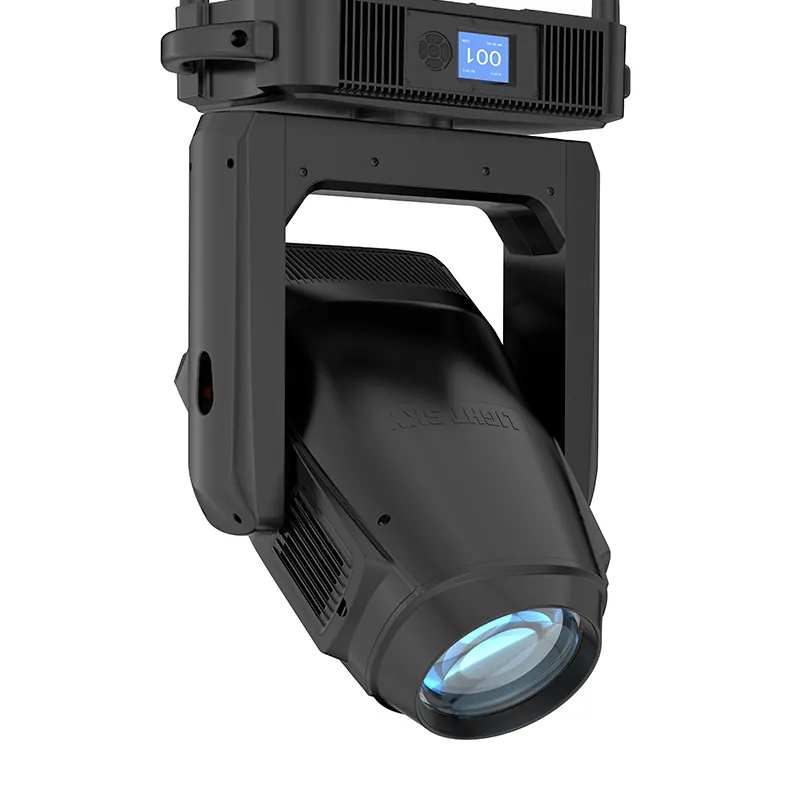

SUPER SCOPE PLUS

SUPER SCOPE PLUS is a high-performance LED BSWP 4in1 moving head spotlight that combines beam, spot, wash, and profile functions in one fixture.

Light source: 880W white LED module
Power supply: AC 100-240V 50/60Hz
Ingress protection: IP20
DMX channels: 43CH, 55CH; refer to channel table for details
Protocols: Standard DMX512, RDM, Art-Net, sACN
Colour temperature: 6800K
Net weight: 37.5kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 44 values

What this product is, in numbers.

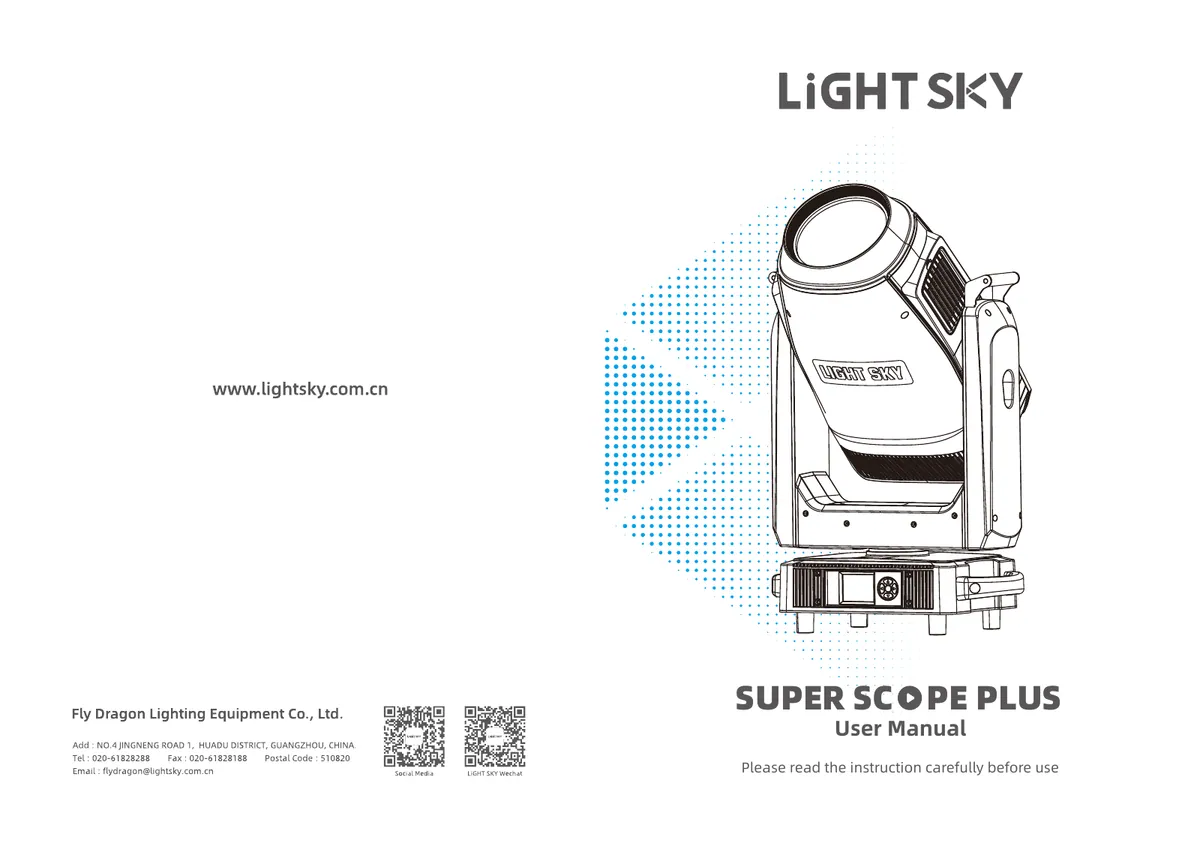

PDFUser manualEN · 28 pages · 9.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL8

Light Source: 880W white LED module
LED Source Life Span: 50,000 hours*
Color Temperature: 6800K
Total Lumen Output: 41000Lm

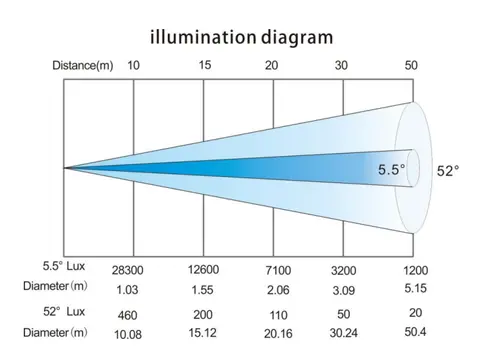

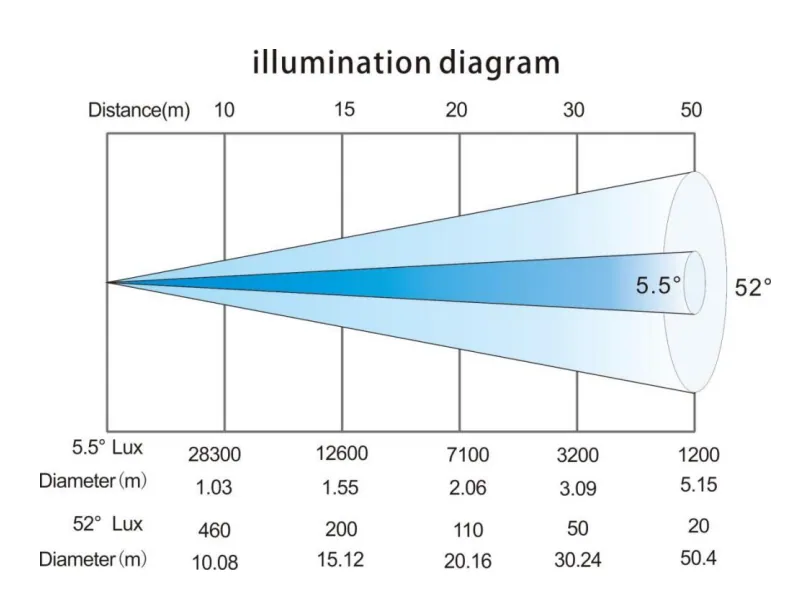

Illuminance: 28300lux@10M
CRI: 71+ with CRI Filter value up to 90
Optical Lens Diameter: 180mm
Zoom Angle: 5.5°- 52°

02COLOR3

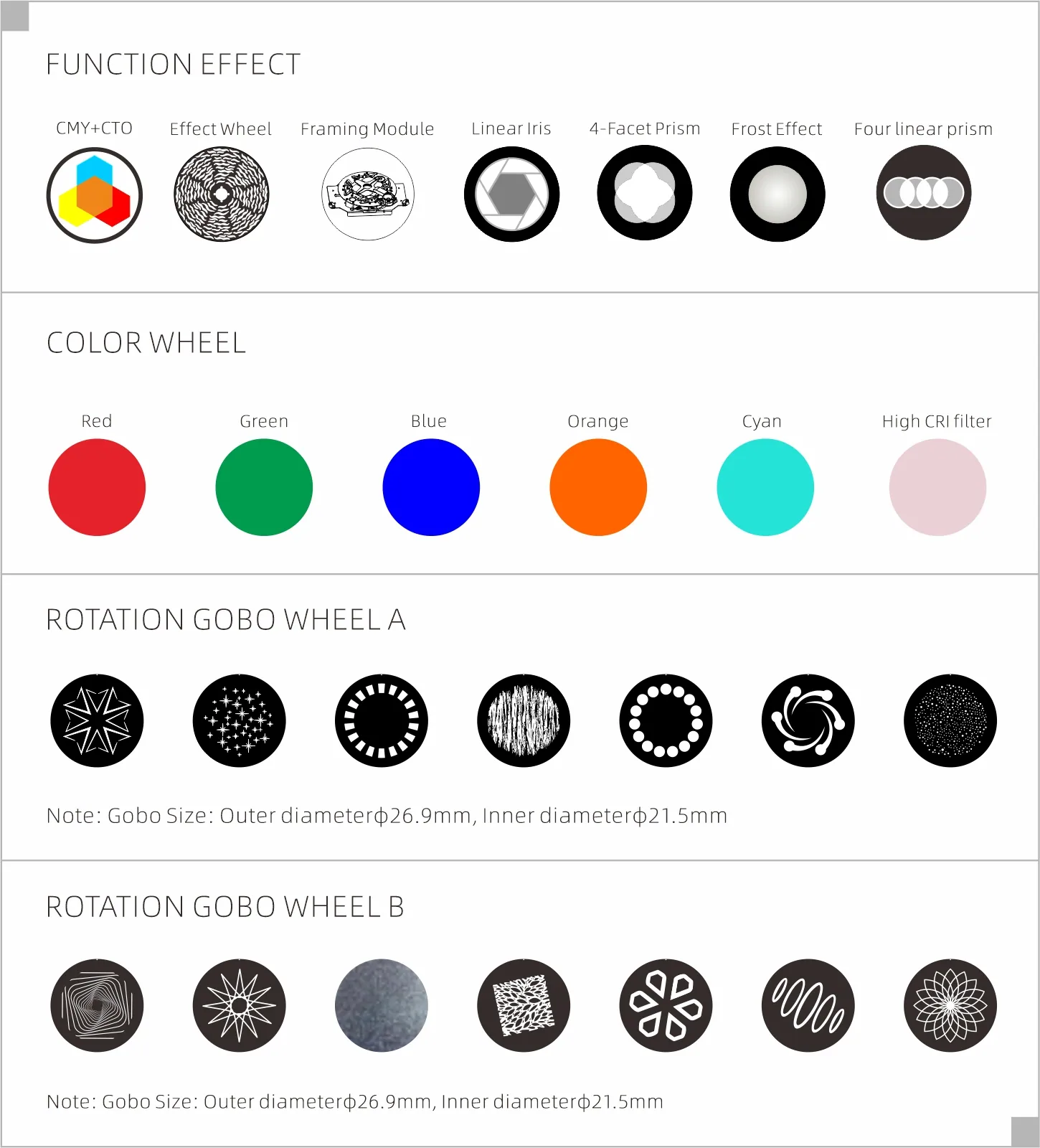

Color Wheel: The color wheel features 5 colors + blank + high-CRI filter, enabling bi-directional rainbows, smooth gradients, reversible rotation, and random color effects for dynamic lighting control.
CMY: Infinite CMY Colour Mixing
CTO: Linear CTO from 2800K to 6800K

03GOBO3

Precision Framing System: The moving head spotlight features a 4-blade framing system, with each blade offering 8-direction movement and ±55° rotation for sharp, distortion-free beam shaping.
Dynamic Animation Effects: A dedicated animation wheel provides realistic flame effects, adding dynamic motion to projections.
2 Rotating Gobo Wheels: Two motorized Gobo wheels each hold 7 interchangeable Gobos (standard size: 26.9mm outer diameter/21.5mm inner aperture), supporting rotation, shaking, and seamless gobo transitions.

04EFFECTS6

Prism Effects: The LED moving head light incorporates a 4-facet prism combined with a 4-linear prism system, capable of smooth bi-directional rotation for dynamic beam transformations.
Frost Filters: As one of the best moving head lights, the LiGHTSKY moving head spotlight has 2 frost systems that provide precise diffusion control: light frost for subtle softening and heavy frost for full beam dispersion.
Iris Mechanism: Features an electric iris with 5-100% linear adjustment and macro functionality for versatile effect variations.; Electronic Dimming, 0-100% linear dimming, uniform beam pattern
Electronic Strobe Speed: 1-25 times per second
LED Refresh Rate: 1000Hz to 25KHz

05CONTROL5

Control Channels: 43CH, 55CH; refer to channel table for details
Protocols: Standard DMX512, RDM, Art-Net, sACN

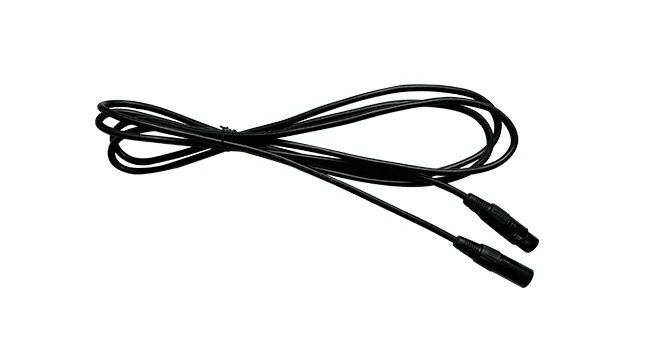

Data connection: 3-pin or 5-pin signal input/output; RJ45 interface
Display: LCD screen

06SOFTWARE3

Software: Upgrade software via DMX signal or USB interface
Noise Level Control: High brightness mode, Standard mode, Silent mode
Intelligent Temperature Control: Intelligent temperature control to extend LED lifespan

Show the full specificationHide the rest of the specification4 more groups · 16 values

07Pan/Tilt ANGLE OF MOTION3

Pan / Tilt: 540° / 270°; Reset Function with Automatic Error Correction
Fixed Lock: Tilt axis lock

08POWER3

Voltage: AC 100-240V 50/60Hz
Power: 1400W; PF 0.996; Maximum current; 7A/220V;14A/110V

09SIZE & WEIGHT6

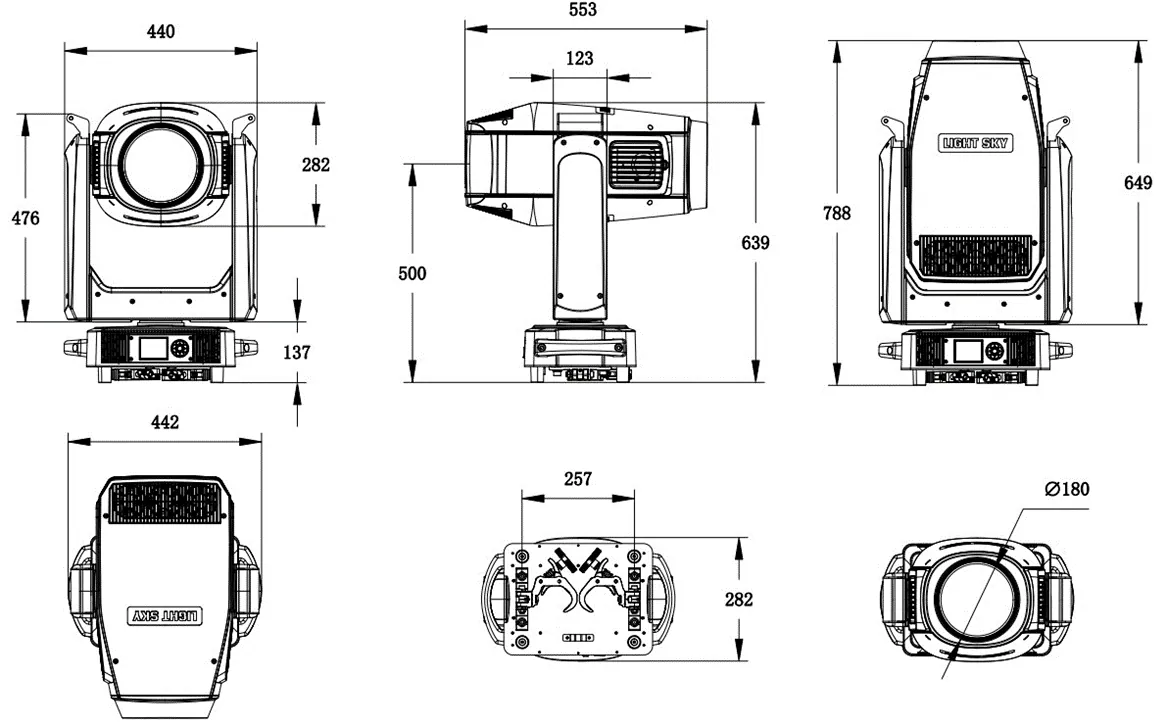

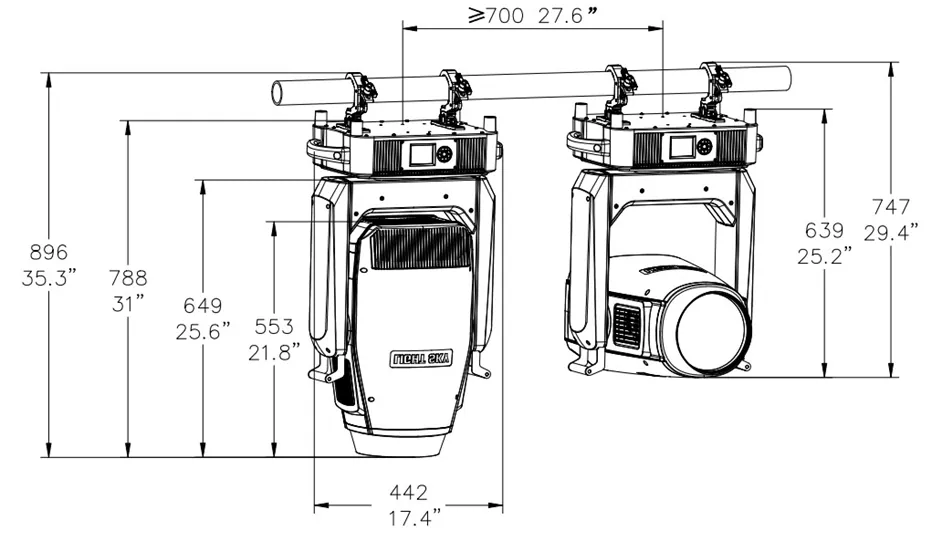

Light Dimension: 442 x 282 x 788mm
N.W: 37.5kg/pcs
Carton Dimension: 520 x 370 x 870mm
G.W with carton: 42.6 kg
Flycase Dimension: 660 x 520 x 840mm
G.W with Fly Case: 70.5kg (1 in 1)

10OTHERS4

IP Rating: IP20
Working Environment: 0°C ~ 40 °C
Maximum Temperature of the Light Body Surface: 80 °C; LiGHT SKY as a leading theatre lighting supplier with 30+ years of experience, offers high-performance LED moving head lights for global stage, touring, and entertainment projects. SUPER SCOPE PLUS brings together the strength of a beam moving head light, the flexibility of stage wash lighting, and the precision of a theater profile moving head, giving professional productions a powerful fixture for bold visuals, clean framing, and immersive show design.

02DescriptionManufacturer's description

What it is.

SUPER SCOPE PLUS is a high-performance LED BSWP 4in1 moving head spotlight that combines beam, spot, wash, and profile functions in one fixture. With a powerful 41,000 lm output and a 180 mm precision lens, it delivers bright, sharp, and flexible visuals for professional stage productions.

As a leading theatre lighting supplier, LiGHT SKY designs SUPER SCOPE PLUS as a premier LED moving head for theaters, TV studios, concerts, stadiums, and large venues that require strong brightness, precise beam control, and reliable long-range projection.

FEATURES

LED BSWP 4in1 Moving Head: Combines beam, spot, wash, and profile effects for flexible stage applications.
High Brightness Output: Delivers 41,000 lm for large venues and long-throw lighting needs.
Precision Optical System: 180 mm high-precision lens supports clear projection and sharp beam definition.
Advanced Gobo System: Two rotating gobo wheels create rich patterns with strong edge-to-center clarity.
±55° Rotating Cutting System: Enables precise framing and distortion-free light shaping.
Professional Stage Use: Suitable for theaters, TV studios, concerts, stadiums, and touring productions.
