Sheet 05.600

LIGHT SKY · Spot and profile

SUPER SCOPE PRO

Light source: 450W white LED module
Power supply: AC 100-240V 50/60Hz
DMX channels: 33CH, 36CH (see channel chart for details)
Protocols: Standard DMX512, RDM, Art-Net
Net weight: 26.3 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

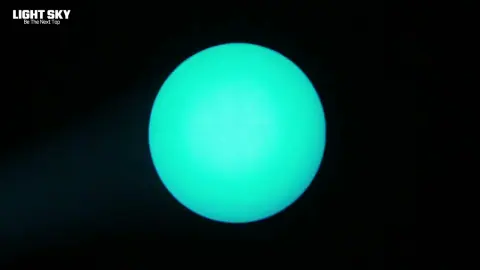

01Video2 manufacturer's videos · 5:39

LIGHT SKY SUPER SCOPE PROVideo 1 of 2 · 2:24

02SpecificationManufacturer's data · 12 groups · 48 values

What this product is, in numbers.

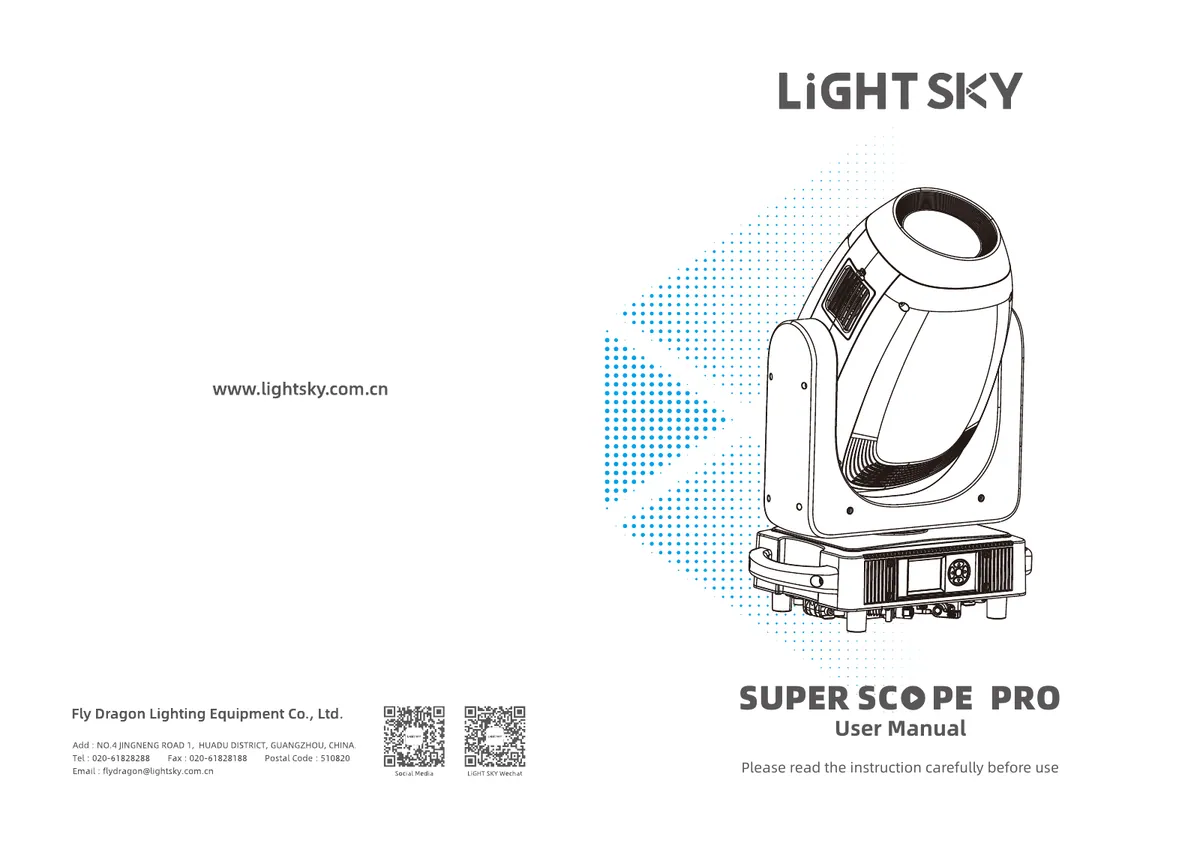

PDFUser manualEN · 30 pages · 8.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL8

Light source: 450W white LED module
ZOOM angle: 4 ° to 53 °
Front lens diameter: 133MM
Output color temperature: 6500K
CRI: 70+ with CRI Filter value up to 90
Illuminance: 24000 lx@10M
Total lumen output: 20000Lm
LED source life expectancy: 50,000 hours*

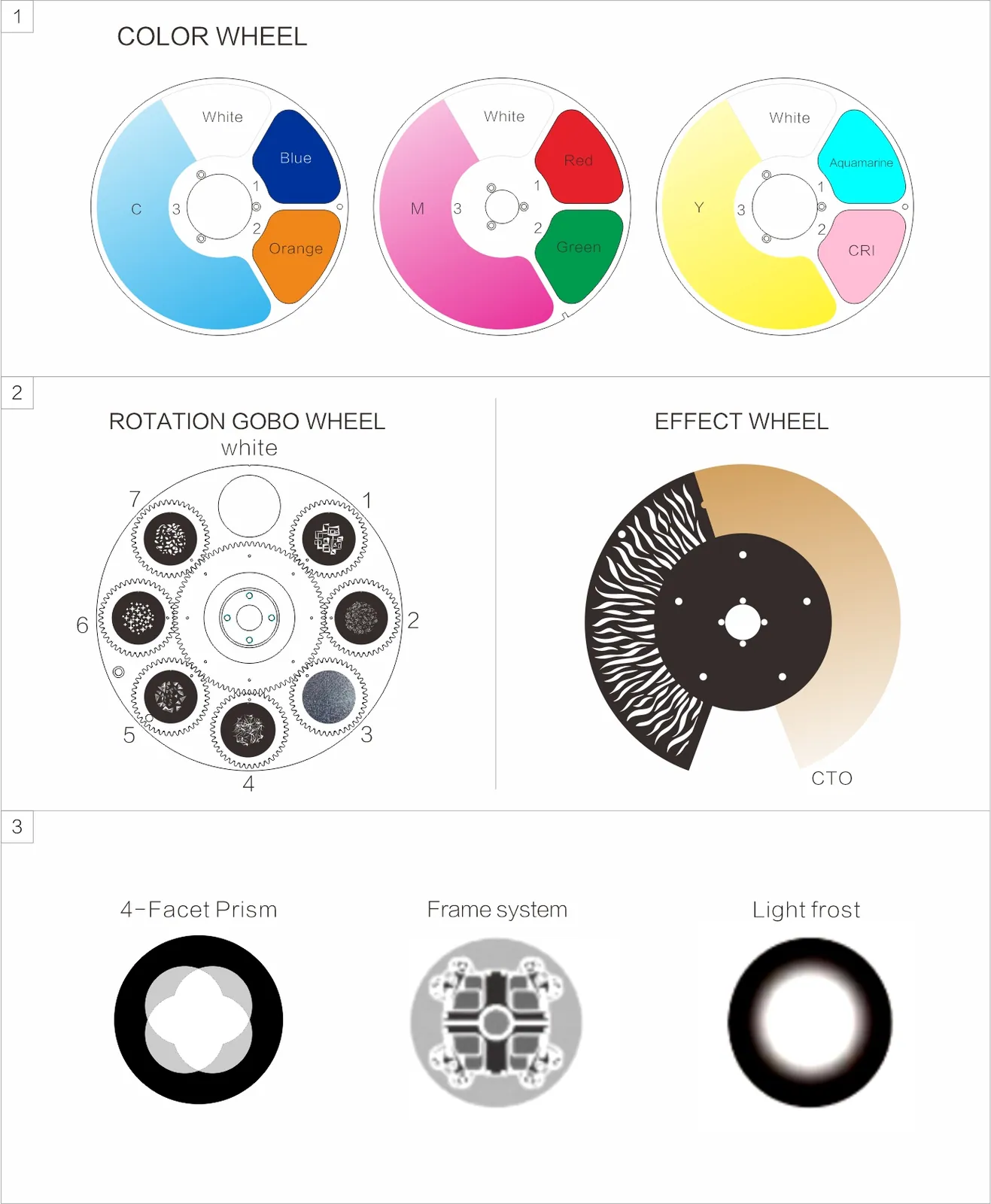

02COLOR3

C M Y: CMY infinite colour mixing
C T O: Linear CTO from 3000K to 6500K
Color wheel: 5 color pieces + high CRI piece + white light , can achieve bi-directional color rainbow effect,double color step gradient(liner movement), color wheel bi-directional rotation, random color mode.

03GOBO3

Rotation gobo wheel: 1 rotation gobo wheel, with 7 pcs interchangeable gobo, gobo piece outer diameter φ22.9mm, gobo piece inner diameter φ15mm;; Effect disc (water texture)+CTO color temperature linear adjustment, which can achieve flowing and shaking effects.
Framing system: 4-blade, each blade can be eight directions and +/- 45° degrees

04EFFECTS6

Prism: 4-facet prism, bidirectional rotation
Soft light effect: Adjustable, independent soft light effect; Motorized iris, linear adjustment from 5-100%, with macro function for multiple effect variations; Electronic dimming, linear adjustment from 0-100%, uniform light spot; Electronic strobe speed adjustable from 1-25 flashes per second
LED refresh rate: 1000Hz ~ 25KHz

05CONTROL4

Control Channels: 33CH, 36CH (see channel chart for details)
Protocols: Standard DMX512, RDM, Art-Net

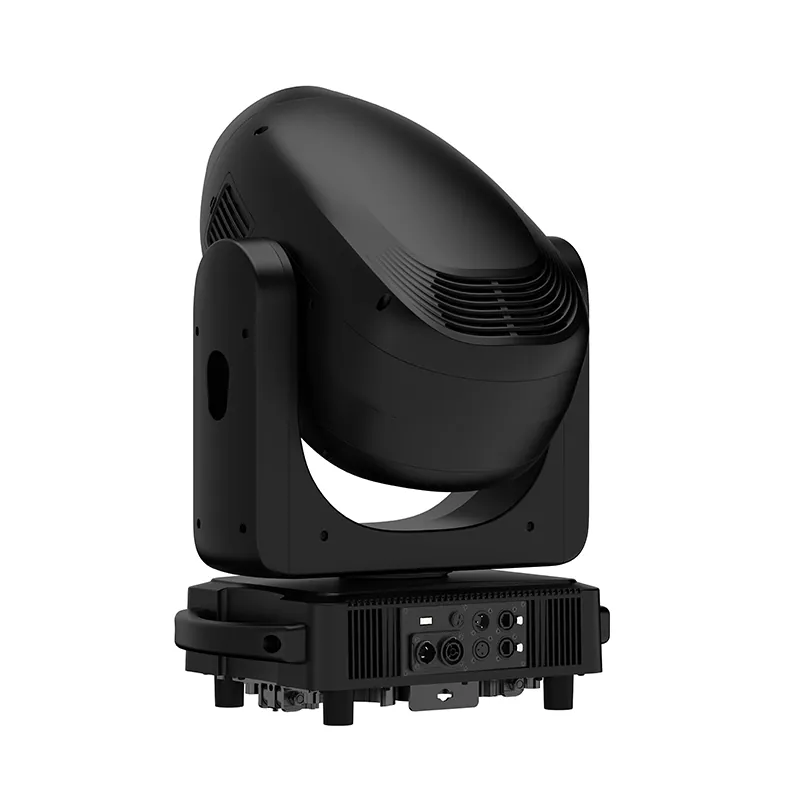

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD screen

06SOFTWARE2

Software upgrade via USB or DMX interface

Temperature intelligent control, ensuring LED lifespan

Show the full specificationHide the rest of the specification6 more groups · 22 values

07X/Y ANGLE OF MOTION4

Pan: 540° 8bit/16bit precision scanning
Tilt: 270° 8bit/16bit precision scanning; Reset function with automatic error correction
Fixed lock: Tilt axis lock

08POWER4

Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 620 W
Power Factor: 0.98
Maximum Current of Fixture: 6.2A/110V; 2.7A/220V

09SIZE & WEIGHT4

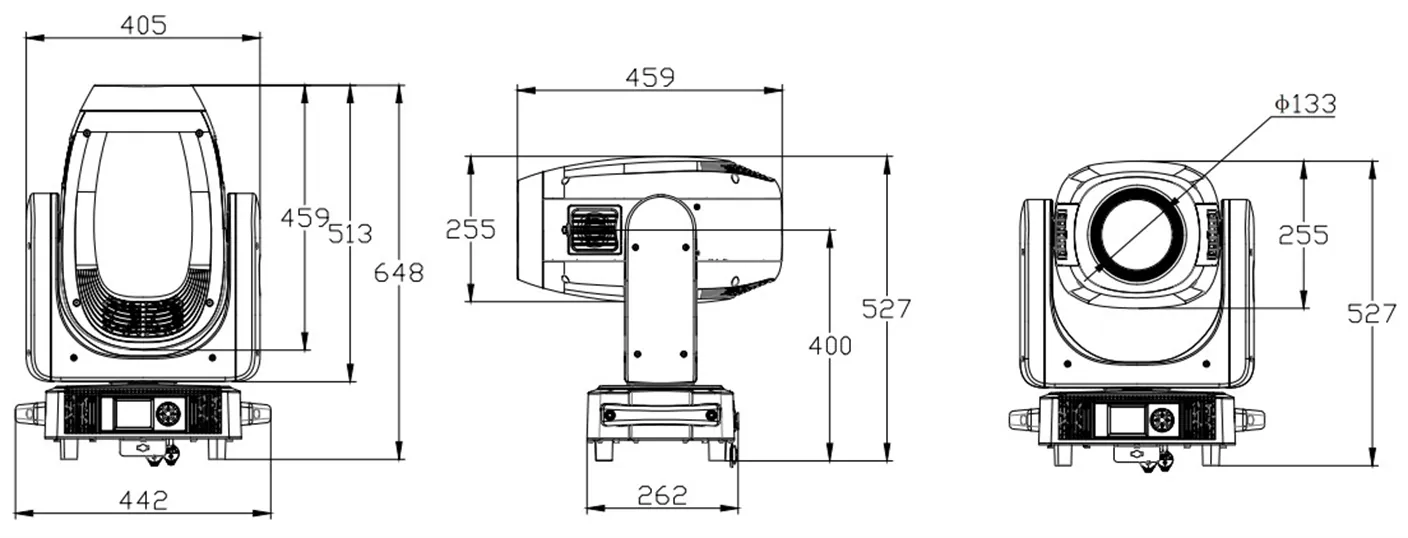

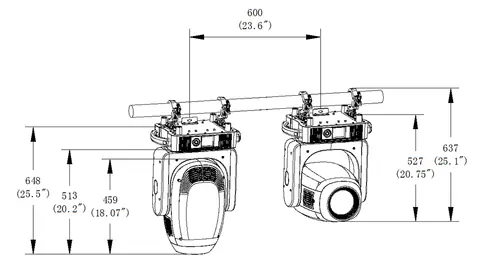

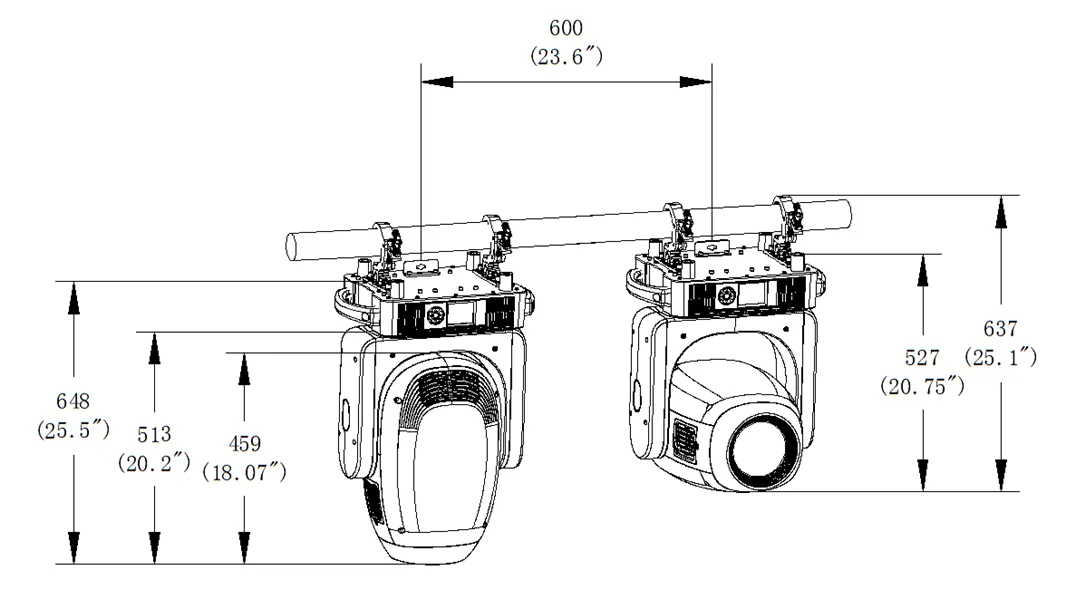

Product Dimensions: 442mm × 262mm × 648mm
Net Weight: 26.3 kg
Carton Dimensions: 490mm × 365mm × 755mm
Gross Weight: 32.1kg (including folding hook)

10OTHERS3

IP Rate: IP20
Operating Environment: -10°C ~ 45°C
Maximum Surface Temperature of Fixture: 80°C

11Factory Configuration4

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: C1400060031)
Safety Rope: 2 pcs (Part No.: F0200010002)

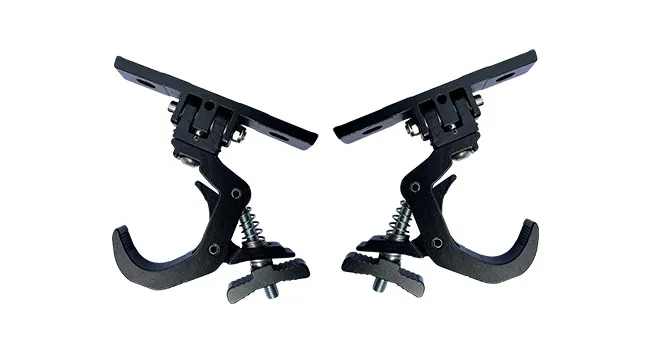

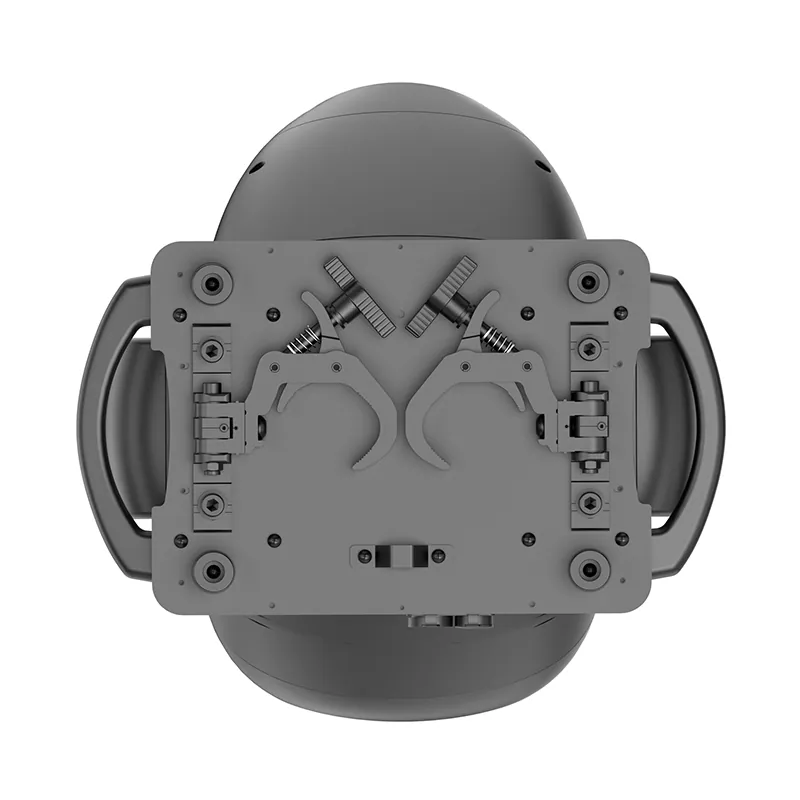

Clamp: 2 pcs (Part No.: C0499990032)

12Optional Accessories/Packaging3

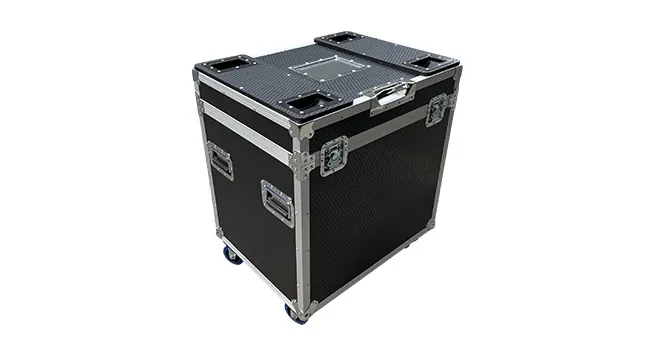

Flycase Part No.: B0100810001
Flycase Dimensions(2 in 1): 730mm × 575mm × 850mm
Flycase Gross Weight(2 in 1): 95.3 kg

03DescriptionManufacturer's description

What it is.

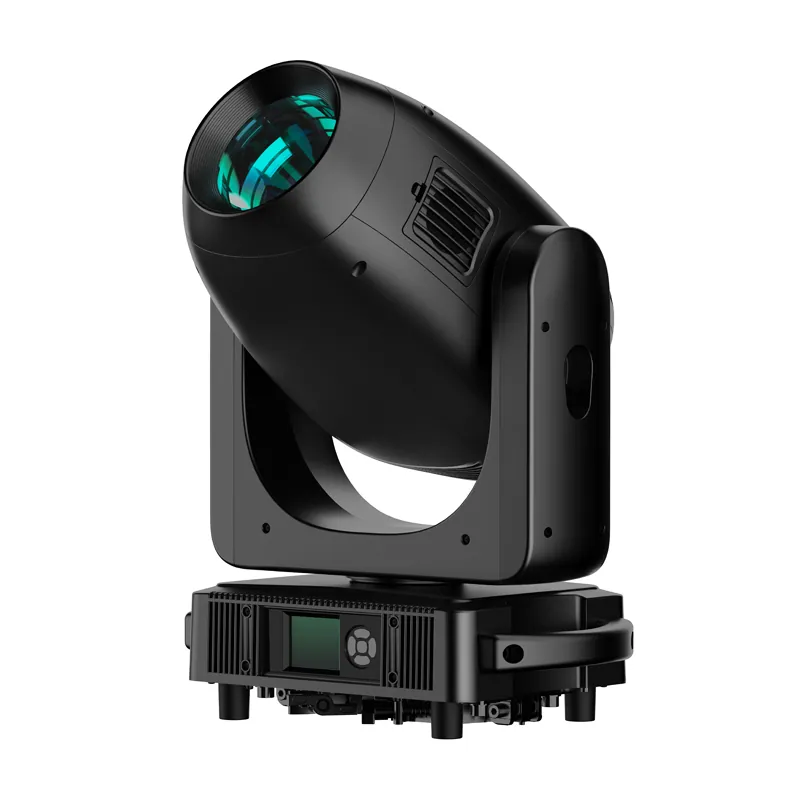

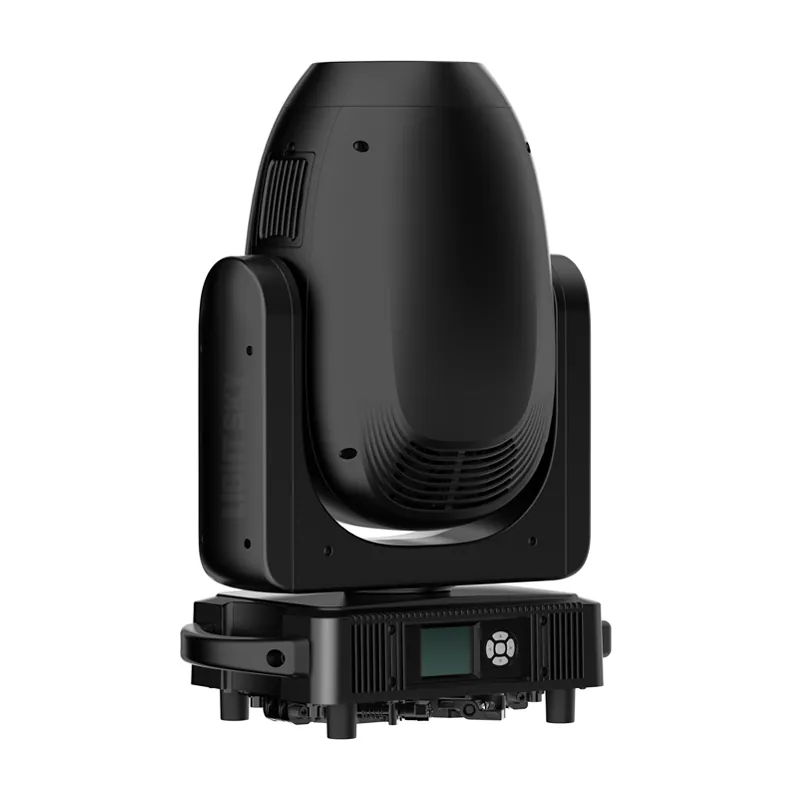

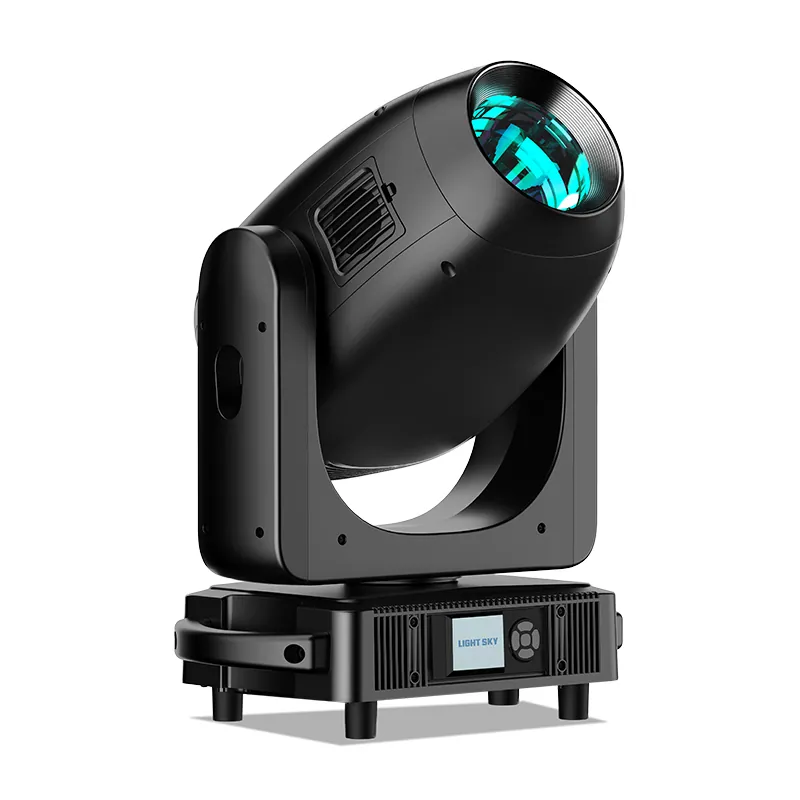

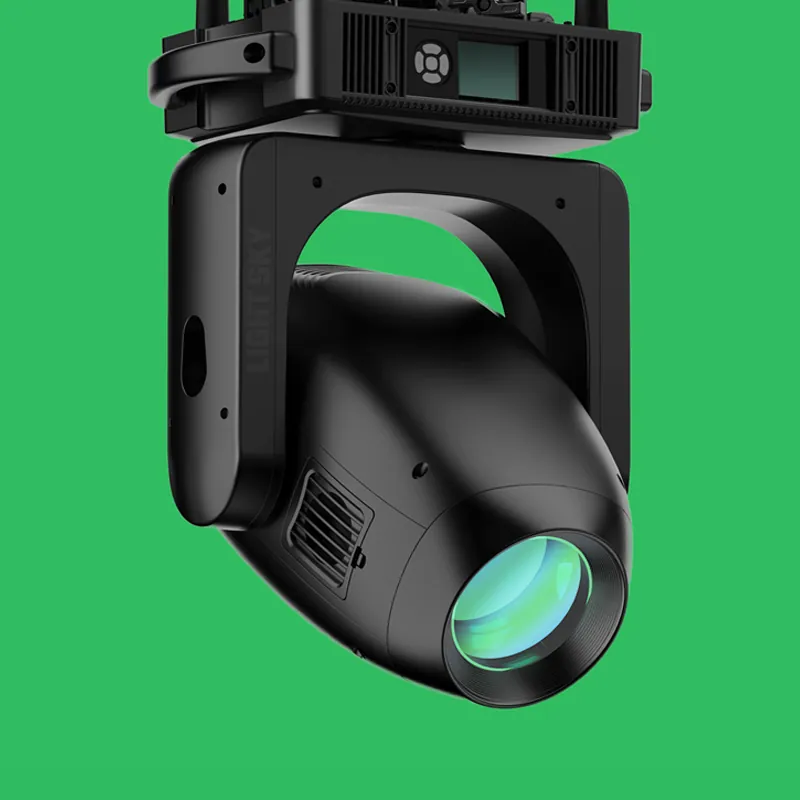

Explore the versatility of SUPER SCOPE PRO, an advanced LED moving headlight. With 4 in 1 functionality, including an LED Spot Moving Head, it offers precision with a 133mm lens for clear spots and beams. The gobo module provides dynamic patterns, and the cutting module ensures distortion-free images. Achieving 24000 lux@10 m and a high CRI of 90, this compact LED spot lamp is perfect for high-end venues like theaters, TV stations, concerts, and gymnasiums. Illuminate your space with the brilliance of LED technology.

FEATURES

Energy-saving and environmentally friendly: SUPER SCOPE PRO is a moving head light with beam spot wash profile 4 in 1 function. Adopts an energy-saving and environmentally friendly long-lifetime LED module

Multi-Function: Super Scope Pro is a 4 in 1 moving head computer light.
Wide Zoom Angle:The Super Scope Pro series LED moving headlight’s zoom angle is 4°–53°.
CRI: 70+ with a CRI filter value up to 90
System: SUPER SCOPE PRO LED Spot Moving Head equipped with CMY infinite color mixing system
Illuminance: 24000 Lux @ 10 m
Total lumen output: 20000 Lm
