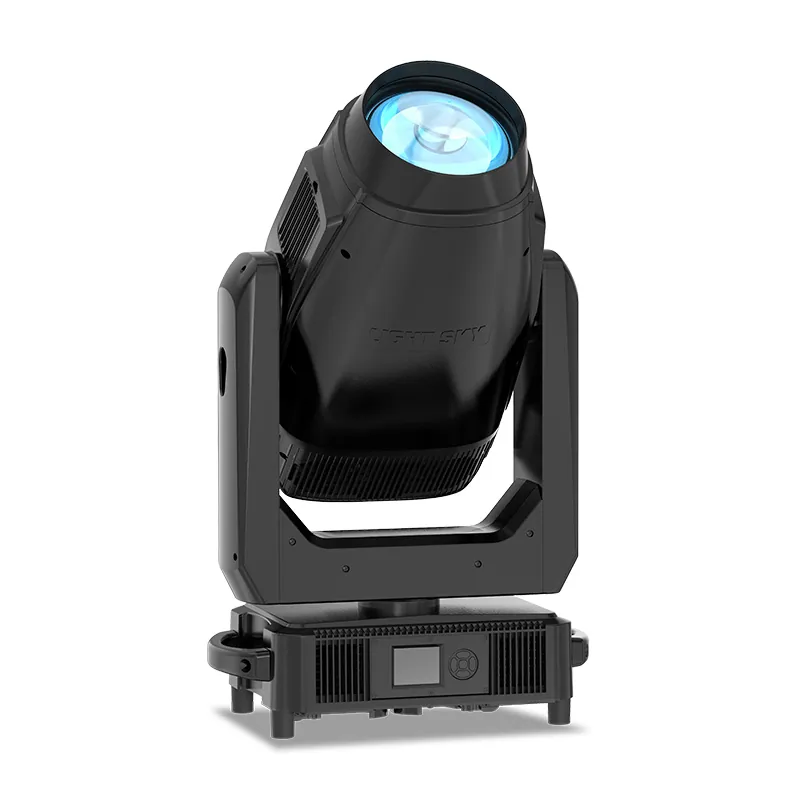

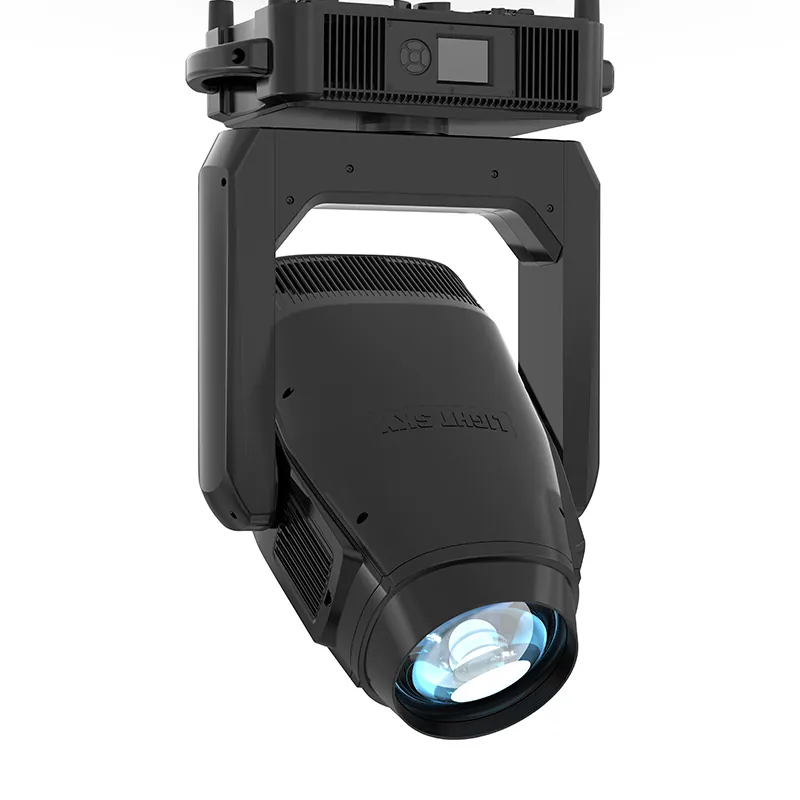

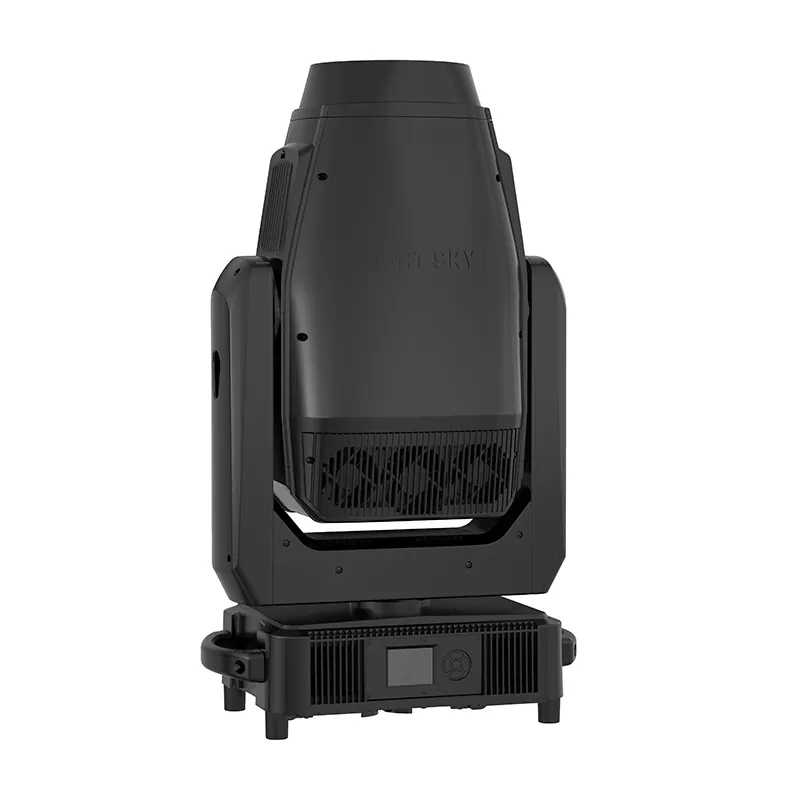

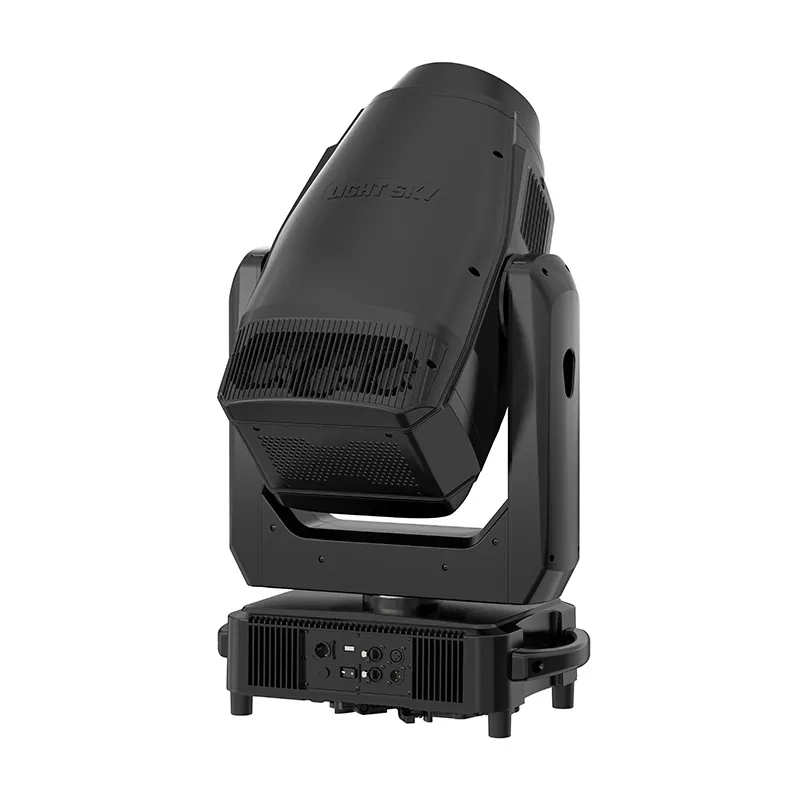

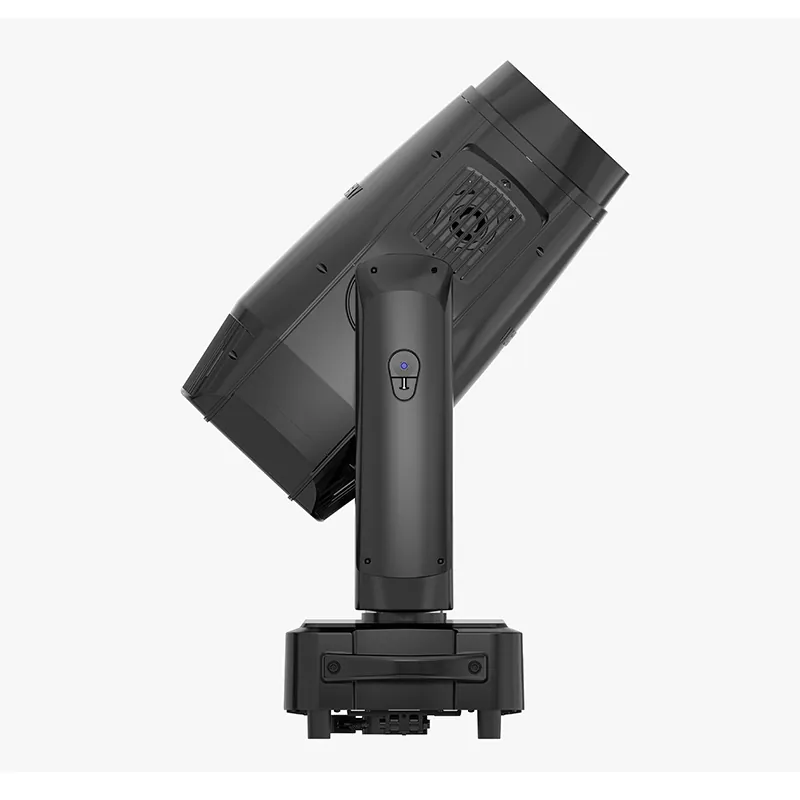

SUPER SCOPE WASH

As a stage lighting company, LiGHT SKY is one of the top China stage lighting manufacturers specializing in LED stage lighting products.

Light source: 1400W White LED module
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 15°- 50°
DMX channels: 44 CH, 32CH
Protocols: DMX512, RDM, Art-Net (optional)
Colour temperature: 7000 K
Net weight: 45 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 41 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL8

Light Source: 1400W White LED module
Zoom Range: 15°- 50°
Optical Lens: High-transmission coated lens, diameter 200mm
Color Temperature: 7000 K
Color Rendering Index (CRI): RA≥70 / RA≥90 (with high CRI filter)

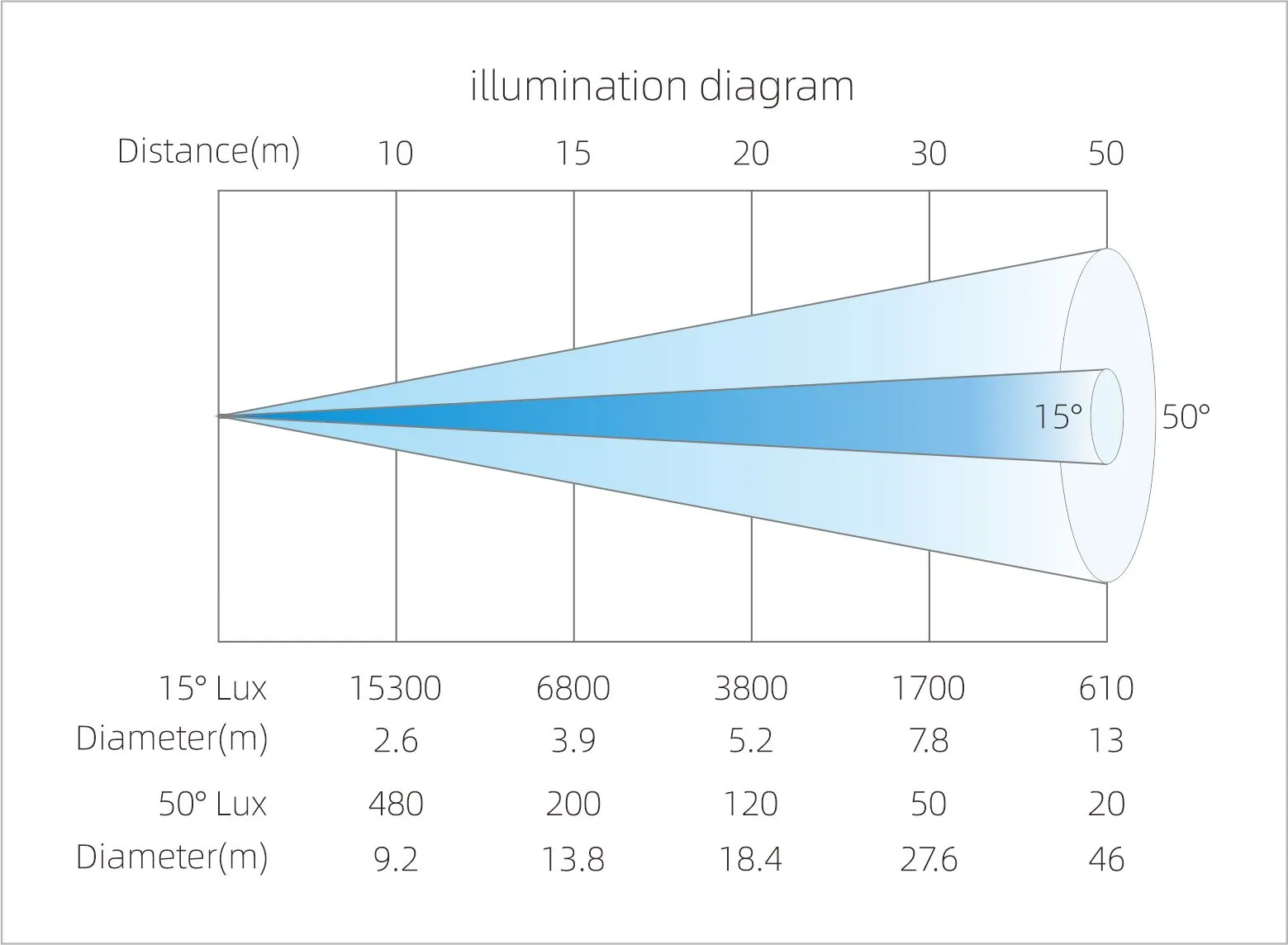

Illuminance: 15300lux@10m
Total lumen output: 45,500 Lm
LED source life expectancy: 50,000 hours*

02COLOR3

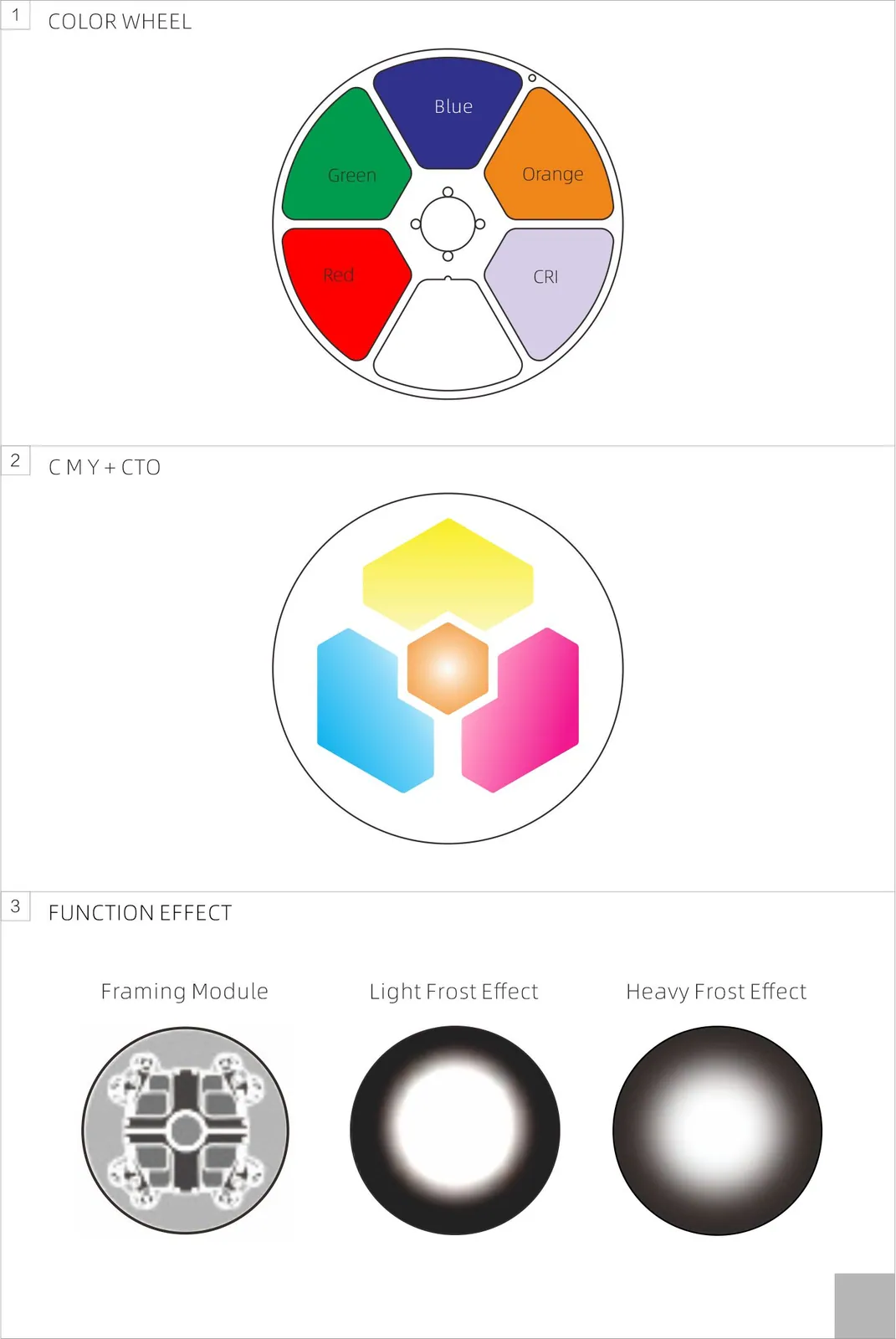

CMY: CMY Infinite Color Mixing
CTO: CTO Color Temperature Linear Adjustment (3000K-7000K)
Color: 4 Color Filters + High CRI Filter + White Light: Capable of bi-directional color rainbow effect, bi-color step gradient (linear movement), bi-directional rotating color wheel, random color mode

03PROFILE FRAMING1

Light Sky LED moving head wash has four high-precision blades enabling fast, smooth framing with eight-direction control and instant blackout. The ±45° rotatable module delivers sharp beam shaping for dynamic lighting effects while maintaining silent operation. Perfect for precise Gobo projections and professional applications.

04EFFECTS4

Dual Frost Filters: The Light Sky super scope includes light frost (1°) for subtle diffusion and heavy frost (20°) for maximum beam softening.
High-Fidelity Color Rendering: Light Sky super scope has a high CRI90 filter for accurate color reproduction.
Precision Iris Control: LED moving head wash is able to motorised iris with 5%-100% linear adjustment and equipped with macro functionality for dynamic effect variations.
Advanced Dimming & Strobe: Our beam spot wash moving head lighting features a 0-100% linear electronic dimmer with adjustable 1- 25Hz strobe functionality, coupled with a 1000Hz-25kHz high-speed LED refresh rate to ensure flicker-free performance during smooth fade transitions.

05CONTROL4

Control Channels: 44 CH, 32CH
Protocols: DMX512, RDM, Art-Net (optional)
DMX and RDM connectors: Locking 3-pin or 5-pin XLR IN/OUT
Display: LCD screen

06SOFTWARE3

Dual Upgrade Interface: The Light Sky Super Scope incorporates the system supporting flexible firmware upgrades through both DMX512 and USB interfaces for convenient field updates.
Triple Fan Operation Modes: Light Sky Super Scope Wash features three optimized cooling modes – High Performance, Standard Silent, and Ultra Silent.
Intelligent Control: The advanced thermal management of our LED moving head wash enables automatic fan speed adjustment based on real-time temperature monitoring to ensure optimal LED performance and longevity.

Show the full specificationHide the rest of the specification4 more groups · 18 values

07PAN/TILT MOVEMENT4

Pan axis: 540°, 8-bit/16-bit precision scan
Tilt axis: 270°, 8-bit/16-bit precision scan; Reset function with automatic error correction
Fixed lock: Tilt axis lock

08POWER3

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 1550W
Power Factor: 0.987

09SIZE & WEIGHT6

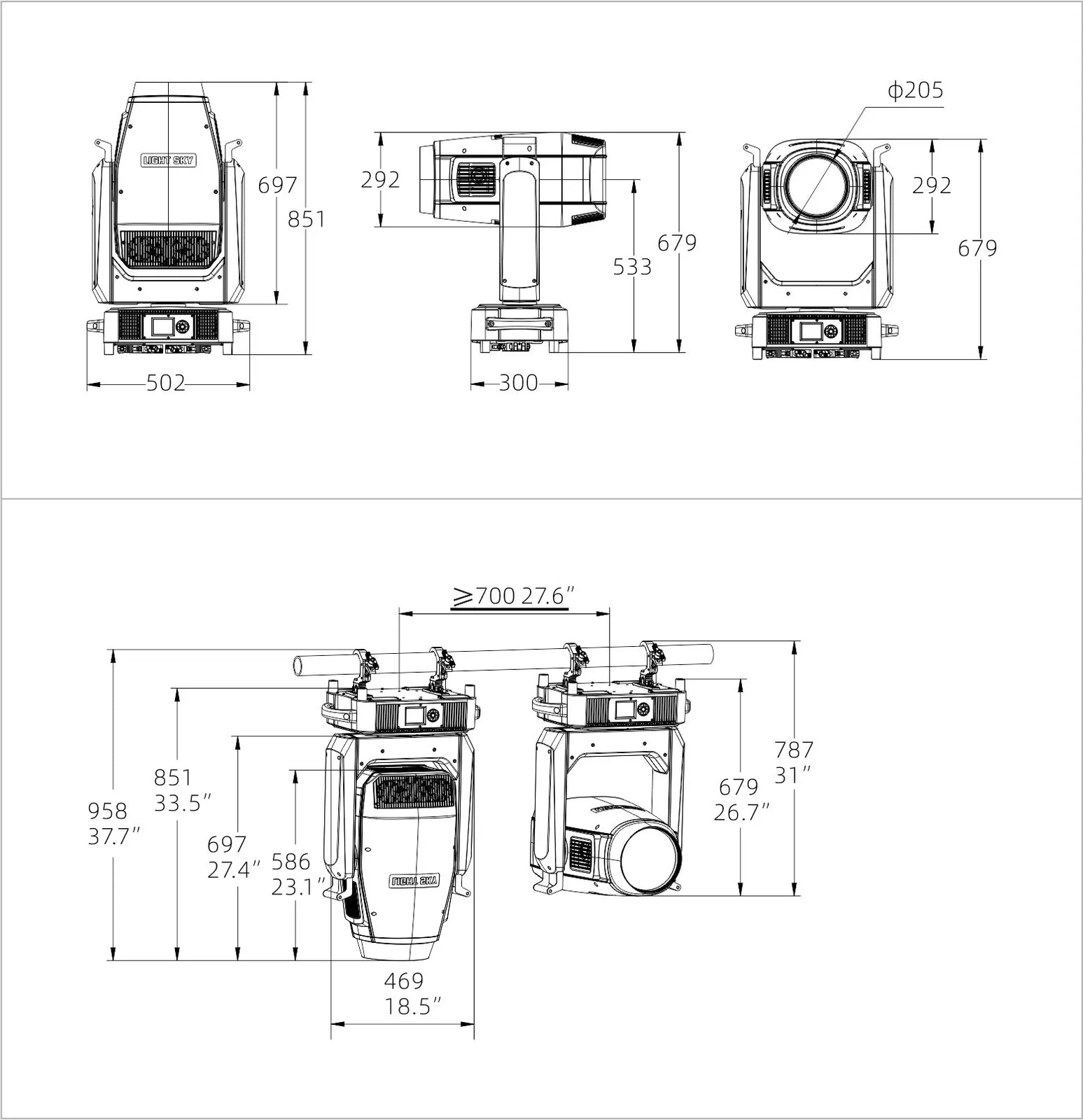

Product Dimensions: 502×300×851(mm)
Net Weight: 45 kg
Carton Packaging: 570×375×920(mm)
Gross Weight: 49.8 kg
Packaging(Fly case 1 in 1): 700×550×865(mm)
Gross Weight: 83.6kg

10OTHERS5

IP Rate: IP20
Operating Environment: -10°C ~ 40°C
Maximum Surface Temperature: 80°C
Maximum Daisy Chaining Quantity: None
Maximum Current of Fixture: 7.75A/220V; 15.5A/110V

02DescriptionManufacturer's description

What it is.

LiGHT SKY super scope wash is an LED moving head spot that combines LED profile and beam spot wash effects, which is ideal for TV studios, theaters, and large events and delivers top-tier performance for demanding lighting applications.

FEATURES

LiGHT SKY SUPER SCOPE 2in1 LED Moving Head Wash
Powerful Light Source: 1400W high-power white LED module delivers 45,500 lumens of output
Precision Optics: 200mm diameter high-precision lens with 15°-50° zoom range
Advanced Color System: CMY infinite color mixing with linear CTO adjustment (3000K-7000K)
Dual CRI Modes: Standard RA≥70 and high CRI RA≥90 with optional filter
Professional Framing: 4-blade cutting system with ±45° full-range rotation
Hybrid Functionality: Combines wash and profile effects in one moving head
Quiet Operation: Intelligent cooling system with ultra-low noise mode
Versatile Applications: Designed for TV studios, theaters, concerts and large events
