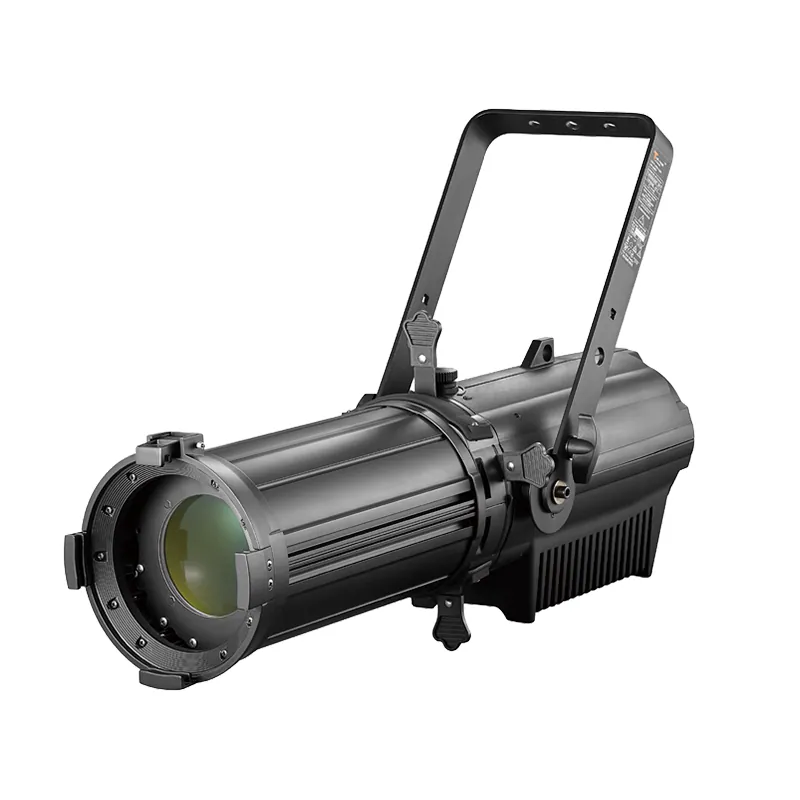

TH-346

Die-casting Aluminum LED Profile Spot Light with Zoom

Power supply: AC100-240V
Ingress protection: IP20
Beam angle / zoom: 12° to 30° or 25° to 50°
DMX channels: 1/2CH(single color), 4/7(RGBW)
Protocols: RDM / DMX
Net weight: 11.46kgs(12-30 degree)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 28 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01General28

Light Source
LED POWER: 200W/300W
LED Color: CW or WW (200W/300W) COB LED, RGBW 4in1(200W),
Led Lamp: Imported Led
Color Rendering Index(CRI): Ra ≥ 90
LED Life Time: over 50,000 hours
Power supply
Voltage: AC100-240V
Max.power: 200W/300W
Optics
Beam Angle: 12° to 30° or 25° to 50°
Zoom Function: Manual zoom; High-quality optical system
Dimmer Effect
Dimming Curve: 4 kinds
Dimming Frequency: 500HZ – 25000HZ optional
Dimmer: 0~100% linearly adjustable
Strobe: 1-25times/sec
Features
Light body: Die casting Aluminum
Touch screen: LCD with touch screen
Control
Control Protocol: RDM / DMX
Control System: DMX, Auto run, and Master/Slave
DMX Channels: 1/2CH(single color), 4/7(RGBW)
Working Environment
Working Temperature: -10~40°C
Cooling system: No noise fan (copper tube)
IP Grade: IP20
Package
Net Weight: 11.46kgs(12-30 degree); 11.05kgs(25-50 degree)
Gross Weight: 12.5kgs
Packing Size: 95.5*33*31.5 cm (12-30 degree); 82*33*31.5 cm(25-50 degree)
Warranty Time: 1 Year warranty

02DescriptionManufacturer's description

What it is.

TH-346 is a professional LED profile fixture designed for theaters, studios, exhibitions, and stage applications. It delivers excellent color rendering with CRI Ra≥90 and smooth, flicker-free dimming performance. With optional 12°–30° or 25°–50° manual zoom, silent cooling system, and reliable RDM/DMX control, TH-346 offers precise optical performance and stable operation for professional indoor lighting environments.
