TH-353
RGBW / RGBAL LED Fresnel Spotlight with zoom
- Power supply
- AC100V-240V 50-60Hz
- Ingress protection
- IP20
- Net weight
- 9kgs
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01General24
- Light Source
- LED Power
- 300W / 350W
- LED Color
- 350W RGBW 4IN1/ 300W RGBAL 5IN1 COB LED
- Fully Tunable from 2,700 to 12,000K (RGBAL 5IN1)
- LED Life Time
- over 50,000 hours
- Power supply
- Voltage
- AC100V-240V 50-60Hz
- Max. power
- 300W / 350W
- Optics
- Manual Zooming Scale
- 15-50°
- With Zoom by manual/ Auto zoom
- Dimmer Effect
- Dimmer
- 0~100% linearly adjustable
- Strobe
- 1-25times/sec
- Features
- Light body
- Aluminum Alloy
- Dimming Curve
- 4 kinds
- Dimming Frequency
- 500HZ – 25000HZ optional
- Touch screen
- LCD with touch screen
- Control
- Control mode
- RDM/DMX 512, master and slave, auto running, sound mode
- DMX channel
- Manual zoom: 4/7CH (4in1), 5/10CH (5in1)
- Auto zoom
- 5/9CH (4in1), 6/12CH (5in1)
- Working Environment
- Environment Temperature
- -10° C~40° C
- Cooling system
- No noise fan ( Pccooler)
- IP Grade
- IP20
- Package
- Net weight
- 9kgs
- Gross weight
- 11.5kgs
- Packing Size
- 58×32.5x32cm (1pc/carton)
- Warranty Time
- 1 Year warranty
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.

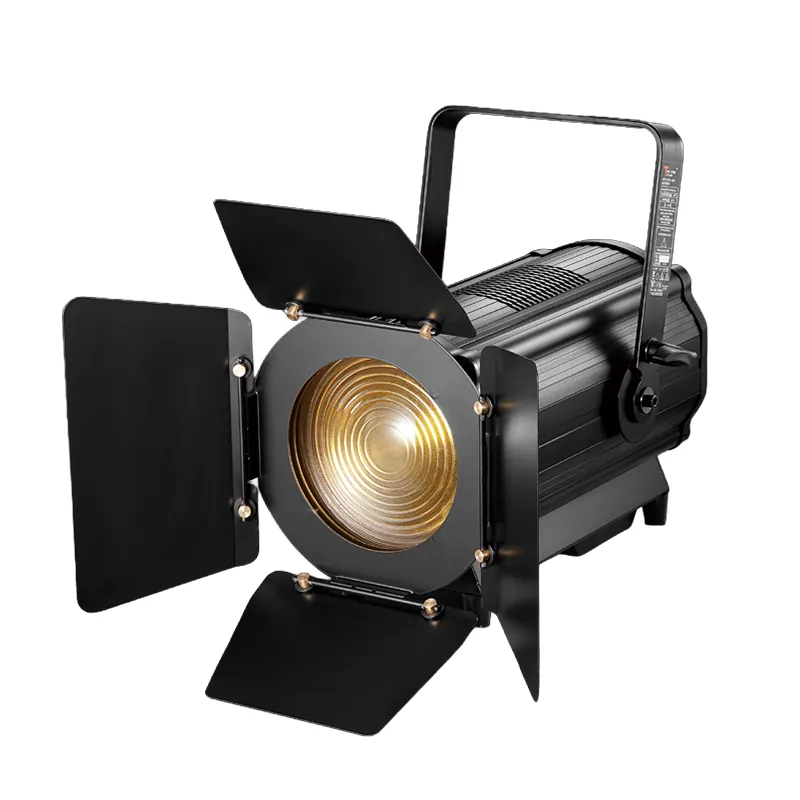

TH-353 is a professional RGBW / RGBAL LED Fresnel spotlight designed for theaters, studios, broadcast, and stage applications. Equipped with high-power 4-in-1 or 5-in-1 COB LEDs, it delivers smooth color mixing, wide tunable white output from 2,700K to 12,000K, and soft, even wash effects. Featuring a 15°–50° zoom range, precise linear dimming, optional high-frequency flicker-free operation, and silent cooling system, TH-353 ensures flexible and reliable performance for professional indoor lighting environments.
Features
- LED Power: 300W / 350W
- LED Color: 350W RGBW 4IN1/ 300W RGBAL 5IN1 COB LED
- Manual Zooming Scale: 15-50°
- With Zoom by manual/ Auto zoom
