XLED 6022
ModelPR-8116

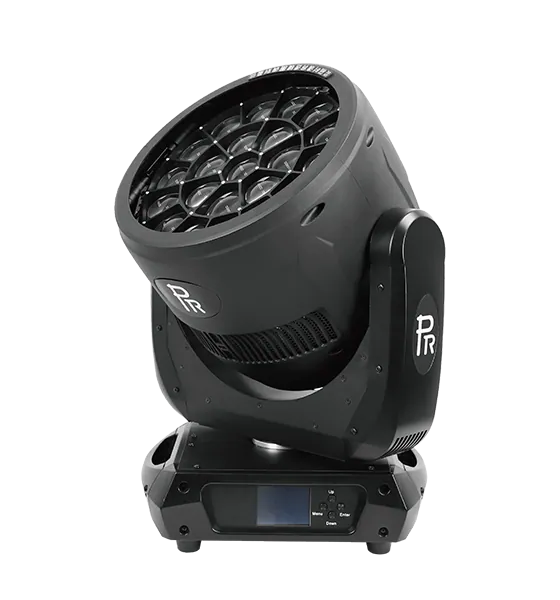

XLED 6022 is a moving head wash lighting fixture with OSRAM 60W, 7 in 1(2700-10000K), 50000 hrs offering infinite color mixing effects and its ZOOM function meeting different requirements of stage designs.
- Light source
- Osram 60W, 7 in 1 (Qty 22pcs,2700-10000K,50000hrs)
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltage1
- 100V~240V AC,50/60Hz
02Input Power2
- 1400W@220V AC
- Power factor PF>0.9
03Light Source1
- Osram 60W, 7 in 1 (Qty 22pcs,2700-10000K,50000hrs)
04Dimmer1
- 0-100% Linear adjustment, pixel control
05Strobe1
- 1~25 F.P.S
06Other Effects3
- With wash, beam and pattern function integrated. Pattern effect mode
- (swirl kaleidoscope, snake and etc.), and beam effect by 8 or 36 facet prism
- Beam effect
07Pan And Tilt2
- Pan0°~540°, Tilt0°~220, speed adjustable, auto-position correction
- Lens wheel
- bi-directional continual rotation
08Control5
- International standard DMX512 signal, 5 pin interfaces and Ethernet interfaces
- DMX, Artnet, sACN and Klingnet and preset memory
- multiple built-in Chase effect
- 5 modes for selection, 25,41,157 and 173 DMX channels
- and 113 KLingNet designated channels
09Beam Angle1
- Mixing rod with high efficient convex lens 3°~ 68°
10Other Function10
- Lamp cooling
- Extruding fins+ fans to ensure efficient cooling for LED lamp
- thermal sensor in the head for real time LED temperature monitoring
- If the temperature is more than 85 Celsius
- the system will automatically shut off power from LED lamps
- Display
- TFT true color touch screen, Chinese/English menu, invertible
- with buttons Temperature control
- If LED lamps are over-temperature
- their power will be decreased by half
- If the temperature is normal, LED lamps will go back to full power
- Over-temperature protection
- built in NTC thermal sensor
- if over-temperature occurs, LED lamps stop working
11Ingress Protection1
- IP20
12Net Weight1
- 31Kg
13Operation Temperature1
- ambient temperature-200C~400C
14Accessories5
- Power cable 1 pc
- XLR connectors 1 Set Male and female
- Safety cord 1 Pc
- User manual 1 Pc
- Clamp 2 Pc Optional
15Color System1
- 6colors
- red, green, blue, amber, limeX2, cyan
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
XLED 6022 is a moving head wash lighting fixture with OSRAM 60W, 7 in 1(2700-10000K), 50000 hrs offering infinite color mixing effects and its ZOOM function meeting different requirements of stage designs. With effects like linear Dimmer; Pixel control; electronic strobe; zoom range(3°~68°); effects of kaleidoscope, swirls and other graphics; over-temperature protection.
