Sheet 05.994

PR Lighting · Other fixtures

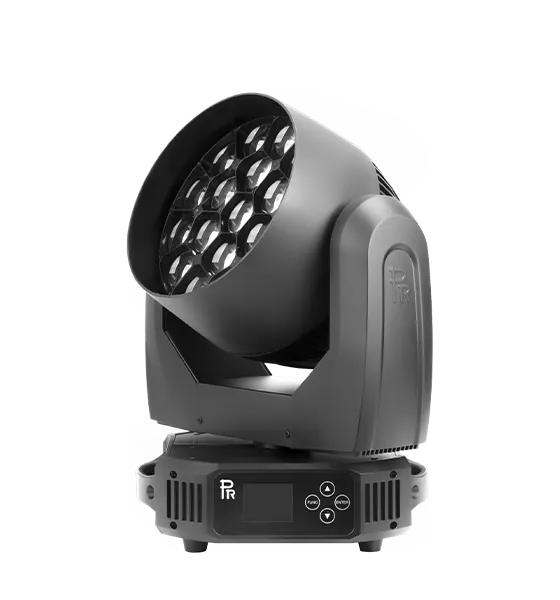

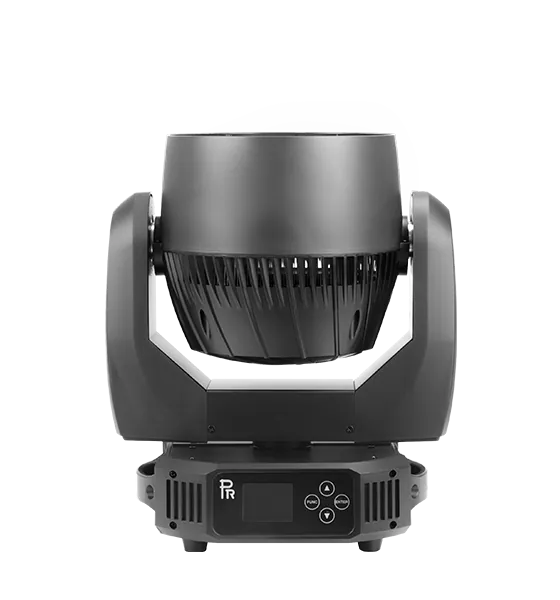

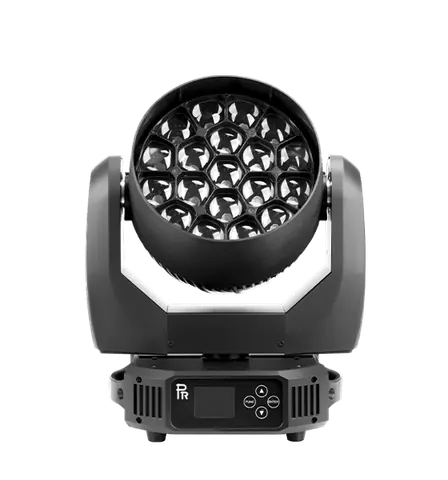

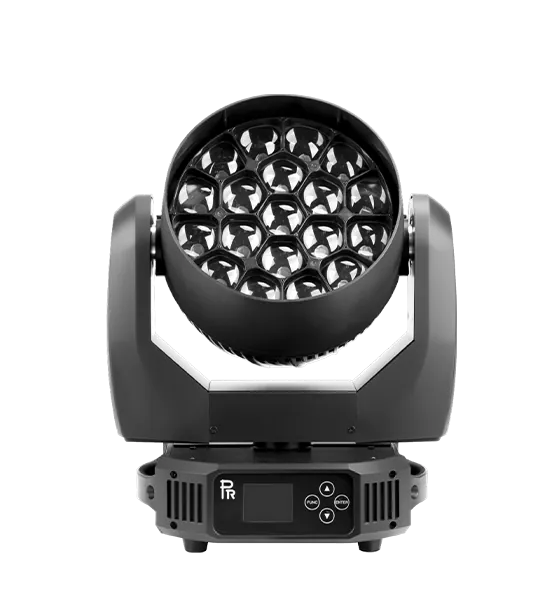

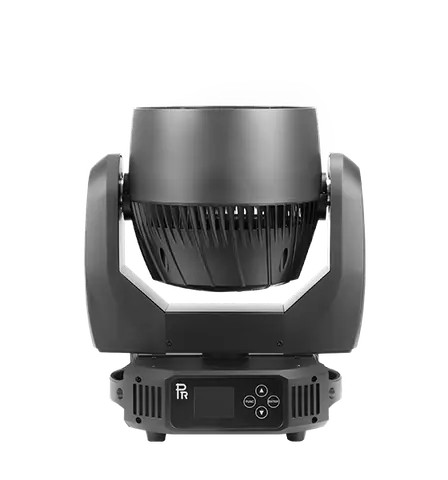

XLED 4019

Name: PR Lighting XLED 4019 PR-8124
Brand: PR Lighting

ModelPR-8124

XLED 4019 is a LED fixture using 19 pcs of 40W RGBW LED as its light source and has the beam angle between 4° and 40°.

PriceOn request

Request a quotation Discuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:15

PR Lighting XLED 40192:15

02SpecificationManufacturer's data · 14 groups · 46 values

What this product is, in numbers.

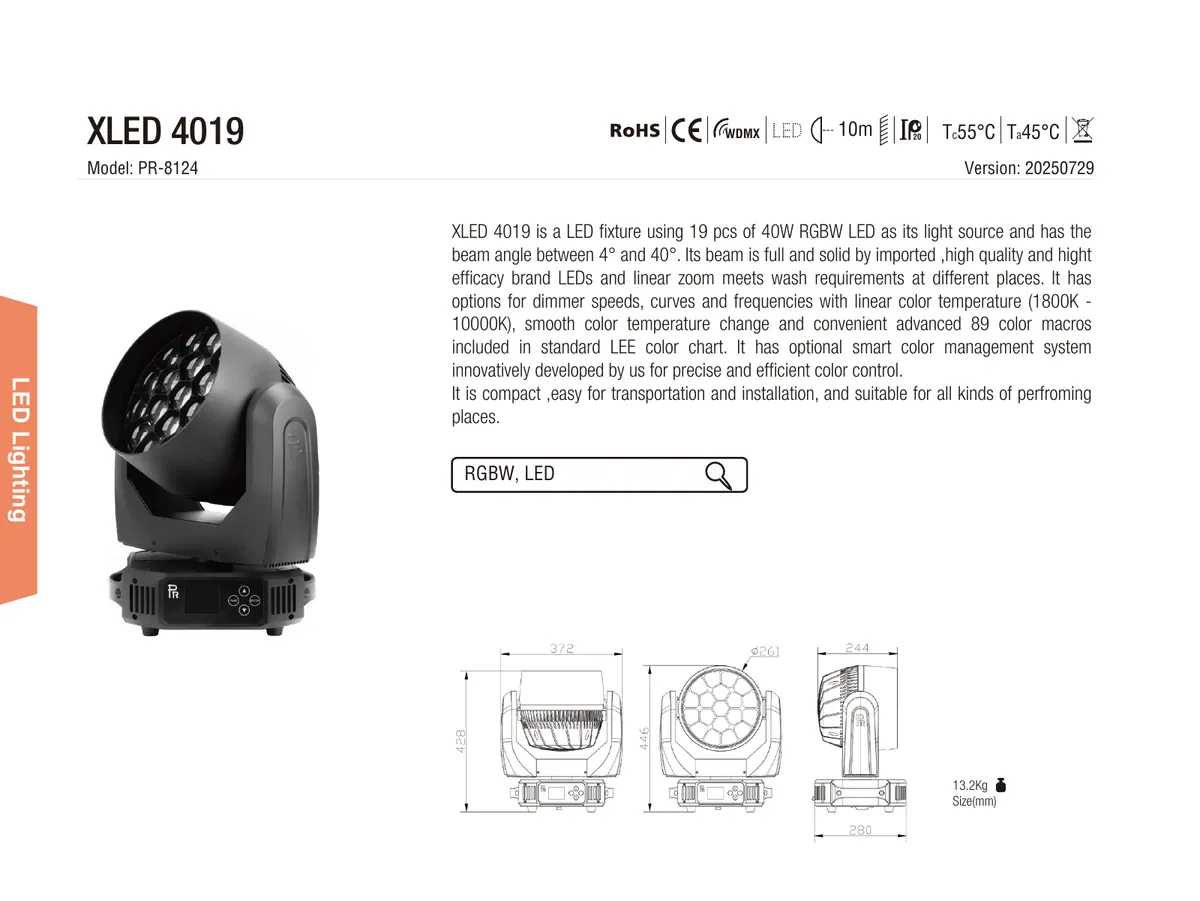

PDFDatasheetEN · 2 pages · 365 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS4

Rate voltage: 100V~240V AC,50/60Hz
Rate power: 900W @ 220V AC
Current at maximum: 4.0A @ 220V AC
Power factor: PF>0.9

02THE SPECIFICATIONS OF THE LIGHT SOURCE4

Brand: 40W, RGBW IN ONE
Qty: 19pcs
Ra: Optional Ra≥90
Rated life: 50000hrs

03HEAD MOVEMENT3

Pan: 540°(16 bit control)
Tilt: 240°(16 bit control); Pan and Tilt invertible and swappable with auto-positioning function

04DIMMER4

Electronic dimmer,0-100% linear (16Bit control)

3 dimmer speeds

5 dimmer curves

Dimmer frequency 1.2K~25K adjustable for high speed 4K video cameras

05COLOR TEMPERATURE1

Color Temperature 1800K-10000K , linear control

06STROBE1

Electronic strobe,0.3-25 F.P.S. , with built-in pulse strobe

Show the full specificationHide the rest of the specification8 more groups · 29 values

07LENS ANGLE2

Beam Angle(1/2 peak) θ1/2: 4 °~40°
Field Angle(1/10 Peak) θ1/10: 7°~60°

08FAN MODE1

Standard mode and theater modes. Theater mode is quiet mode

09CONTROL7

International Standard DMX512 signal, 5 pin DMX512 interfaces

RDM protocol

24 channels in short mode,31channels in standard mode, and 41 channels in extended mode

Master/slave synchronized mode

Stand-alone mode, Preset mode, Single Scene mode

DMX 512 Wireless control

ArtNet and sACN(optional)

10OTHER FUNCTIONS12

Color touch display, English/Chinese menus, Display auto-lock while standby to avoid unintended touch

Pan and Tilt speeds adjustable;

Pan and Tilt invertible and swappable;

Over temperature protection

Fixture time and DMX 512 channel value displayed

Software versions displayed, display invertible

Sensor diagnostic system;

Intelligent fan cooling system;

Input signal insulated ;

Firmware upgrade via DMX cable ;

LED ring control function.

Smart color management system(optional)

11HOUSING1

High temperature ABS, IP20

12WORKING TEMPERATURE1

Ambient temperature 45°C at maximum

13WEIGHT2

13.2 Kg
【Version: 2050729】

14General3

RGBW linear color mixing with built-in macros
Color Temperature macros: optional 2700K、3000K、3500K、4000K、4500K、5000K、5700K
Color Macros: 89 color options included in standard color chart

03DescriptionManufacturer's description

What it is.

XLED 4019 is a LED fixture using 19 pcs of 40W RGBW LED as its light source and has the beam angle between 4° and 40°. Its beam is full and solid by imported ,high quality and hight efficacy brand LEDs and linear zoom meets wash requirements at different places. It has options for dimmer speeds, curves and frequencies with linear color temperature (1800K - 10000K), smooth color temperature change and convenient advanced 89 color macros included in standard LEE color chart. It has optional smart color management system innovatively developed by us for precise and efficient color control. It is compact ,easy for transportation and installation, and suitable for all kinds of perfroming places.

04Documents2 files · 5.7 MB
