TH-347

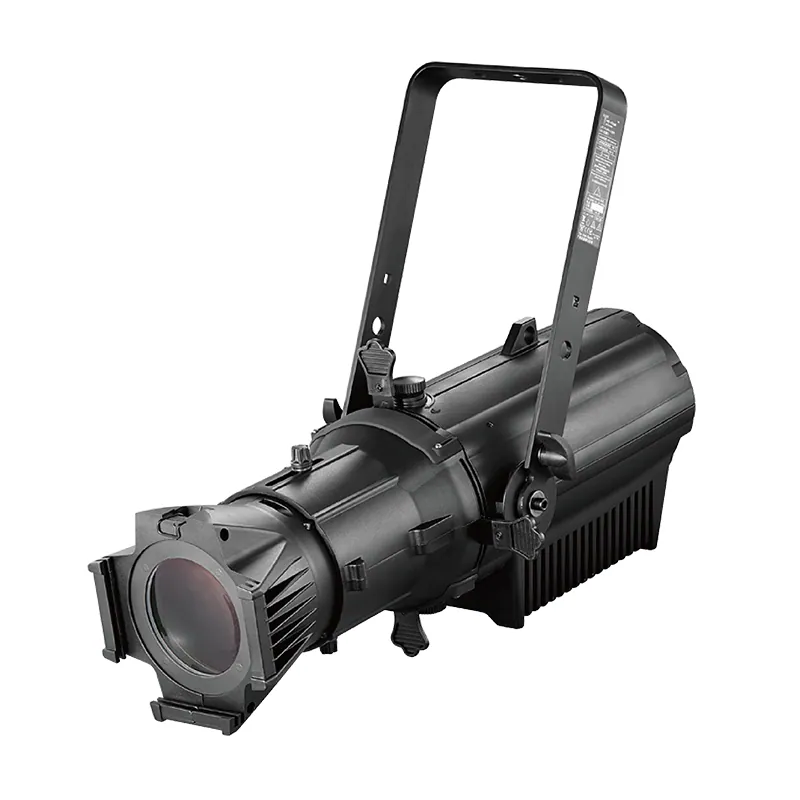

Bi-color Die-casting Aluminum LED Profile Spot Light

Power supply: AC100-240V
Ingress protection: IP20
DMX channels: 2CH
Protocols: RDM / DMX
Colour temperature: 3000K-6000K
Net weight: 10.5kgs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 2 groups · 24 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01General14

Light Source
LED POWER: 600W
LED Color: CW+WW(2in1 300W) COB LED
Color Temperature: 3000K-6000K
Color Rendering Index(CRI): Ra ≥ 95
LED Life Time: over 50,000 hours
Power supply
Voltage: AC100-240V
Max. power: 300W
Optics
Fixed Lens: 19° /26° /36° /50° (optional)
Focus: Can be adjusted by hand; High-quality optical system
Dimmer Effect
Dimming Curve: 4 kinds
Dimming Frequency: 500HZ – 25000HZ optional
Features
Light body: Die-casting aluminum
Touch screen: LCD with touch screen

02Control10

Control Protocol: RDM / DMX
Control System: DMX, Auto run, and Master/Slave
DMX Channels: 2CH
Working Environment
Working Temperature: -10~40°C
Cooling system: No noise fan (copper tube)
IP Grade: IP20
Package
Net Weight: 10.5kgs
Gross Weight: 12.5kgs
Packing Size: 72*33*31.5cm (1pc/carton)
Warranty Time: 1 Year warranty

02DescriptionManufacturer's description

What it is.

TH-347 is a bi-color LED profile spotlight designed for professional theatre, broadcast, and studio applications. Combining high color fidelity, tunable white light, and flicker-free dimming, it delivers precise illumination and consistent visual performance, making it an ideal solution for stage productions, television studios, and film environments.

Features

The 3000K–6000K tunable white COB LED engine with CRI Ra ≥95 delivers accurate color reproduction and natural skin tones for both live and camera applications.

Interchangeable 19°, 26°, 36°, and 50° lenses with manual focus provide flexible beam control for different stage and studio requirements.

Four dimming curves and an adjustable PWM frequency from 500Hz to 25,000Hz ensure smooth, flicker-free performance for professional video production.

The LCD touchscreen, together with DMX and RDM control, enables intuitive operation and seamless system integration.

A die-cast aluminum housing and low-noise copper-tube cooling system ensure reliable performance with quiet operation.
