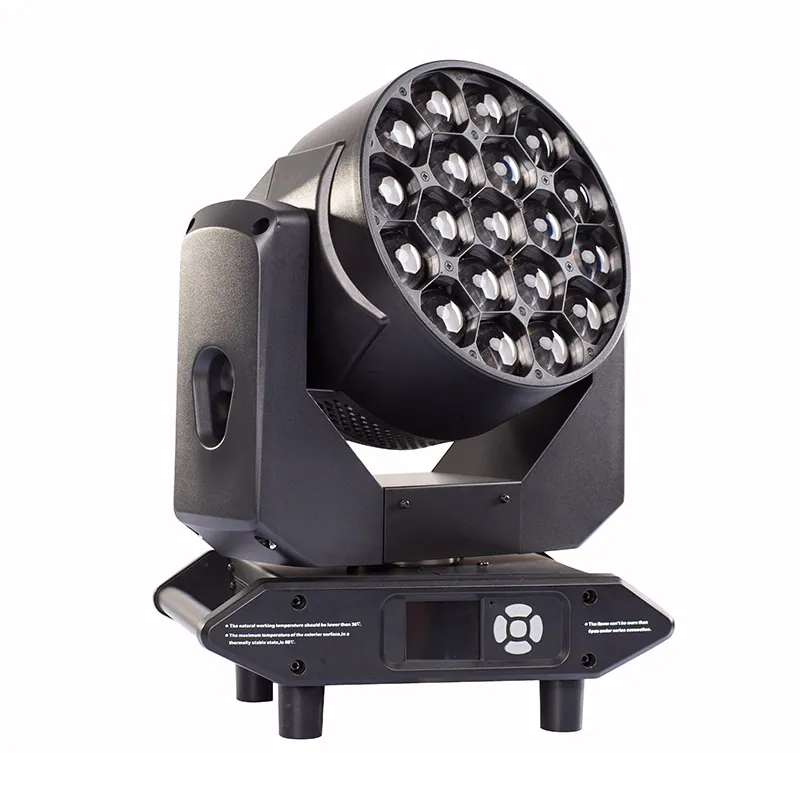

Sheet 05.712
LIGHT SKY · Wash
TX1920-HC
Light Chip: TYANSHINE 19x20W White 3000K-6000K LED
- Light source
- TYANSHINE 19×20W White 3000K+6000K LED
- Power supply
- AC100V-240V~/ 50-60Hz
- DMX channels
- Standard-13CH
- Net weight
- 10.6kg G.W : 12.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
TX1920-HCPrice on requestRequest a quotation
01VideoManufacturer's video · 1:42
LIGHT SKY TX1920-HC: the manufacturer's video
02SpecificationManufacturer's data · 5 groups · 36 values
What this product is, in numbers.

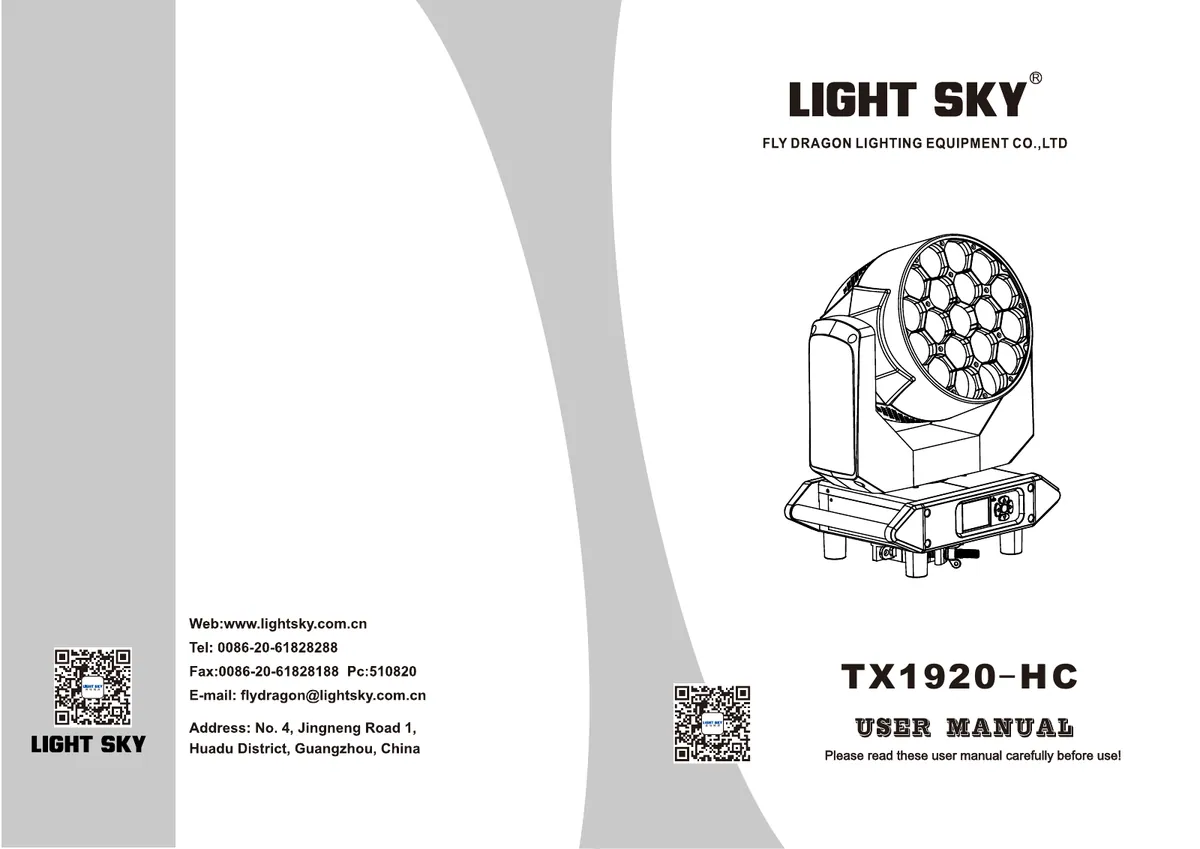

PDFUser manualEN · 18 pages · 3.9 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source / Power System6
- Voltage
- AC100V-240V~/ 50-60Hz
- Power
- 410W,PF0.98
- LED chip
- TYANSHINE 19×20W White 3000K+6000K LED
- Average life
- 30000h
- Optical system
- High precision combination structure, high
- permeable glass light rod +PMMA lens
02Color / GOBO / Effects6

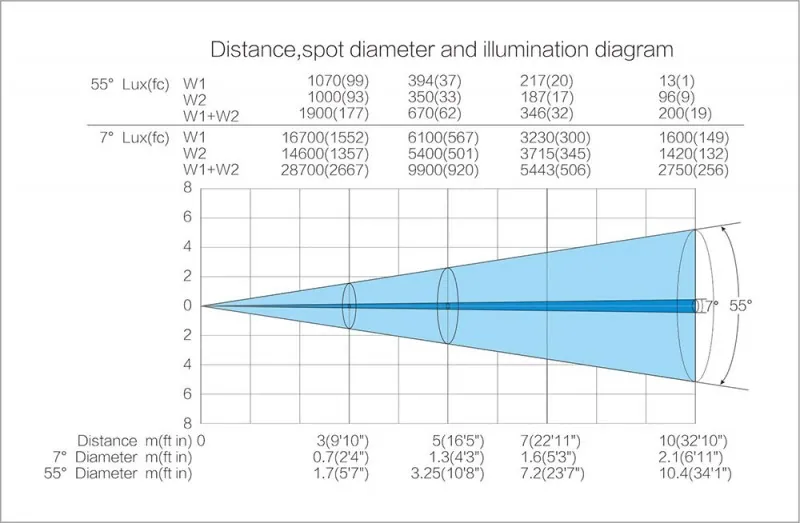

- Zoom angle
- 7°~55°
- Color temperature adjustable range
- 3000~6000K
- CRI
- Ra≥90
- Zoom system
- Linear electric zoom
- Strobe
- 1-30Hz electronic strobe and random strobe
- Dimmer
- Electronic dimmer,provides four dimming options;
03Control System11
- Pan/Tilt
- Pan/Tilt Travel: 540°/210°
- Pan/Tilt Fine
- 2.11°/0.82°
- Pan/Tilt Speed
- 2.5S/1.0S
- Control Mode
- DMX512、RDM
- Channel
- Standard-13CH
- Display
- 2.4 inches LCD12864 display screen. With
- Chinese and English two version language.
- Working mode
- Silent mode;Standard mode; High Brightness mode
- Intelligent control
- Display board can record device’s
- using time , show device’s temperature, channel
- data and software version .
04Other functions6
- Error alarm
- Automatic alarming for fixture error
- Software upgrade
- Upgrade via DMX connector
- Magnetic encoder
- non-touch magnetic rotation encoder ,
- 100% correct position memory
- RDM
- RDM signal two-way transmission
- Safety Devices
- Over current and overheat protection
05Appearance Parameters7
- Outlooking
- Metal base and anti-fire plastic
- IP rate
- IP20

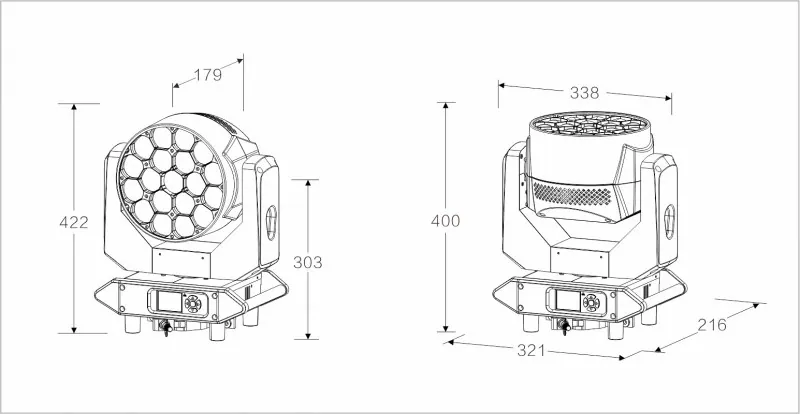

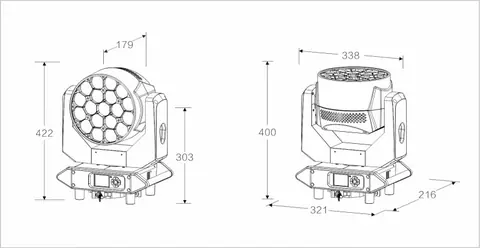

- Light size
- 338×216×422mm
- Box Size
- 480×400×280mm
- N.W
- 10.6kg G.W : 12.6kg
- Flycase Size(4pcs in 1)
- 920×580×615mm
- N.W
- 42.4kg G.W : 78.8kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
FEATURES
High brightness,long distance,huge range wash
Color temperature 3000-6000K adjustable
CRI: Ra≥90
7-55° zoom。Wide range zoom
Compact ,easy for installation and using.
04Documents9 files · 5.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
05Related products
In the same range.

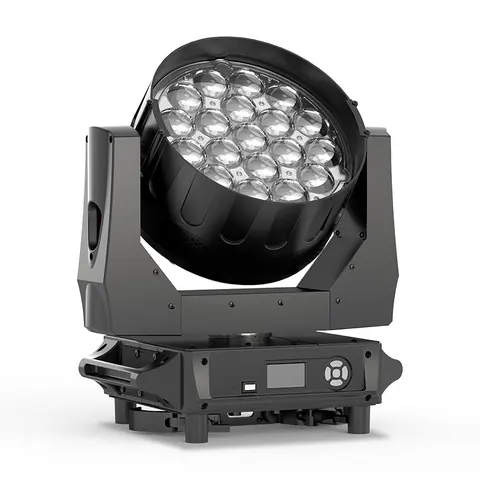

EQ-711LIGHT SKYTX1920 ZOOMWashLight sourceTYANSHINE 19×20W RGBW 4 in 1 LEDNet weight10.6kg/pcsPower supplyAC100V-240V~/ 50-60Hz
