TX1940 ZOOM

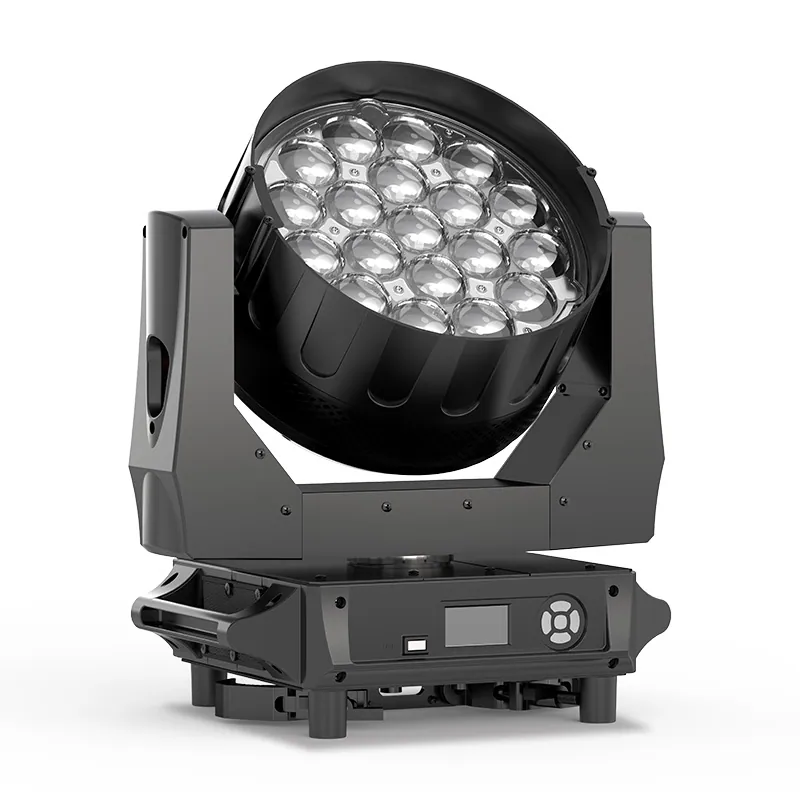

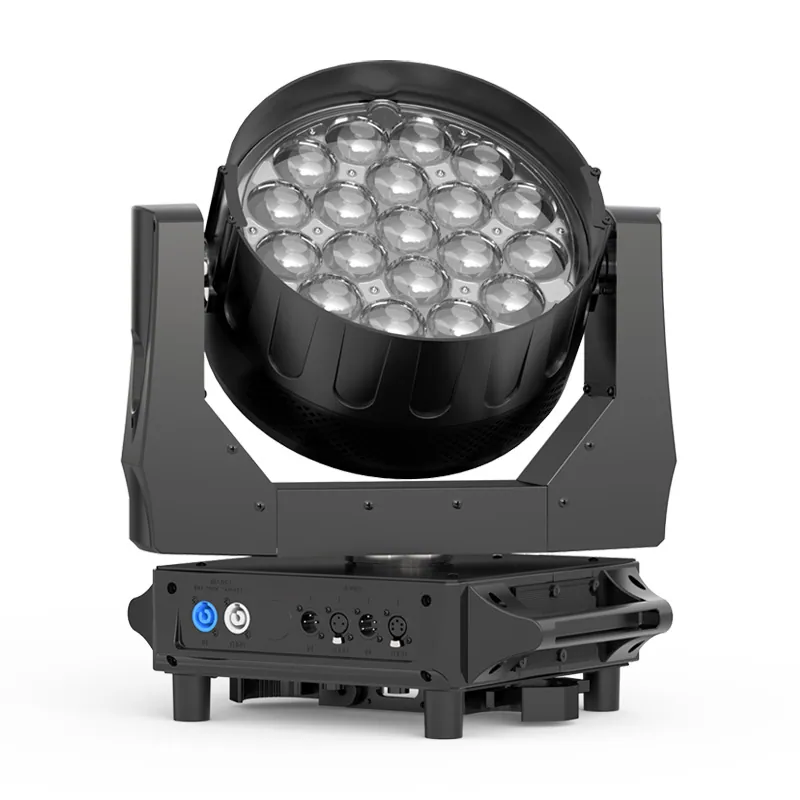

The Light Sky TX1940 ZOOM is a high-brightness, compact, and energy-efficient LED zoom moving head light for color rendering or backdrop lighting on stage.

Light source: OSRAM 40W,RGBW 4 in 1 LED chip
Power supply: AC100V~240V 50/60Hz
Beam angle / zoom: Zoom function min.5°,max.55°.
Protocols: DMX512, RDM, Stand-alone mode ,Wireless DMX512(optional)
Net weight: 21kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 0:58

LIGHT SKY TX1940 ZOOM0:58

02SpecificationManufacturer's data · 5 groups · 30 values

What this product is, in numbers.

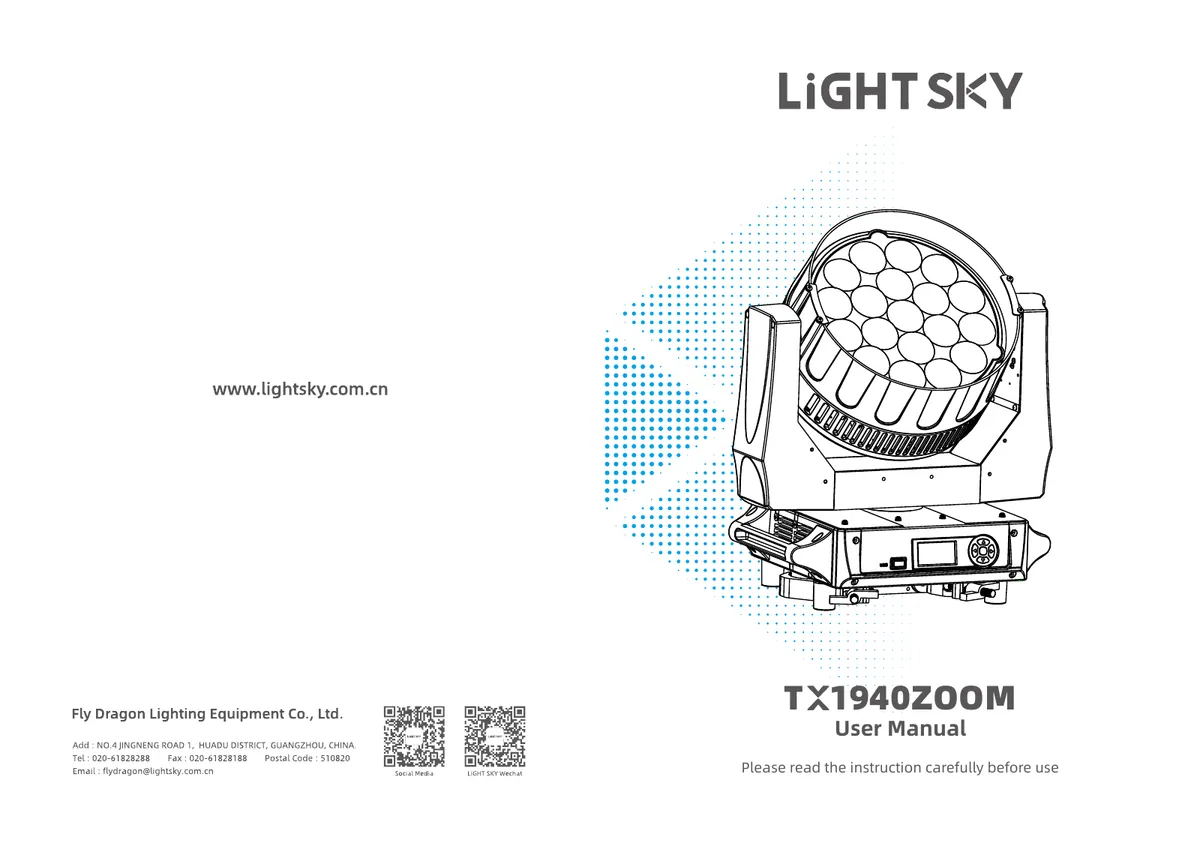

PDFUser manualEN · 24 pages · 8.5 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source / Power System7

Voltage: AC100V~240V 50/60Hz
Power: 632W
Total lumen output: 10715 Lm
Power factor: PF0.985
Light source: OSRAM 40W,RGBW 4 in 1 LED chip
LED QTY: 19PCS
Lifespan: 30% weaker after 20000h.

02Color / GOBO / Effects4

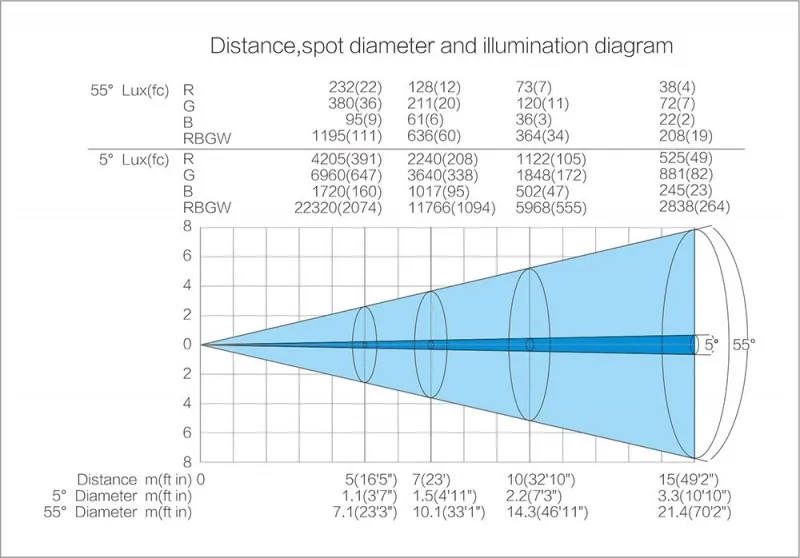

Beam angle: Zoom function min.5°,max.55°.
Color: RGBW macro color system.
Strobe: 1-30 times/ second electronic strobe and random strobe.
Dimmer: 65536 class electronic dimmer

03Control System4

Pan/Tilt: 540°/2.5 s, 220°/1.0s
Control protocol: DMX512, RDM, Stand-alone mode ,Wireless DMX512(optional)
Channel mode: Standard(13CH)、Extended(23CH)、Simple Mode(9CH)、HSIC Mode(12CH)
Focus and Lens: Combination lens with high precision,linear adjustment

04Other functions8

Display Menu: 1、The display panel adopts a 2.0-inch LCD12864(LCD screen) in both Chinese and English, which facilitates the operation and browse.; 2、Menus can record fixture’s using time and show its temperature, channel data and software version .; 3、The display menu setting can edit the procedure
IP set: equipped with long-life battery, IP could be set without power.
Software upgrade: upgrading software by USB.
IP rate: IP20
Fixture Protection: The power would be turned off automatically for fixture’s overheating or failed operation of cooling system.
Cooling: Forced ventilation via axial fans.

05Appearance Parameters7

Housing: adopt ABS anti-fire plastic.

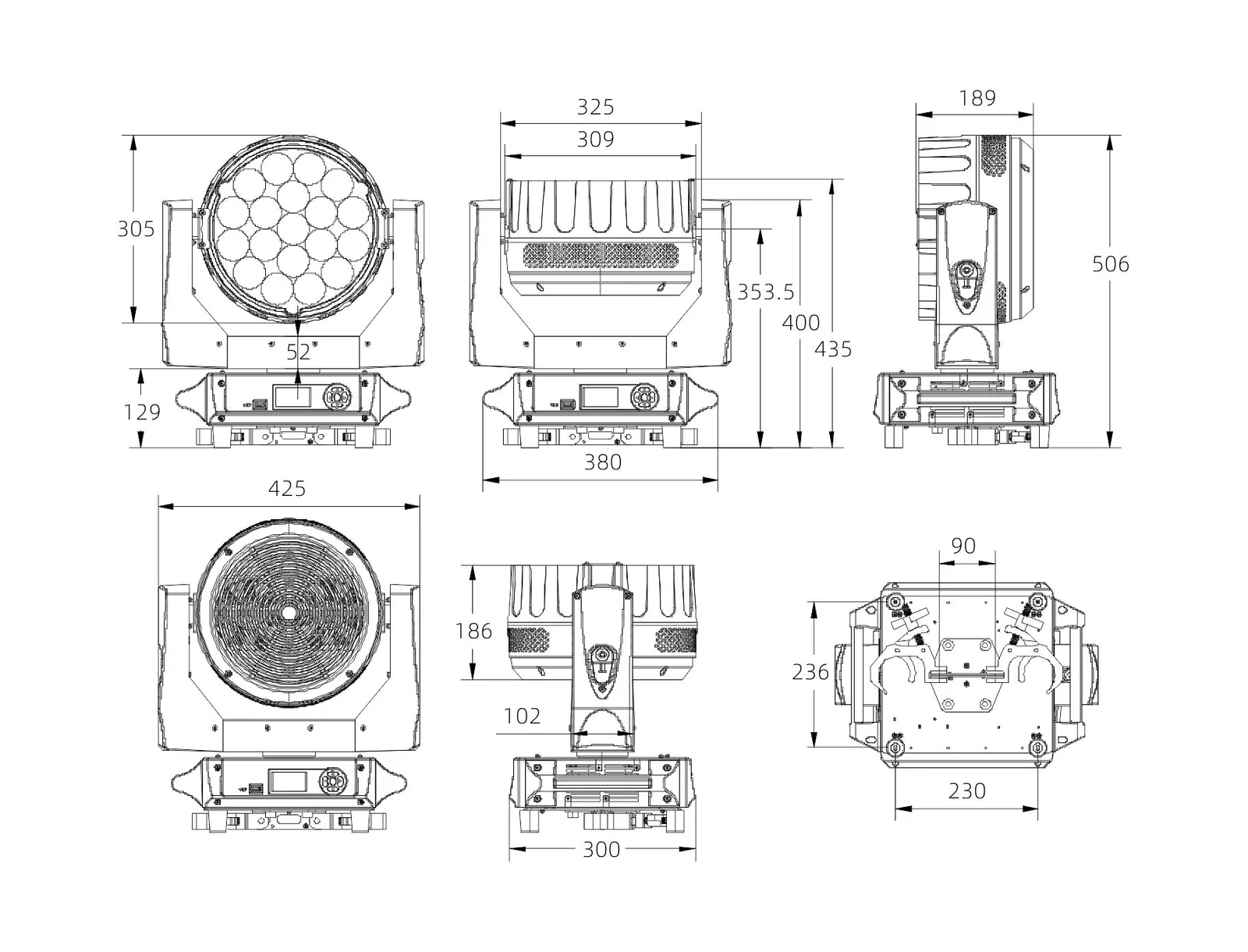

Light Dimension: 425×300×506 (mm)
N.W: 21kg
Carton dimension: 580×500×375(mm)
G.W with carton: 25.8kg
Flycase dimension: 880X500X640(mm)
G.W with fly case: 75kg(2 in 1)

03DescriptionManufacturer's description

What it is.

The Light Sky TX1940 ZOOM is a high-brightness, compact, and energy-efficient LED zoom moving head light for color rendering or backdrop lighting on stage. Light sky has been providing intelligent lighting solutions for the entertainment and architectural industries; you will find all the information you need to know about the wash moving head light if you are interested in moving head wash zoom. Please get in touch with us, and our team of experts will get back to you as soon as possible.
