Sheet 05.364
Lucky Tone · Public address

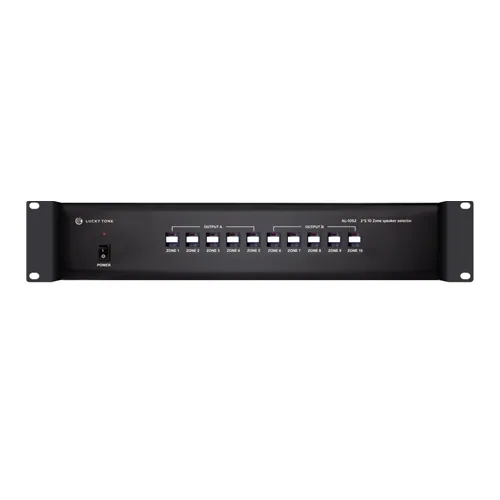

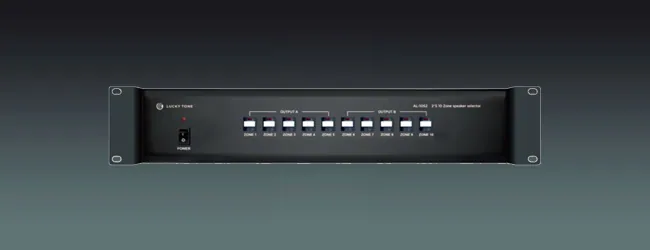

2*5 10 Zone Speaker Selector
ModelAL-10S2
● High power handling and flexible model with 2 amplifier inputs and 2 groups of speaker outputs the AL-10S2
- Dimensions
- 89(H) x 483(W) x 366(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2*5 10 Zone Speaker SelectorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- MODEL
- AL-10S2
- Input
- 2 program channels, 70/100V audio signal
- Speaker Output
- 2 groups of 5 zones, 70/100V audio signal
- Priority Bus
- N/A
- Power Handling
- 1.5KW total capacity, 150W per zone
- Alarm Output
- N/A
- Controls
- 10 pushbutton zone selectors, 1 power switch
- Power Requirement
- 110~120V or 220~240V AC, 50/60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 366(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● Two 5-zone speaker selectors with separate audio sources or as a 10-zone selector with a single audio source.
03Documents1 file · 586 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
