Sheet 05.374
Lucky Tone · Public address

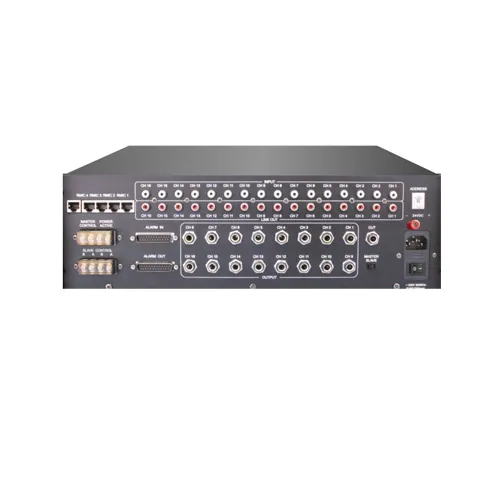

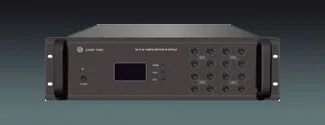

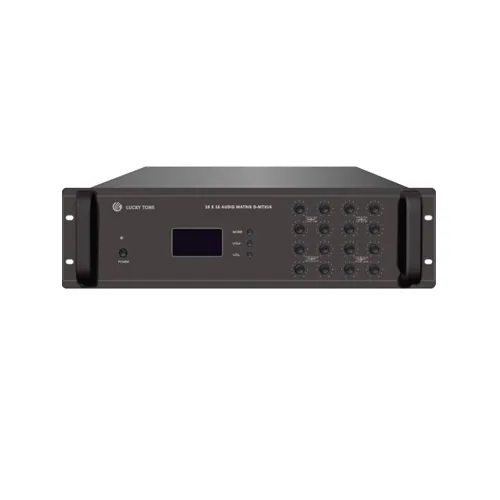

16 x 16 Audio Matrix
ModelD-MTX16
● A powerful Audio Matrix to multiple sources distribution with scheduled broadcast
- Frequency response
- 60Hz – 16kHz (+/- 3dB)
- Dimensions
- 133(H) x 483(W) x 390(D) mm
- Weight
- 7.10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
16 x 16 Audio MatrixPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- MODEL
- D-MTX16
- Input
- 16 channels: 1 to F inputs,EMC2 (for emergency paging)
- Output
- 16 channels:(1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 outputs)
- Frequency Response
- 60Hz – 16kHz (+/- 3dB)
- S/N Ratio
- N/A
- THD
- N/A
- Indicators
- LCD display, power LED
- Protection
- AC Fuse: 0.5A
- Power Consumption
- 15~20W
- Power Requirement
- 110-120V or 220-240V AC, 50/60 Hz; 24VDC
- Dimensions
- 133(H) x 483(W) x 390(D) mm
- Built-in Dimensions
- 3U rack 19 inch
- Net Weight
- 7.10kg
- Gross Weight
- 8.40kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- ● Can be simulated in UI of D-COM and achieve
- ● central management through RS-485
- ● 16 audio inputs and 16 audio outputs
- ● With LCD display for convenient monitoring and controls
- ● Priority bus for zone paging and emergency alarm
