Sheet 05.375
Lucky Tone · Public address

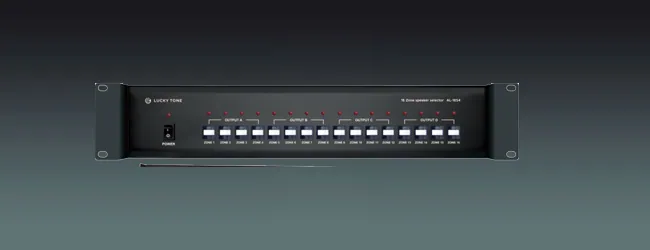

16 Zone Speaker Selector
ModelAL-16S4
This speaker selector controls up to 16 speaker outputs and 4 audio inputs.
- Dimensions
- 89(H) x 483(W) x 366(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
16 Zone Speaker SelectorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- MODEL
- AL-16S4

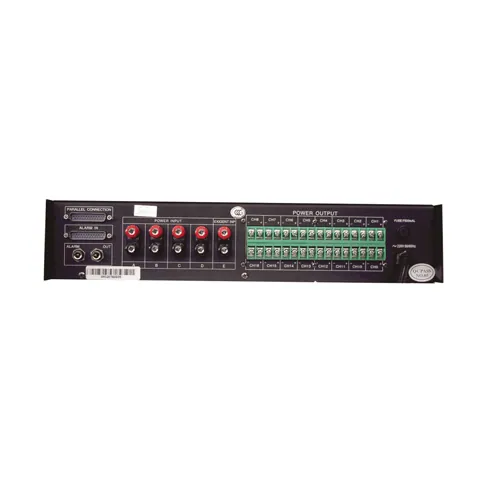

- Input
- 4 program and 1 priority channels, 70/100V audio signal
- Speaker Output
- 4 groups of 4 zones, 70/100V audio signal
- Priority Bus
- 16 channels, activated by 0V signal
- Power Handling
- 1.5KW total capacity, 375W per channel
- Alarm Output
- 0V signal

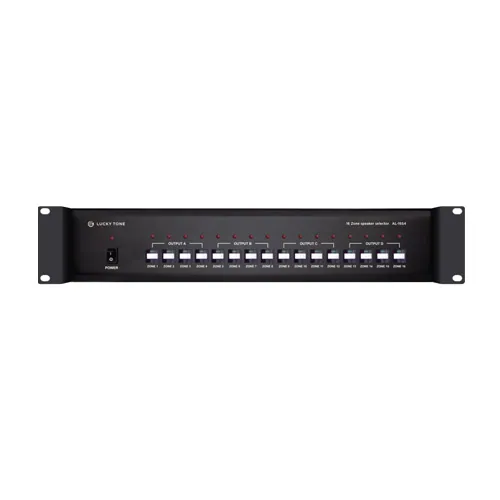

- Controls
- 16 pushbutton zone selectors, 1 power switch
- Power Requirement
- 110~120V or 220~240V AC, 50/60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 366(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
Flexible multi-input speaker selector arranged in a 4 x 4 matrix with priority override. 16 speaker zones are divided into 4 groups, each group can have a separate audio source.
A priority bus is provided to mute background music for zone paging and emergency alarms.
03Documents1 file · 586 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
