Sheet 05.362
Lucky Tone · IP, SIP and ONVIF

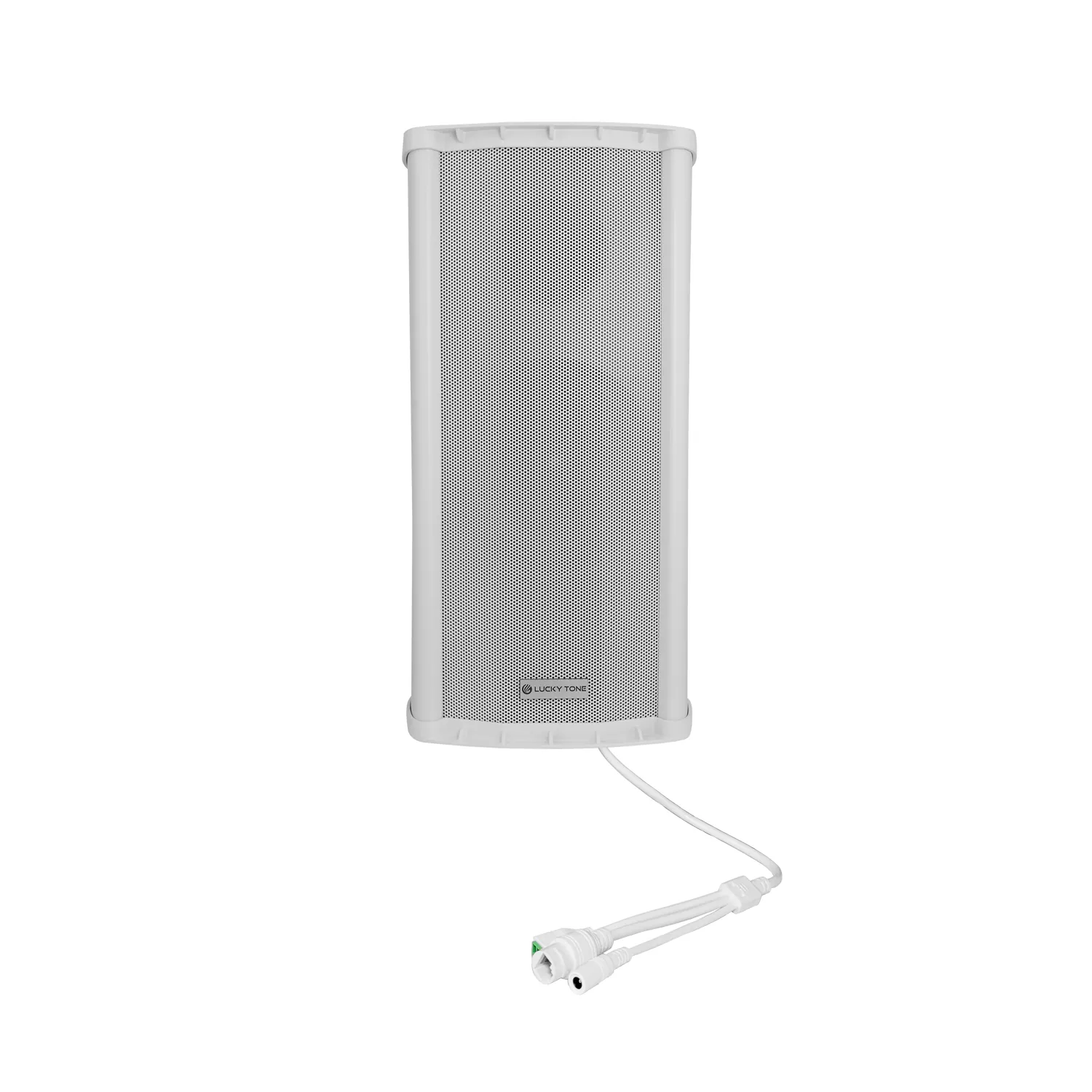

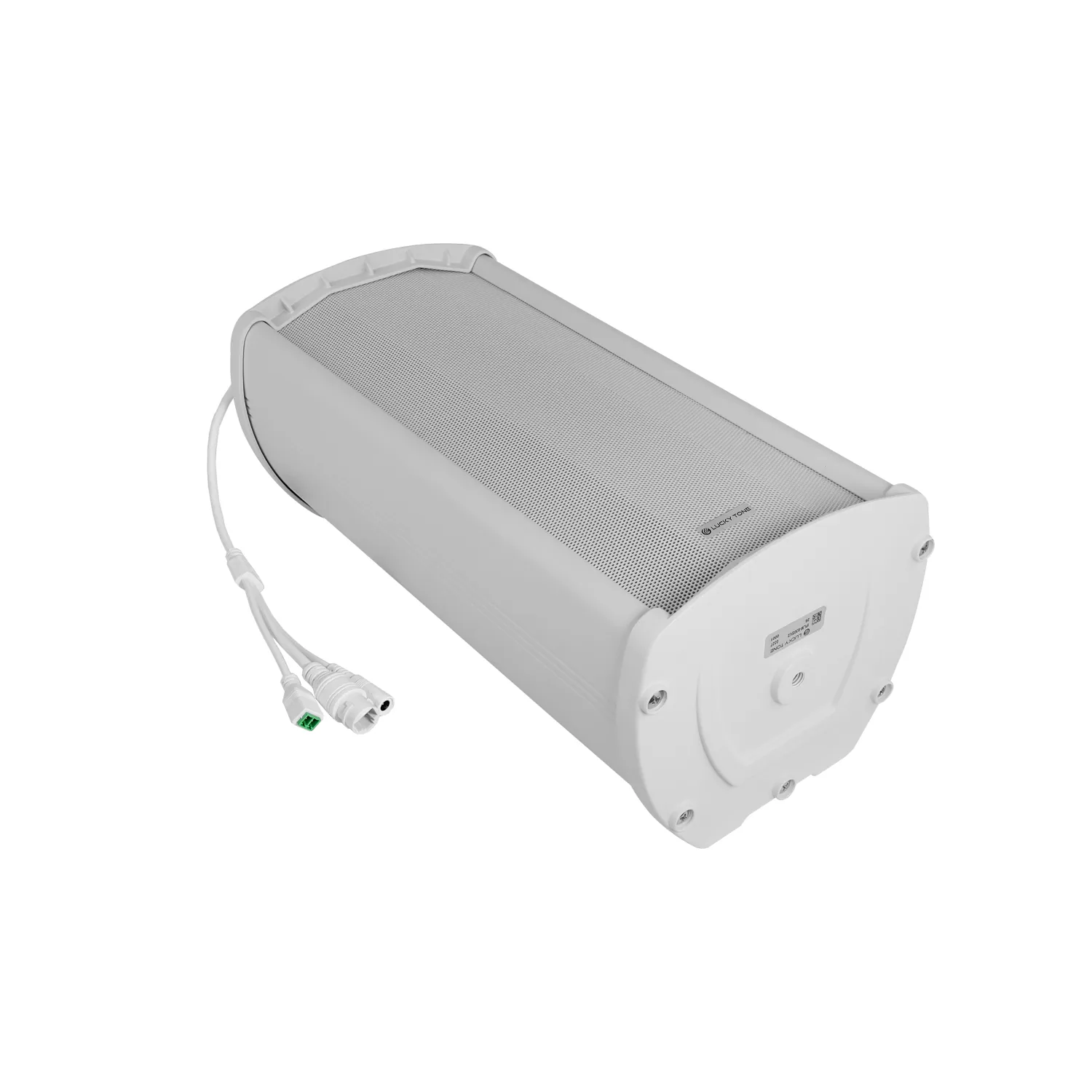

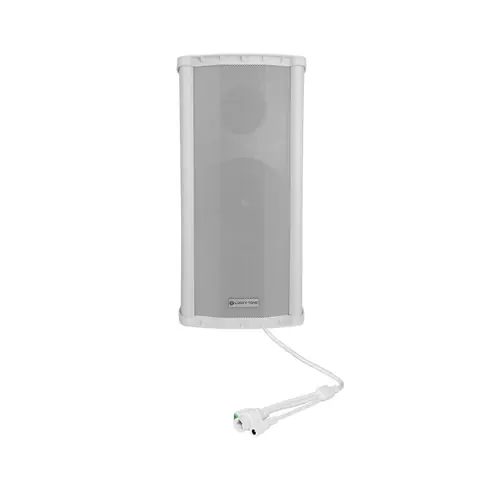

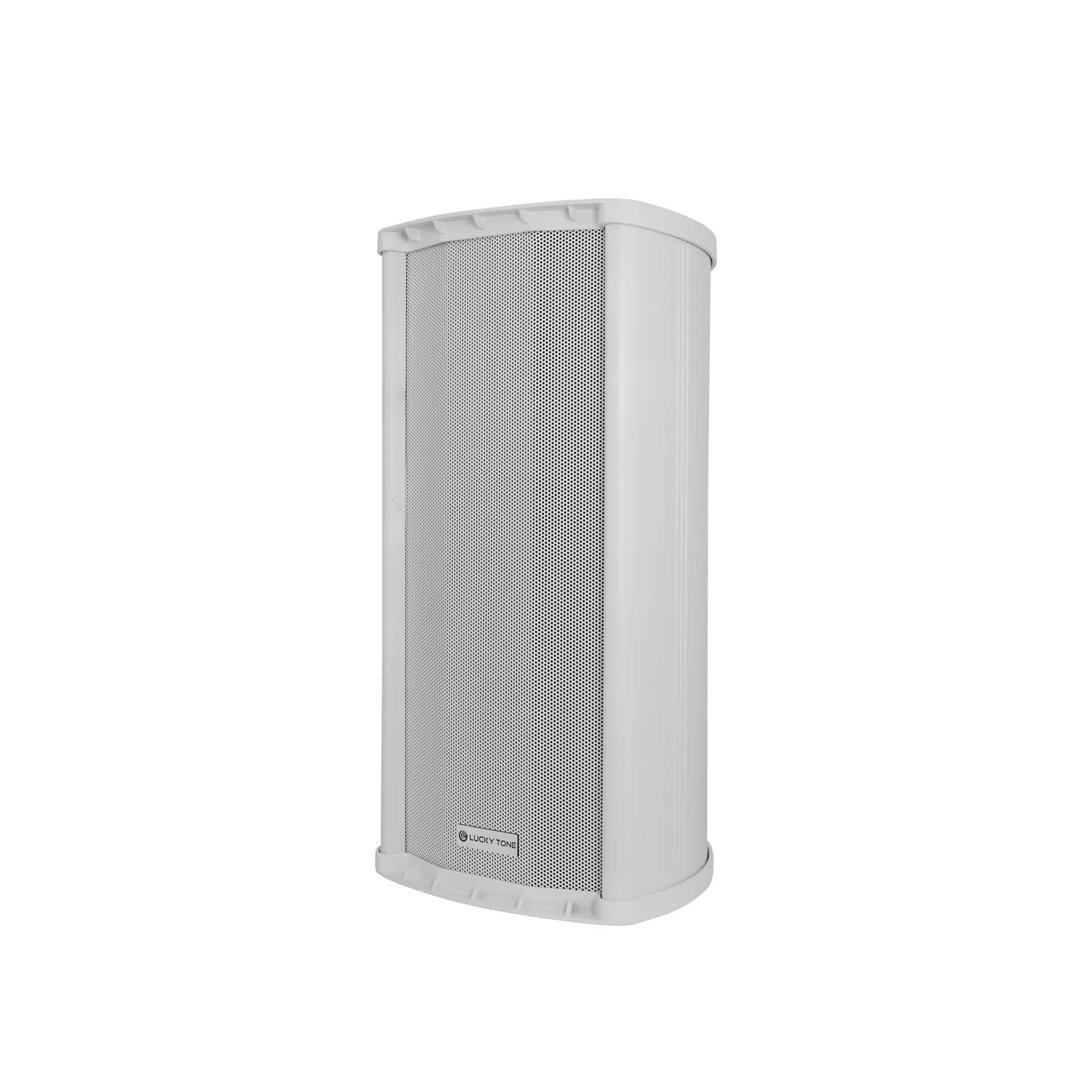

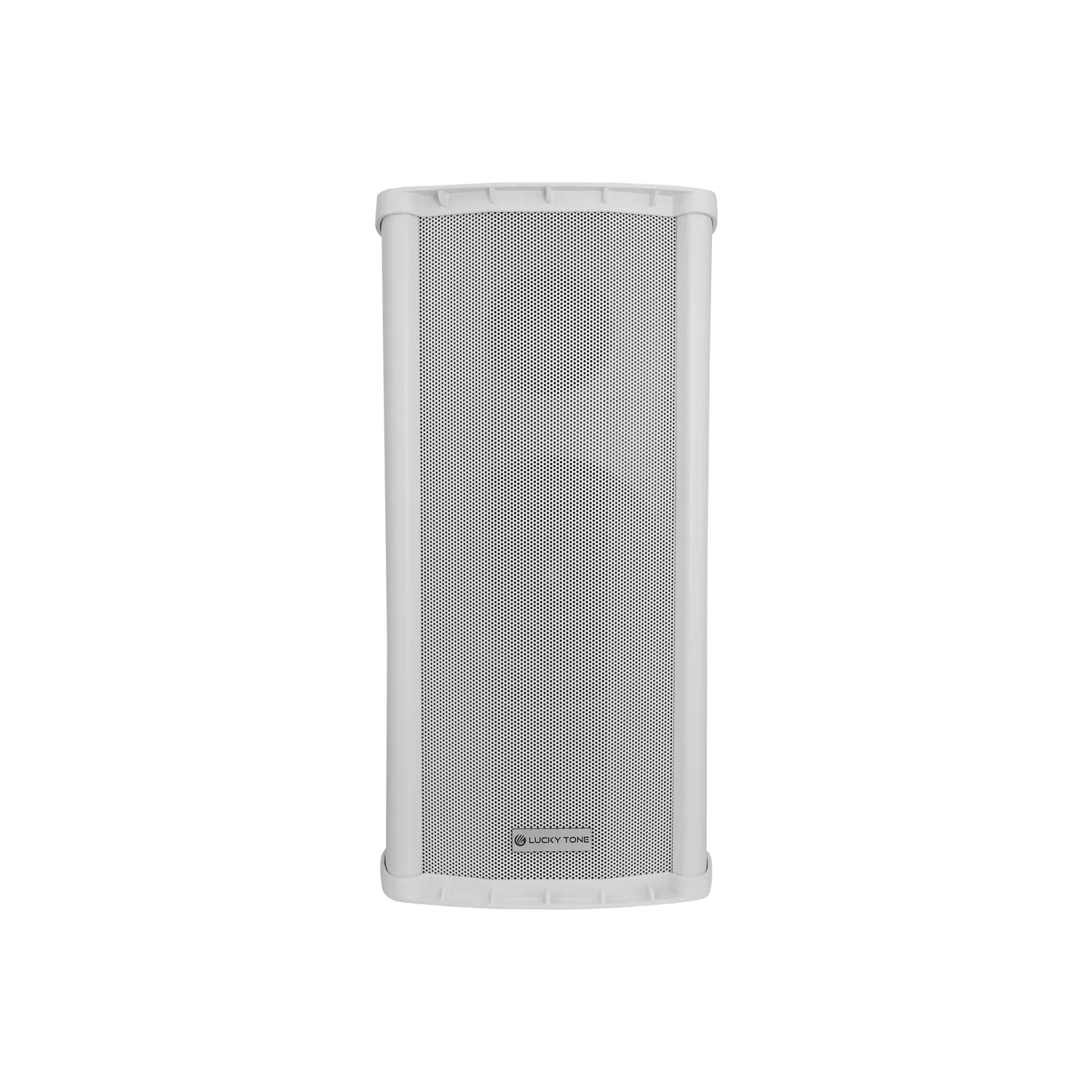

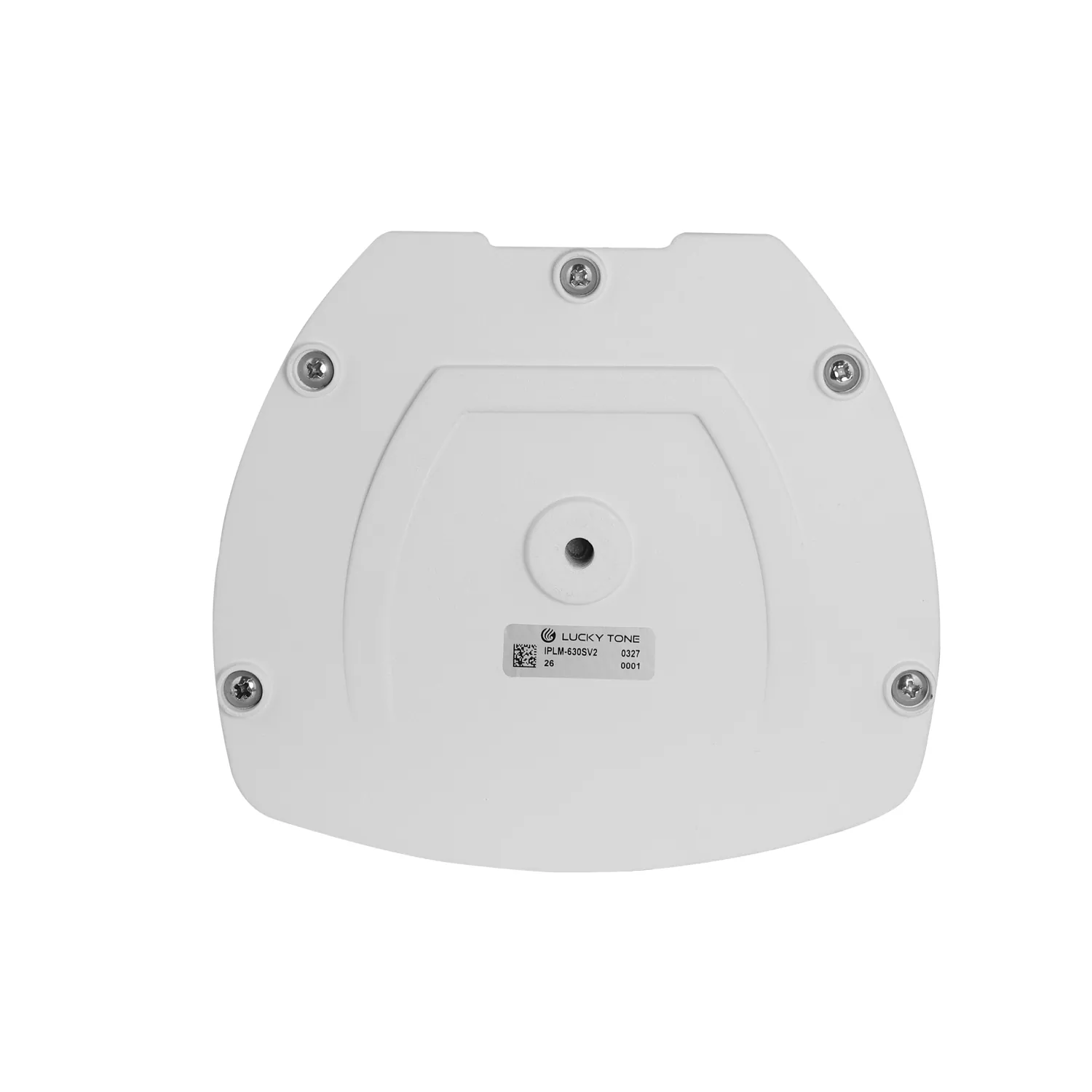

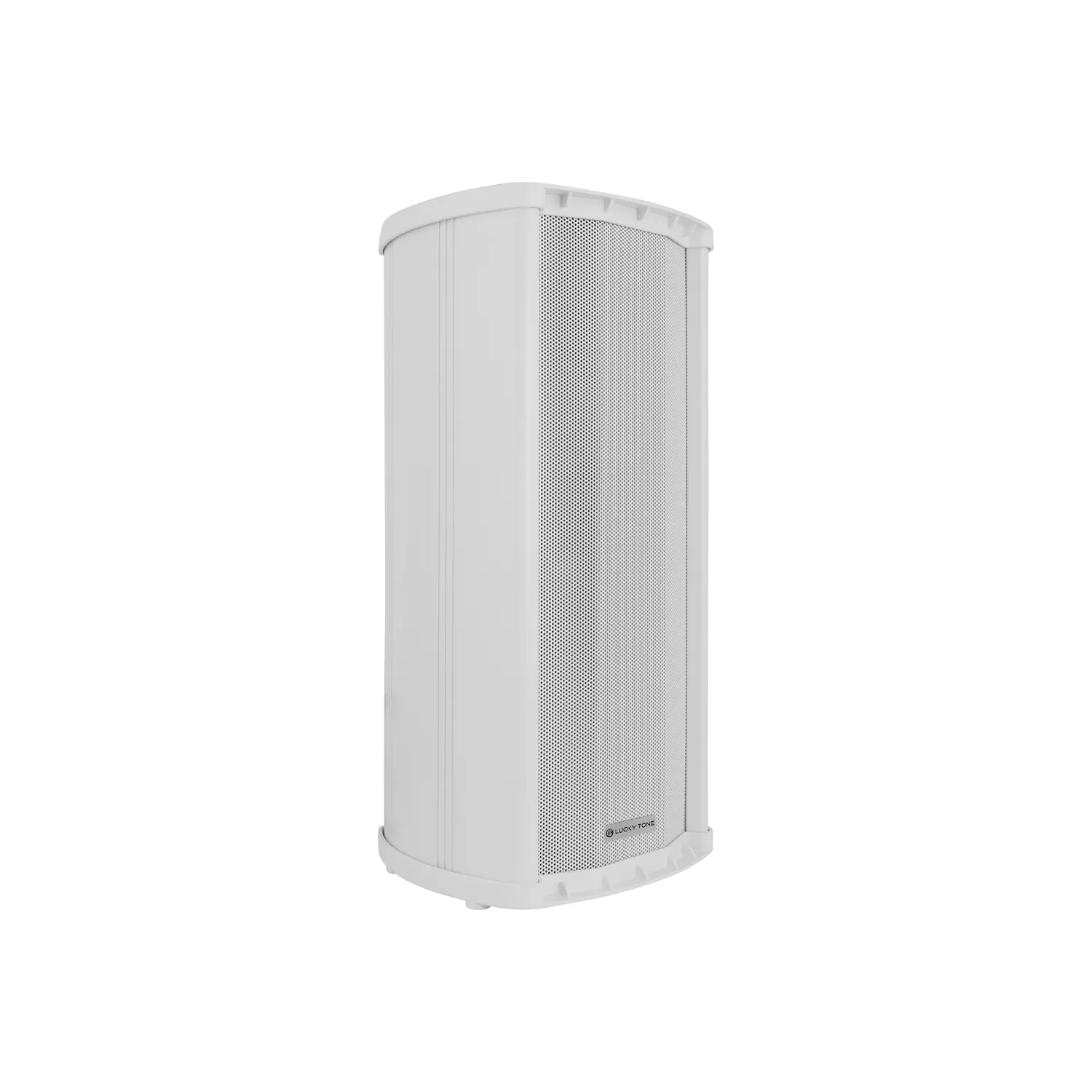

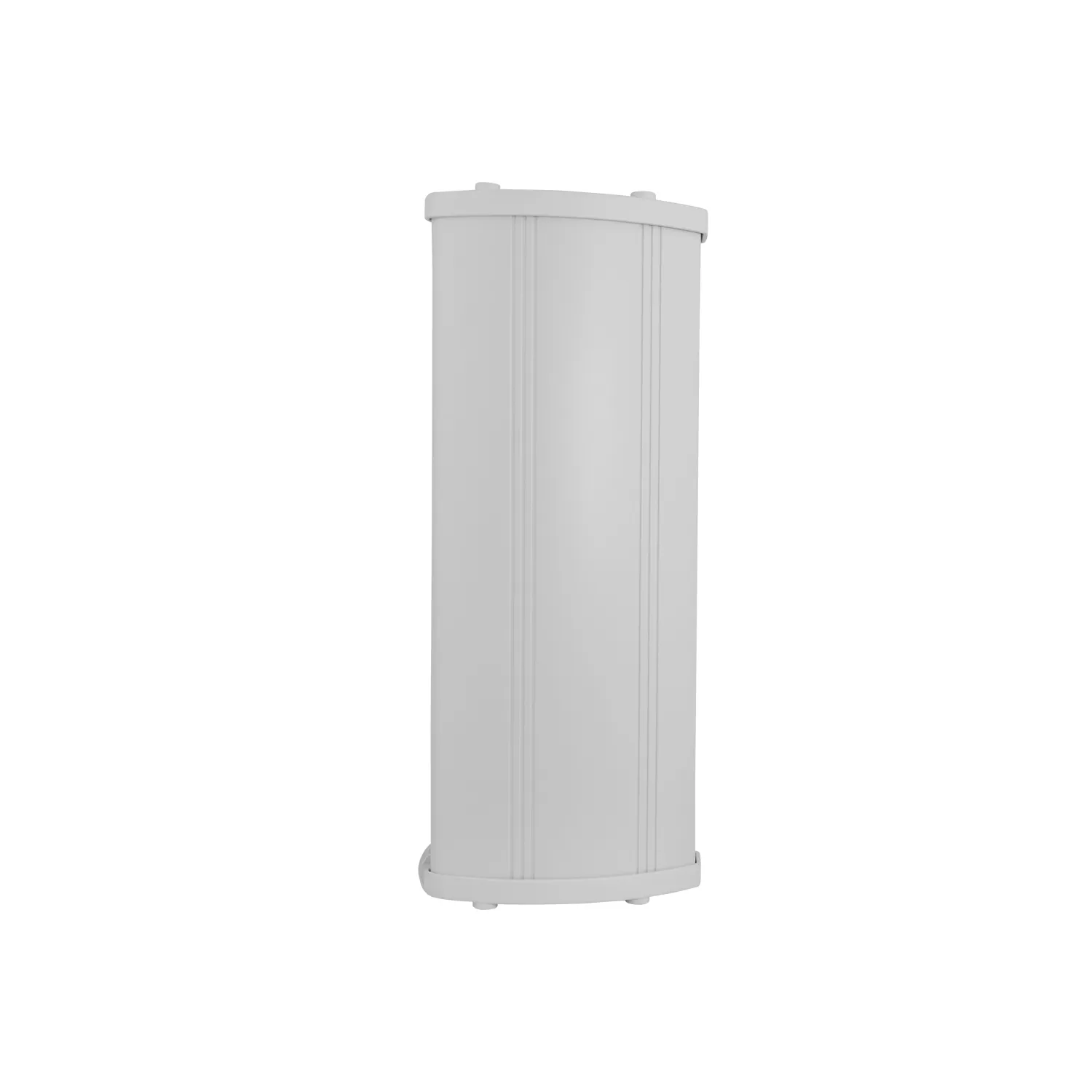

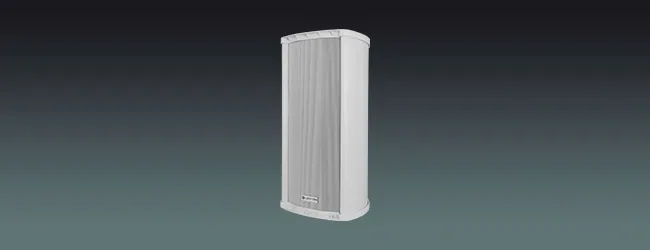

Lucky Tone Waterproof SIP Column Speaker IPLM-630SV2 / IPLM-630SPV2 / IPLM-660SV2 / IPLM-660SPOEV2 / IPLM-690SV2
ModelIPLM-630SV2 / IPLM-630SPV2 / IPLM-660SV2 / IPLM-660SPOEV2 / IPLM-690SV2
This series of network SIP column speakers integrate with network audio decoding, digital amplifier
- Output power
- IPLM-630SV2 / IPLM-630SPV2: 30W@80hm; IPLM-660SV2 / IPLM-660SPOEV2: 60W@40hm; IPLM-690SV2: 90W@2.7ohm
- Frequency response
- 90Hz-18KHz
- Power supply
- IPLM-630SV2 / IPLM-630SPV2: 24V DC / 24V DC or PoE; IPLM-660SV2 / IPLM-660SPOEV2: 24V DC / 24V DC or PoE; IPLM-690SV2: 24V AC
- Weight
- IPLM-630SV2 / IPLM-630SPV2: 3.5kg; IPLM-660SV2 / IPLM-660SPOEV2: 5.0kg; IPLM-690SV2: 5.9kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Waterproof SIP Column SpeakerPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | IPLM-630SV2 / IPLM-630SPV2 | IPLM-660SV2 / IPLM-660SPOEV2 | IPLM-690SV2 |
|---|---|---|---|
| Rated Power | 30W@80hm | 60W@40hm | 90W@2.7ohm |
| SPL (1M/1W) | 90±2dB | 91±2dB | 92±2dB |
| Speakers | 3″ x 1, 5″ x 1 | 3″ x 1, 5″ x 2 | 3″ x 1, 5″ x 3 |
| Network Protocol | SIP | SIP | SIP |
| Network Interface | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 | 10/100Base-X, RJ45 |
| Audio Decoding | MP3, WMA, WAV | MP3, WMA, WAV | MP3, WMA, WAVE |
| Frequency Response | 90Hz-18KHz | 90Hz-18KHz | 90Hz-18KHz |
| Material | Aluminum | Aluminum | Aluminum |
| IP Rating | IP65 | IP65 | IP65 |
| Power Supply | 24V DC / 24V DC or PoE | 24V DC / 24V DC or PoE | 24V AC |
| Product Size | 428x170x148mm | 577x170x148mm | 733x170x148mm |
| Net Weight | 3.5kg | 5.0kg | 5.9kg |
02DescriptionManufacturer's description
What it is.
Features
- With a standard RJ45 network interface and supports online firmware upgrade from long distance
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
- IP65 water-proof column speaker available at 30W, 60W and 90W
- Support MP3, WMA, WAV and more decoding
