Sheet 05.363

Lucky Tone · Public address

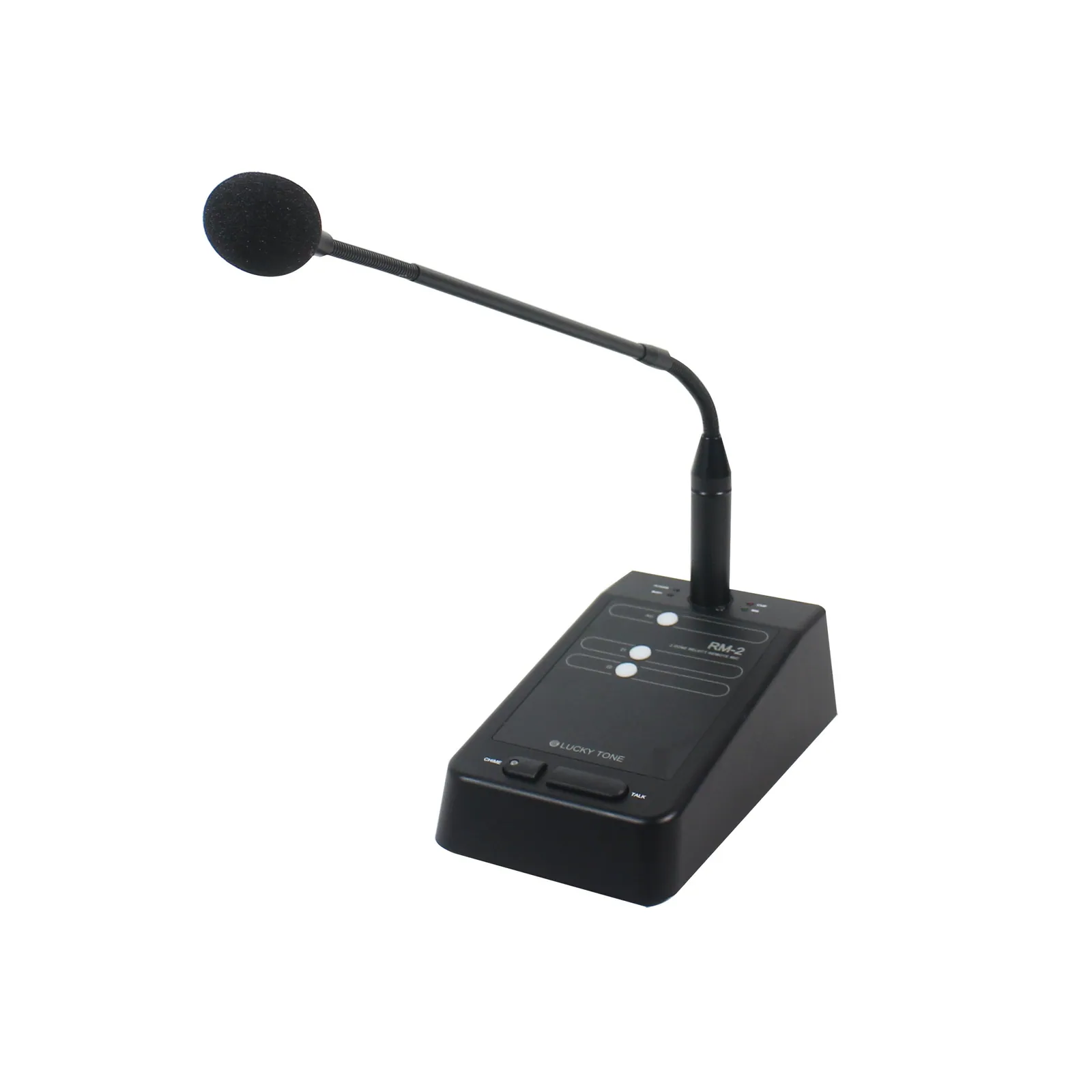

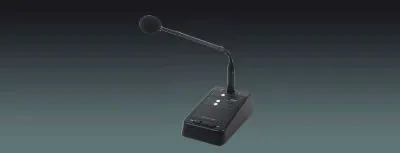

2 Zone Paging Microphone for P82S

ModelRM-2

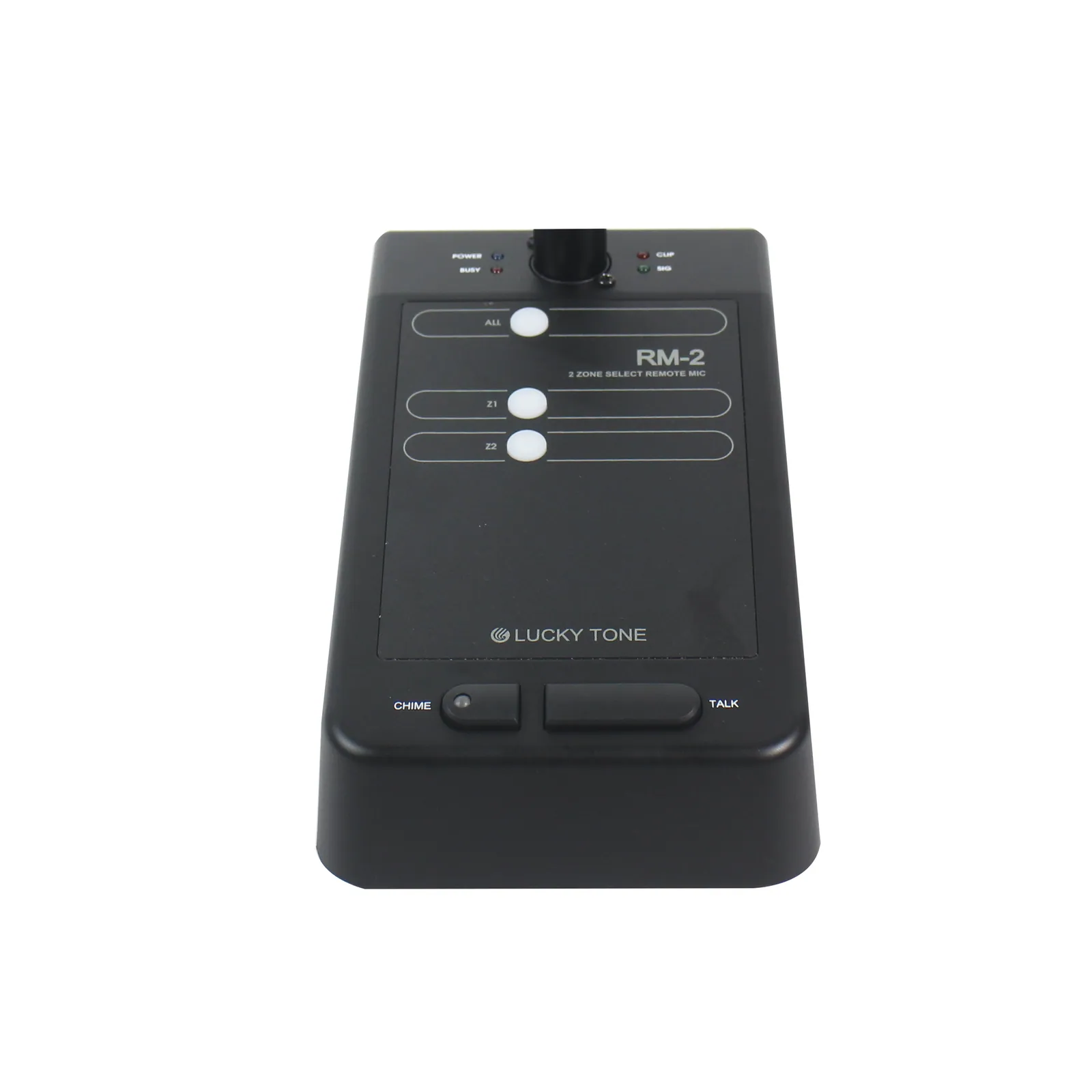

Zone selector switch, All & 2 Zones. Talk & Chime switch.

Dimensions: 120 x 60 x 200mm (only body)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 9 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications9

Model: RM-2
Rated Output Level / Impedance: 0dB / 600 Ω Balanced
Input sensitivity / Impedance: -36dB / 20kΩ Balanced
Frequency Response (-1dB): 80Hz – 15kHz
T.H.D: < 0.1%
Hum & Noise: > 90 dB
Number of Zone: 2 Zones
Weight (Net): 1.2 kg
Dimensions (W x H x D): 120 x 60 x 200mm (only body)

02DescriptionManufacturer's description

What it is.

Controls

Level control volume for MIC and Chime output.

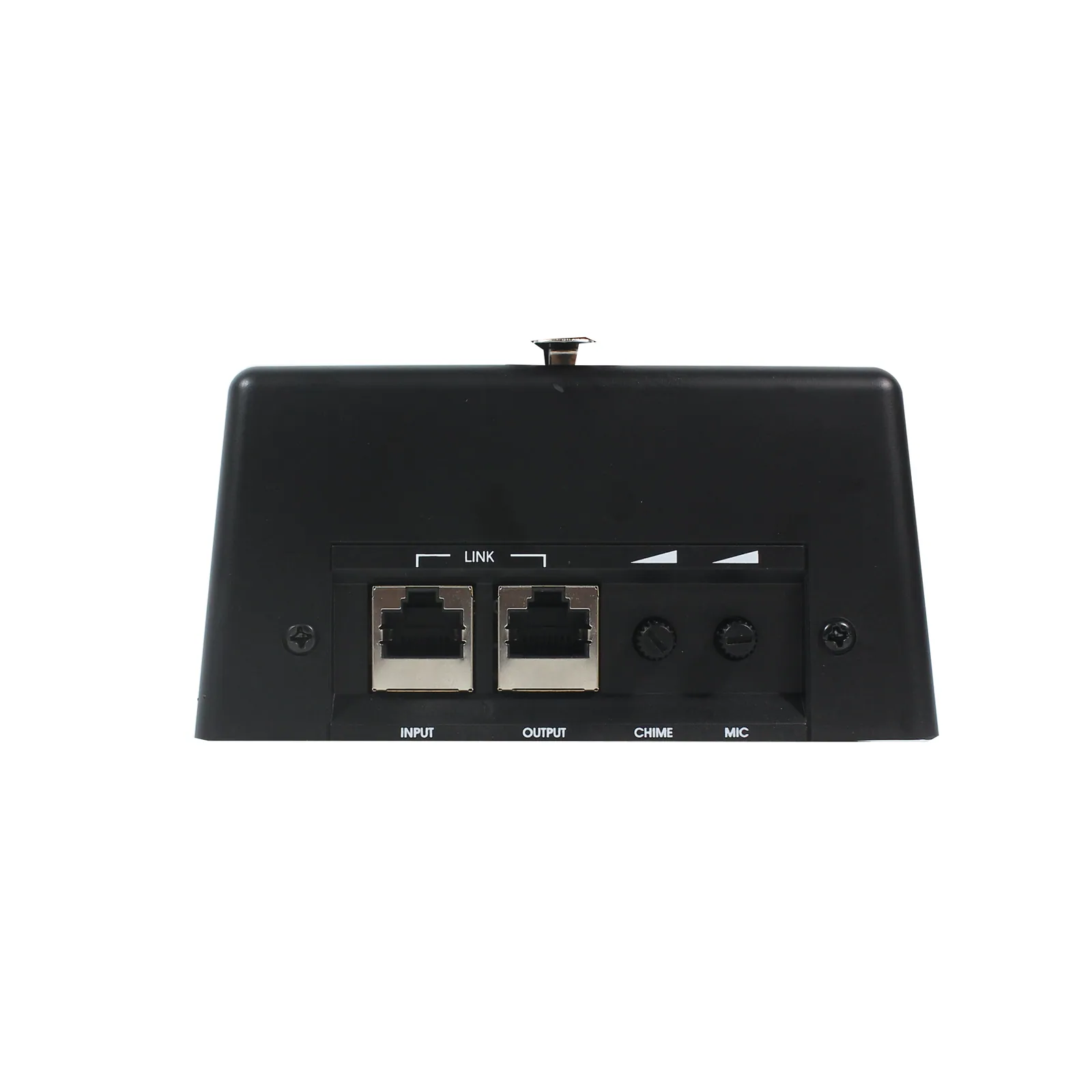

Connectors

RJ45 to connect with Model P82S.

Indicators: Power, Busy, Signal , Clip

03Documents1 file · 2.0 MB

Documents and files.

Datasheets and manuals01

PDFLucky-Tone-P82S-RM-2-Catalog-20230728.pdf2.0 MB
