Sheet 05.515
Lucky Tone · Audio sources

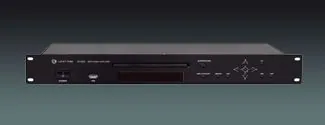

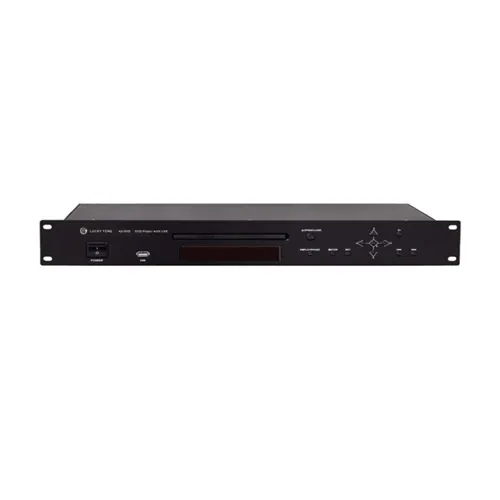

DVD Player with USB
ModelAS-DVD
● Integrate Mp3 player with USB in the front
- Frequency response
- 20Hz-18KHz
- Power supply
- 220-240V AC, 50/60 Hz
- Dimensions
- 51(H) x 483(W) x 250(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
DVD Player with USBPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 11 values
What this product is, in numbers.

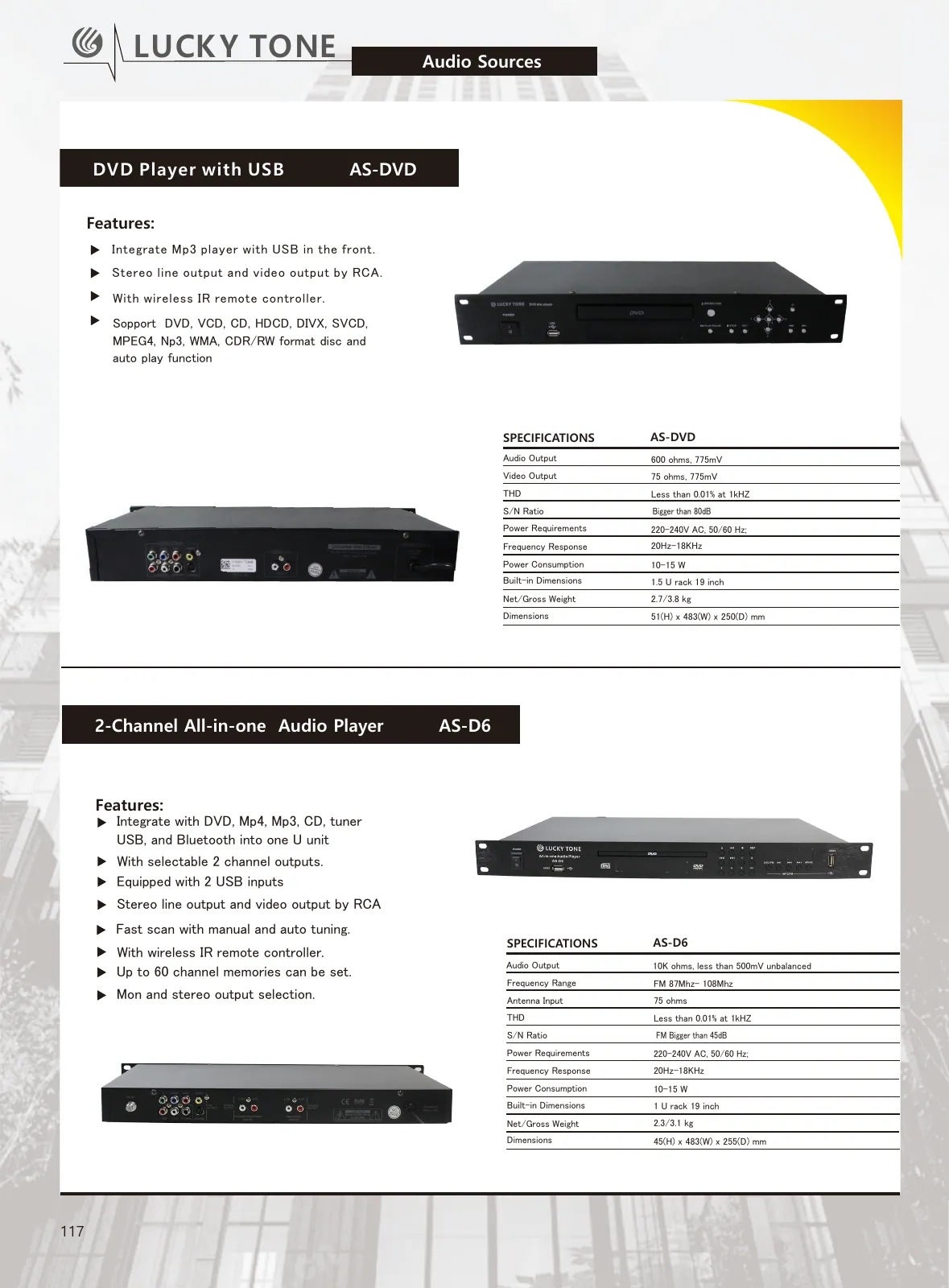

PDFSpecifications1.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- MODEL
- AS-DVD
- Audio Output
- 600 Ohm, 775mV
- Video Output
- 75 Ohm, 775mV
- THD
- Less than 0.01% at 1KHz
- S/N Ratio
- Better than 80dB
- Power Supply
- 220-240V AC, 50/60 Hz
- Frequency Response
- 20Hz-18KHz
- Power Consumption
- 10-15 W
- Built-in Dimension
- 1.5 U rack 19 inch
- Net / Gross Weight
- 2.70 / 3.80kg
- Dimension
- 51(H) x 483(W) x 250(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features

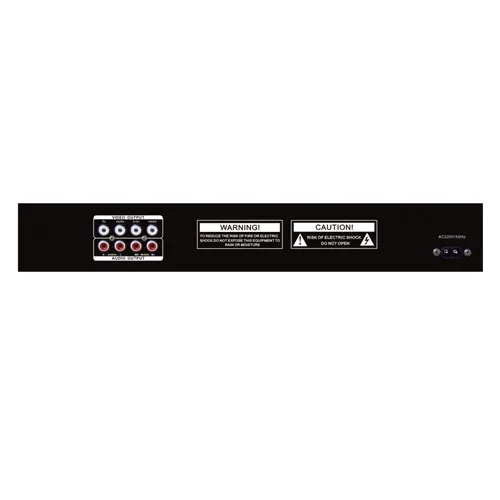

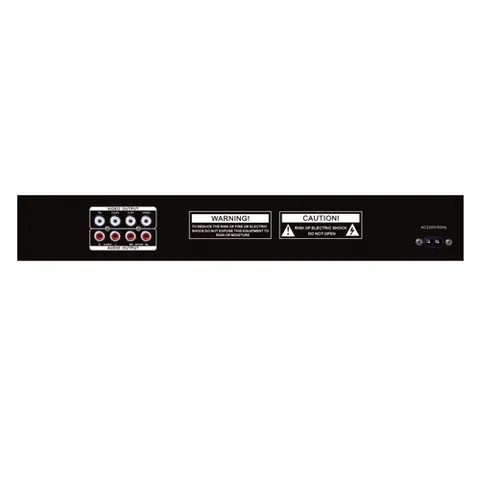

- ● Stereo line output and video output by RCA
- ● With wireless IR remote controller
- ● Support DVD, VCD, CD, HDCD, DIVX, SVCD, MPEG4, Np3, WMA, CDR/RW format disc and auto play function
03Documents1 file · 1.7 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
