Sheet 05.133
Lucky Tone · Loudspeakers

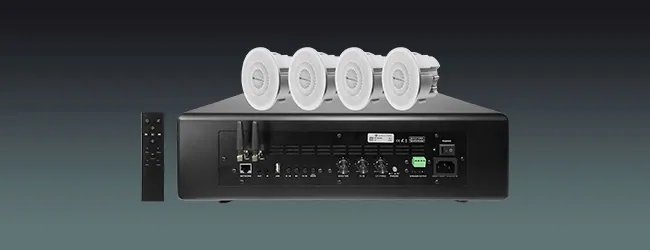

Compact Ceiling Speaker System
ModelCH-215R
Combo5-2 compact ceiling speaker system can produce effective acoustic sounds in commercia spaces such as offices, gym, SPA, hotels, and educational institutions.
- Output power
- 15W
- Frequency response
- 20-20KHz
- Weight
- 7.7KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Compact Ceiling Speaker SystemPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 28 values
What this product is, in numbers.
PDFSpecifications16 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications28
- Model
- CH-215R
- Product Type
- Waterproof Aluminum Ceiling Speaker with Bass Radiator
- Rated Power
- 15W
- Max. Power
- 40W
- Impedance
- 4ohm
- SPL (1W/1M)
- 86d
- Freq. Response
- 70Hz-20Khz
- Cutout Size
- Dia 86mm
- Product Size
- Dia 110*81.4mm (H)
- IP Rating
- IP66
- Installation
- In-ceiling
- Color
- Silver
- Speakers
- 2.5″ Full range with bass radiator
- Model
- WF-SUB5W/WF-SUB5B
- Product Type
- 5” WiFi Subwoofer with WiFi & Bluetooth
- Rated Output Power
- For the subwoofer: 150W@4 ohm For the stereo speaker outputs: 2x40W@4 ohm
- Impedance
- 4-8ohm
- Sensitivity
- 840MV
- Speaker Size
- 5.25″ DVC Subwoofer with 35mm Voice Coil
- Input Voltage
- AC100V-240V, 50/60HZ
- Frequency Response
- 20-20KHz
- Subwoofer Frequency Response
- 40Hz-160Hz
- Audio Inputs
- WiFi, Bluetooth, USB, AUX in
- Materials
- MDF
- Installation
- On Wall/On Floor/On Ceiling
- Color
- White/Black
- Product Size (L x W x H)
- 450×350×150mm
- Net Weight
- 7.7KG
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
Ordering code

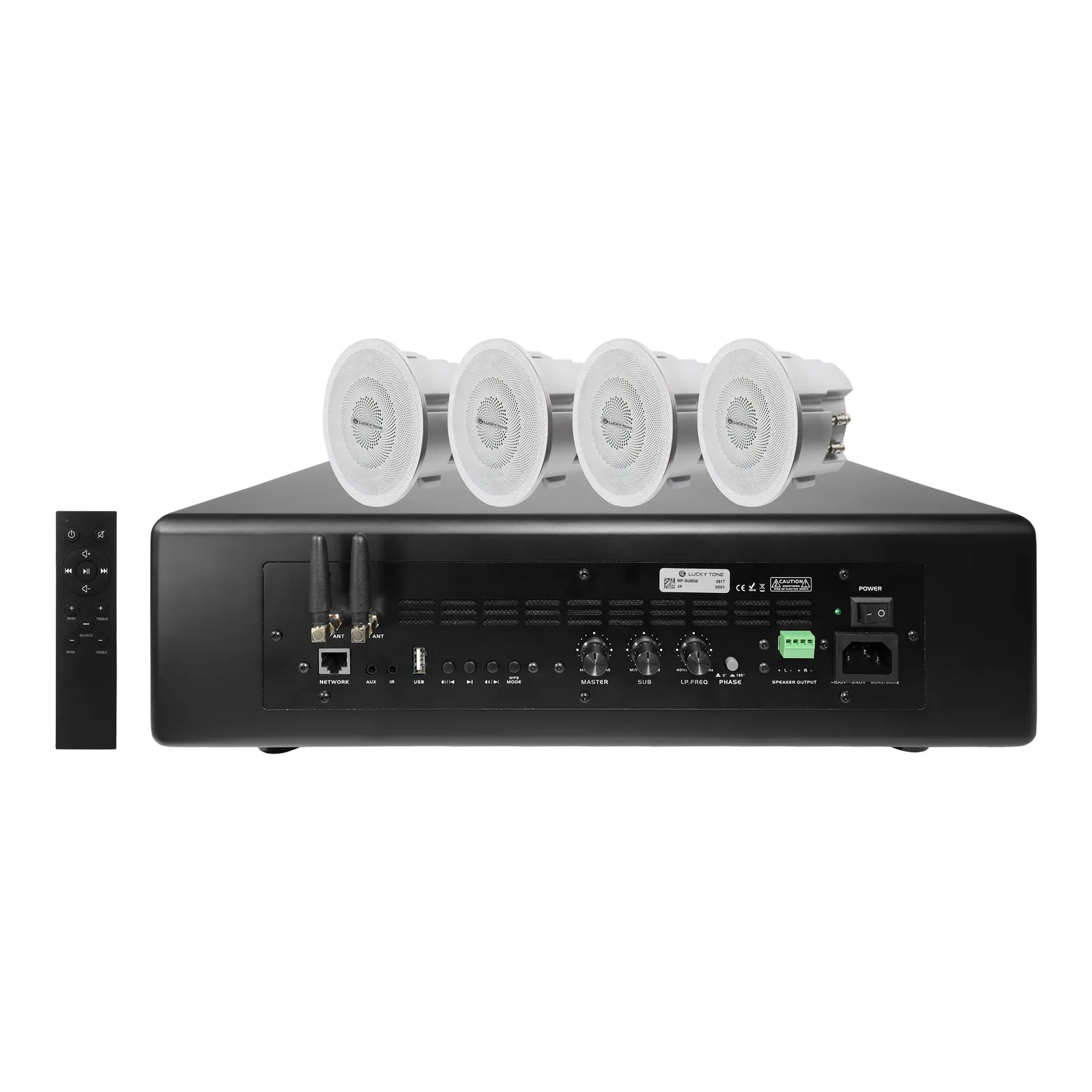

Combo5-2: WF-SUB5B/WF-SUB5W 5.25″ WiFi Subwoofer with 4 pcs of CH-215R Ceiling Speakers
Combo5-3: SUB5B/SUB5W 5.25″ Passive Subwoofer with 4 pcs of CH-215R Ceiling Speakers

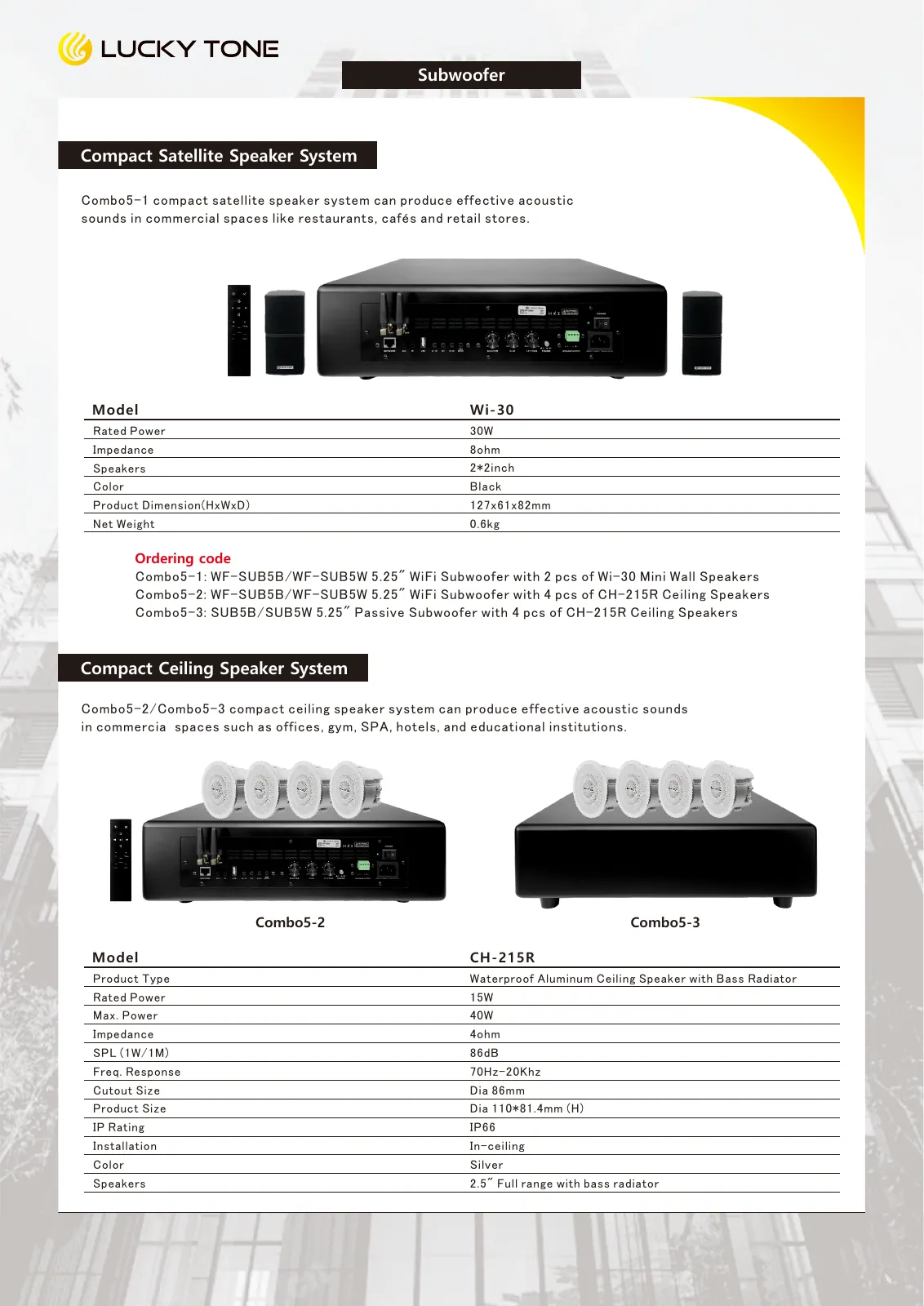

03Documents1 file · 16 MB
