Sheet 05.318
Lucky Tone · Dante

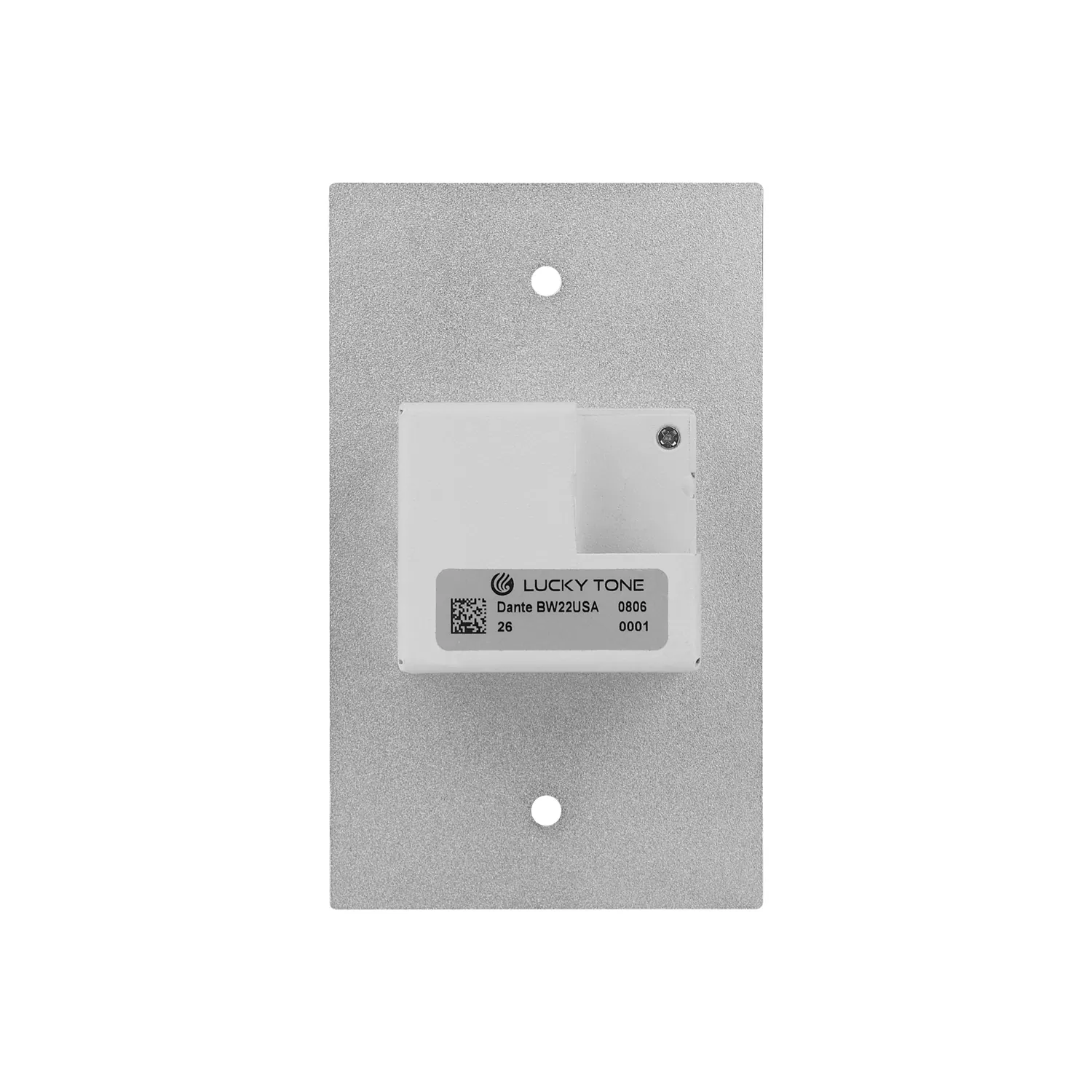

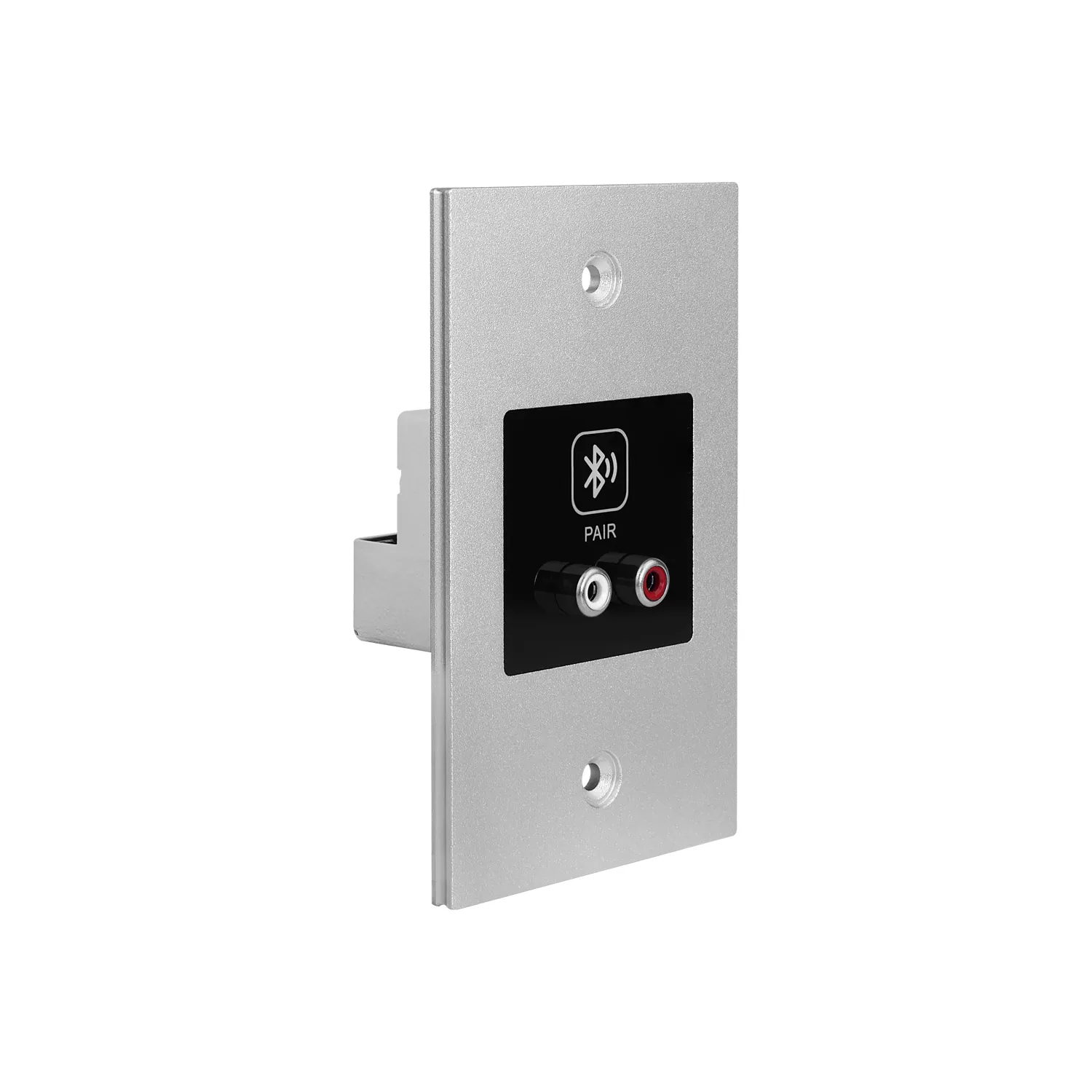

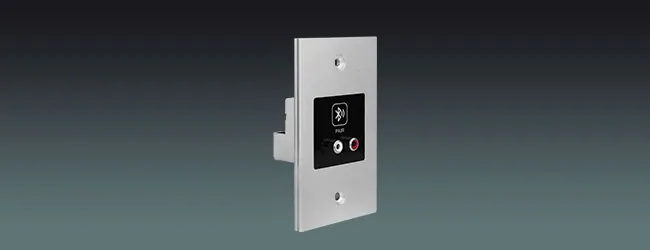

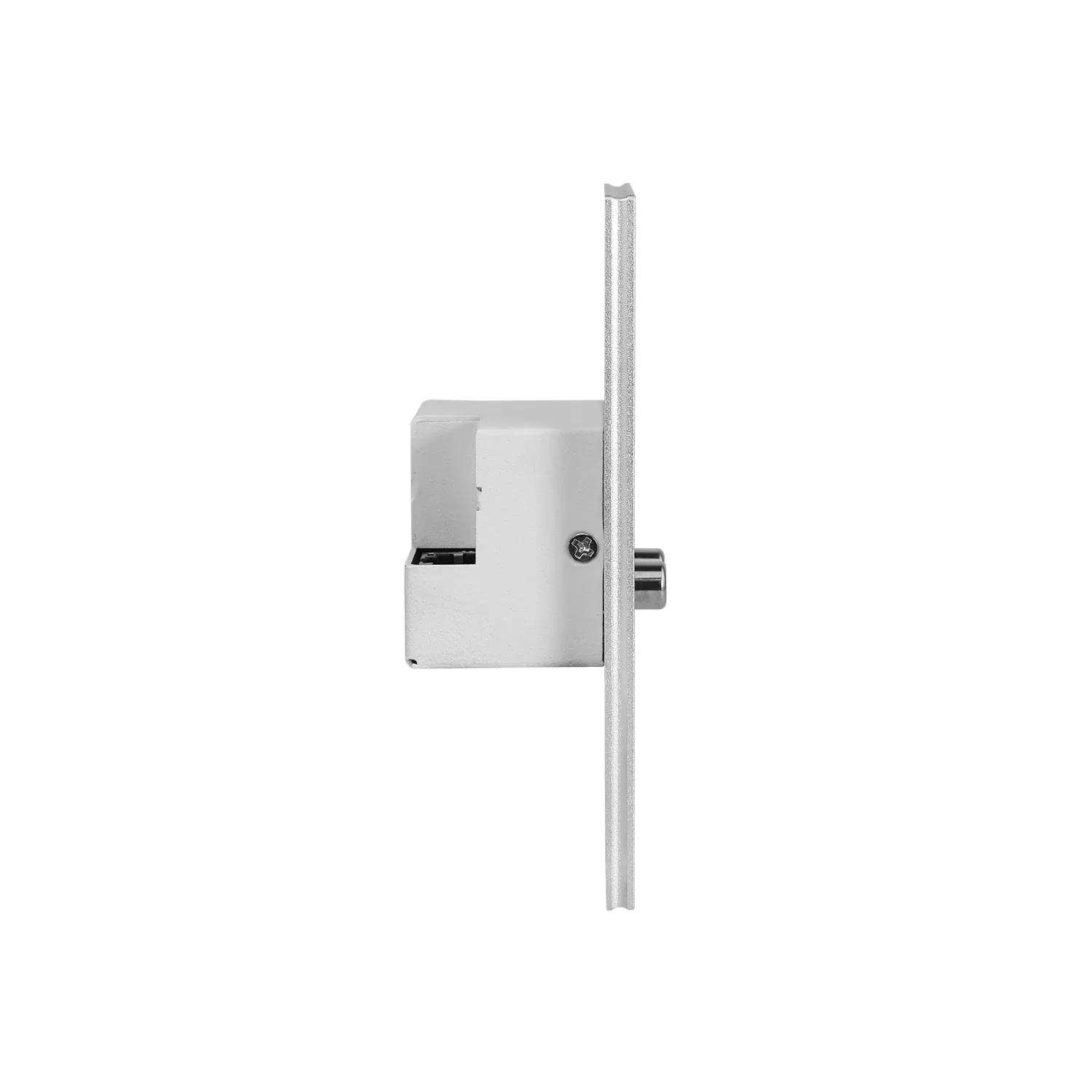

US Standard Dante Bluetooth & Aux Wall Panel
ModelDante BW22 USA
Bluetooth audio to DANTE/AES67 network digital signal conversion, stable transmission
- Power supply
- Class1 802.3 af PoE
- Weight
- 177g
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
US Standard Dante Bluetooth & Aux Wall PanelPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.
PDFSpecifications959 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- Model
- Dante BW22 USA
- Product Type
- USA Standard
- Bluetooth Interface
- 2
- DANTE/AES67 Channel
- 2
- Stereo Input
- RCAx2
- Maximum Input Level
- 12dBu
- Sampling Rate
- 44.1/48KHz
- Data Bit
- 24bit
- THD+N
- <0.005%@1kHz+4dBu
- Dante/AES67 Device Delay
- <2ms
- Power Supply
- Class1 802.3 af PoE
- Power Consumption
- 2W
- Input SNR
- >100dB
- Product Dimensions
- 115x70x40mm
- Net Weight
- 177g
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Function
BT 5.0 Bluetooth
POE Power Supply

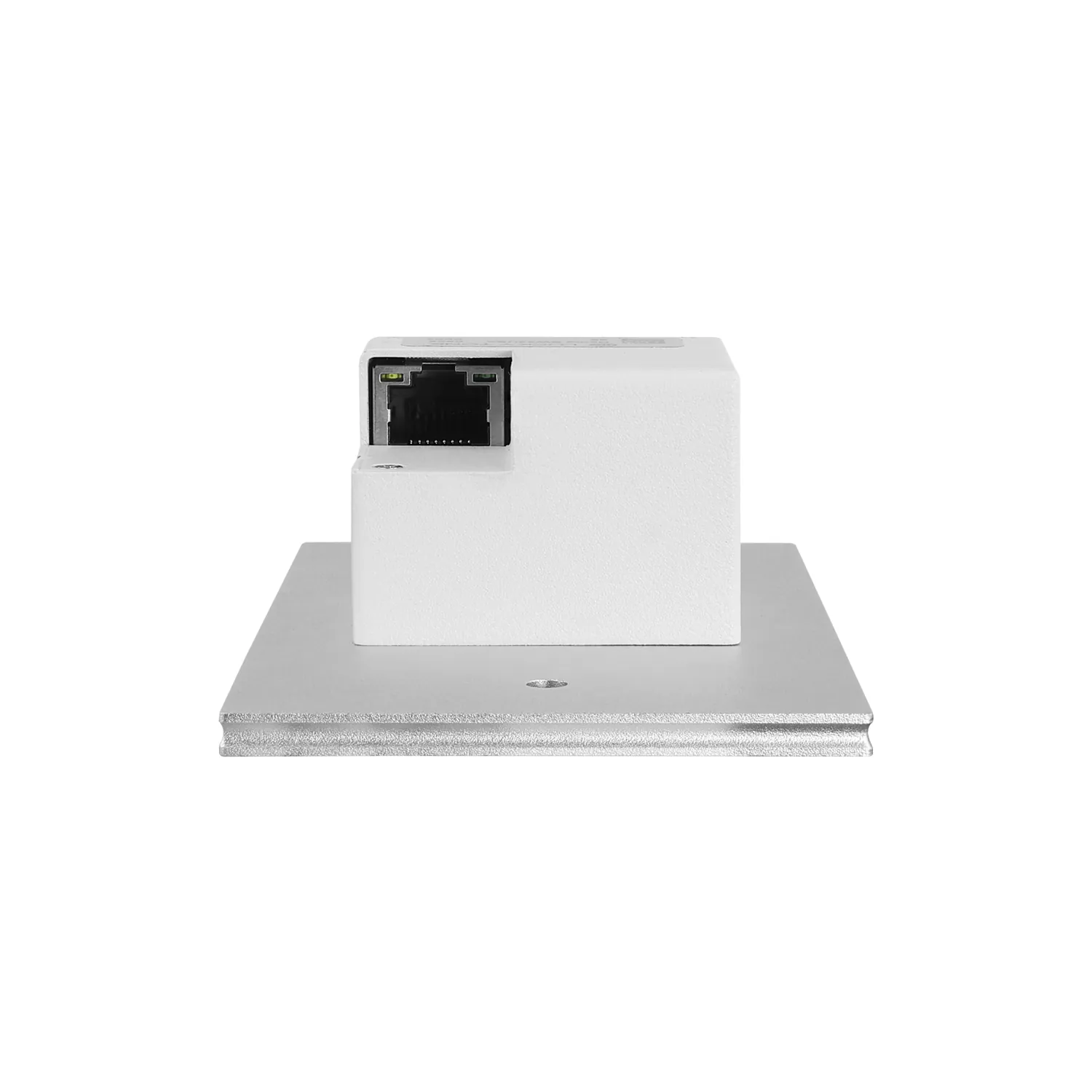

Power and audio transmission via network cable
Signal Matching
Supports Bluetooth wireless audio connection and analog audio connection
Real Time Display
Simple pairing and real-time status display
Features
Supports Bluetooth or 2-channel stereo conversion to Dante network digital signal, with priority given to Bluetooth signals.
Connects to devices such as smartphones and laptops through Bluetooth, receiving audio andtransmitting it as Dante network digital signal.
Mainly used in scenarios such as teleconferences and audio media transmission.

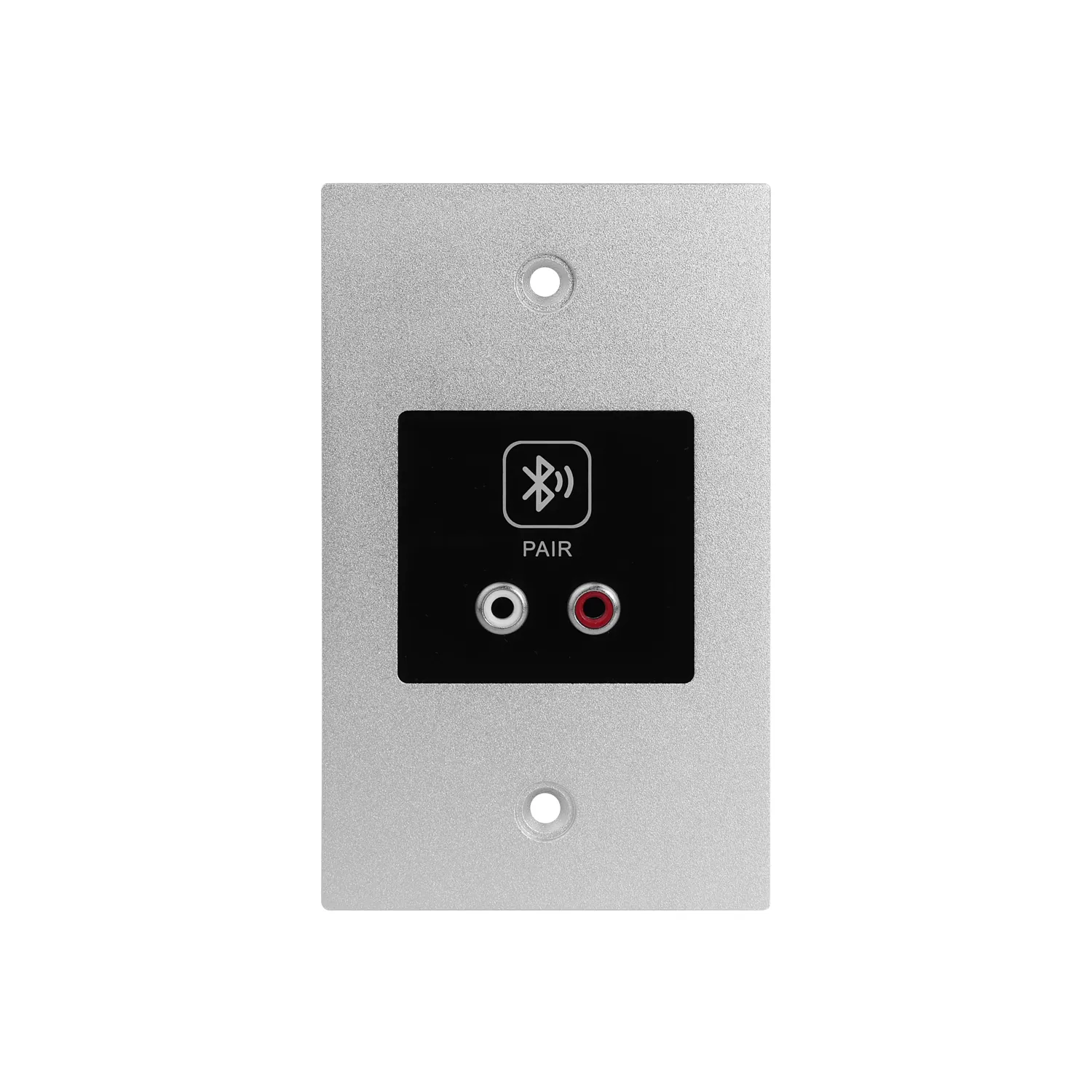

Simple to use, controlled through a touch button for Bluetooth pairing with connected devices, and displays the connection status.
03Documents1 file · 959 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
