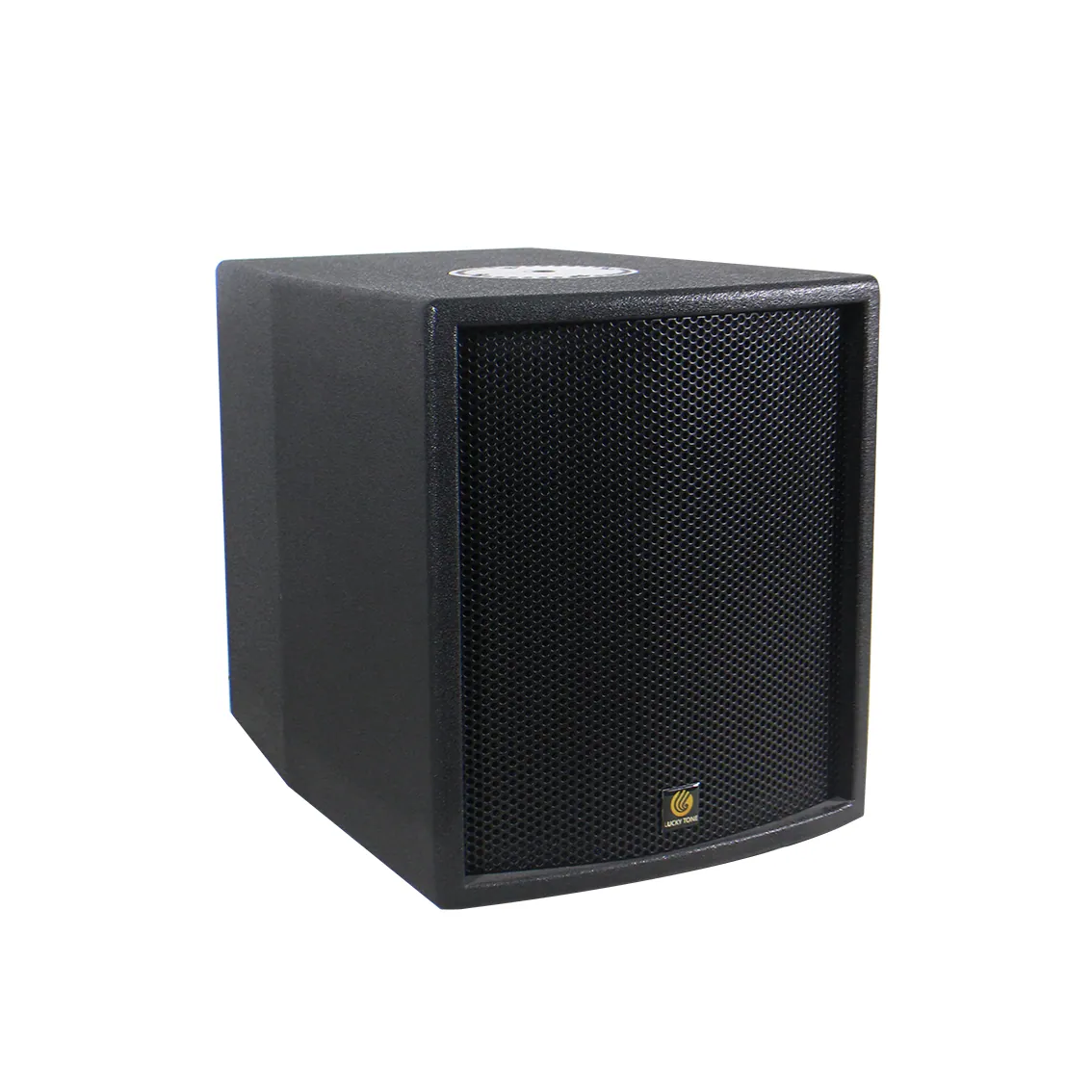

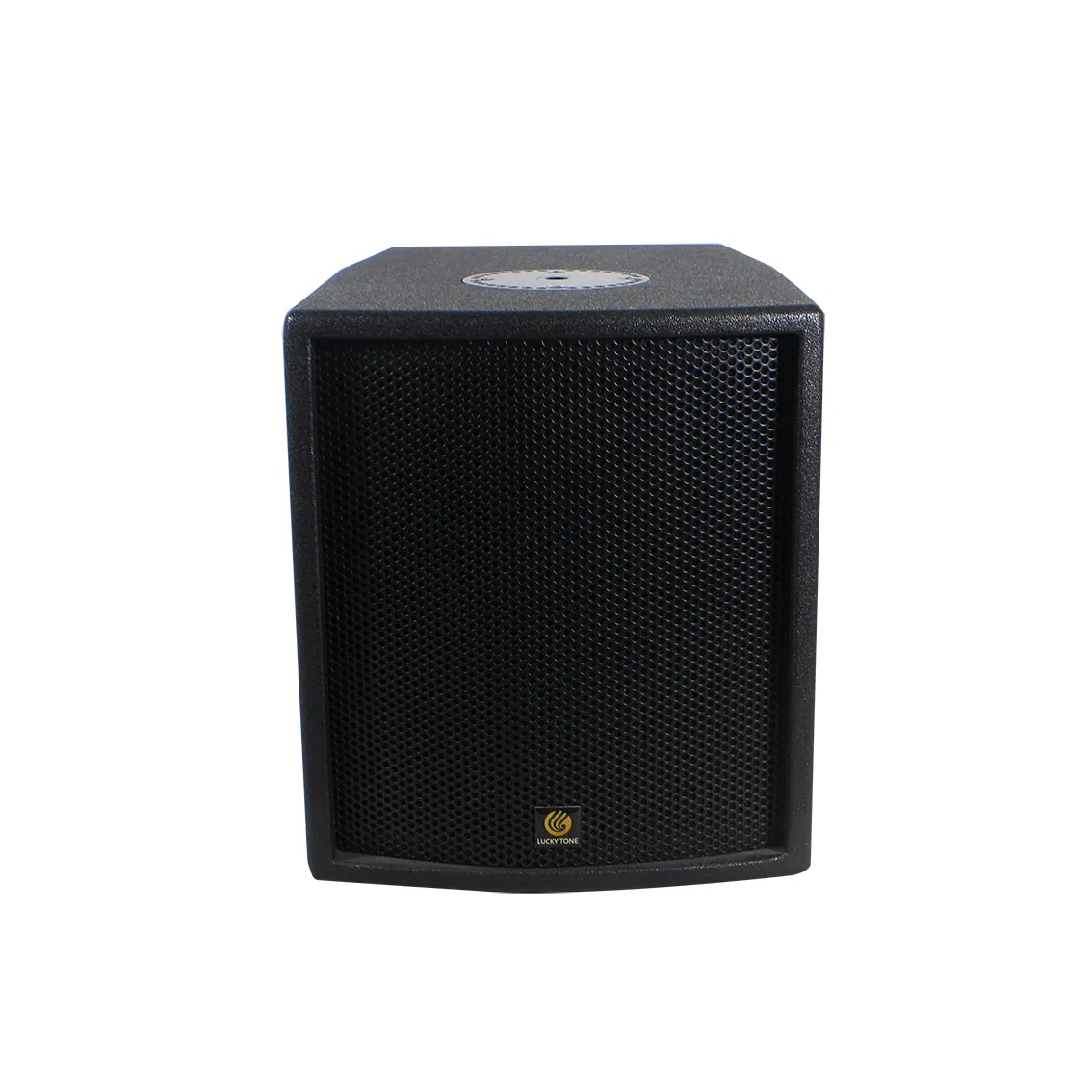

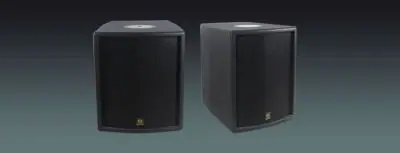

Subwoofer speaker with DSP, POE power supply

ModelDP 120 SUB DSP

DP 120 SUB DSP Speaker can realize its multifunction the POE power supply,

Output power: 120W, POE boost up to 60W depends on router power
Frequency response: 50Hz-150Hz
Power supply: PoE
Weight: 12kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

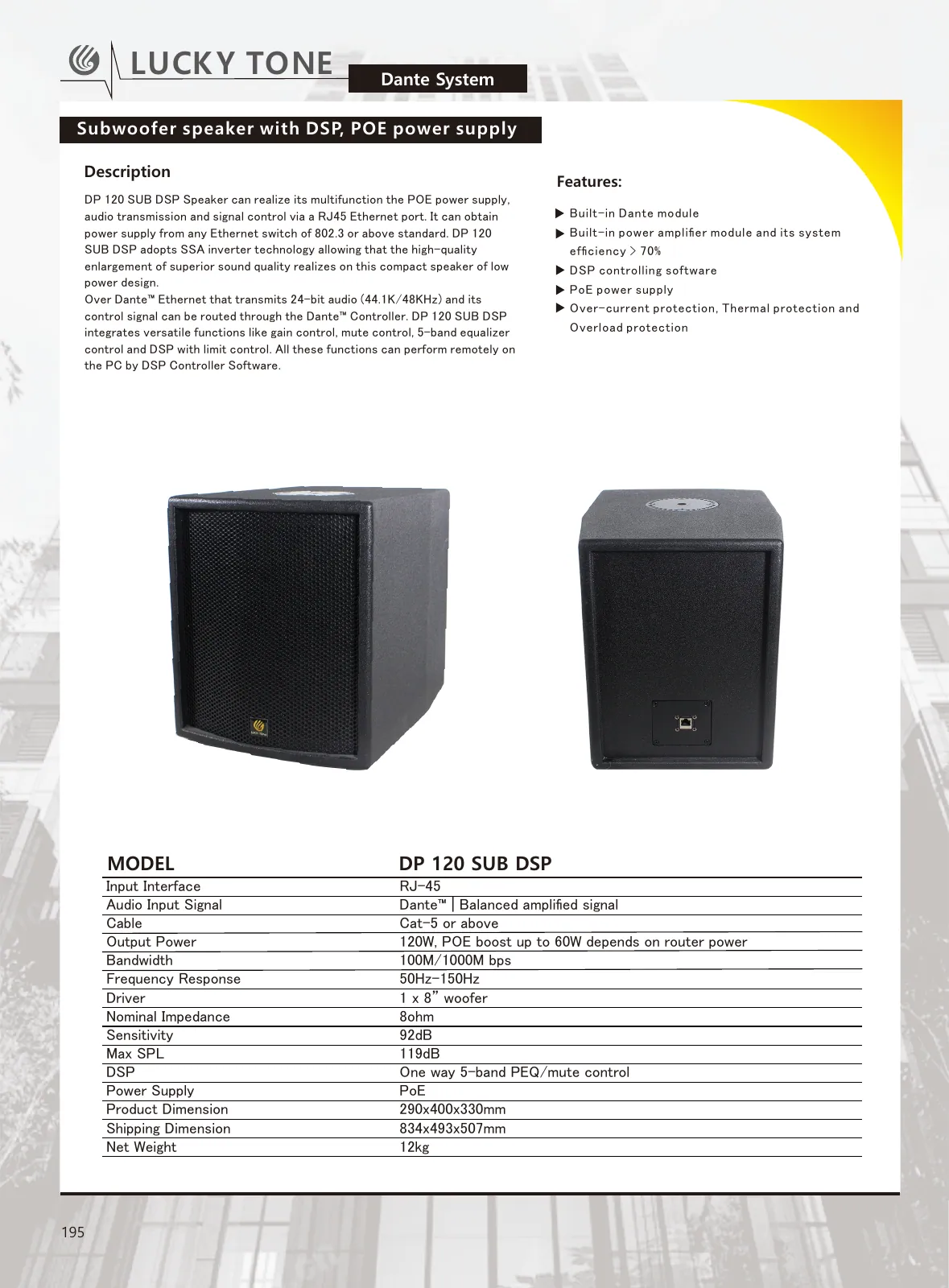

01SpecificationManufacturer's data · 1 group · 16 values

What this product is, in numbers.

PDFSpecifications1.4 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications16

MODEL: DP 120 SUB DSP
Input Interface: RJ-45
Audio Input Signal: Dante™ | Balanced amplified signal
Cable: Cat-5 or above
Output Power: 120W, POE boost up to 60W depends on router power
Bandwidth: 100M/1000M bps
Frequency Response: 50Hz-150Hz
Driver: 1 x 8” woofer
Nominal Impedance: 8ohm
Sensitivity: 92dB
Max SPL: 119dB
DSP: One way 5-band PEQ/mute control
Power Supply: PoE
Product Dimension: 290x400x330mm
Shipping Dimension: 834x493x507mm
Net Weight: 12kg

02DescriptionManufacturer's description

What it is.

Description

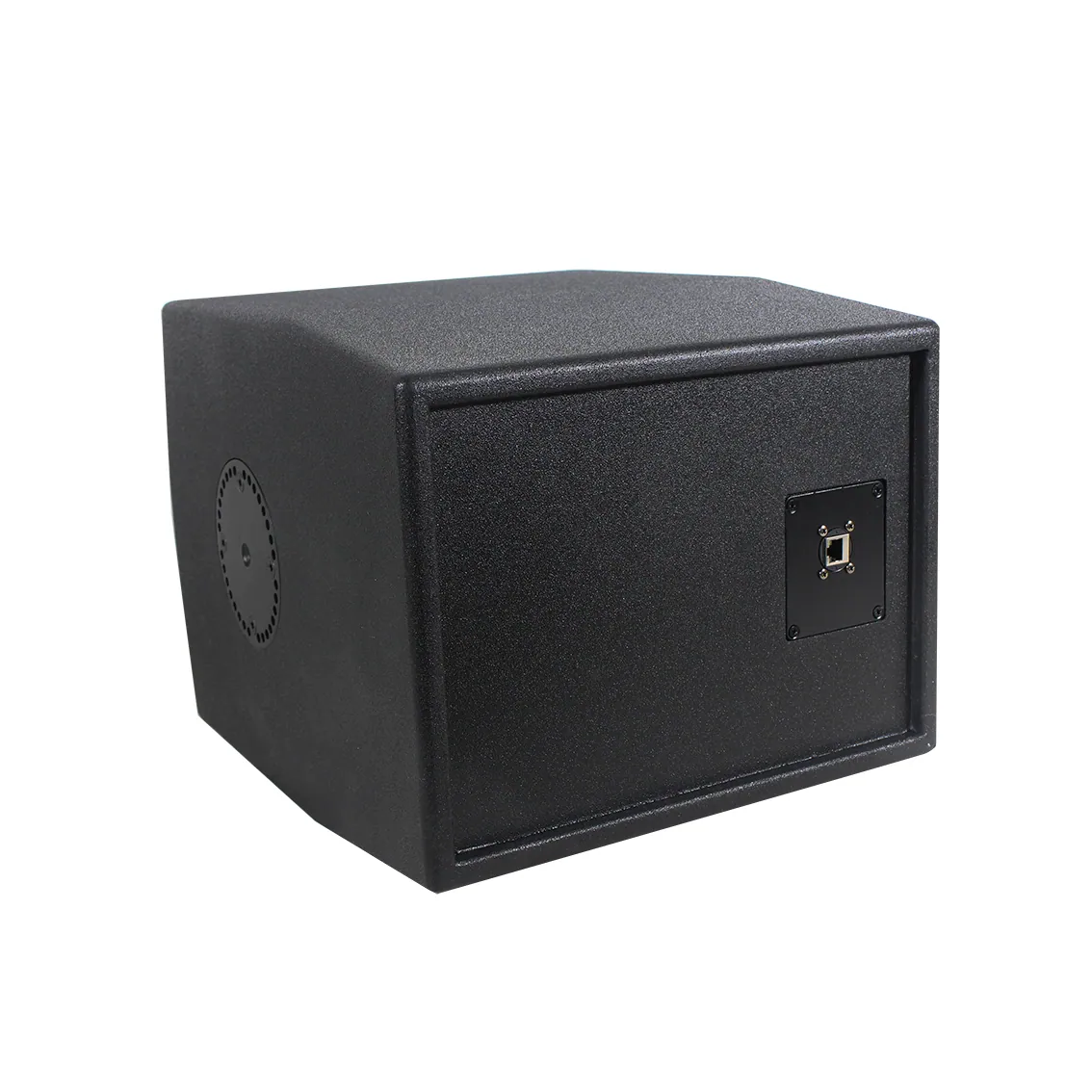

audio transmission and signal control via a RJ45 Ethernet port. It can obtain
power supply from any Ethernet switch of 802.3 or above standard. DP 120
SUB DSP adopts SSA inverter technology allowing that the high-quality
enlargement of superior sound quality realizes on this compact speaker of low
power design.
Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its
control signal can be routed through the Dante™ Controller. DP 120 SUB DSP
integrates versatile functions like gain control, mute control, 5-band equalizer
control and DSP with limit control. All these functions can perform remotely on
the PC by DSP Controller Software.
