Sheet 05.316
Lucky Tone · Dante

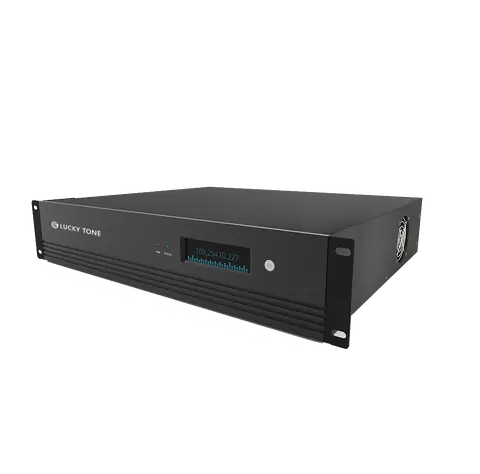

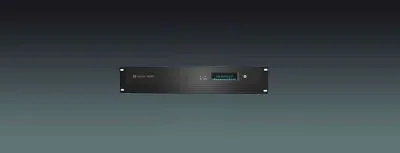

Open architecture Dante 64 In 64 out DSP audio processor
ModelDSP-6464 LD+
The DSP-6464 LD+ intelligent digital audio processing server uses two processing chips with a main frequency of 1GHz, which is the core device of the thermal computing system platform.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Open architecture Dante 64 In 64 out DSP audio processorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 22 values
What this product is, in numbers.
PDFSpecifications958 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications22
- Model
- DSP-6464 LD+
- Network channel
- 64*64
- Local channel
- two 4-channel AEC input cards, microphone / line input
- Audio I/O capability
- 6 audio I/O card slots
- Multitrack player capability
- 16 tracks
- Media storage capacity
- 64G
- Dynamic range
- >118dB
- Frequency Response (±0.2dB)
- 20Hz~20kHz
- Input Impedance
- 5.5k ohm
- THD+N
- <0.002%
- Maximum input level
- +22dBu
- RS232/485
- 6Pin3.81mm Phoenix
- GPIO
- 12Pin381mm Phoenix
- Dante Primary
- RJ45 1000Mbps
- Dante Secondary
- RJ45 1000Mbps
- AC Main Power
- IEC Connector
- DC backup power supply
- 24VDC 2A 2pin 5.81mmm Phoenix
- Voltage
- 220VAC-240VAC, 50Hz/24VDC
- Current
- 4A max@100VAC (actual current depends on specific configuration, such as I/O card
- Product size (WxHxD)
- 483x88x364mm
- Shipping Package Dimensions
- 618x153x473mm
- Shipping weight
- 10KG
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
The DSP-6464 LD+ intelligent digital audio processing server uses two processing chips with a main frequency of 1GHz, which is the core device of the thermal computing system platform. The thermal computing system platform is based on the real-time Linux operating system. All input channels can be configured with AEC cards to build a 96-channel AEC input channel system. The system server supports 64*64 network transmission, and the control function is intuitive. It is suitable for various applications such as medium and large-scale conference applications, theme parks, airports, railway stations, and large supermarkets.
- Gigabit network transmission, with network transmission backup
- 8 AEC channels, and supports user-defined addition of independent AEC modules, Support up to 32 channels
- Dual host backup (Active/Standby) mode
- 16-channel audio player, 64G memory, playback format WAV MP3 supports scheduled playback
- Provides operation interface for customers to realize centralized control of multiple devices
- Built-in Lua script, providing flexible extension and customization functions for users
- Dual power redundancy (AC/DC)
03Documents1 file · 958 KB
Documents and files.

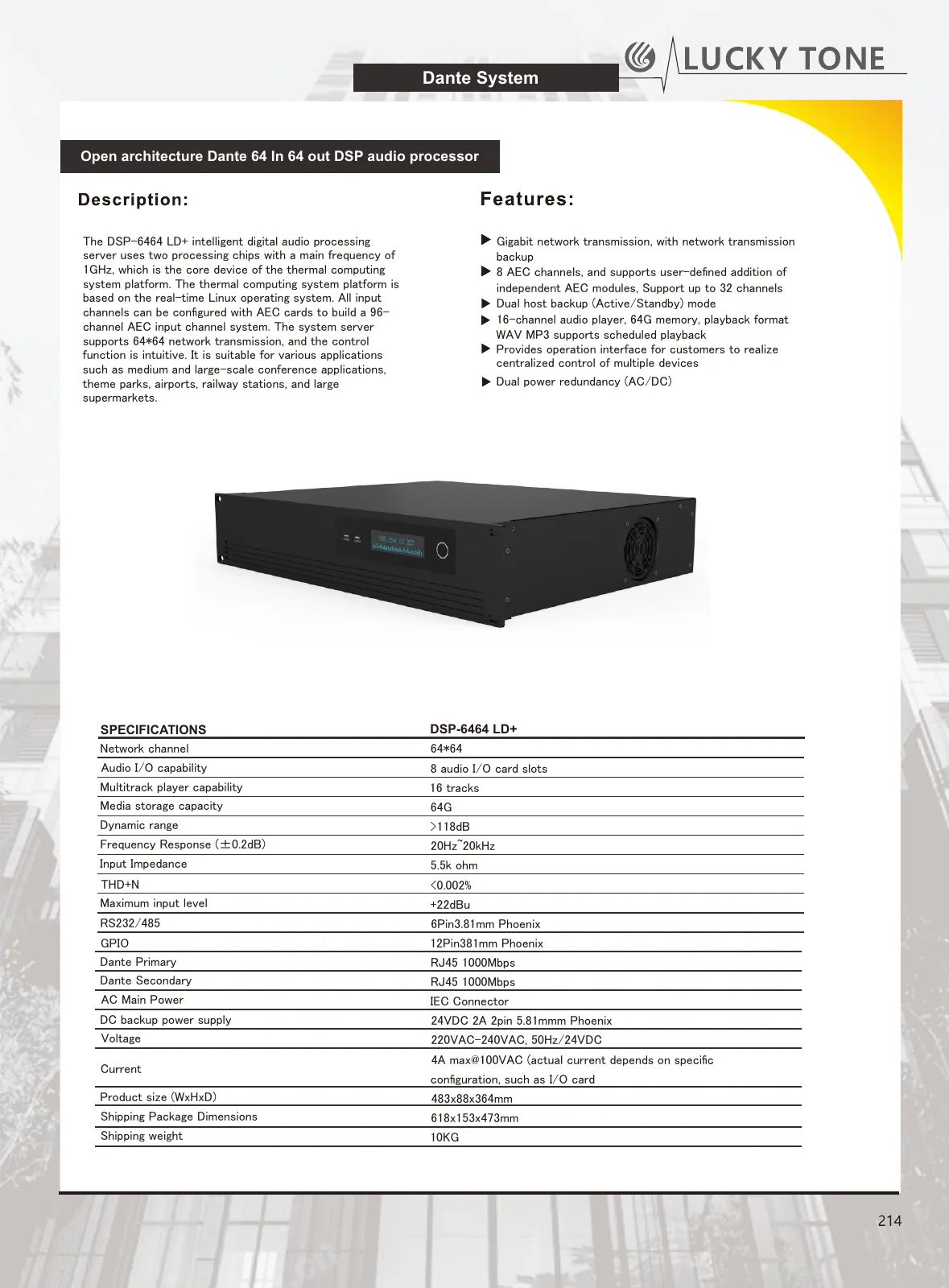

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
