Sheet 05.315
Lucky Tone · Dante

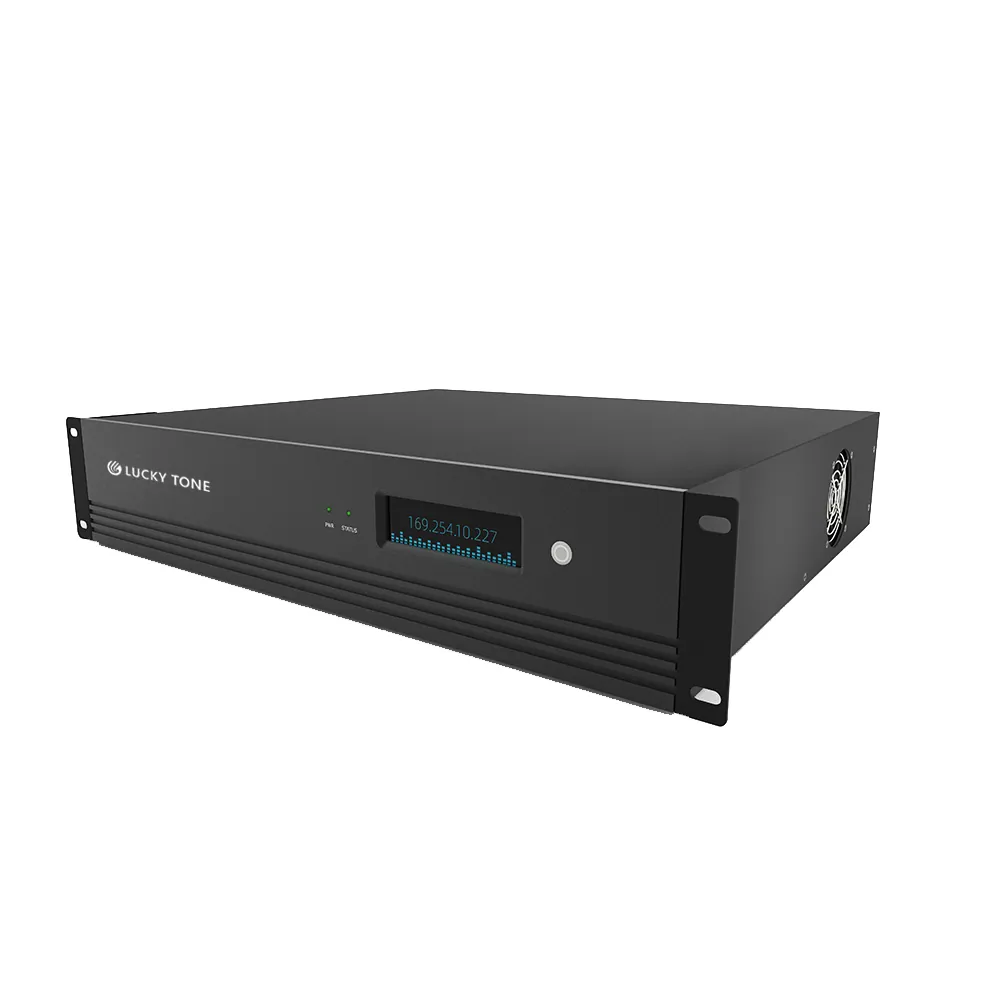

Open architecture Dante 32 In 32 out DSP audio processor
ModelDSP-3232 LD+
The DSP-3232 LD+ intelligent digital audio processing server adopts two processing chips with a main frequency of 1GHz, which is the core device of the thermal computing system platform. The server has network backup and dual-host backup functions.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Open architecture Dante 32 In 32 out DSP audio processorPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.

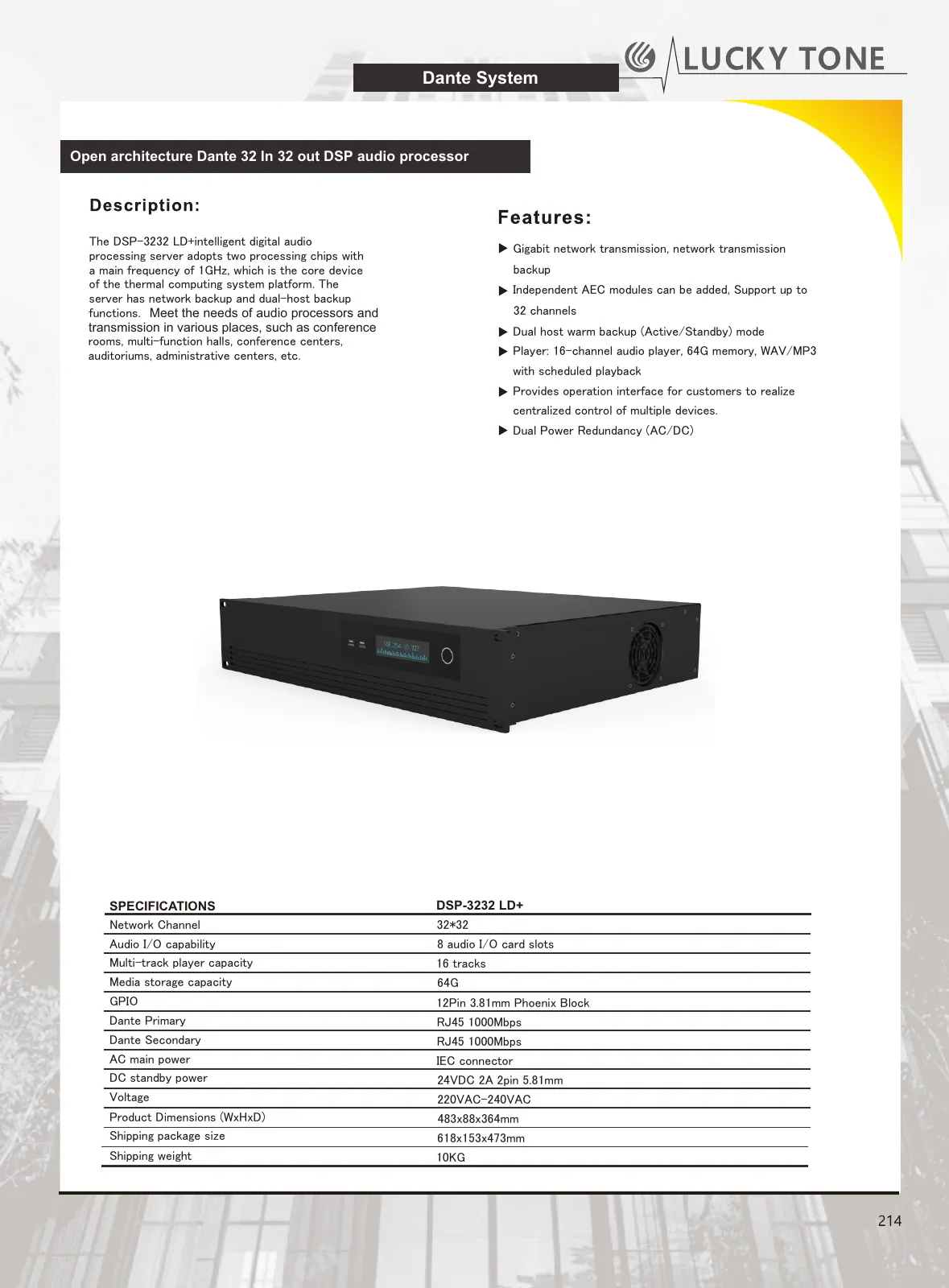

PDFSpecifications1.0 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- MODEL
- DSP-3232 LD+
- Network Channel
- 32*32
- Audio I/O capability
- 8 audio I/O card slots
- Multi-track player capacity
- 16 tracks
- Media storage capacity
- 64G
- GPIO
- 12Pin 3.81mm Phoenix Block
- Dante Primary
- RJ45 1000Mbps
- Dante Secondary
- RJ45 1000Mbps
- AC main power
- IEC connector
- DC standby power
- 24VDC 2A 2pin 5.81mmm phoenix holder
- Voltage
- 220VAC-240VAC50Hz/24VDC
- Product Dimensions (WxHxD)
- 483x88x364mm
- Shipping package size
- 618x153x473mm
- Shipping weight
- 10KG
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
The DSP-3232 LD+ intelligent digital audio processing server adopts two processing chips with a main frequency of 1GHz, which is the core device of the thermal computing system platform. The server has network backup and dual-host backup functions. The system has built-in Lua script language, which can be written in standard C language. Meet the needs of audio processors and transmission in various places, such as conference rooms, multi-function halls, conference centers, auditoriums, administrative centers, etc.
- Gigabit network transmission, network transmission backup
- Independent AEC modules can be added, Support up to 32 channels
- Dual host warm backup (Active/Standby) mode
- Player: 16-channel audio player, 64G memory, WAV/MP3 with scheduled playback
- Provides operation interface for customers to realize centralized control of multiple devices.
- Dual Power Redundancy (AC/DC)
03Documents1 file · 1.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
