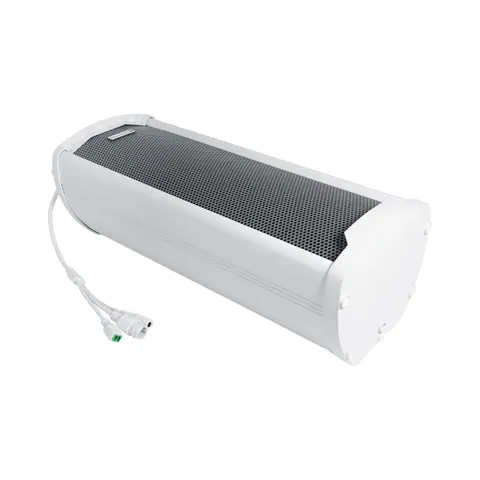

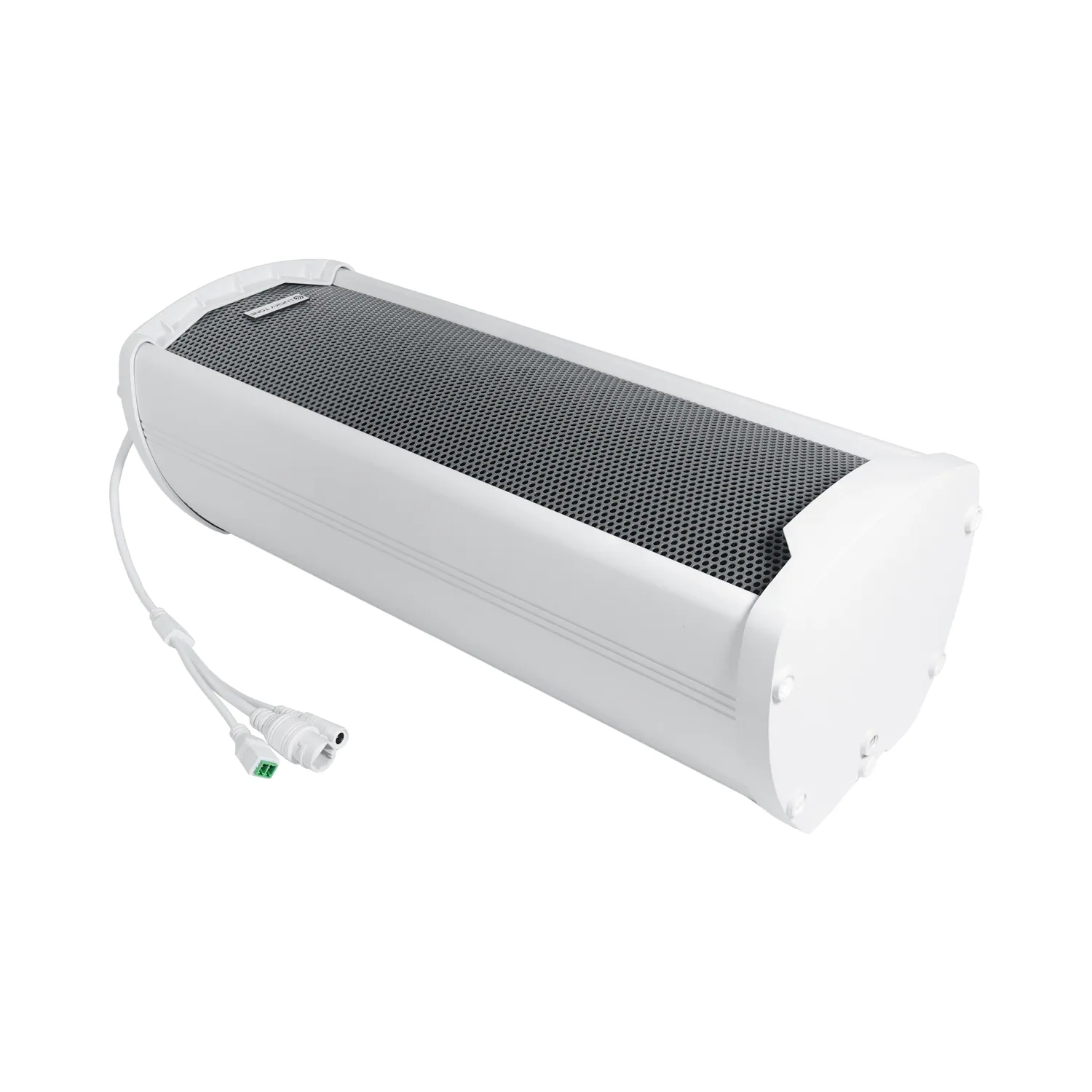

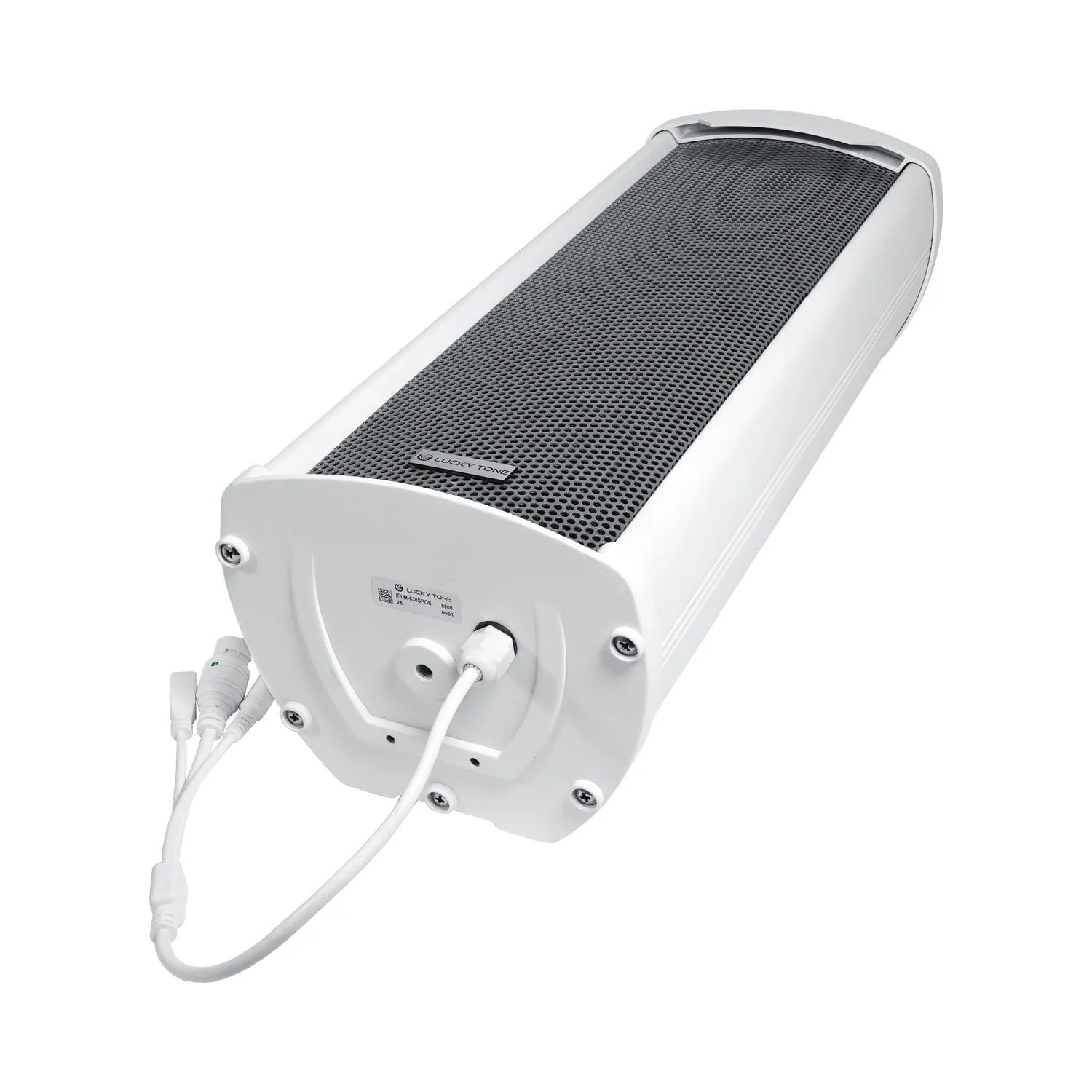

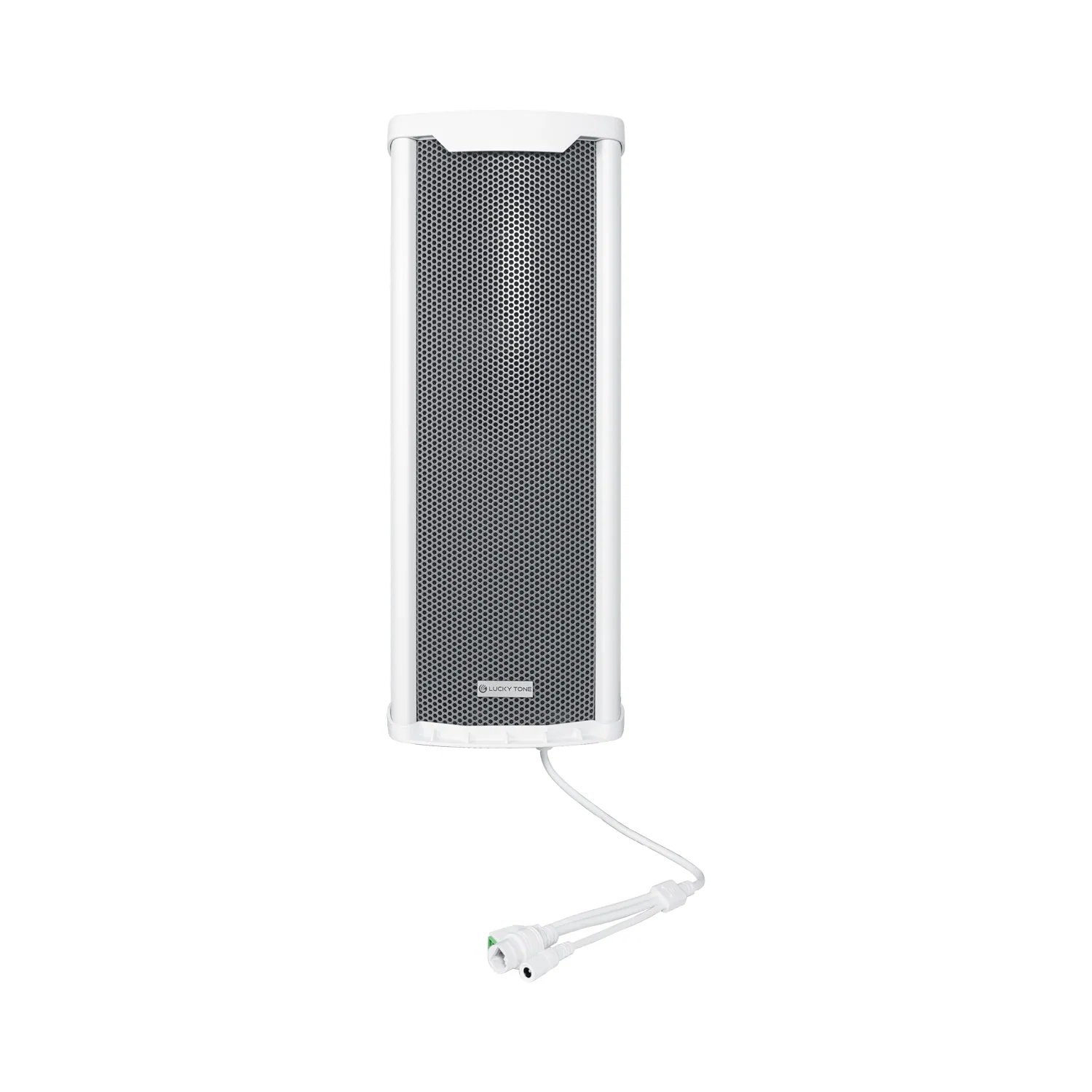

Lucky Tone Waterproof SIP Column Speaker IPLM-630S/IPLM-630SPOE / IPLM-660S/IPLM-660SPOE / IPLM-690S
ModelIPLM-630S/IPLM-630SPOE / IPLM-660S/IPLM-660SPOE / IPLM-690S
This series ofnetwork SIP column speakers integrate with network audio decoding, digital amplifier
- Output power
- IPLM-630S/IPLM-630SPOE: 30W@8ohm; IPLM-630S/IPLM-630SPOE: 30W@8ohm; IPLM-660S/IPLM-660SPOE: 60W@4ohm; IPLM-660S/IPLM-660SPOE: 60W@4ohm; IPLM-690S: 90W@2.7ohm
- Frequency response
- 90Hz-18KHz
- Power supply
- IPLM-630S/IPLM-630SPOE: 24V DC / 24V DC or PoE; IPLM-630S/IPLM-630SPOE: 24V DC / 24V DC or PoE; IPLM-660S/IPLM-660SPOE: 24V DC / 24V DC or PoE; IPLM-660S/IPLM-660SPOE: 24V DC; IPLM-690S: 24V DC
- Weight
- IPLM-630S/IPLM-630SPOE: 3.5kg; IPLM-630S/IPLM-630SPOE: 5.0kg; IPLM-660S/IPLM-660SPOE: 5.0kg; IPLM-660S/IPLM-660SPOE: 5.9kg; IPLM-690S: 5.9kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Waterproof SIP Column SpeakerPrice on requestRequest a quotation

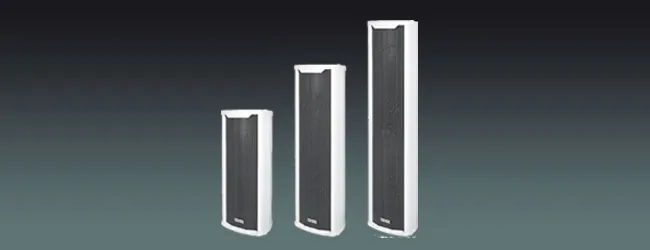

01Models5 models in the family
Models compared.
| Model | IPLM-630S/IPLM-630SPOE | IPLM-630S/IPLM-630SPOE | IPLM-660S/IPLM-660SPOE | IPLM-660S/IPLM-660SPOE | IPLM-690S |
|---|---|---|---|---|---|
| Rated Power | 30W@8ohm | 30W@8ohm | 60W@4ohm | 60W@4ohm | 90W@2.7ohm |
| Speaker Sensitivity | 90±2dB | 90±2dB | 91±2dB | 91±2dB | 92±2dB |
| Speakers | 3″ x1, 5″x1 | 3″ x1, 5″x1 | 3″ x1, 5″x2 | 3″ x1, 5″x2 | 3″ x1, 5″x3 |
| Network Protocol | SIP | SIP | SIP | SIP | SIP |
| Network Interface | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 | 10/100Base-TX, RJ45 |
| Audio Decoding | MP3, WMA, WAV | MP3, WMA, WAV | MP3, WMA, WAV | MP3, WMA, WAV | MP3, WMA, WAV |
| Frequency Response | 90Hz-18KHz | 90Hz-18KHz | 90Hz-18KHz | 90Hz-18KHz | 90Hz-18KHz |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Power Supply | 24V DC / 24V DC or PoE | 24V DC / 24V DC or PoE | 24V DC / 24V DC or PoE | 24V DC | 24V DC |
| Product Size | 428x170x148mm | 577x170x148mm | 577x170x148mm | 733x170x148mm | 733x170x148mm |
| Net Weight | 3.5kg | 5.0kg | 5.0kg | 5.9kg | 5.9kg |
02DescriptionManufacturer's description
What it is.
- With a standard RJ45 network interface and supports online firmware upgrade from long distance
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
- IP65water-proof column speaker available at 30W, 60W and 90W
- Support MP3, WMA, WAV and more decoding
- Model with suffix “POE” means powered over Ethernet

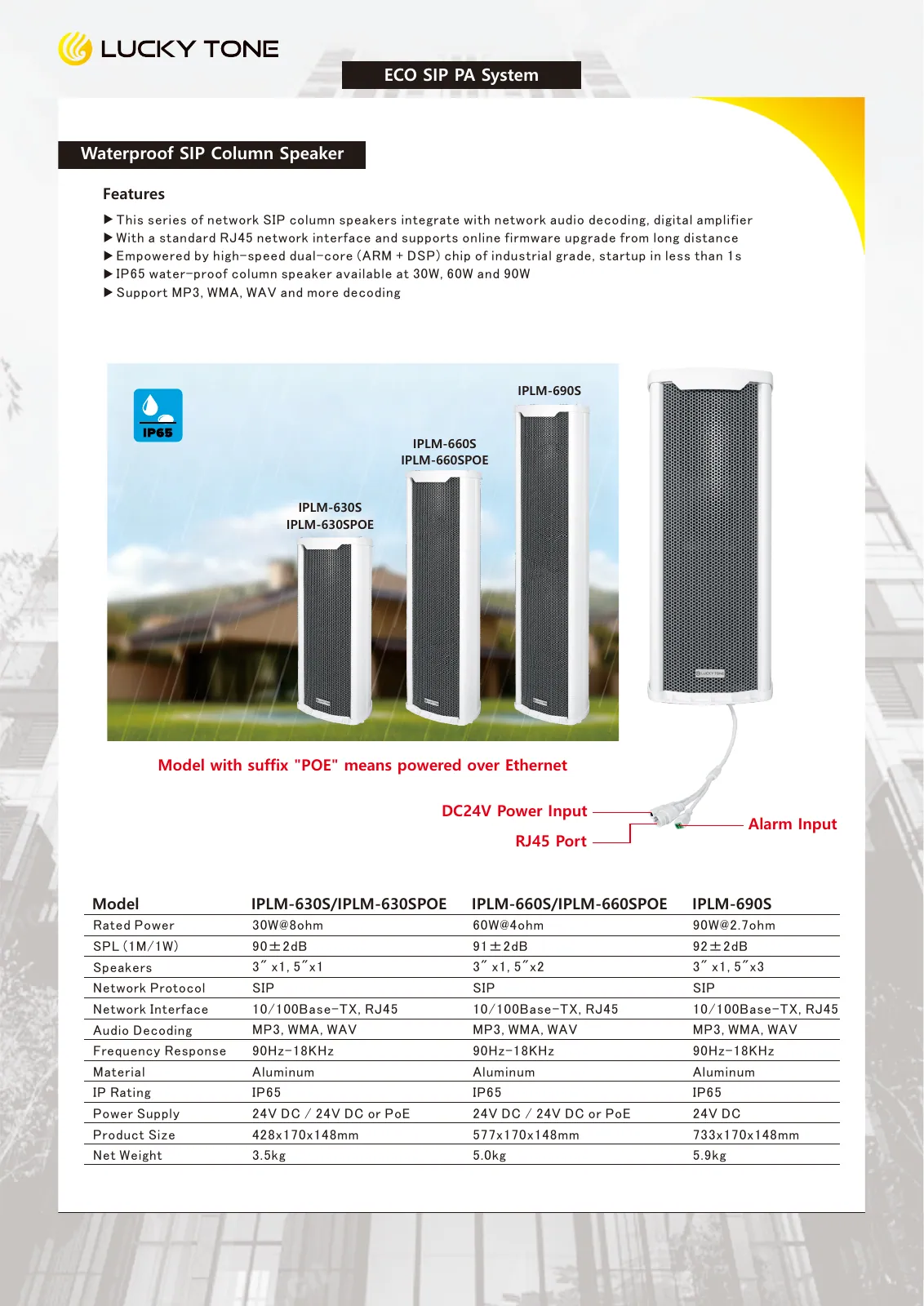

03Documents1 file · 4.8 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
