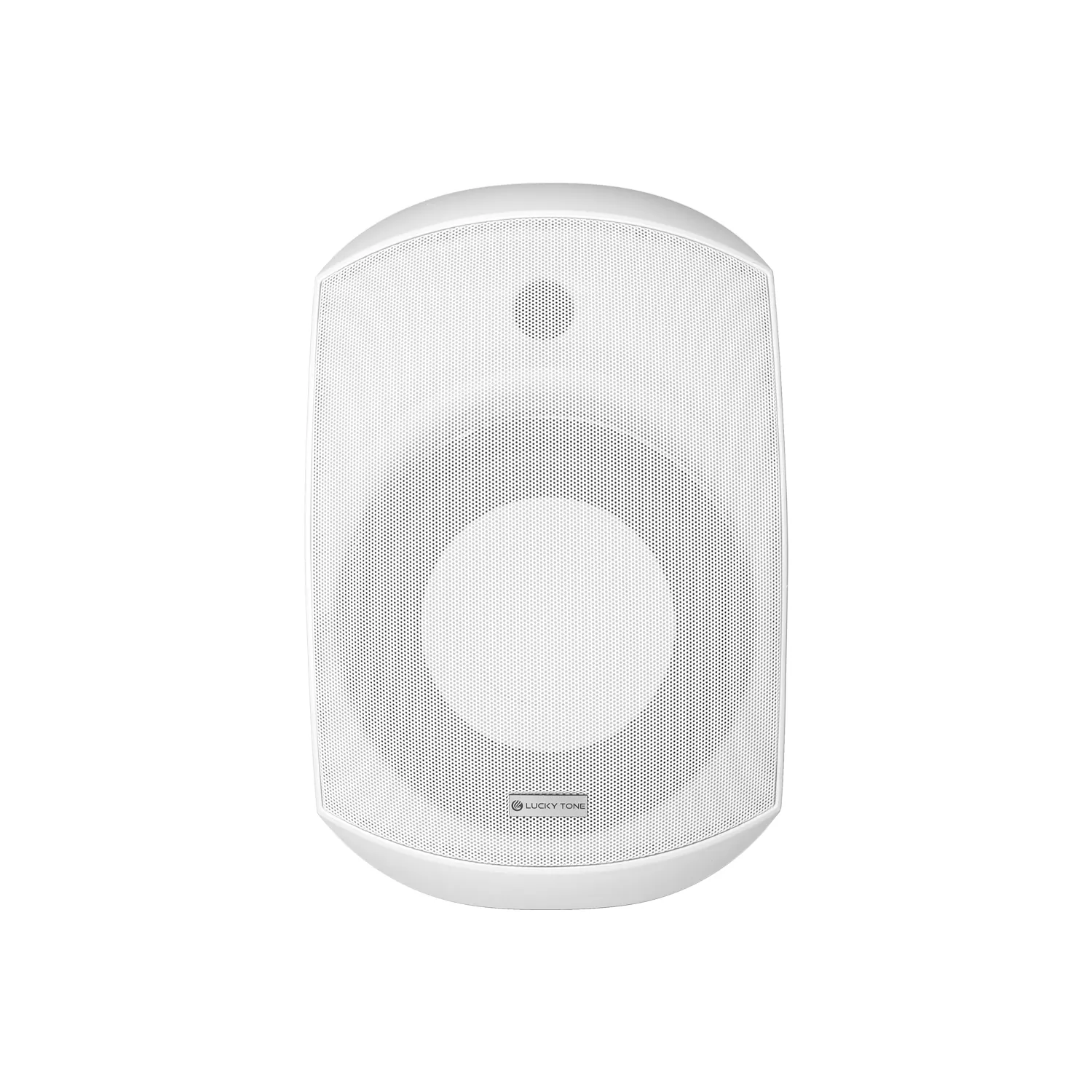

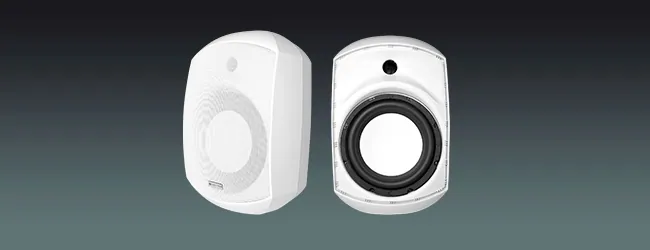

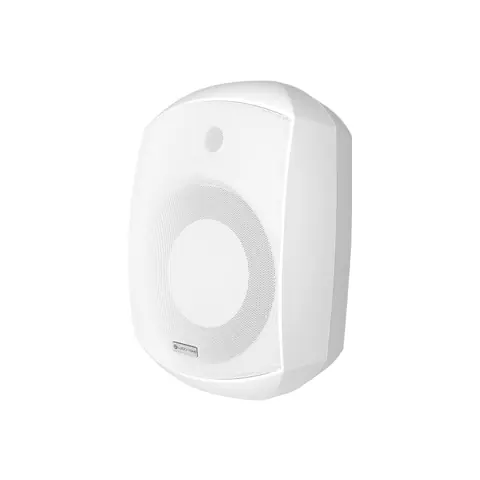

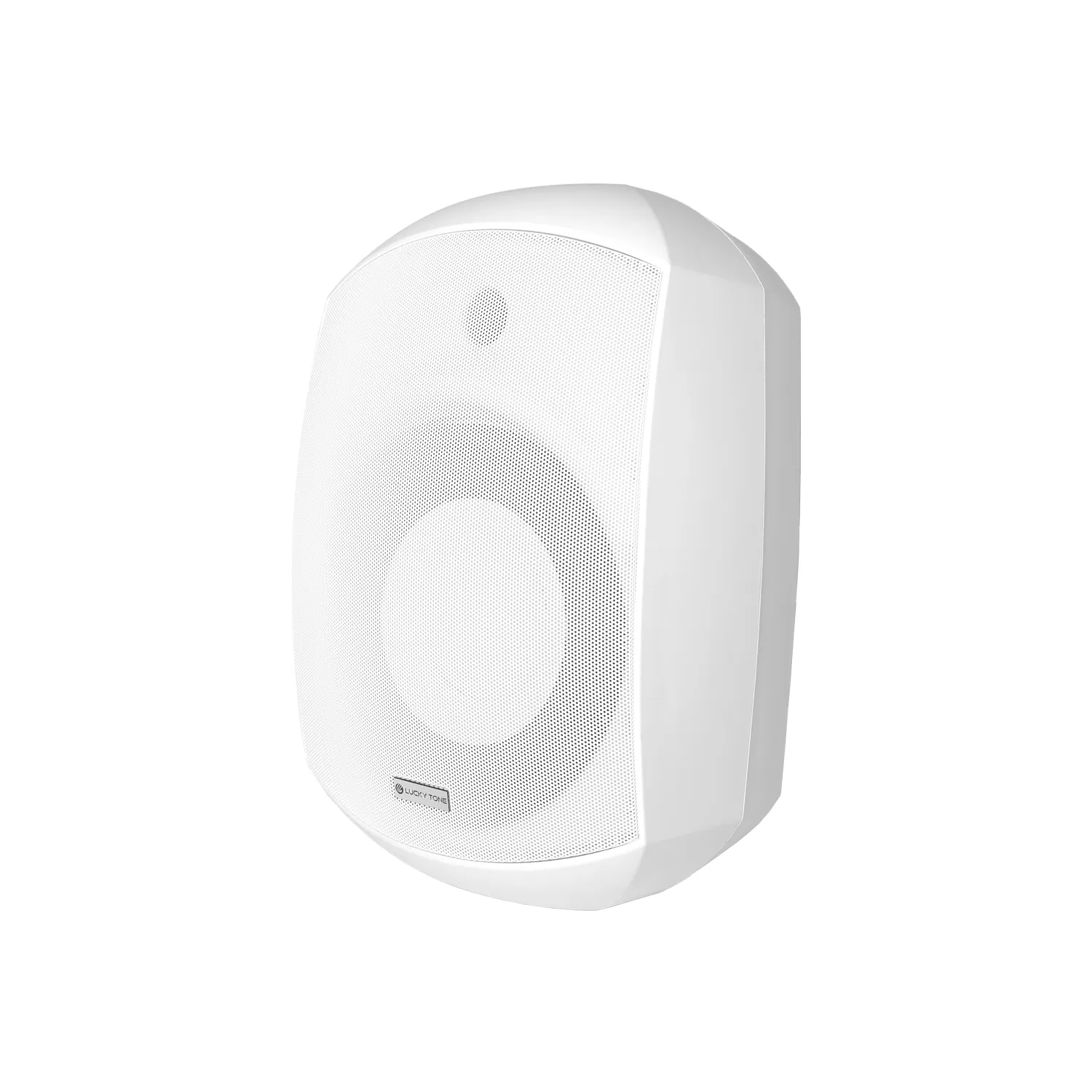

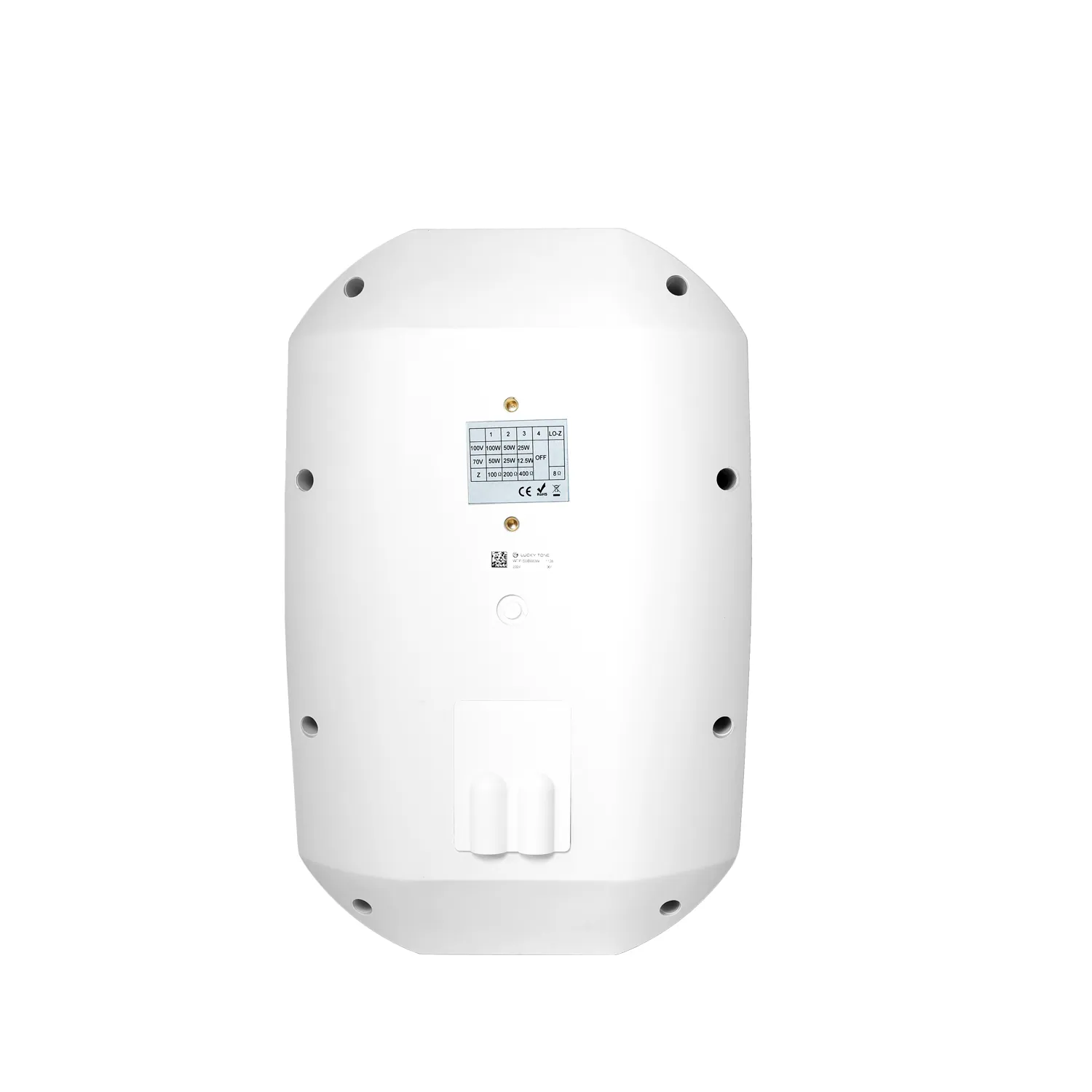

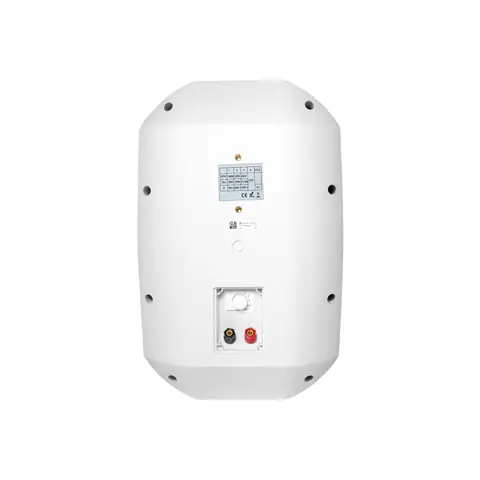

Indoor Wall Mount Subwoofer

ModelWTP-SUB880W/WTP-SUB880B

Indoor wall mount speaker for music and speech

Weight: 4.9kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 14 values

What this product is, in numbers.

PDFSpecifications4.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

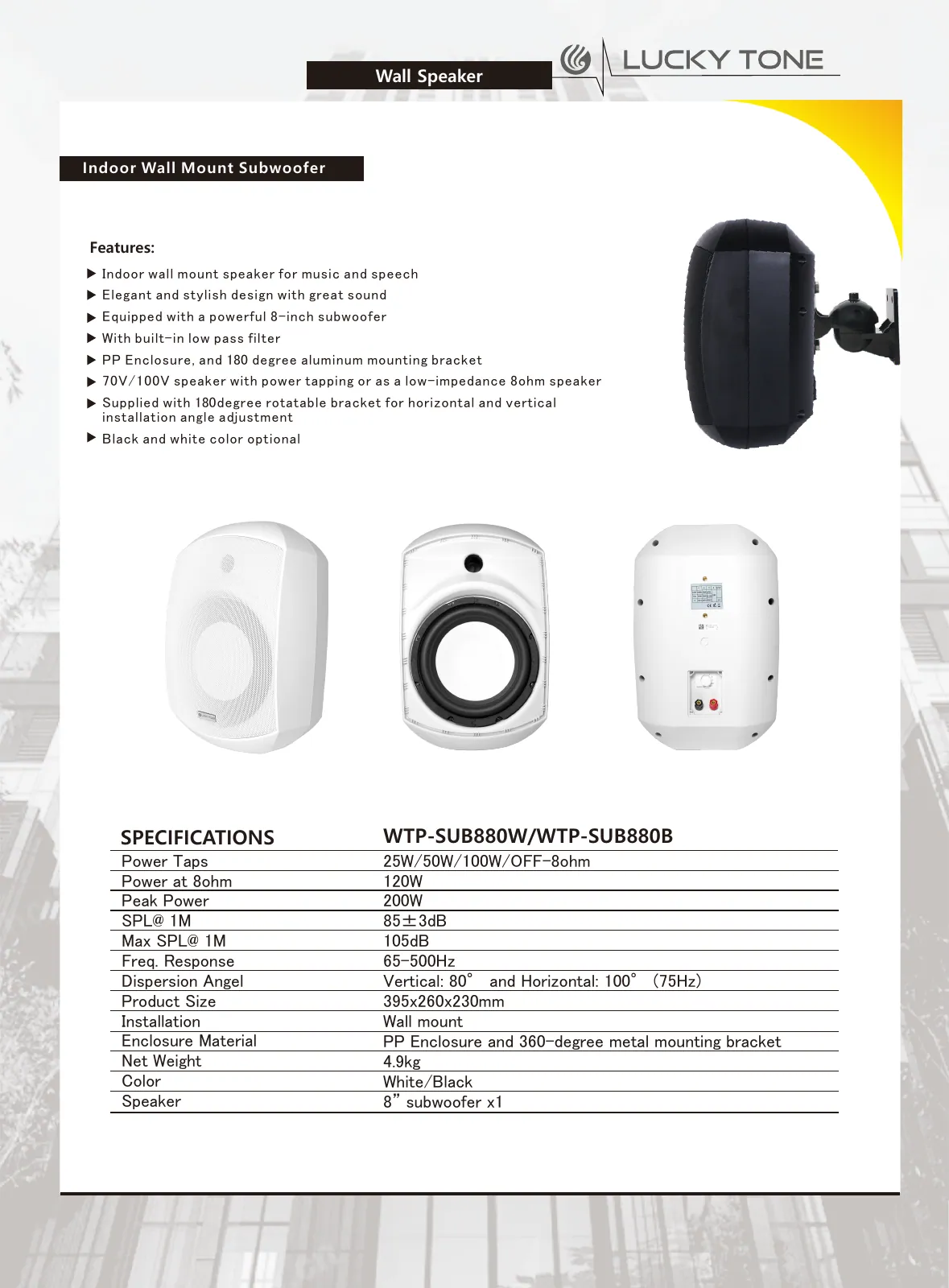

01Specifications14

Model: WTP-SUB880W/WTP-SUB880B

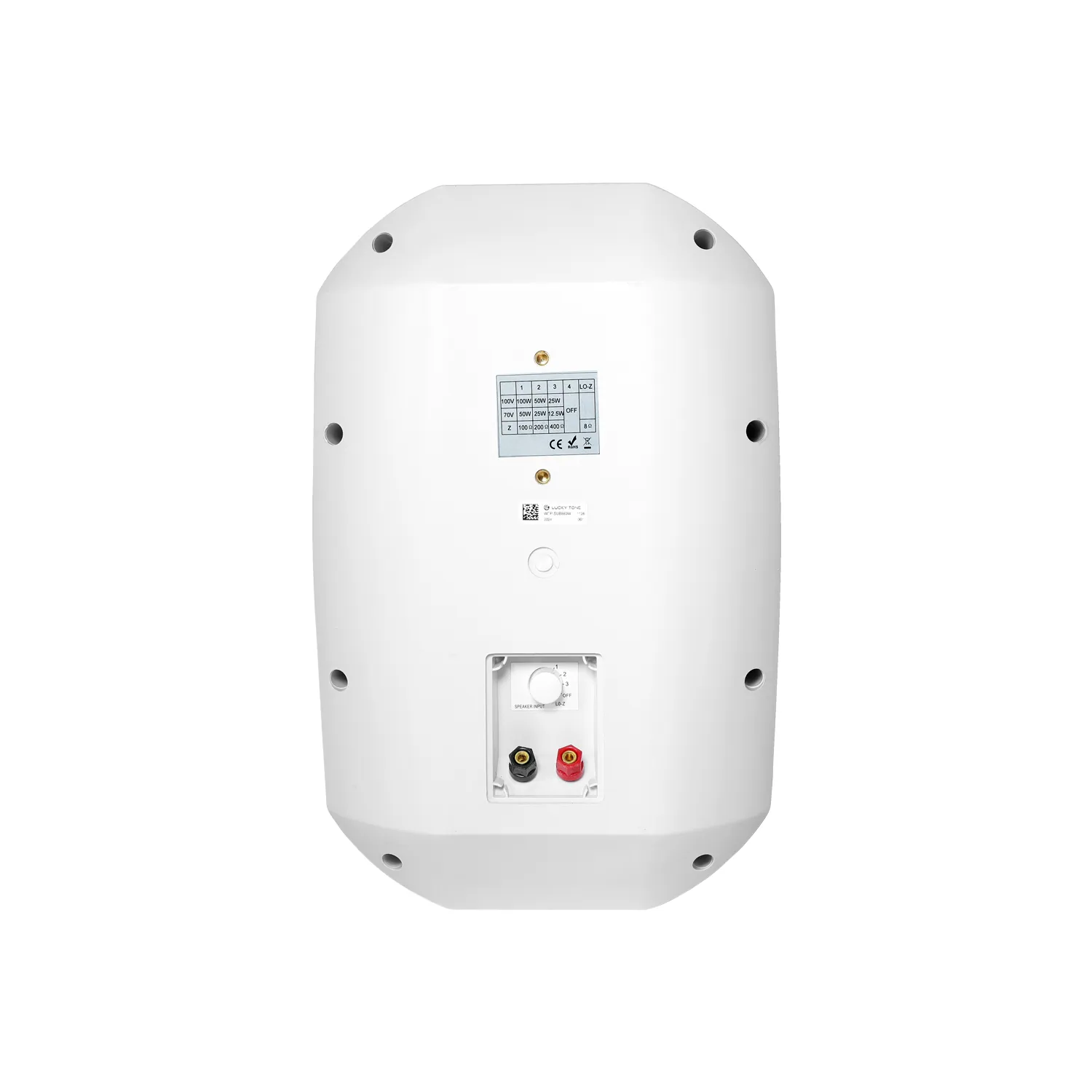

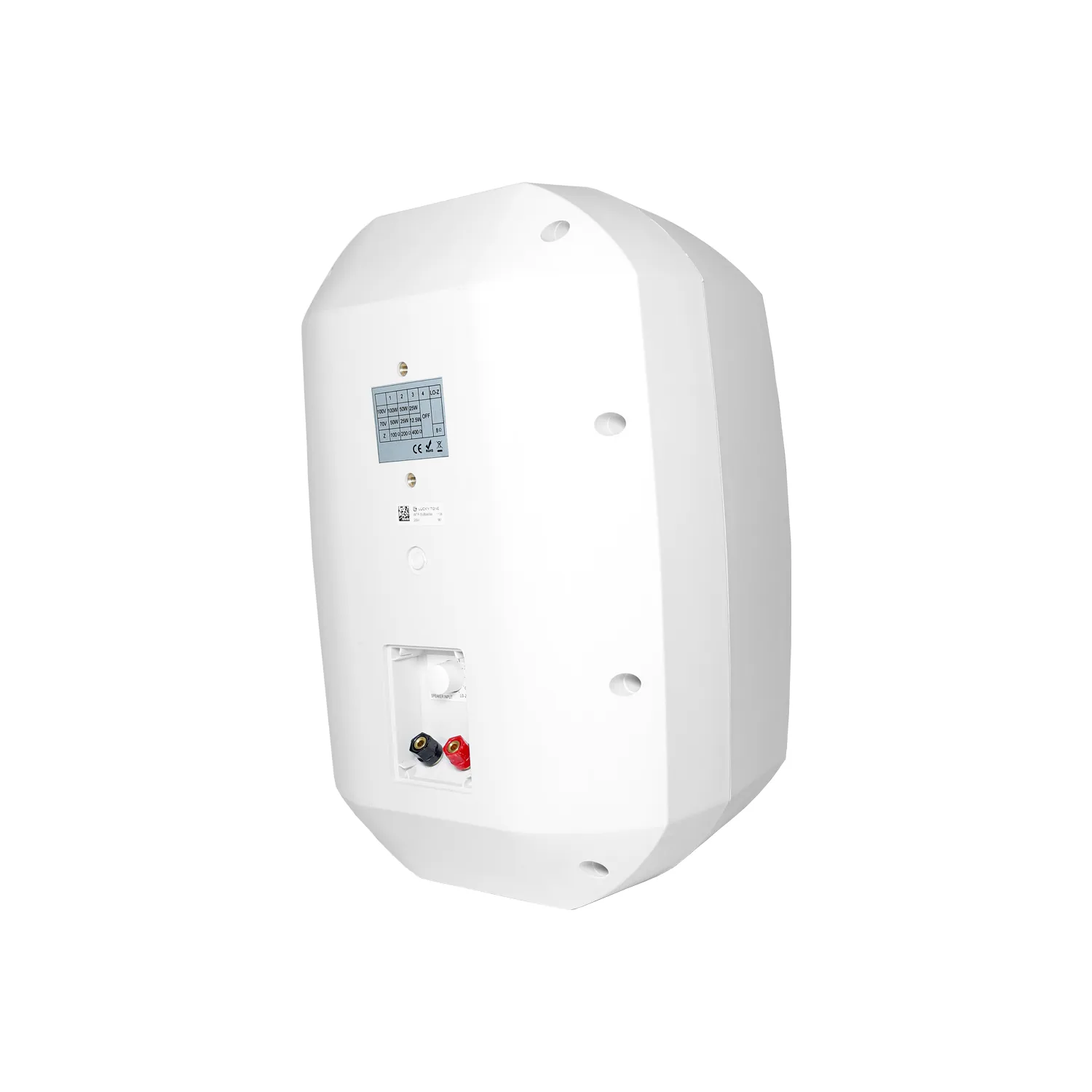

Power Taps: 25W/50W/100W/OFF-8ohm
Power at 8ohm: 120W
Peak Power: 200W
SPL@ 1M: 85±3dB
Max SPL@ 1M: 105dB
Freq. Response: 65-500Hz
Dispersion Angel: Vertical: 80° and Horizontal: 100° (75Hz)
Product Size: 395x260x230mm
Installation: Wall mount
Enclosure Material: PP Enclosure and 360-degree metal mounting bracket
Net Weight: 4.9kg
Color: White/Black

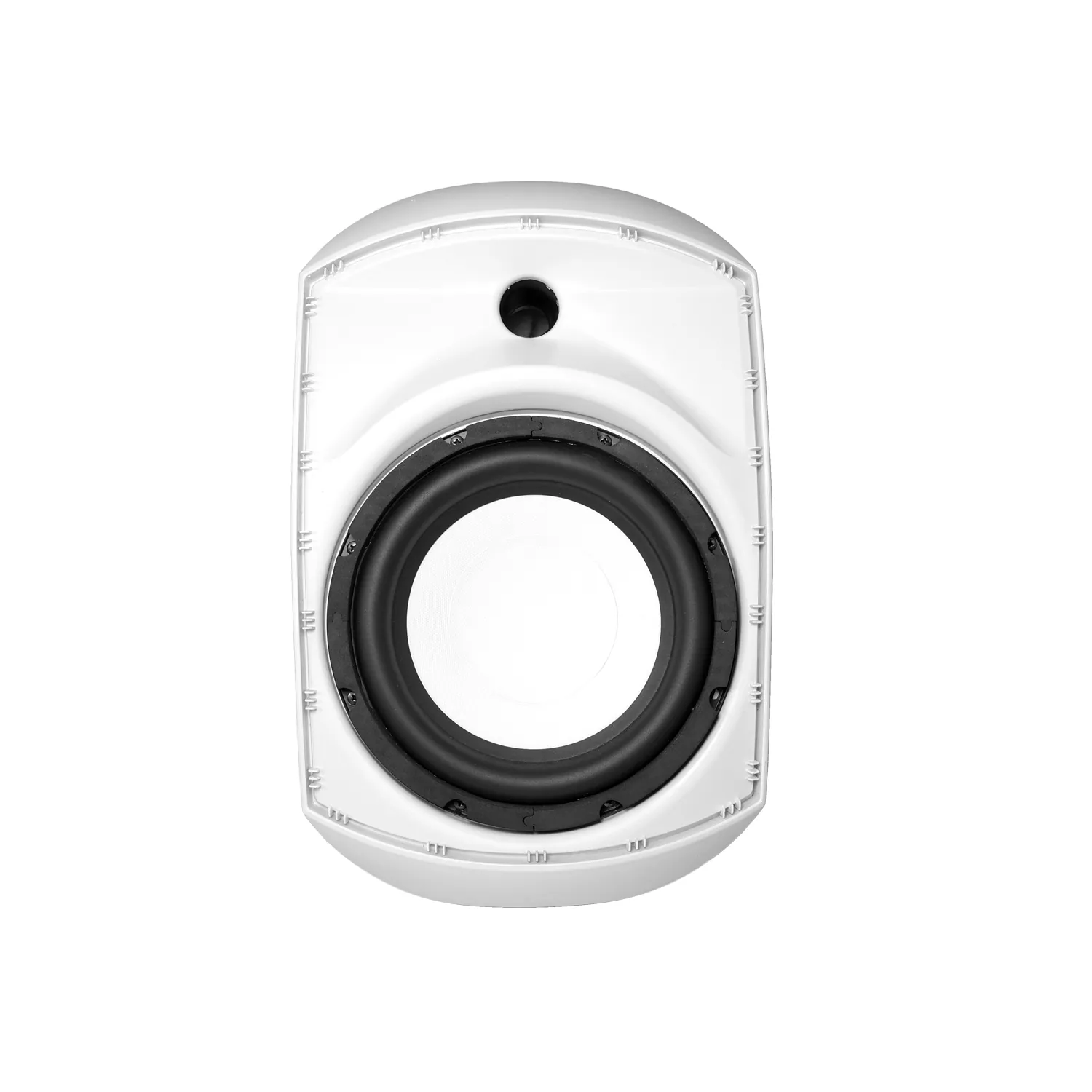

Speaker: 8” subwoofer x1

02DescriptionManufacturer's description

What it is.

Elegant and stylish design with great sound
Equipped with a powerful 8-inch subwoofer
With built-in low pass filter
PP Enclosure, and 180 degree aluminum mounting bracket
70V/100V speaker with power tapping or as a low-impedance 8ohm speaker
Supplied with 180degree rotatable bracket for horizontal and vertical installation angle adjustment
Black and white color optional
