Sheet 05.723

PR Lighting · Hybrid fixtures

AQUA 1600-W BWSF

ModelPR-8199

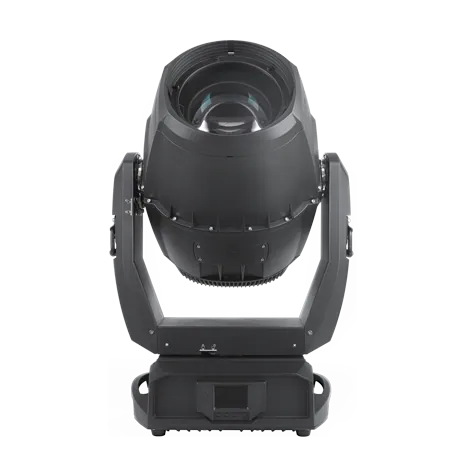

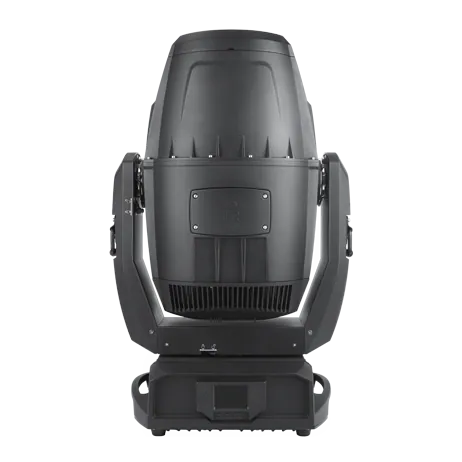

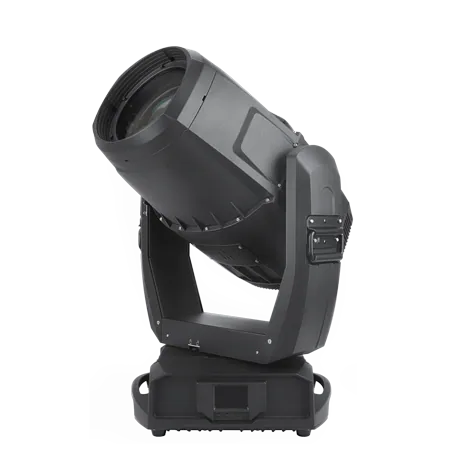

AQUA LED1600-W BWSF(Four in One) is a moving head fixture using 700W LED white engine as its light source.

Light source: 700W, White LED module
Power consumption: 850W @ 220V
Power supply: 100V~240V AC,50/60Hz
Colour temperature: 8000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:39

PR Lighting AQUA 1600-W BWSF2:39

02SpecificationManufacturer's data · 25 groups · 69 values

What this product is, in numbers.

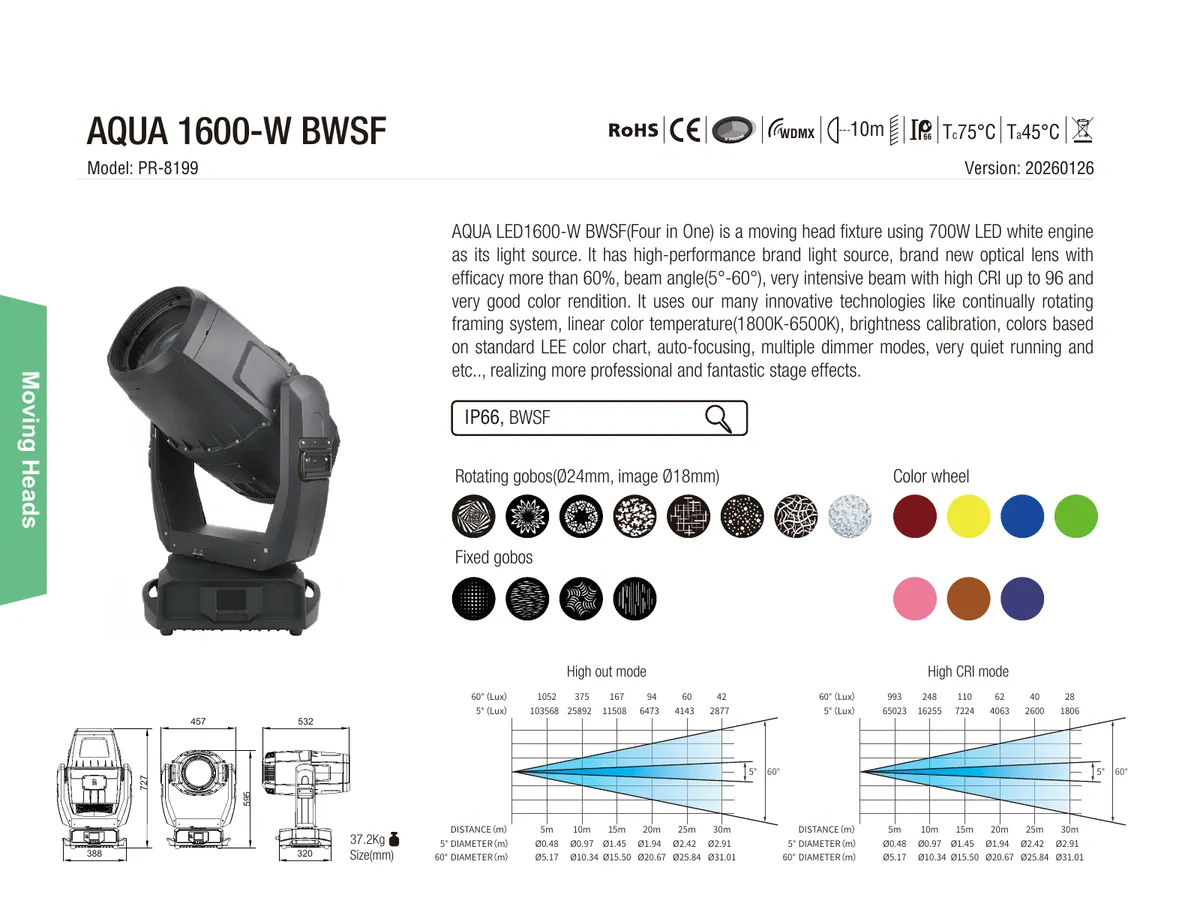

PDFDatasheetEN · 2 pages · 447 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS4

Input voltages: 100V~240V AC,50/60Hz
Input Power: 850W @ 220V
Power factor: PF〉0.95
Max. Current: 3.9 A @ 220V

02LIGHT SOURCE SPECIFICATIONS(5

Yellow)
Power consumption: 700W, White LED module
Color Temperature: 8000K
Manufacturers Rated Lamp Life: >20000hour
CRI: Ra≥70 (For high CRI version : Ra≥96,R9≥95)

03CTO1

Linear CTO system(0-100%, 1800K-6500K)

04FRAMING3

1 Framing Module: 4 Framing Blades; Framing Module continual rotation with many graphics of different sizes and shapes; 4 Framing blades to make full curtain effect

05ANIMATION EFFECTS1

Bi-directional rotation at variable speeds

06IRIS1

5-100% linear with macros

Show the full specificationHide the rest of the specification19 more groups · 54 values

07PRISM1

1pc, 3-facet circular prism, bi-directional rotation at variable speeds with indexing function

08FROST1

1 frost filter ,0-100% linear

09BEAM ANGLE1

5°~60°,linear with 16 bit control

10FOCUS1

DMX linear with auto focus function

11DIMMER4

Linear electronic dimmer 0-100% with 16 bit control

3 dimmer speeds

4 dimmer curves

Dimmer frequency(1.2K-25K) good for 4K high speed video camera

12STROBE1

Electronic strobe 0.3~25 Hz, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds

13HEAD MOVEMENT3

Pan 540º, 16 bit control

Tilt 270º, 16 bit control

Auto position correction

14Advanced macros2

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K
Standard color macros: 89 color options based on standard color chart.

15IXED TYPES4

Including moving head light, fixed-focus profile light, zoom profile light

Moving head light with beam angle range(5-60°)

Fixed focus profile light with beam angle options including 5°,10°,19°,26°,36°,60°

Zoom profile light with beam angle ranges including 5-15°,15-35°,35-60°

16AN MODE1

Standard mode and theater modes. Theater mode is quiet mode

17RIGHTNESS CALIBRATION FUNCTION2

With brightness calibration function to calibrate initial brightness for a single fixture or multiple ones and store brightness

values into the fixtures

18MODE1

Running at high CRI mode via DMX channel to ensure high CRI optical effect.

19CONTROL6

International standard DMX512 signal and RDM function

40channels in short mode, 46channels in standard mode,59channel in extended mode

Art Net protocol(optional) , sACN protocol(optional), DMX512 wireless control

Master/Slave mode

Standalone mode

Master Mode

20CONTROL INTERFACE2

DMX512 ports(5-pin)

Ethernet port RJ45

21OTHER FUNCTIONS11

Adjustable Pan & Tilt speeds

Pan and Tilt invertible and swappable

LED engine’s and fixture’s hours and firmware versions displayed

Intelligently controllable fans

Sensor diagnostic system

Input signal isolated

Modular construction for easy maintenance

DMX channel voltages monitoring

Non-touchable magnetic sensor for positioning, signal feedback, absolute position memory, auto-positioning after power-off or DMX signal disrtuption

Firmware upgrade via DMX cable

Optional ethernet port

22HOUSING1

High temperature and fire resistant ABS, IP66

23NET WEIGHT1

37.2Kg

24AMBIENT TEMPERATURE2

Temperature at maximum 45°C
【Version: 20260126】

25General9

CMY color mixing system with macros
1 Color wheel: 7colors+ Open,; Half color , bi-directional rainbow effect at variable speeds,; Stepping/linear color changing
1 Rotating gobo wheel: 8Rotating Gobos +Open; Bi-directionally rotatable, and shakable at variable speeds; Gobo Replaceable
1 fixed gobo wheel: 4 fixed Gobos + Open; Bi-directionally rotatable, and shakable at variable speeds

03DescriptionManufacturer's description

What it is.

AQUA LED1600-W BWSF(Four in One) is a moving head fixture using 700W LED white engine as its light source. It has high-performance brand light source, brand new optical lens with efficacy more than 60%, beam angle(5°-60°), very intensive beam with high CRI up to 96 and very good color rendition. It uses our many innovative technologies like continually rotating framing system, linear color temperature(1800K-6500K), brightness calibration, colors based on standard LEE color chart, auto-focusing, multiple dimmer modes, very quiet running and etc.., realizing more professional and fantastic stage effects. It is with ingress protection up to 66 for all-weather applications in places like landscape, cultural tourism ,TV studios, theatres, performing stages and entertainment.
